Qt12-15 Hydraulic Paving Block Machine Full Automatic Block Machine

Linyi Raytone Machinery Imp&Exp Co., Ltd.
  • Warranty：One Year
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydraulic Pressure
  • Vibration Frequency：0-60Hz

Base Info

  • Model NO.：QT12-15
  • Exciting Fore：100kn
  • Host Machine Matched Power：66kw
  • Main Vibration Form：Platform Vibration
  • Moulding Cycle：15-20s
  • Pallet Size：1420*900mm
  • Control Mode：PLC Full-Automatical Control
  • Raw Material：Cement
  • Transport Package：Suitable for Sea Transport
  • Specification：8200*2600*3020mm
  • Trademark：Roytone machinery
  • Origin：Shandong, China(Mainland)
  • HS Code：8474802000
  • Production Capacity：50 Set,Sets Per Month

Description

Main Technical Specifications:Overall Dimension8200×2600×3020(mm)Rated pressure21MPamoulding modeload material automatically ,vibration mouldingAcceleration of vibration15-20gMoulding cycle15-20sVibrating Frequency0-60HZExciting force100KNHost machine matched power66KWPallet Size1420*900*25(mm)Weight14.5TControl modePLC full-automatical controlRaw Materialscrushed stone, sand, cement, dust and coal fly ash, cinder,
slag, gangue, gravel, expanded perlite, and other industrial wastesApplied Productsconcrete blocks, solid/hollow/cellular masonry products,
paving stones with or without face mix,
 garden and landscaping products,
slabs, edgers, kerbstones, grass blocks,
slope blocks, interlocking blocks, etc.

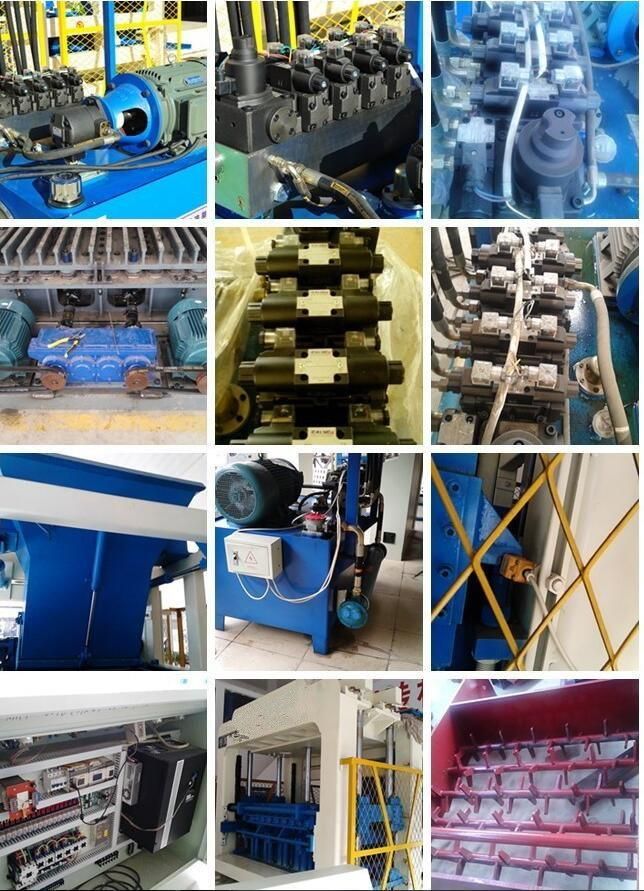

Theoretical Production CapacityProductivity:Brick StyleSize mmCycle moldingQTY/MouldPer hourPer 8 hoursHollow brick 400*200*20015--20S122160~2880pcs17280-23040pcsHollow brick 400*200*15015--20S152700-3600pcs21600-28800pcsHollow brick 400*200*10015--20S213780-5040pcs30240-40320pcsColor paving220*110*5020--25s426050~7500pcs48400-60000pcsSolid block240*115*5315-17s7011850~13440pcs94800-107520pcsDetailed pictures
Qt12-15 Hydraulic Paving Block Machine Full Automatic Block Machine

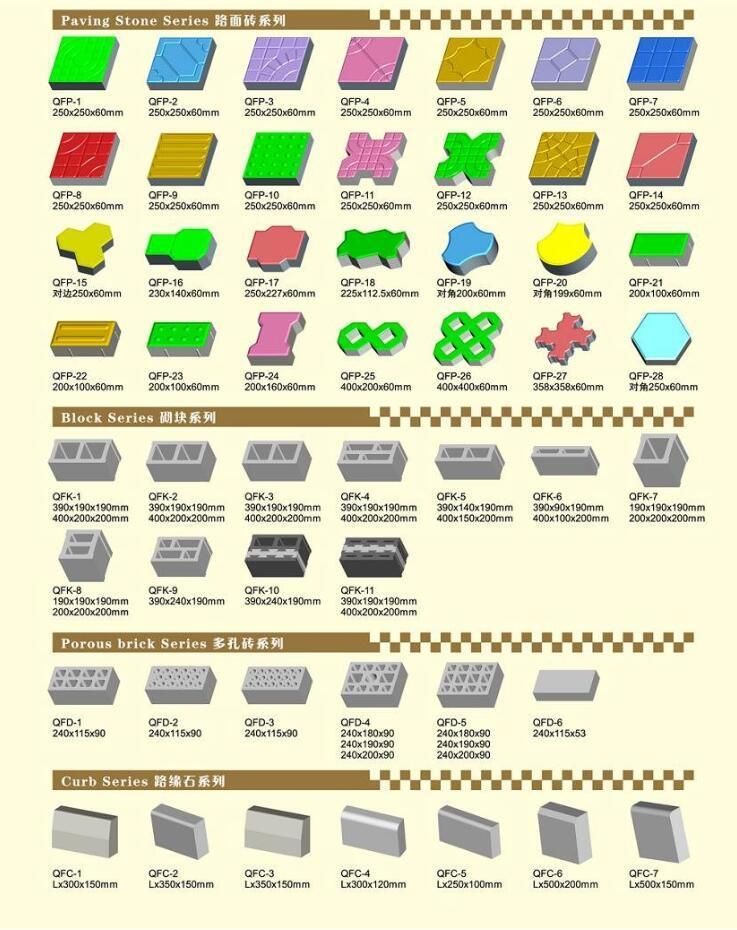

Brick Products Sample
Qt12-15 Hydraulic Paving Block Machine Full Automatic Block Machine
