Construction Machinery German Technology Automatic Concrete Block Making Machine Brick Machine Paver Making Machine
Quanzhou Hawen Machinery Co., Ltd.- Certification：ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Vibration Molding
- Hollow Block 40X15X20cm：12 PCS Per Drop
- Vibration：Servo Motor Vibration
Base Info
- Model NO.：QT10-15
- Pallet Size：1100-1150 X 950mm
- Rectangle Paver：36PCS Per Drop
- Weight of Main Machine：12ton
- Color of Machine：Blue &White or Grey&Yellow or Customized
- Paver Strength：30-50MPa
- Labor Required：4-5 Labors
- Factory Area：4000-5000 Square Meters
- Plant Power：110kw Including Batching Machine and Mixer
- Size of Workshop：500 Square Meters
- Transport Package：Standard Ocean Packing
- Trademark：HAWEN
- Origin：China
- HS Code：8474809090
- Production Capacity：300 Sets, Year
Description
Main Technical Specifications for Supreme HWG-1000 Block Making Machine Motors Power: 51KW For Main forming machine parts only Machine Dimensions: 9800x2300x2800mm Cycle times: 13~22s Vibration: Motor Vibration Vibration Frequency: 2800~4500rmp Pallet Size: 1100x950mm Gross Weight: About 12T Raw Materials: Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes Applied Products: Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. Applied Fields: Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions

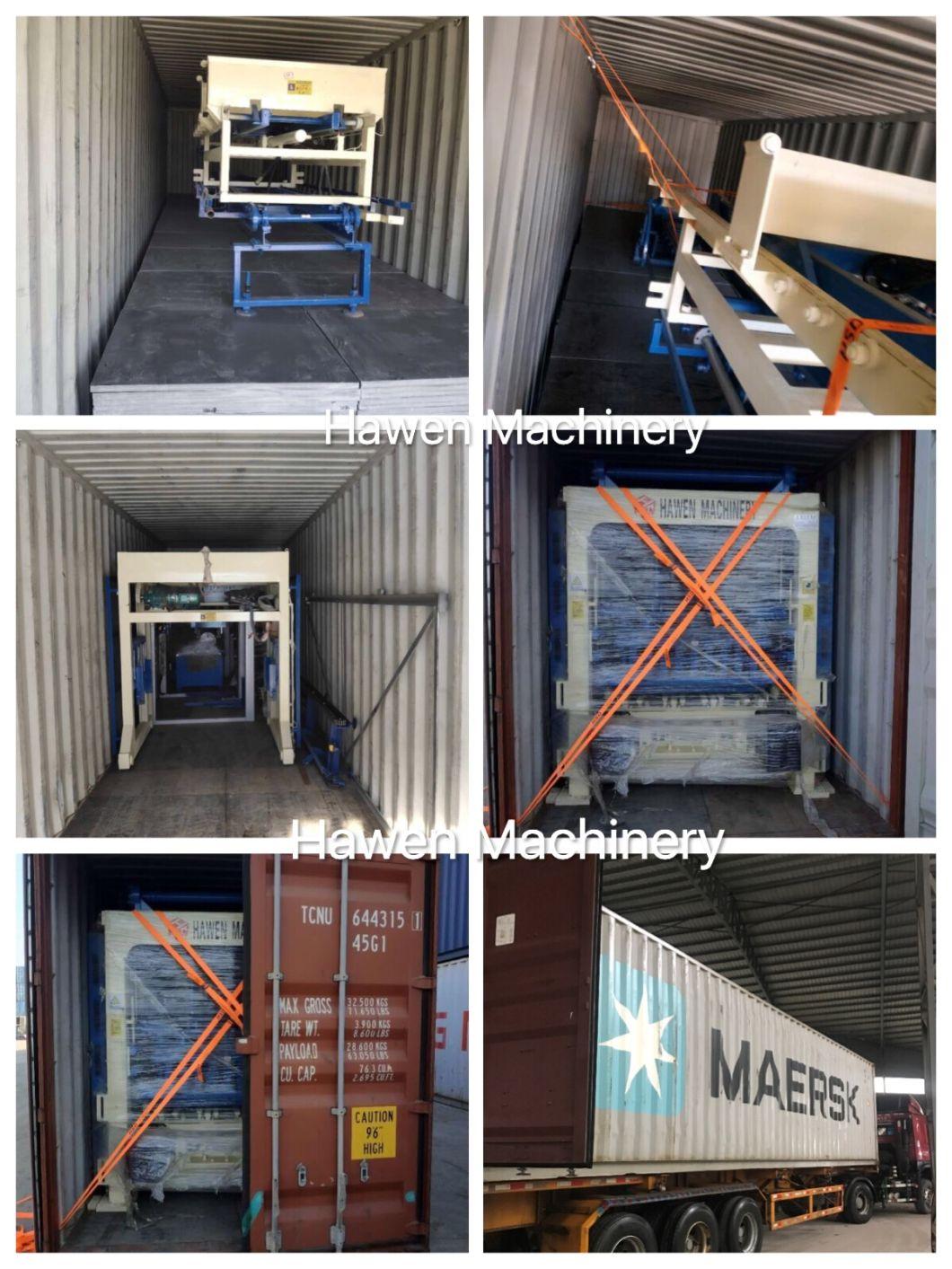

Container loading for HWG-1000 Servo vibration block making machine,all the equipments being fasten well in the container to be suitable for long-distance sea transportation.
Application of HWG-1000 Servo vibration block paver making plant on site .It allows to make the hollow block,paver,curb stone by changing the mouds only.

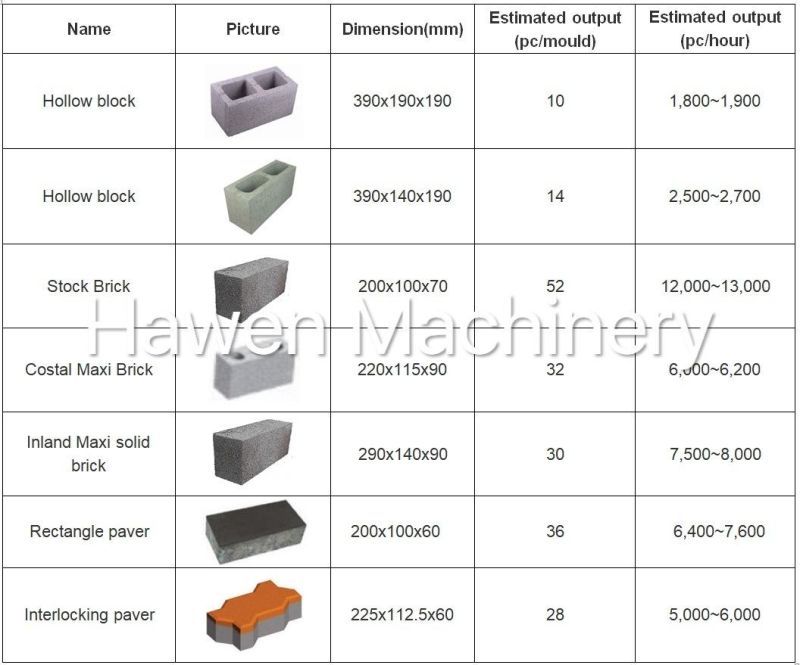

Hollow block,Solid block,Rectangle Paver,Interlocking Paver made by our HWG-1000 Servo vibration block making machine at site .

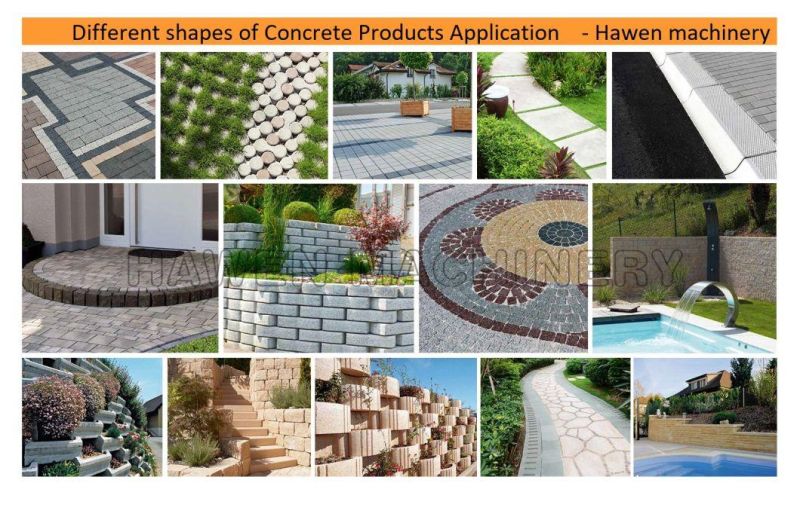

Application of concrete products :

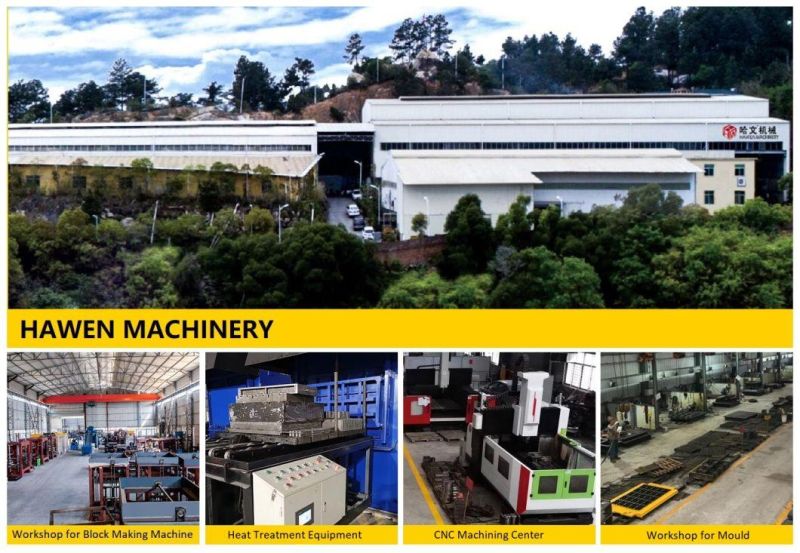

Hawen Machinery Workshop overview
Our Certificate
FAQ
1. How many square meters required to set up a block factory?
Answer:Generally,the whole factory requires 5000 square meters, including the recommended workshop to cover the equipments at 500 square meters,equipments are suggested to keep under the shed.
2.What kind of material can be used to produce concrete block?
Answer:Crushed stone(Max.10mm),sand and Cement as raw material, coal fly ash, cinder, slag,gangue, gravel, and other industrial wastes.And if customer makes the top colored paving stone,then the face material of fine sand and white cement and pigmen are required.
3.Can I get the warranty for the machine?
Answer:The warranty for the machine is one year after installation or 15 months after shipment,whichever comes first.Spare parts will be sent to customers for free of charge during the warranty period. Warranty does not cover the wearing parts, in cases of incorrect handling, improper user, insufficient maintenance, unauthorized service or modifications to the machine, normal wear .
4.What is the delivery time?
Answer:The delivery time is 30-40 days upon receiving the down payment and mould drawing approval from customer.
5. What about your payment terms?
Answer:T/T and L/C are acceptable.
Generally,it requested to pay 30% as depoist by T/T before production, and the balance to be paid by T/T or Irrevocable,Confirmed LC at sight before shipment.
6.How to prepare the foundation for the equipments?
Answer:The foundation drawing for the whole plant will be provided within 07 days after the order confirmed,customer could prepare the foundation construction according to the drawing provided.
7.How about the installation & commissioning ?
Answer:After the equipments arrive customer's site,and the preparation for the foundation,water & electricity are ready,we will send 1 of our technician for the installation & commissioning,the technician will train customer's staff for the operation and maintenance of equipment.
8.How about the installation cost?
Answer:We will send our technician for the installation,customer should responsiblefor all the expense and the allowance of our technician.
9.Are the machine be tested in your factory before shipment?
Answer:Yes all of our machines will be tested in our workshop before container loading.You are warmly welcome to do the inspection before shipment.
10.Can I visit your factory before placing the order and where is your factory ?
Answer:You are warmly welcome to visit our factory any time.Our factory located in Quanzhou City,Fujian Province.
The nearest airport to our factory is Jinjiang airport,which is 30 minutes to our factory by car.
How to come to your city?
Answer:You could take the international flight to Guangzhou airport first,then take the domestic flight from Guangzhou airport to Jinjiang airport,we will pick you up from Jinjiang Airport.
Or take the high speed train From Guangzhou South to Quanzhou train station.
Trust us with your project, we will provide the Optimal Concrete Products Making Solution for you all the time.
