Building Material Making Machinery

Window Machine Aluminium Cutting Saw Center

Jinan Tianchen Smart Machine Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • Automatic Grade:Automatic
  • CNC or Not:CNC
  • Voltage:Customized Value
  • Application:Automatical Window Manufacture

Base Info

  • Model NO.:LJVE-CNC-6000
  • Function:Cutting Raw Aluminium Profile to Length
  • Capacity:2300 Sqm. Per Shift

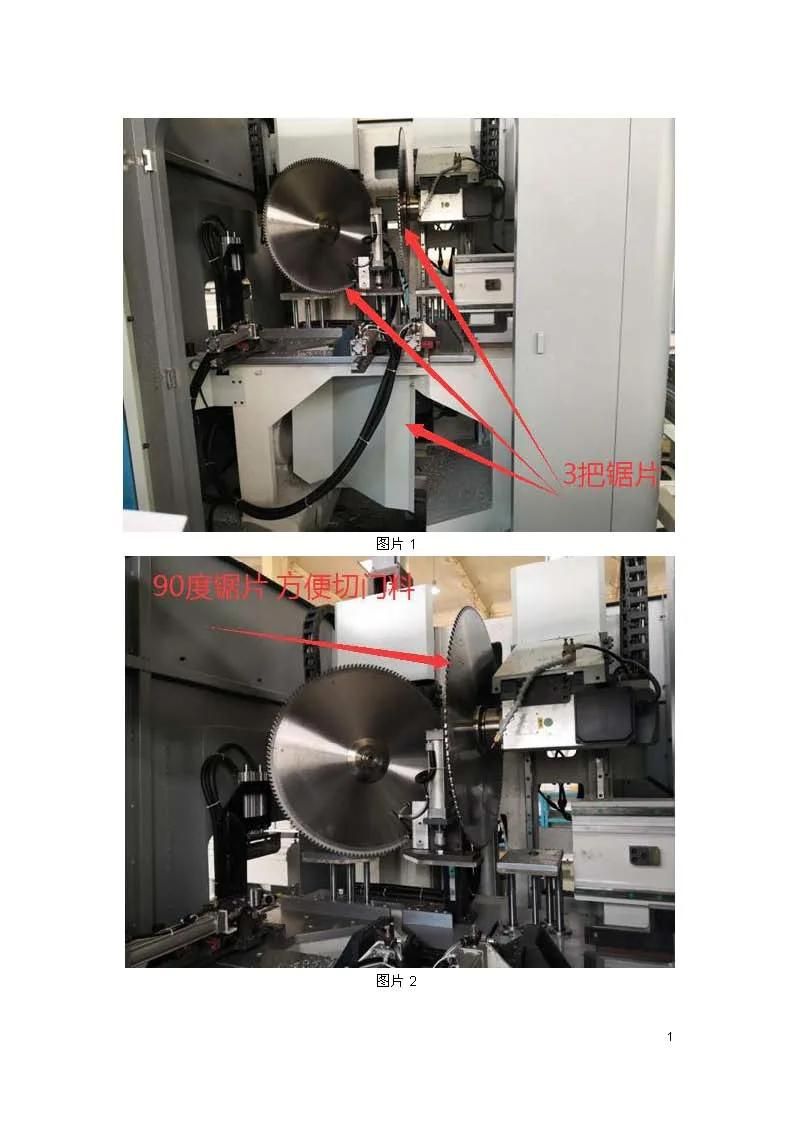

  • Sawing Blade Quantity:3
  • Cutting Angle:45 Degree and 90 Degree
  • Transport Package:Iron Pallet in Container
  • Specification:40GPx2
  • Trademark:Tianchen
  • Origin:Jinan, Shandong, China
  • HS Code:8461409000
  • Production Capacity:30 Sets Per Month

Description

Basic Info.

Model NO. LJVE-CNC-6000 Function Cutting Raw Aluminium Profile to Length Capacity 2300 Sqm. Per Shift Sawing Blade Quantity 3 Cutting Angle 45 Degree and 90 Degree Transport Package Iron Pallet in Container Specification 40GPx2 Trademark Tianchen Origin Jinan, Shandong, China HS Code 8461409000 Production Capacity 30 Sets Per Month

Product Description

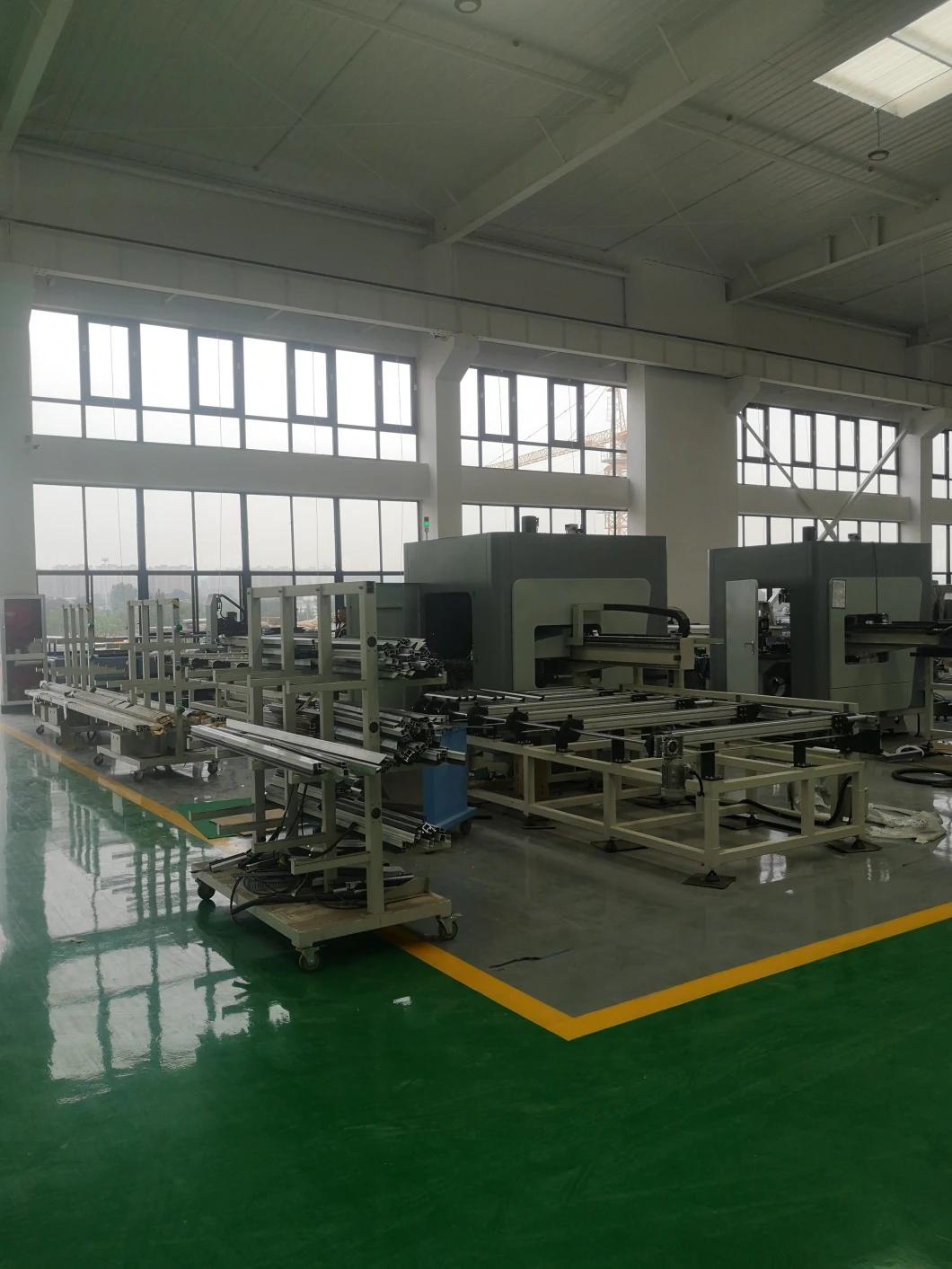

Aluminum Profile CNC Sawing Machine Center
Model LJVE-CNC-6000
 Machine Main features:
Window Machine Aluminium Cutting Saw Center

  1. It is used for high effective cutting aluminum profile at 45°or 90°.
  2. The auto worktable continuous feeding and clamping profile.

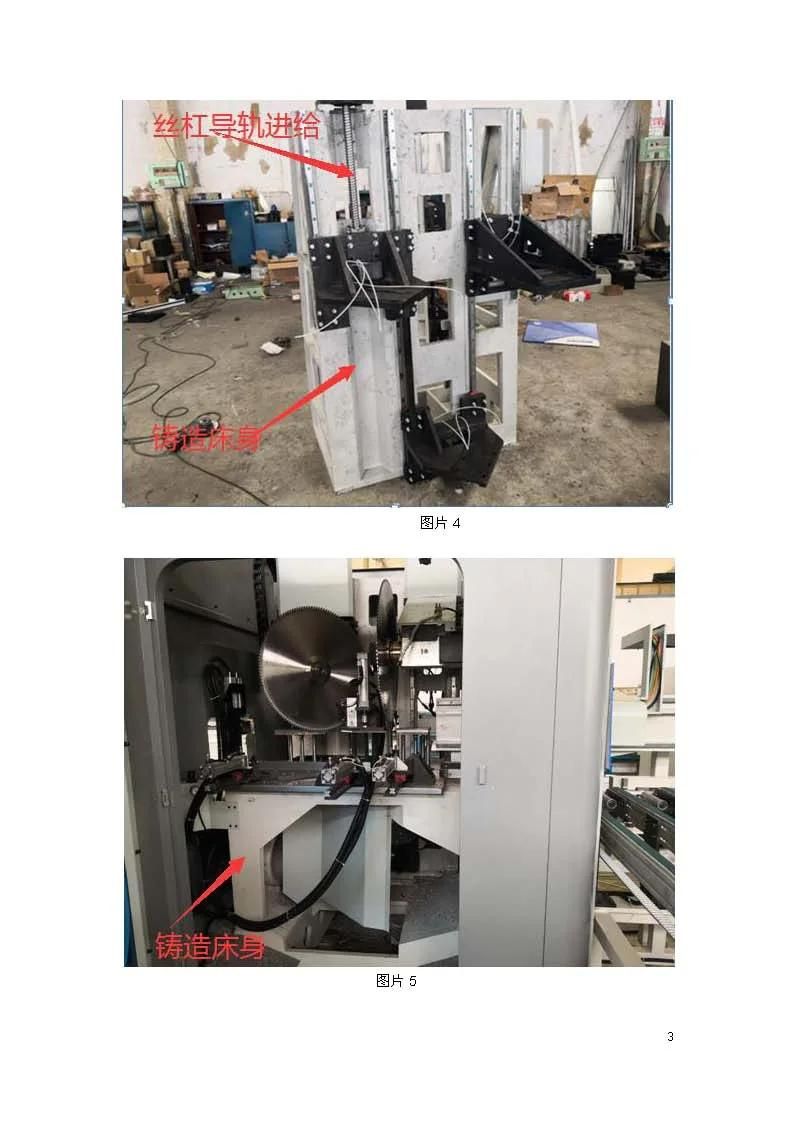

  3. It adopts high precision straight guide rail pair to ensure stability and reliable operation.

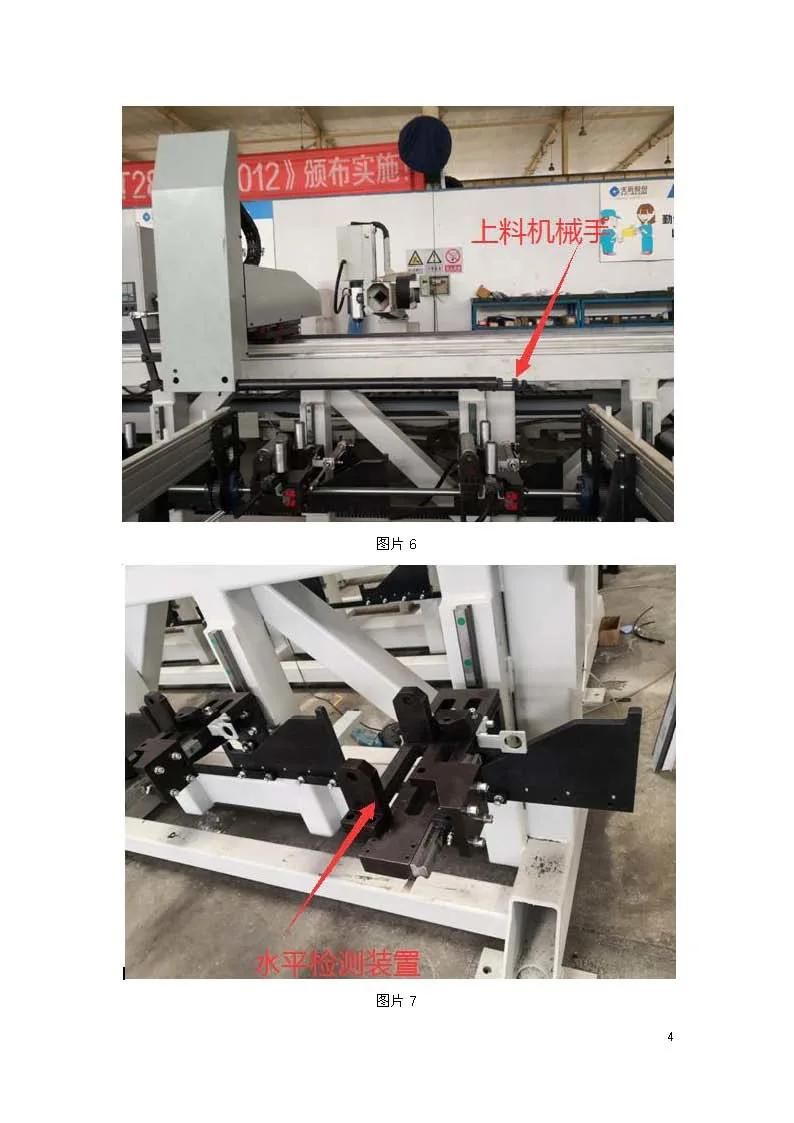

  4. Load mechanical arm adopts Siemens servo drive can reach to three axis (X, Y, Z) auto control. Imported high precision gear rack drive to ensure reliable feeding.
  5. Blade connected with imported motor. Cut smooth, steady and high precision.
  6. Siemens control system makes machine working steady and reliable.

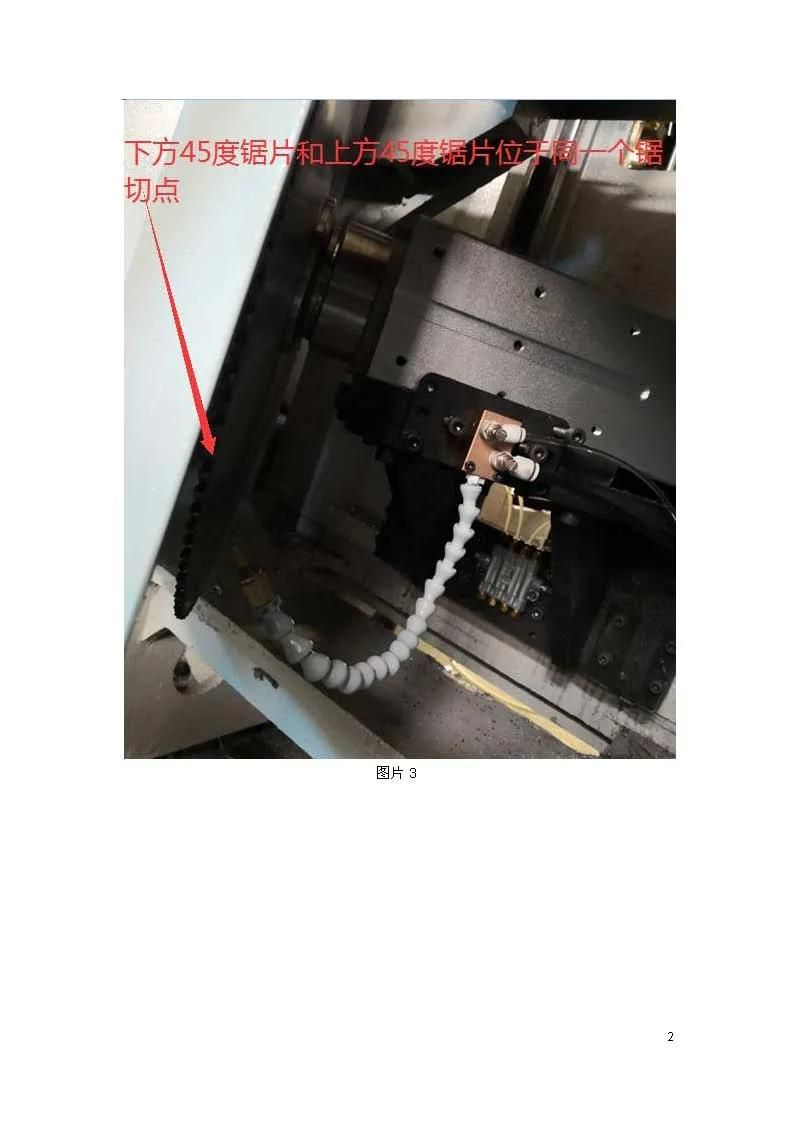

  7. It can complete the 45°cutting through up and down saw blade respectively cutting, high cutting precision, which can avoid partial breakage of profile.
  8. It can continuously complete profile ±45° or 90° cutting, high processing efficiency.
  9. Unload mechanical arm adopts servo driver, which can realize fast unloading, positioning function and be able to reach the auto output of the shortest profile 260mm.
  10. Roller linear guide pair and ball screw equipped with auto lubrication system, improve the precision and service life.
  11. Hinge type constantly conveys scrap and aluminum scrap to the outside.
  12. The totally enclosed safety cover to ensure the personal security.
  13. Option: Profile lifting platform to achieve the single person feeding operation
  14. Option: Bar code printer for E-works.
Main Specificaitons:
Cutting Saw motor power:       3×3.0 kW
Machine's total power:           18kW
Input Power supply:               380V 50Hz
Work pressure:                   0.6~0.8MPa
Air Consumption:                   150L/min
±45°Sawing blade size:      Ф550×Ф30×4.4×120T
90°Sawing blade size:         Ф600×Ф30×4.4×120T
Aluminum profile height:       30~140 mm
Aluminum profile width:       30~100 mm
Cutting Length:                  260~6000 mm
Cutting angle tolerance:           ±5′
Cutting length tolerance:      ±0.15mm
Repeating location tolerance:  ±0.05mm
Overall size (L*W*H):          14000×5000×2500 mm
Net Weight:                     About 7000 kg
Main Outsourced Components List:
 Item  Brand name
Control System Siemens
Servo Motor Siemens
Air Cylinder SMC
Damping Cylinder SMC
Guide RailHIWIN
Ball Screw PMI
Cutting Motor Shenyi
Rack YYC
Infeeding material Reduction BoxAPEX
Output material Reduction Box NEWSTART
Sawing Blade Wagen (Japan)
