• Model NO.：NM1284
• Certification：CE, ISO
• Condition：New
• Customized：Customized
• Usage：Wall
• Transmission Method：Electric
• Name：Nexus Steel Sheet Metal Embossing Machine
• Raw Material：Gi Sheet Mild Steel
• Thickness Range：0.8-3.0mm
• Machine Power：5.5kw+3kw
• Work Speed：10-15m,Min
• Machine Weight：About 5 Tons
• Afer-Sales Service：Engineer Is Availble to Overseas
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：3300mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets , Months
• Package size per unit product：350.00cm * 150.00cm * 180.00cm
• Gross weight per unit product：5000.000kg

model

NM-S1000

NM-S1400

NM-S1600

NM-S1900

Overall size(mm)

2900*1200*1500

3300*1200*1500

3500*1200*1500

3800*1200*1500

Roller size

φ350*1000mm

φ380*1400mm

φ400*1600mm

φ450*1900mm



Material of roller

42CrMo

42CrMo

42CrMo

42CrMo

Roller hardness

HRC55-58

HRC55-58

HRC55-58

HRC55-58

Way of embossing

Both up and down rollers embossing at same

Both up and down rollers embossing at same

Both up and down rollers embossing at same

Both up and down rollers embossing at same

Embossing regulation

By screw

By screw

By screw

By screw

Motor power(KW)

7.5

11

15

15

Line speed

0-18m/min

0-30m/min

0-40m/min

0-45m/min


5. Character of main structure:

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
4. It is very easy to install the equipment and suitable for producing in the factory.
5. Low noise with high efficiency.

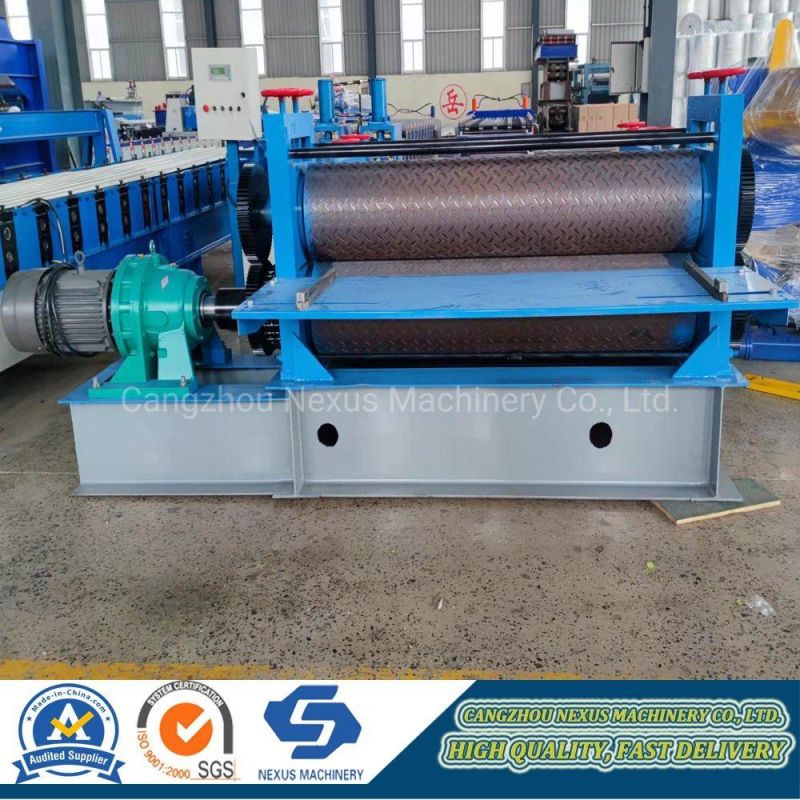

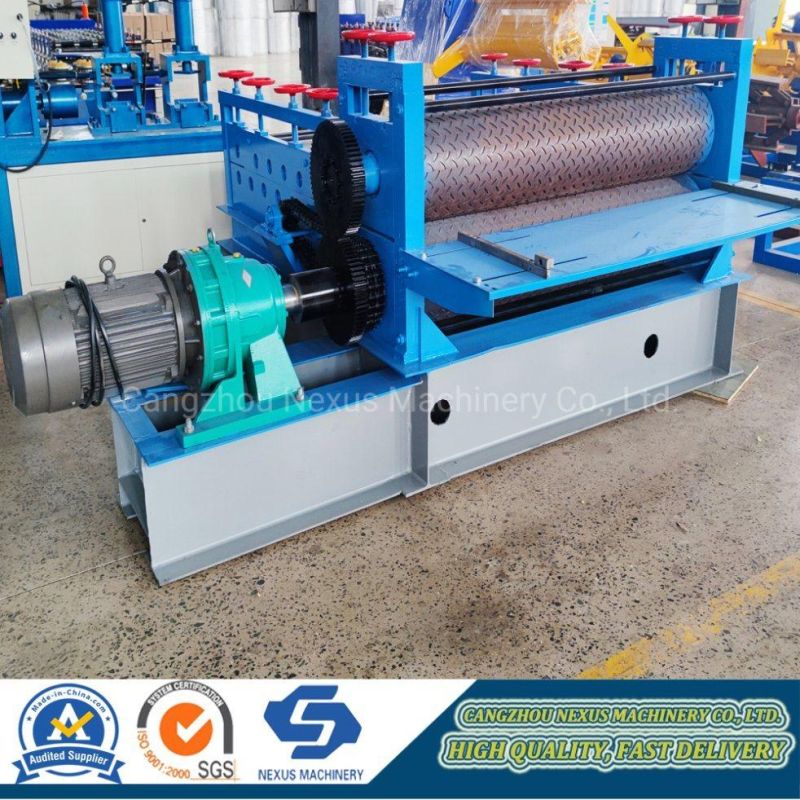

6. Photos of NEXUS Steel Sheet Metal Embossing Machine Metal Plate Embossed Equipment for Reference:

Fair Photos of Cangzhou Nexus Machinery Company:

Machine Loading Photos:


ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
