• Model NO.：ZH1000

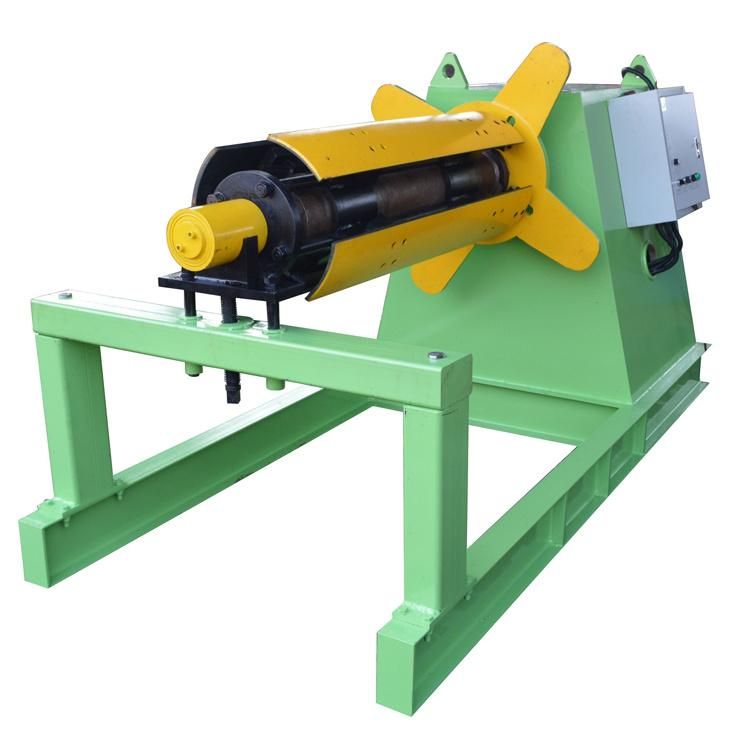

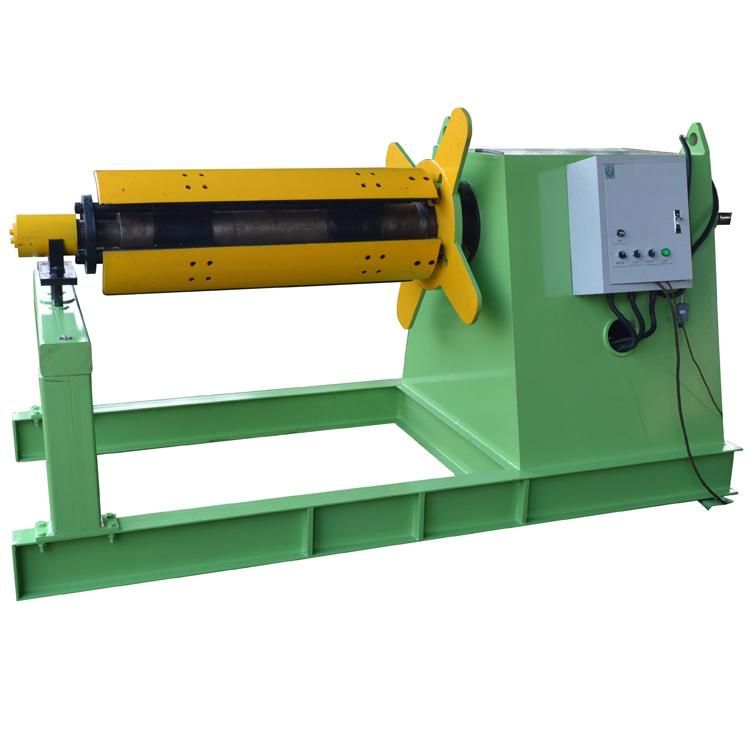

• Feature：Hydraulic Automatic Decoiler with Car Decoiler Mac
• Suitable Material：PPGI Gi
• Thickness：0.3-3mm
• Width：1500mm as Custom Profile
• Voltage：380V
• Speed：30m,Min
• Rollers：45# Steel as Customer Require
• Motor：5.5kw
• Control：PLC Delta
• Cutting：Hydraulic , Electric
• Key Selling Points：Easy to Operate
• Delivery Time：20 Days
• Warranty：2 Years
• Transport Package：Plastic File
• Specification：5.8X1.5X1.7M
• Trademark：ZH
• Origin：Hebei, China
• HS Code：8455221000
• Production Capacity：20 Sets Per Month

No.ItemDetails1Dimension4.0*1.8*1.9m around2Body weightAround 3tons3Loading5/7/10Tons4Feed width0-1500mm5Inner diameter of coil470-530mm,570-630mm, ±50mm6PowerHydraulic power:5.5KW
Main power: 5.5KW7FrameBase: 400H steel
Body: 25mm thickness steel panel welded8Bracing spindleMaterial: seamless steel pipe
Diameter:203*55mm9Electrical control systemSaj  Frequency Converter  or others10Car liftDouble oil cylinder with diameter 100mm11Car forwardPowered by Hydraulic motor12Car trackHeight:400mm
Length:2.5m13Car weightAround 1.1tons

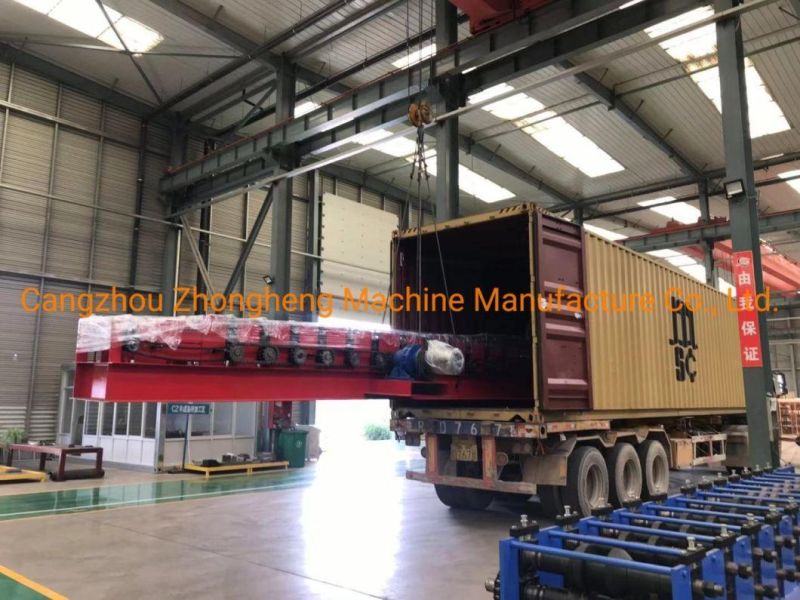

Packing and Shipping

1. Hydraulic Automatic Decoiler with Car Decoiler Machine need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.


Company Introduction




FAQ

1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .

More information please send inquiry to us , you will get reply within 12 hours !
