• Model NO.：QTJ4-40B
• Model：Qtj4-40b
• Shaping：Vibration
• Capacity：1000-2000PCS,Day
• Power：8.8kw
• Pressure：16MPa
• Pallet Size：850X450mm
• Weight：1100kgs
• Dimension：1150X1650X2000mm
• Pallet Quantity：400-500pieces
• Water Consumption：1-3t,Day
• Workshop Area：40m2
• Power Voltage：3800V,220V,AC
• Labor Quantity：1-3 People
• Forming Period：40-45s
• Mixer：Jq350
• Transport Package：Naked in Container or LCL
• Specification：1150x1650x2000mm
• Trademark：shengming
• Origin：Linyi
• HS Code：8474802000
• Production Capacity：1000-2000pieces,Day

Total rated power8.8KWWorkshop area40M2Daily capacity1000-2000 piecesPower voltage380V/220V/ACPallet quantity400-500 piecesLabor quanity1-3 peopleWater consumption1-3T/dayForming period40-45S

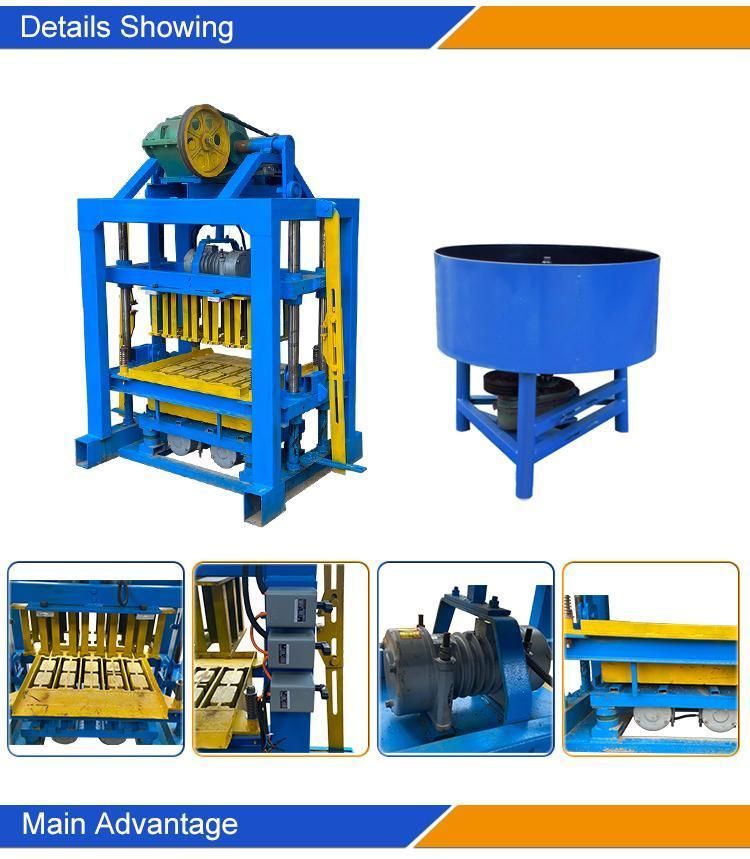

This QTJ4-40B block machine is a stationary small brick making machine with simple structure and reasonable design. The durable JZQ reducer is used on the top of the machine to be responsible for the lifting and lowering of the mold box. The indenter adopts a simple and practical hook design for easy operation.
The vibration platform is welded with Q345 steel plate, and the connecting parts with the host are designed with rubber columns, which have good shock absorption effect.
The whole machine is equipped with 3 vibrators, which can provide strong excitation force, fast brick forming speed and good compactness.
The mold is welded with Q345 steel, which can be directly replaced to produce different brick types.

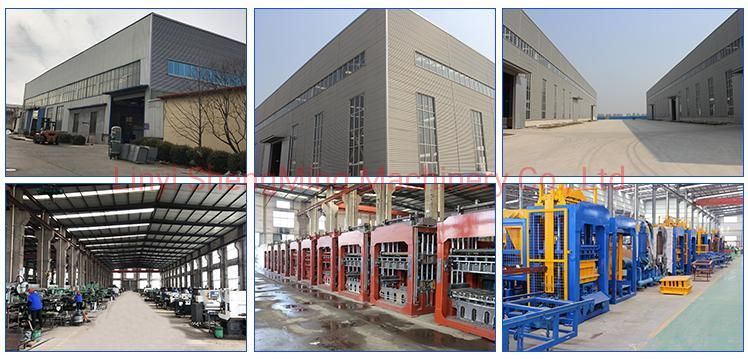

Established in the year 1990,we are a prominent organization engaged in manufacturing and supplying
Block machine,batching plant and concrete pole machine, extensively used in field of infrastructure and
real estate development.


FAQ:
Q: What is the material for this machine ?
A: You can use lateriate or other clay material or concrete material, plus a little cement

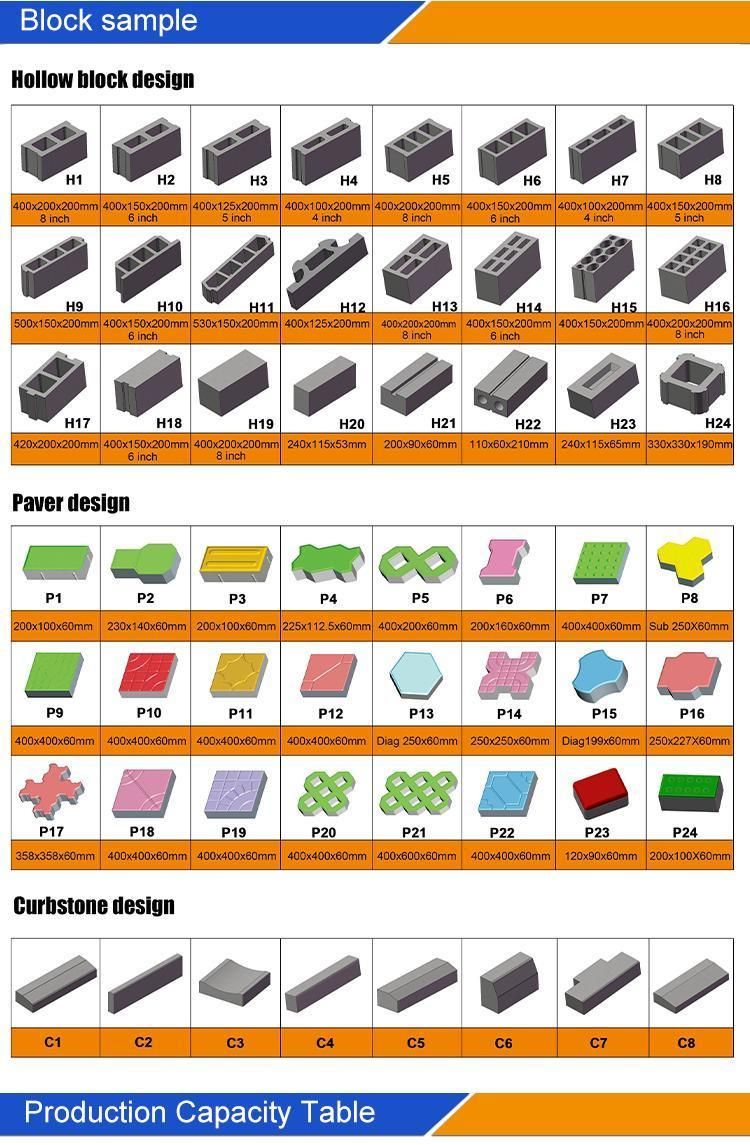

Q: How many kinds of block can be made by this machine ?
A: By changing mold, this machine can make all type design brick ,block or even paver.

Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally

Q: Will you provide spare parts for this machine ?
A: We will provide you one year free spare parts.can support machine working for many years

Q:Will you provide installation support?
A: We will provide installation video and manual book.online video avaiable also.

Q:How many days to make the machine if place order?
A:Normally need 15-20 days but all depend on molds quantity.
