• Model NO.：450*3700A
• Motor Power：3kw
• Air Pressure：0.5~0.8MPa, 120psi
• Air Consumption：60L,Min
• Motor Rotation Speed：2800r,Min
• Cutting Length：400~3700mm
• Cutting Length Tolerance：+ 0.005
• Cutting Angles：90, 45
• Cutting Width：10~120mm
• Cutting Height：10~200mm
• Saw Feeding Speed：0~3m
• Saw Blade Standard：450mmx4.4X30xz120
• Overall Dimensions：4.5X1.2X1.4m
• Transport Package：Suitable for Seaworthy Package
• Specification：800*900*1300mm
• Trademark：EWORLD
• Origin：Jinan
• HS Code：8464201000
• Production Capacity：10


1.Introduction

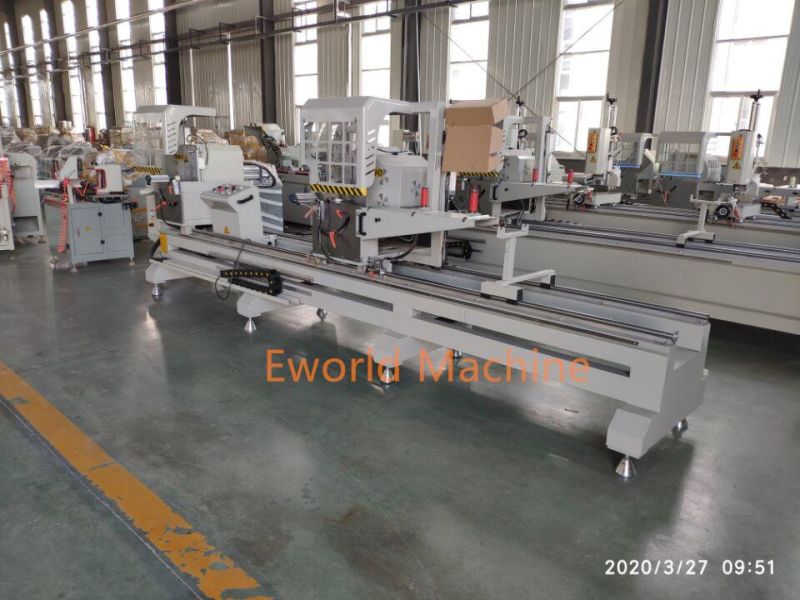

Double-head Saw machine is used for cutting aluminum profiles. The main spindle is manufactured by the specialized manufacturer. And the imported linear bearing motional pair is used to move the head horizontally. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 3700mm. The cutting angle is 45 angle and 90 angles

2.Feature1.Imported carbide saw blade gives accurate processing and high endurance.  2.Imported linear guide rail and linear bearing motion pair ensures steady processing accuracy.  3.Saw blade rotates smoothly due to high accuracy main shaft.  4.Uniform speed feeding and smooth motion due to airdraulic damping. 5.Auto-opening guard shield ensures safe operation. 6.Auto-induction middle profile supporter and following convenient make the loading and clamping convenient. 7.Adopts imported linear guide pair,with high accuracy and long service life. 45°and90°cutting is available
 3.Technical parameter


MODEL	450*3700A
Input voltage	230/460V /3/60Hz
Input power	3Kw
Air pressure	0.5~0.8MPa/ 120psi
Air consumption	60L/min
Motor rotation speed	2800r/min
Cutting length	400~3700mm
Cutting length tolerance	+ 0.005â€
Cutting angles	90, 45
Cutting width	10~120mm
Cutting height	10~200mm
Saw feeding speed	0~3m
Saw blade standard	450mmx4.4x30xZ120
Overall dimensions	4.5x1.2x1.4M€

4. Machine Components

Electricity part; CHINT (China).
Saw blade:450mmx4.4x30xZ120 DAHE (Japan)
Electricity Valve: TAIWAN
Motor: ZHENYANG
PU Pipe: TAIWAN
Cylinder: HUATONG
Linear Guide Rail: TAIWAN
Bearing: SHANGHAI



 RFQ

1.Question:Are you manufacture?
 Answer:
 Yes,we are the professional manufacture which have more than 5 workshops.

2.Question: How about the service ?
Answer:
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english ,communication barrier free

3.Question:What's the guarantee ?
Answer:
1).Our guarantee for 18 months.
2).24 hour's technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.

4. Q: Do you provide equipment operation training?

Answer:
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

5.Question:if our price is higher than another company or factories ?
Answer:
please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.

6.Question:How long is the delivery time ?
Answer:
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.

7.Question: What is the payment ?
Answer:
Any payment method you want,such as L/C,T/T,D/P,West-union and so on
