Factory Price Ykcx150A Hydroforming Corrugated Metal Hose/Bellow/Pipe Making Machinery^
Comflex Industrial Co., Ltd.- After-sales Service：Online Video Guidence
- Warranty：One Year
- Pipe Material：Stainless Steel
- Condition：New
- Customized：Customized
- Theory：Inverter
Base Info
- Model NO.：COMFLEX
- Application：Industry
- Type：Pipe Production Line
- Width of Stripe：100-471mm
- Pitch Distance：5-15mm
- Length：4000mm
- Strip Thickness：0.15-0.3mm
- Wall Thickness：0.3-1.0mm
- Product Name：Hydroforming Corrugated Metal Hose Machinery
- Lead Time：50 Days After Receiving Deposit
- Size Range：32-150mm
- Transport Package：Standard Seaworthy Package
- Specification：ISO9001
- Trademark：Comflex
- Origin：Jiangsu, China
- HS Code：84819010
- Production Capacity：5000 PCS Per Year
Description
Hydraulic Hose Making MachineMachine Type No. HLT-H-100 Technical Data Application of the hose: water, oil, steam
Size range: DN25 up to DN100
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700 Packing details Polywood box and standard pallet MOQ 1 set Warranty 1 year Payment terms T/T, L/C, D/P, Western union Machine Type No. HLT-H-150 Technical Data Application of the hose: water, oil, steam
Size range: DN32 up to DN150
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700 Packing details Polywood box and standard pallet MOQ 1 set Warranty 1 year Payment terms T/T, L/C, D/P, Western union

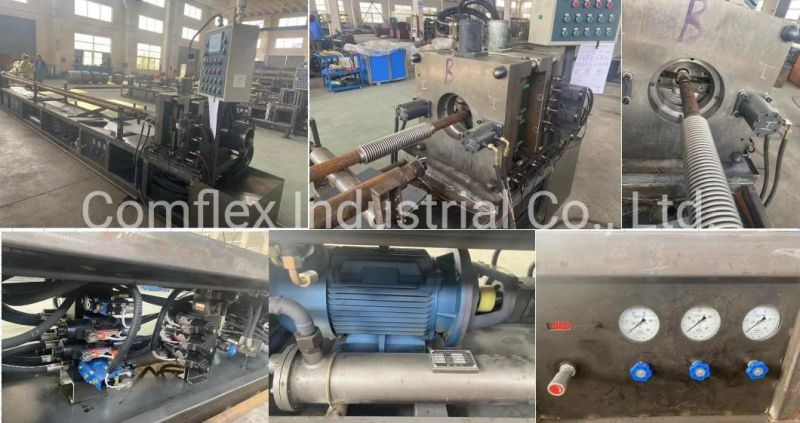

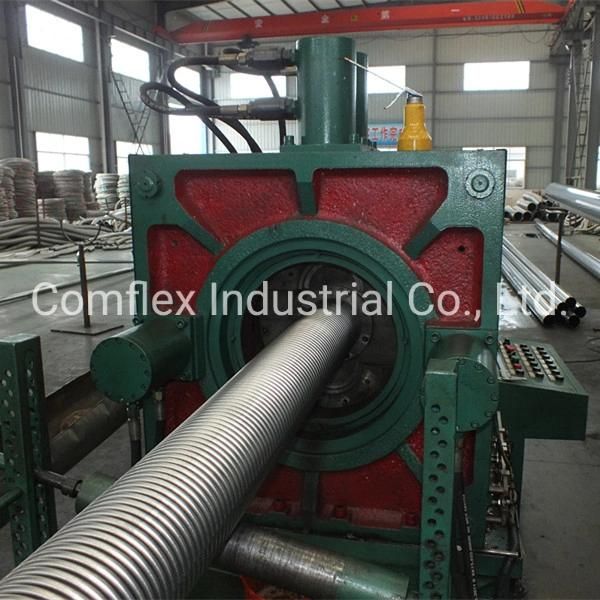

YKCX150A bellow forming machine prepared for Turkey Client.

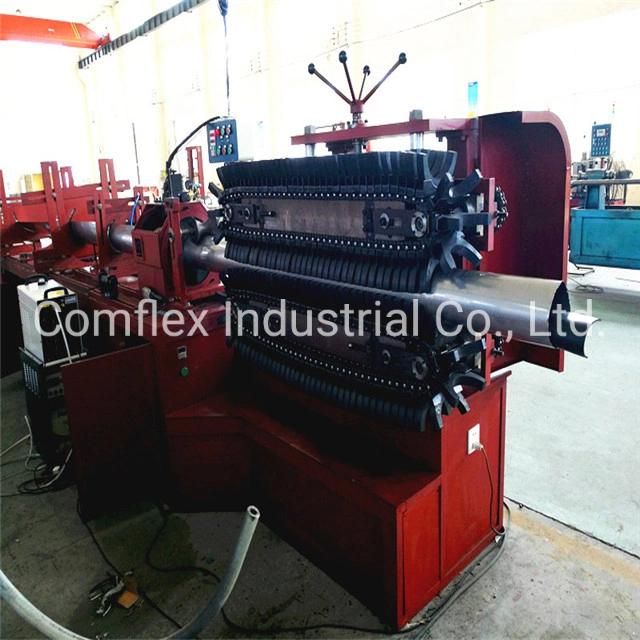

Tube Mill/Tube Welding Machine

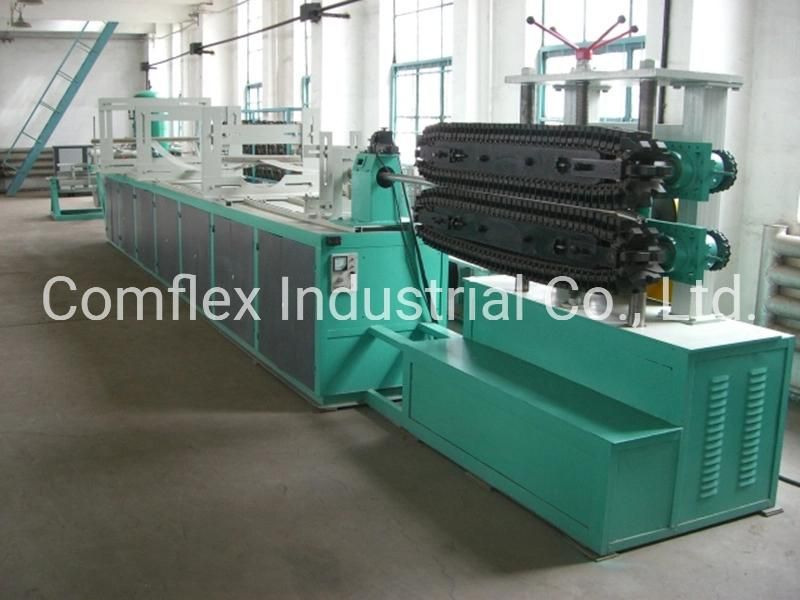

Tubing Welding Machine
Provide Tube Mill Training for customers
Machine Delivery&Package
FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
Size range: DN25 up to DN100
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700
Size range: DN32 up to DN150
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700
| DN | Actual ID | Wall thickness (mm) | Width of s.s. strips(mm) | Height of convolution | Pitch distance (mm) |
| DN32 | 31.5 | 0.3 | 100 | 7 | 5 |
| DN40 | 39.5 | 0.3 | 125 | 8 | 6 |
| DN50 | 49.7 | 0.3 | 157 | 8 | 7 |
| DN65 | 64.7 | 0.3 | 204 | 9 | 8 |
| DN80 | 79.5 | 0.4 | 251 | 10 | 9 |
| DN100 | 99.5 | 0.5 | 314 | 11 | 10 |
| DN125 | 124.6 | 0.5 | 393 | 13 | 12 |
| DN150 | 149.4 | 0.6 | 471 | 15 | 15 |
YKCX150A bellow forming machine prepared for Turkey Client.
Tube Mill/Tube Welding Machine
Tubing Welding Machine
Provide Tube Mill Training for customers
Machine Delivery&Package
FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
