Vertical Shaft Complex Impact Crusher (VSI crusher) for Sand Making
ATAIRAC ENGINEERED PRODUCTS INC(CHINA)- Certification：CE, ISO
- Theory：High-Speed Grinder
- Crushing Level：Crushing
- Application：Railroad, Construction
- Structure：Vertical
- Motor Power：55-110kw
Base Info
- Model NO.：VSI850
- Transport Package：Wooden Box Packing and Nude Packing
- Specification：11.68t
- Trademark：ATAIRAC
- Origin：China
- HS Code：8474209000
- Production Capacity：300 Sets,Month
Description
No.Model Max. Feed Size (mm) Impeller Speed (rpm) Power Capacity (t/h) Weight (kg) (kw) 1 VSI-550 30 2258-2600 30-45 24-60 4780 2 VSI-700 35 1775-1965 55-110 55-120 7250 3 VSI-850II 50 1320-1720 150-320 75-345 11500 4 VS 1-1000II 60 1240-1460 320-500 200-585 17000 5 VS 1-1200II 60 1040-1300 500-630 300-715 21600

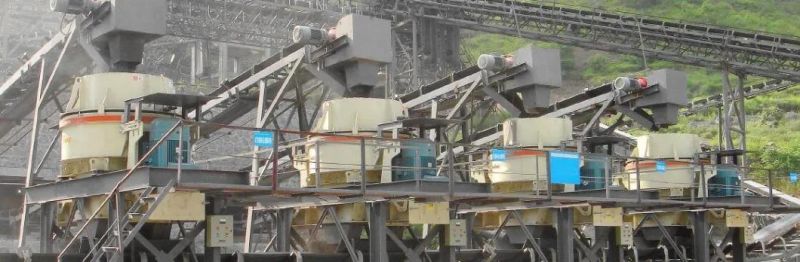

Testing site
Application
1. Pebble, Rock( the limestone, granite, basalt, aluminum, etc.), Ore tailings, sand production.
2. Building aggregate, highway, cushion, asphalt concrete and cement aggregate production.
3. Sand making production and stone reshaping production in water conservancy and hydropower engineering field,highway,railway,bridge,passenger line,airport runway,municipal engineering and high-rise buildings.
4. The grinding anterior finely process of mining areas. Building materials, mining, metallurgy, chemical industry, cement, abrasive, refractory material, etc.
5. The crush of high abrasive materials resistance and secondary dis-assembly, slag and construction waste.
6. The production of glass,quartz sand and other high purity material.
Client site
Certification

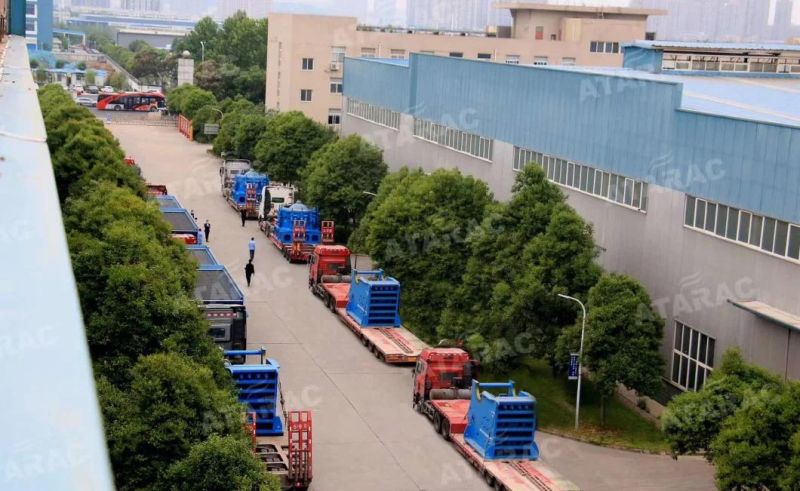

Packing & Shiping
2. Design and manufacture products according to clients' special requirement;
3. Arrange for visiting our factory, assist them to handle relative procedure, such as visa.
4. Make sure goods prepared within delivery time;
5. Pre-check and accept products ahead of delivery;
6. Prepare documents required to help customer pass customs clearance.
7. Help clients to make Project evaluation and feasibility analysis and draft solving plans.
2. Install, debug and examine the equipment;
3. Train technical personnel the first-line operators;
4. Provide technical exchanging
5. Offer spare parts at a best price for long term.
FAQ
1. How long is the date of delivery?
30 working days after payment of earnest money or depends on order quantity.
2. How long is the guaranty period of your NHX powder separator?
We guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance.
3. What's the after sale service of your company?
We will send engineers to guide your workers to install the machine, take trial run; the buyer should prepare the materials and tools needed, and offer necessary assistance. The actual expenses incurred for accommodation, to and from travel for the engineer, and insurance, should be borne by the buyer
