• Model NO.：CLJJA-500
• Cutting Motor Power：3kw
• Motor Rotary Speed：2800r,Min
• Air Pressure：0.6-0.8MPa
• Auto-Feeding Length：5-700mm
• Blade Feeding Speed：0-3m,Min
• Blade Specification：Φ500*Φ30*4.4 Z=96
• Cutting Width：Max. 140mm
• Cutting Height：Max. 140mm
• Overall Dimension：5670*1770*1840mm
• Weight：750kg
• Color：Gray or as Requirement
• Keyword：CNC Corner Key Cutting Saw
• Transport Package：Simple Stretch Film or Plywood
• Trademark：TRUETEC
• Origin：Shandong China
• HS Code：8461500090
• Production Capacity：20 Sets Per Month

Basic Info.

Model NO. CLJJA-500 Cutting Motor Power 3kw Motor Rotary Speed 2800r/Min Air Pressure 0.6-0.8MPa Auto-Feeding Length 5-700mm Blade Feeding Speed 0-3m/Min Blade Specification Φ500*Φ30*4.4 Z=96 Cutting Width Max. 140mm Cutting Height Max. 140mm Overall Dimension 5670*1770*1840mm Weight 750kg Color Gray or as Requirement Keyword CNC Corner Key Cutting Saw Transport Package Simple Stretch Film or Plywood Trademark TRUETEC Origin Shandong China HS Code 8461500090 Production Capacity 20 Sets Per Month

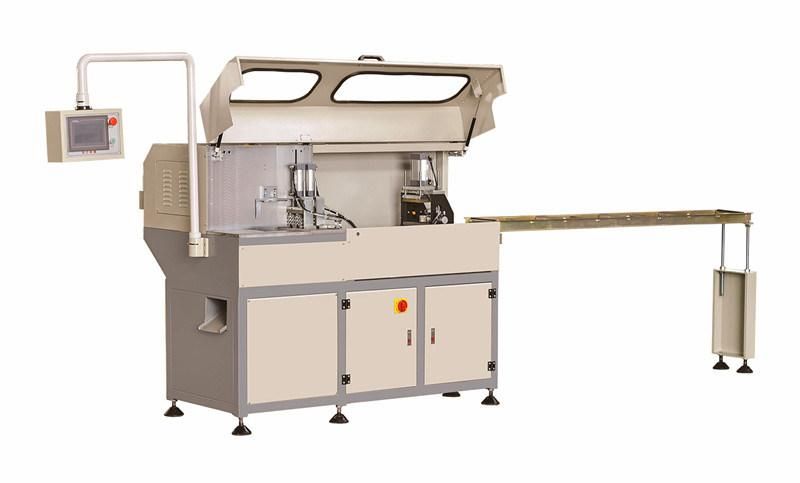

Product Description

Accurate High Efficiency  High-power  MotorCorner Connector Cutting Machine



Equipment Advantages

1. Used for aluminum corner connector cutting.
2. Imported carbide saw blade ensures accurate processing and high efficiency.
3. High-power motor makes the cutting easily.
4. Linear bearing motion pair gives less resistance force and ensures high processing accuracy.
5. The PLC control and auto-feeding system with high efficiency is suitable for large volume production.
6. Only one time clamping, can achieve 6 meters corner section bar continuous cutting.
7. It has features of easy operation, reliable performance, advanced technique and convenient maintenance etc.
8. Clamping and feeding process adopts pneumatic control, it features of high automation, reliability and production efficiency.
9. Extensive range of processing dimension and suitable material.
10. Auto cut off power protection system.

Technical Data


Model	CLJJA-CNC-500
Power Supply	380V 50HZ
Input Power	3KW
Air Pressure	0.6~0.8MPa
Motor Rotary Speed	2800r/min
Auto-feeding length	5-700mm
Saw Blade Specification	Φ500*Φ30*4.4   Z=96
Saw blade feeding speed	0-3m/min
Cutting Width*Height	140*140mm
Overall Dimension	5670*1770*1840mm
Weight	800Kg

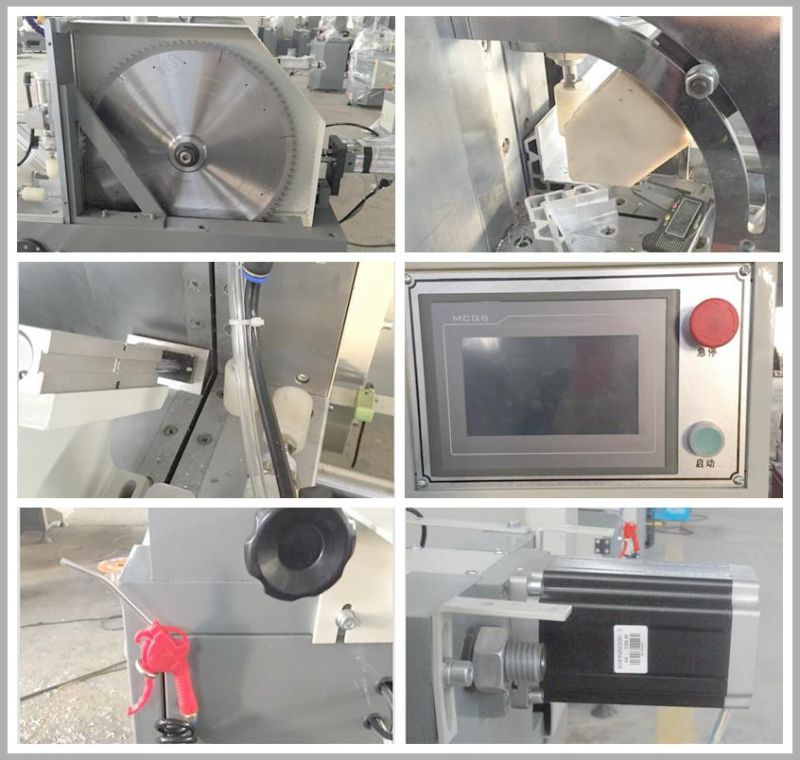

Machines Details

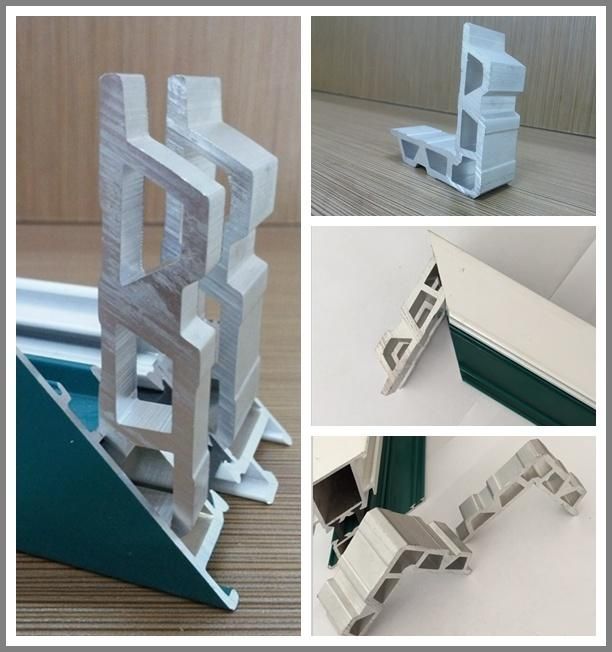

Sample

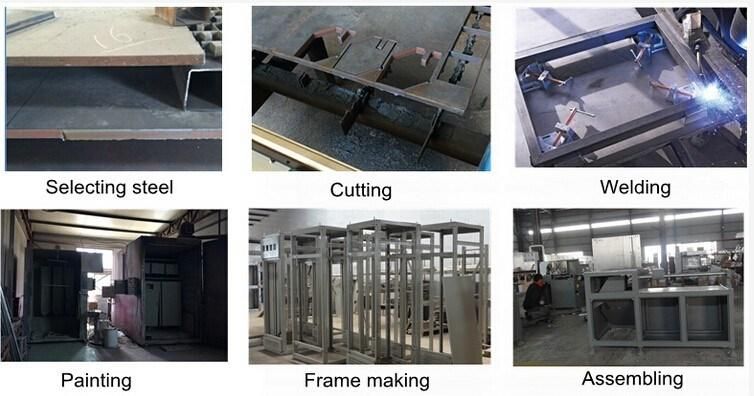

Machine processing

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.



Packaging&Shipping


Our Services

Before payment

Free contact for the most suitable machine

Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype (email or skype) .

1years warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment

♦ L/C, 30% deposit by T/T,70% spare payment L/C.

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal.

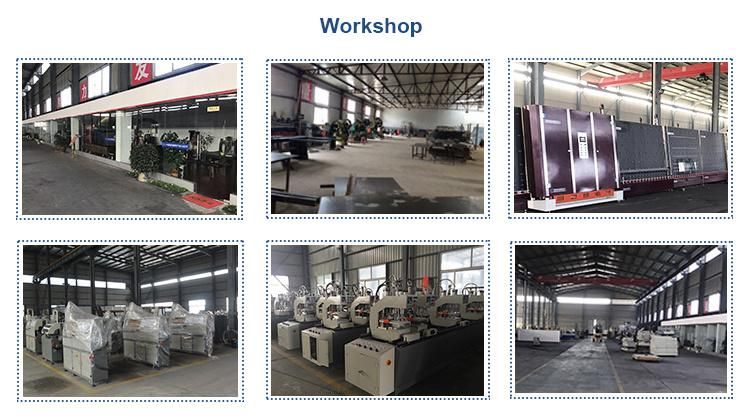

Our Company



Welcome To Visit

Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.



Our Exhibition

FAQ

1. When can we arrange shippment?
We usually arrange shippment within 25 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
