• Model NO.：SKX-CNC-1200
• Y Axis Journey：300mm
• Z Axis Journey：280mm
• Main Axis Rev：18000 Rpm
• Input Power：3kw
• Clamp：Er 25
• Air Supply：0.5-0.6MPa
• Processing Range：100X140mm
• Transport Package：by Non-Fumagation Plywood Box
• Specification：Machine size: 2200x1500x1950mm
• Trademark：MAG
• Origin：Jinan
• HS Code：84752990
• Production Capacity：500,Year

Basic Info.

Model NO. SKX-CNC-1200 Y Axis Journey 300mm Z Axis Journey 280mm Main Axis Rev 18000 Rpm Input Power 3kw Clamp Er 25 Air Supply 0.5-0.6MPa Processing Range 100X140mm Transport Package by Non-Fumagation Plywood Box Specification Machine size: 2200x1500x1950mm Trademark MAG Origin Jinan HS Code 84752990 Production Capacity 500/Year

Product Description

CNC Drilling Milling Machine High Efficiency Automatic Drilling Milling Machine Window Door Curtain Wall Machine

Feature
1. The machine is used for drilling holes, milling grooves, processing round holes and special-shaped holes, plane engraving of aluminum alloy profiles.
2. Adopted Taiwan Syntec  CNC Control system.
3. Adopted the electric spindle, high precision, high safety and reliability.
4. X axle adopts high precision helical gear and rack, Y and Z axis adopt high-precision ball
screw transmission, steady transmission and high precision.
5. By using programming software to transform and process G code automatically, easy
operation, high efficiency and low labor intensity.6. Workbench can turn 180°,-90°0°+90°, it can realize material three-sides section processing by clamping one time, it can process deep and special-shaped holes through workbench turning, high efficiency and precision.


Parameter
Air Pressure	0.5~0.6MPa
X/Y/Z Axis stroke	1200mm*300mm*280mm
Input Voltage	380V 50Hz or As Customer need
Input Power	3Kw
Handle type	ER25*Φ8
Processing range	100*140
Overall size	2200×1500×1950mm
Weight	700kg

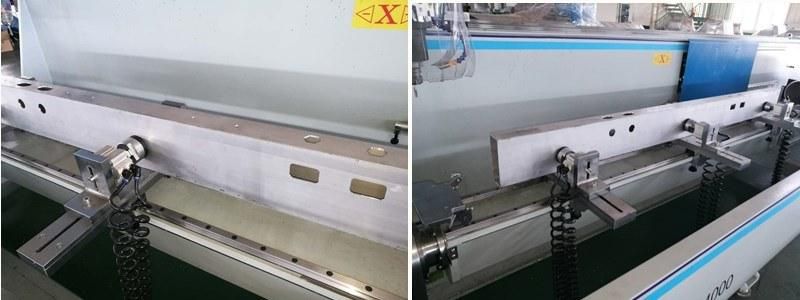

Working sample


Certificate

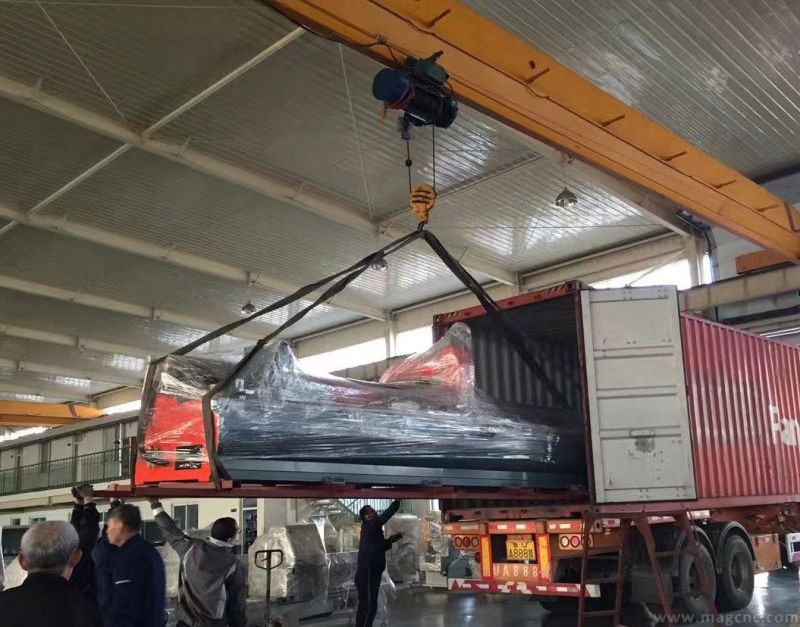

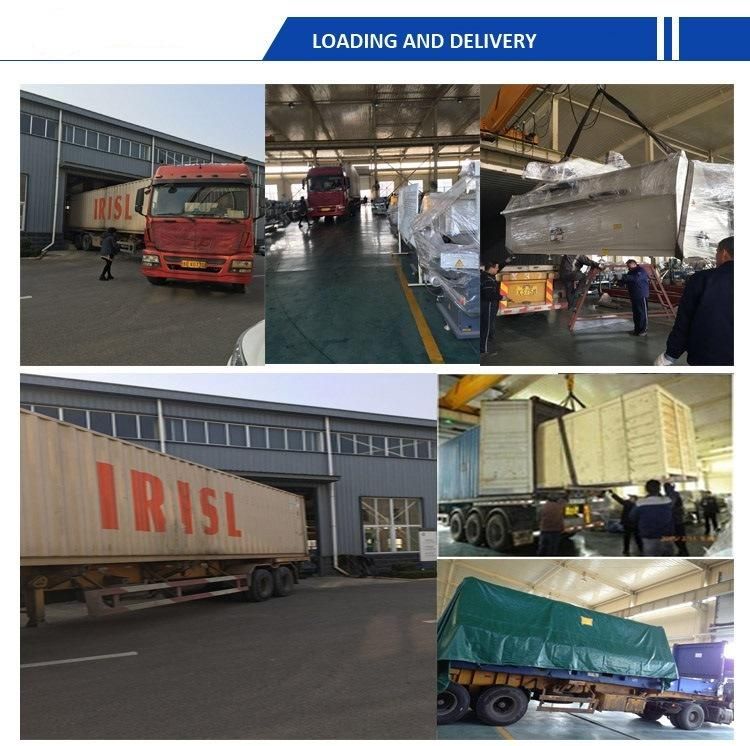

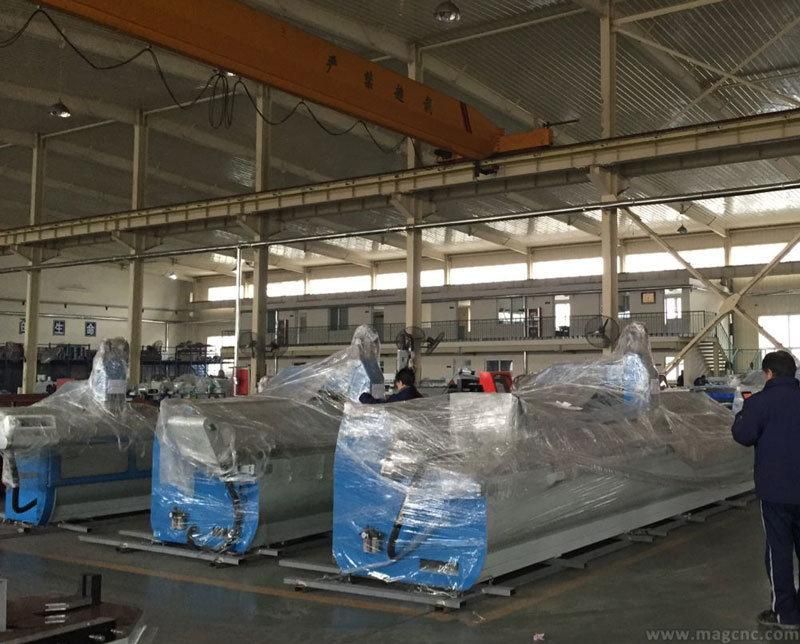

Packing and delivery

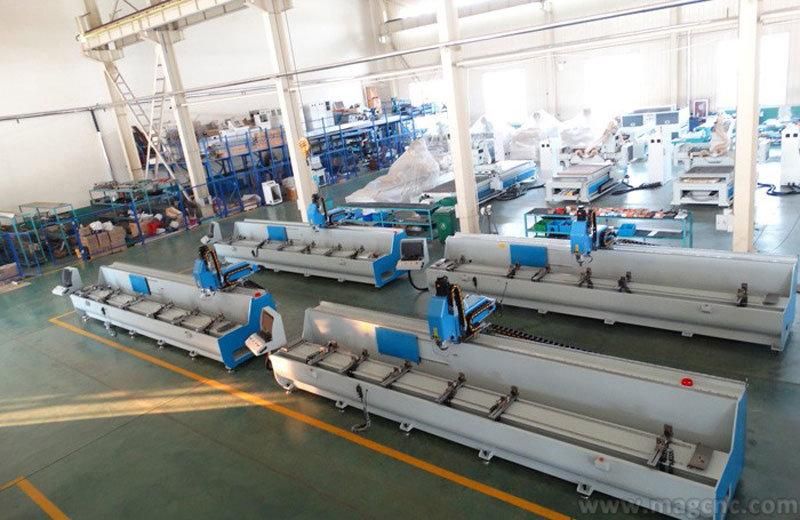

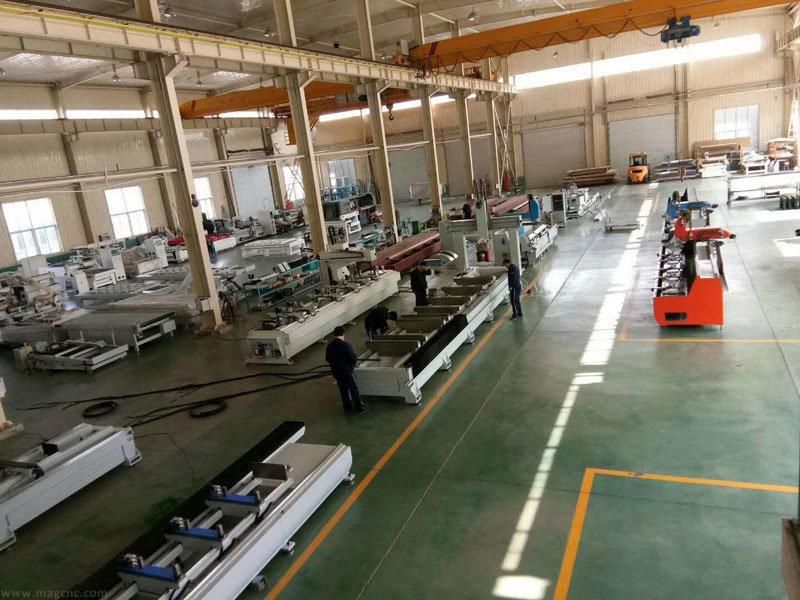

About us


Clients visit us
