• Standard Hollow Block：10PCS Per Drop
• Bevel Paver：36pcsper Drop
• Vibration：Motor Vibration
• Raw Material：Crushed Stone Sand and Cement
• After Sales Service：Engineer Available to Abroad
• M140 Hollow Block：12PCS Per Drop
• Pallet Size：Can Be Customized
• Workshop Required：500 Square Meter
• Land Required：5000-6000 Square Meter
• PC Brick Making：Available
• Transport Package：Standard Ocean Packing
• Trademark：HAWEN
• Origin：China
• HS Code：8474809090
• Production Capacity：300 Sets, Year

Basic Info.

Standard Hollow Block 10PCS Per Drop Bevel Paver 36pcsper Drop Vibration Motor Vibration Raw Material Crushed Stone Sand and Cement After Sales Service Engineer Available to Abroad M140 Hollow Block 12PCS Per Drop Pallet Size Can Be Customized Workshop Required 500 Square Meter Land Required 5000-6000 Square Meter PC Brick Making Available Transport Package Standard Ocean Packing Trademark HAWEN Origin China HS Code 8474809090 Production Capacity 300 Sets/ Year

Product Description

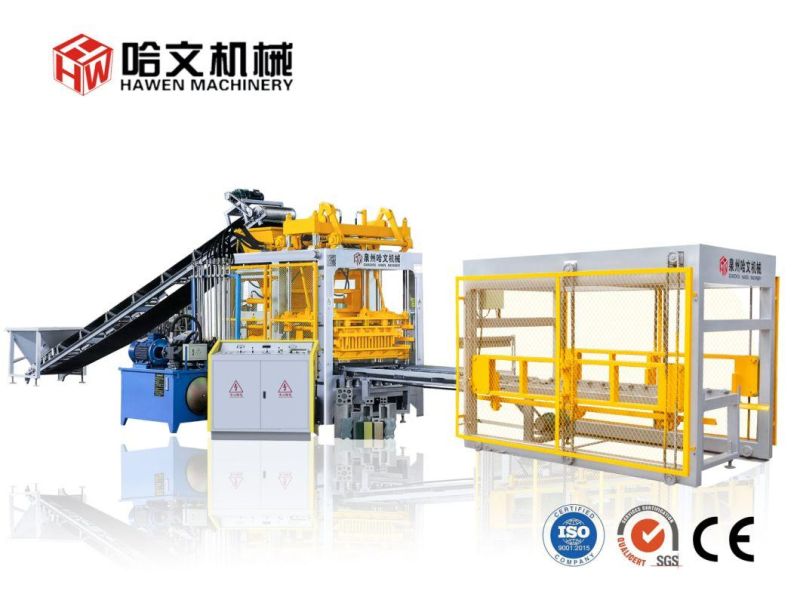

German Technology Automatic Concrete Block Making Machine Equipment

Hawen block making machines are for the manufacture of concrete bricks, blocks and paving. The machines are manufactured to heavy-duty standards to ensure long life, high performance and the manufacture of quality products.

Company Profile:
1. Manufacturer of Block making machine with more than 15 years experience
2. ISO Certified Company

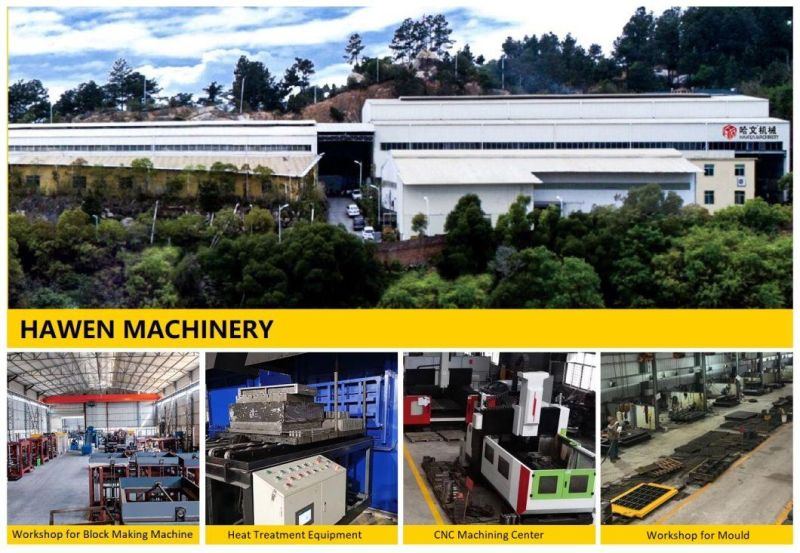

Factory Workshop




Overview of workshop for block machine

 Brief Introduction

QT10-15 PC  Brick making machine with motor vibration,frequency controlled.
It is mainly produce different size of hollow block,porous brick,solid brick,curb stone,paving brick,grass-pavers,tree-planted brick and slop-protected brick etc.
If top-color paving stone is required, the machine should be fitted with a face-mix device.

The Concrete Block making plant made by HAWEN MACHINERY are generally structured as follows:
The different required material go from the aggregate bins via transport systems to the dosing and mixing plant. It produces high-quality concrete products which is designed to meet the individual customer demands and is adapted to the available raw materials. Depending on the plant design,the concrete is then conveyoed to the block making machine. This then compacts the concrete in a mould using a combination of pressure and vibration. The fresh cocrete products go them to productions pallets via a fresh block conveyor then go to the automatic block stacker.The fresh block with pallets will be transferred by Forklift to the curing yard under the shed.In the sencond day,the dry block will be removed from the pallet by manul or by Automatic Palletizing system.

Our Control and safety systems ensure safe and fast production with minimum downtime.

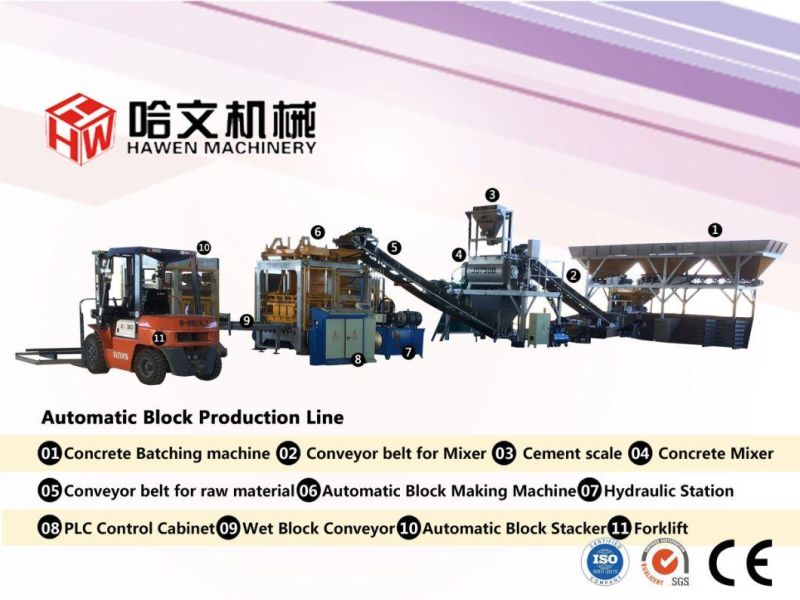

The whole production line including:

• Cement silo;
• Screw Conveyor;
• Pl1200-3 Concrete Batching Machine;
• JS750 Twin-shafts Concrete Mixer;
• QT10-15 Main forming machine;
• Automatic Block Stacker.
• Automatic Pallet Provider.

An auto. Face mix device can be added to to make top-color paving stone.



Technical specification:

Pallet size	mm	1100×950×28
Cycle time	S	15-23
Rate Pressure	Mpa	31.5
Vibration force	KN	105
Power	KW	48.9
Weight	T	14.5
Vibration frequency	r/min	3800-4500
Dimension	mm	11500×4050×2800

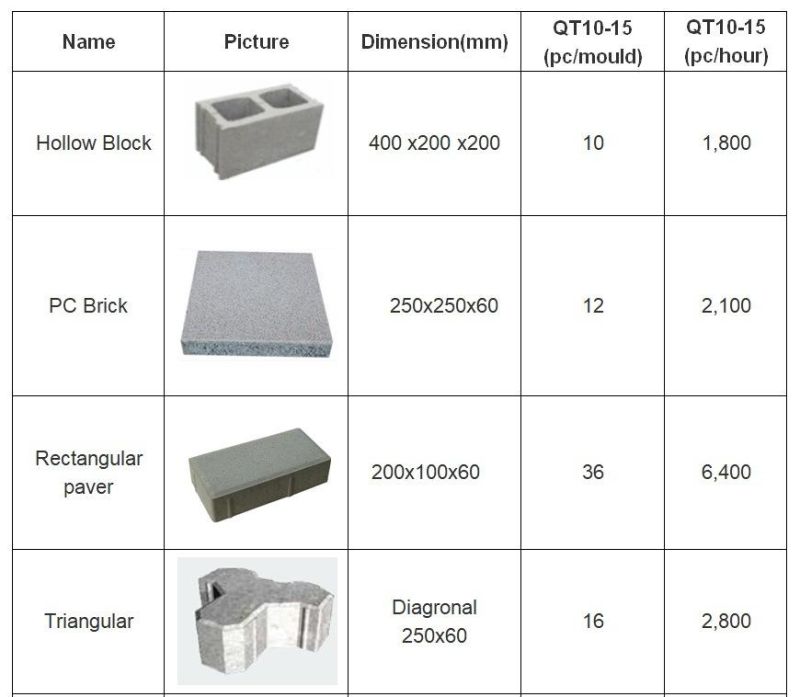

 Output of QT10-15  PC Brick making machine (Pallet size 1100*950mm)

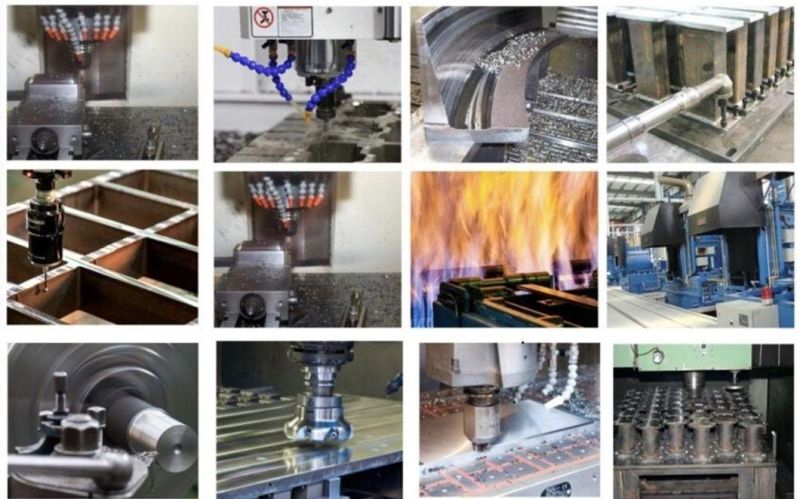

Processing equipment in the workshop

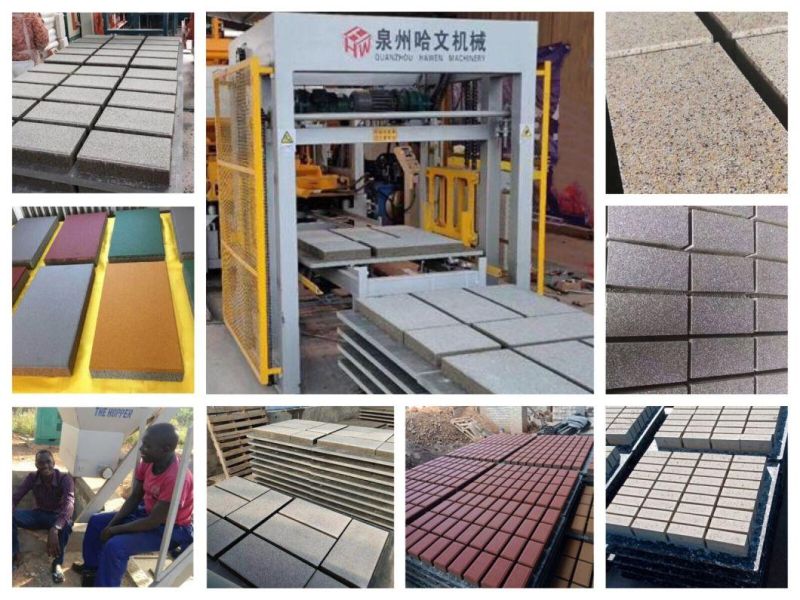

Application of QT10-15 Block Making Machine at site
with Block Stacker,Automatic Pallet Provider, automatic Pallet feeder can feed the pallet into machine automaticly.

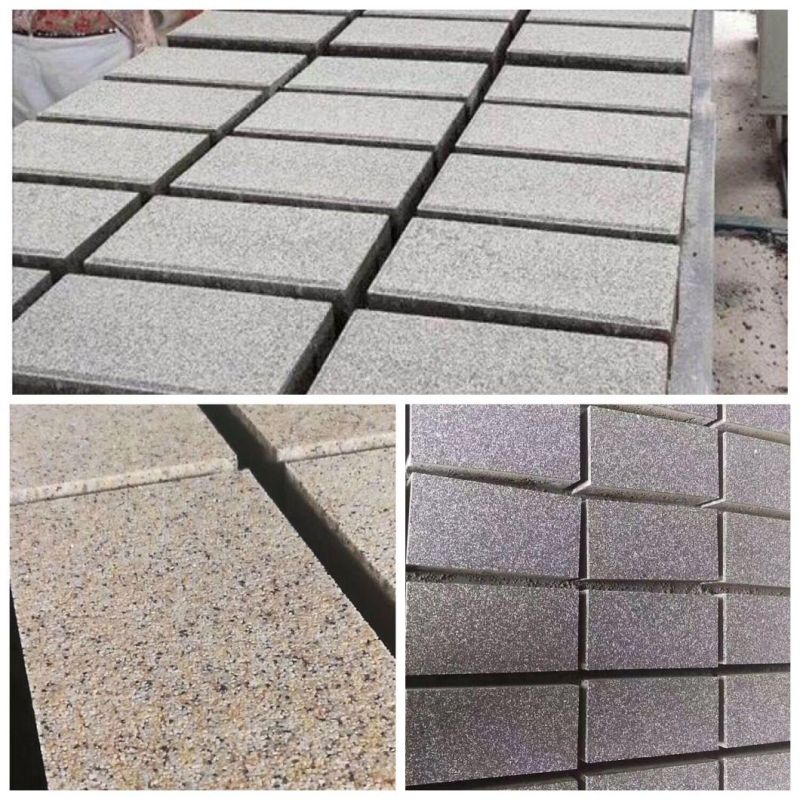

  PC Brick at site

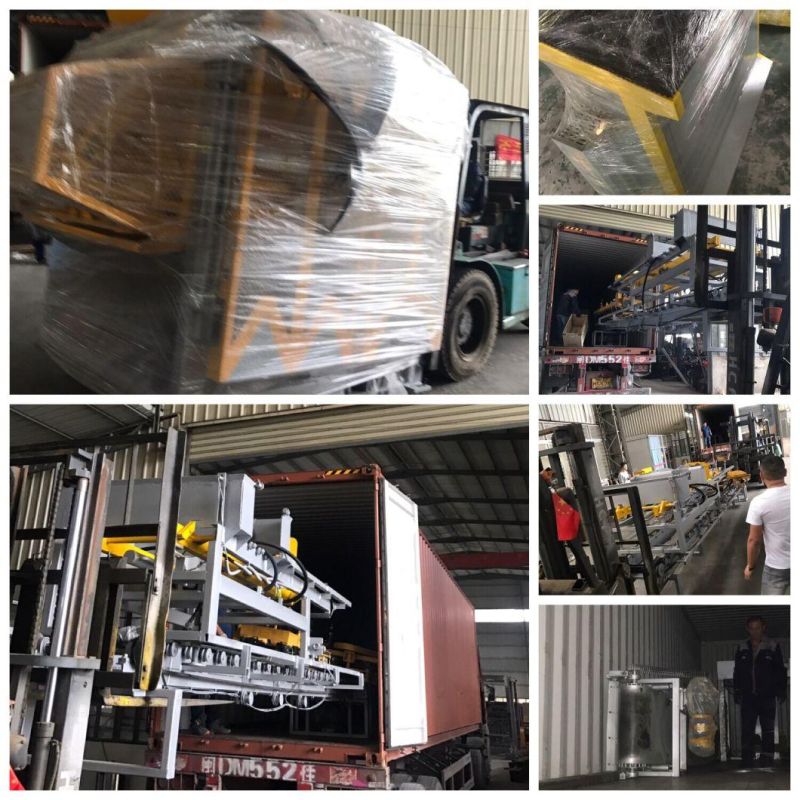

Container loading in workshp for customers overseas

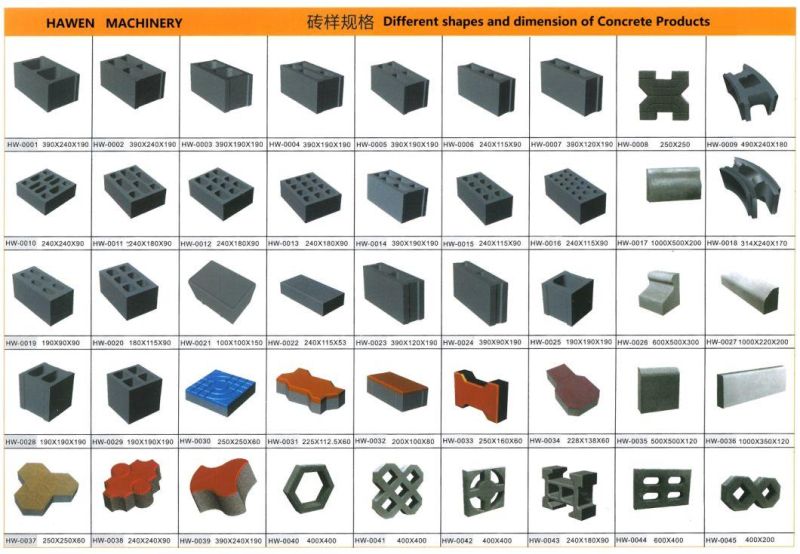

Block and Brick Sample











Our Service
 Pre-sale service support
According to every customer's demand and budget, we offer the professional  factory set up solution, factory layout design, process flow design. More importantly, we welcome every customer to visit our factory and visit our customer site before placing the order


On-sale service support

Assist clients to finish the factory planning,like foundation construction, power preparation,water pool preparation,etc. Before delivery equipment to customers, complete debugging and checking,our machine will do hot testing in workshop with material. Provide a full instruction manual for the block making machine. Provide technical guidance for the installation , including installation advice and electrical connection.

After-sale service support

Send technicians to installation site for the guidance, equipment commissioning and training. Provide high-quality spare parts thoughout the year, and the maintenance technicians are always ready to provide technical help.
