• Operation Mode：Automatic ,Manual
• Transport Package：Standard Ocean Packing
• Trademark：HAWEN
• Origin：China
• HS Code：8474809090
• Production Capacity：150 Sets, Year

Basic Info.

Operation Mode Automatic /Manual Transport Package Standard Ocean Packing Trademark HAWEN Origin China HS Code 8474809090 Production Capacity 150 Sets/ Year

Product Description

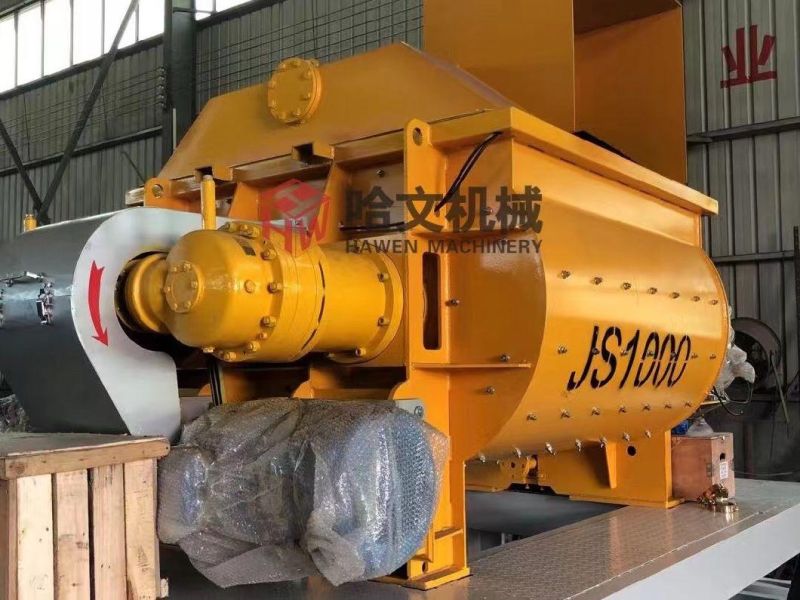

JS500 JS750 JS1000 Twin-Shaft Concrete Mixer for Block Machine
 JS500,JS750,JS1000 twin-shafts concrete mixer can be widely used in industry and civil architecture engineering, such as Concrete Block factory, medium,small prefabricate structure factory,highway and wharf and so on. The Concrete mixer can be used to mix solid concrete, plastic concrete, flowing concrete, light-aggregate concrete and a variety of sand slurry ,it also can combined with PL800 batching machine as a simple mixing station and as mixing and batching system for block factory.

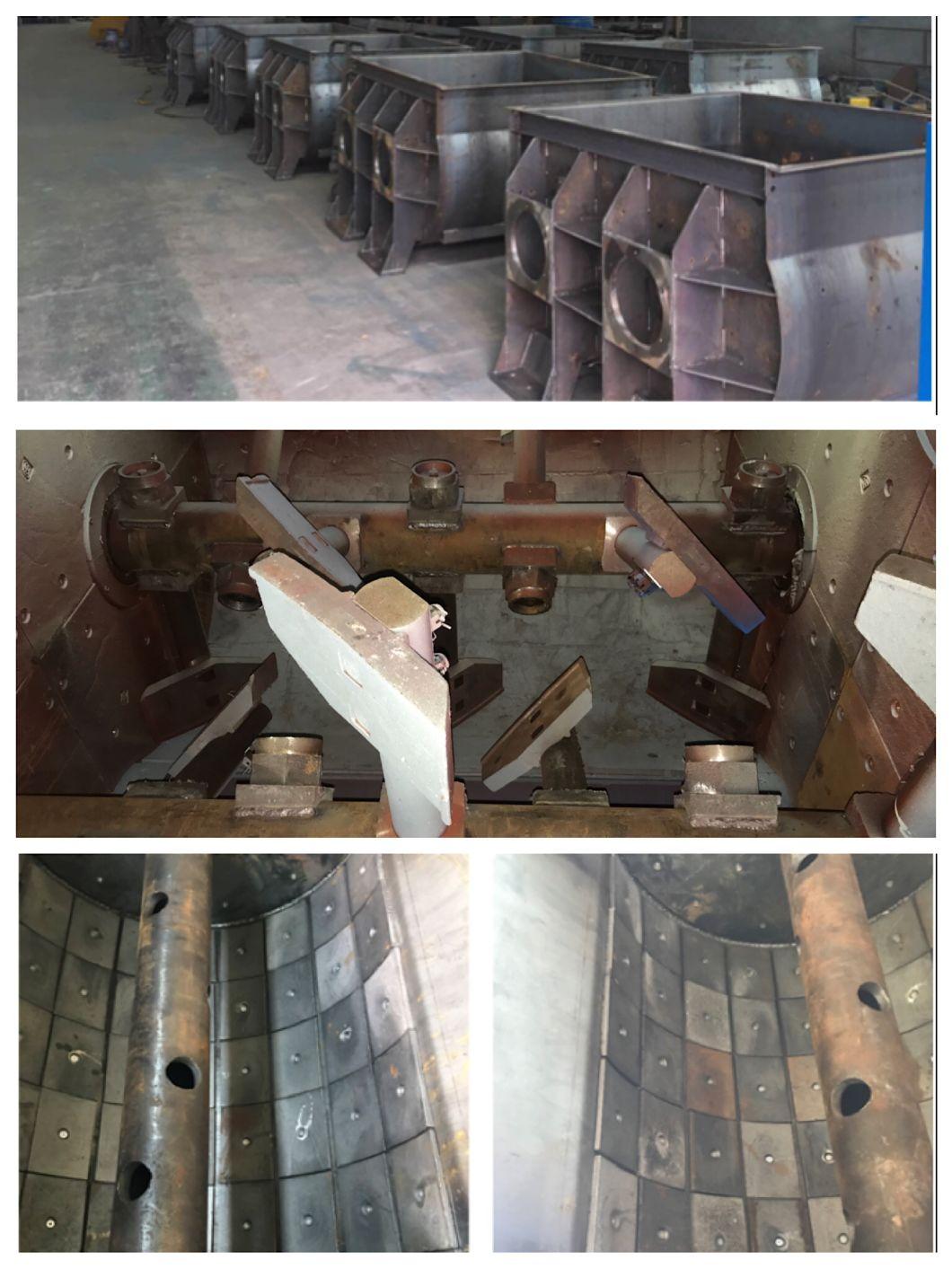

Factory workshop



Technical Specification for JS500 JS750 JS1000 Concrete Mixer


Model	Unit	JS500	JS750	JS1000
Rated Feeding Volume	L	800	1200	1600
Rated discharging Volume	L	500	750	1000
Productivity	m3/h	≥25	≥35	≥50
Power of mixing motor	kw	25.5	39.35	50.2
Maximum size of aggregate Pebble/Macadam	mm	80/60	80/60	80/60
Mixing blades Speed	r/min	30	35	25.5
Mixing blades  Number		2/7	2/7	2/8
External dimension (L×W×H ) Working condition Transportation condition	mm	3870×3050×5250 2600×3050×21000	3400×2400×4900 3220×2400×2600	7571×2200×7000 4500×2200×3250
Weight (T)	kg	4000	6800	8750

   Main features of JS500 JS750 JS1000 Twin-shafts Concrete Mixer
 1. Unique no-sticky shaft technologyThrough the unique design and reasonable allocation of the mixing arms,mixing vanes,material feeding points,material,solve the concrete sticky shaft problem,and reduce the labors intensity.
 2. Excellent mixing performanceThe concrete mixer consoles with German technology,it has the feature of strong mixing performance,mixing homogeneous and high productivity.
 3. Accurate measurement accuracyAdop computer and meter control model,fast calculation speed,short response time.with patented technology of clicking point filling and automatic buckle say function,make the measurement accurately.
 4. Simple operating performance.The concrete mixer is control by computer,can be automaticlly control,and manual operation,simple operation,easy maintenance
 5. Convenient for installationThe overall structure is module type,mixer tank,support leg,ladder,bucket are independent,easy to unloading,the installation and transportation is quite conveinent.
 6. Special Screen Mesh With a Screen mesh on the top of bucket hopper,can avoid the big size of stone to enter the bucket,so as to protect the mould shoe be damaged by big size of stone.

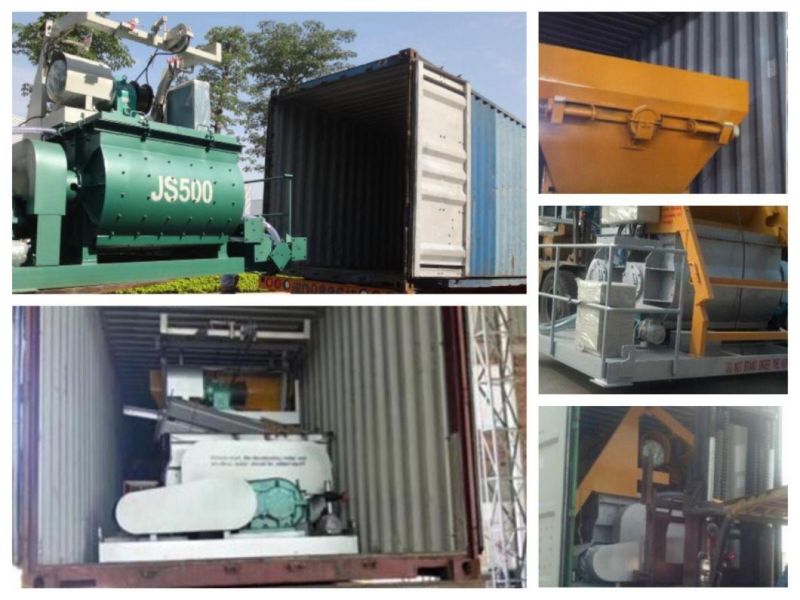

Conctainer loading for JS500 Twin-shafts Concrete Mixer to customers overseas



  Application of Concrete Mixer at site

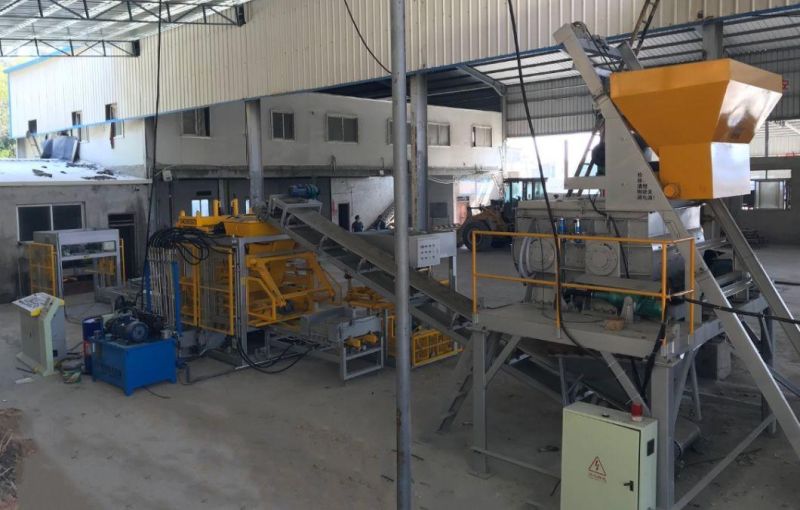

JS500 Twin-shafts Concrete mixing,using Conveyor belt to transfer the Raw material from Batching machine to Concrete mixer.

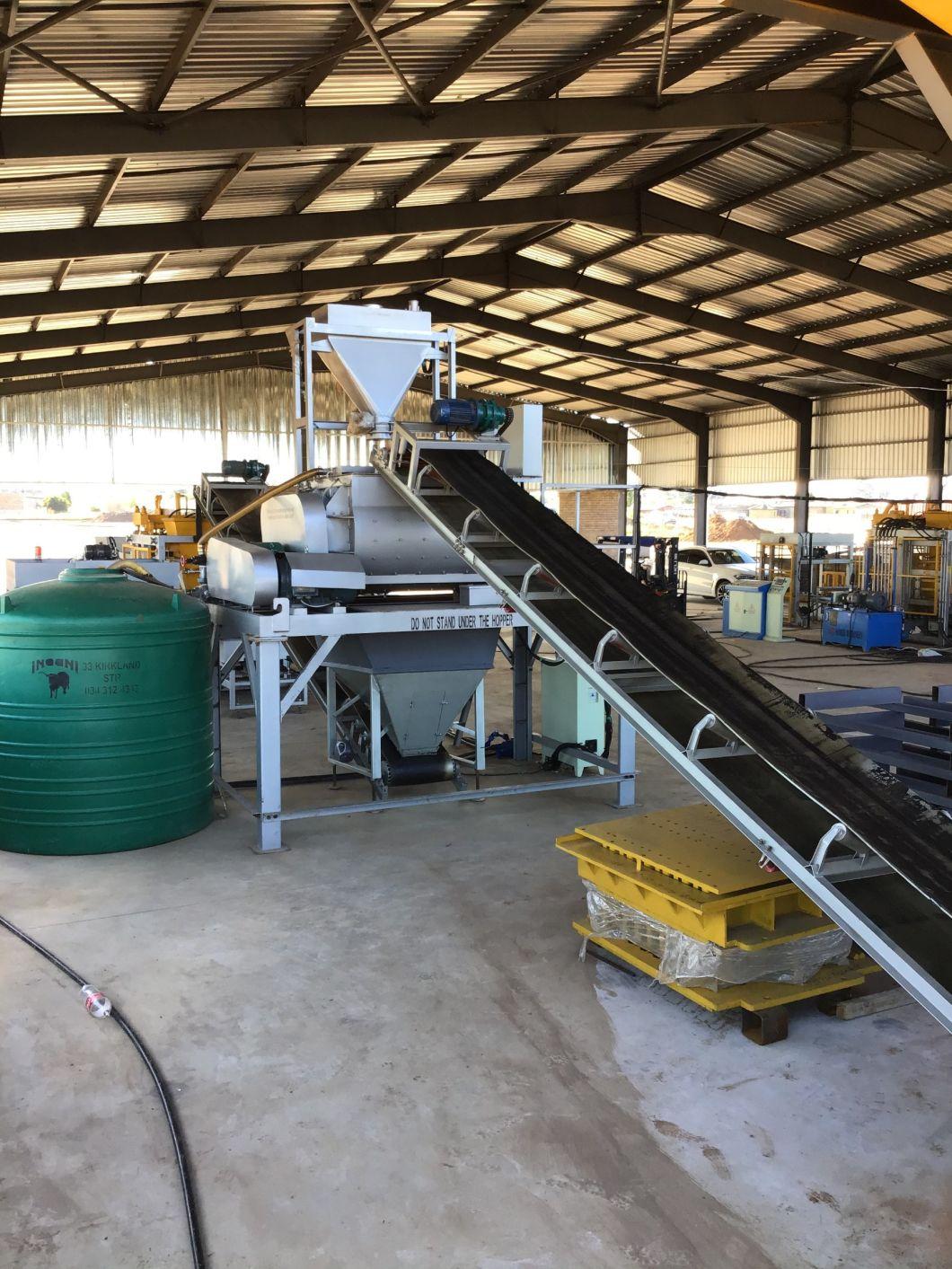

JS500 Twin-shafts Concrete mixer,using Bucket Hoist hopper to transfer the Raw material from Concrete Batching machine to Concrete mixer.

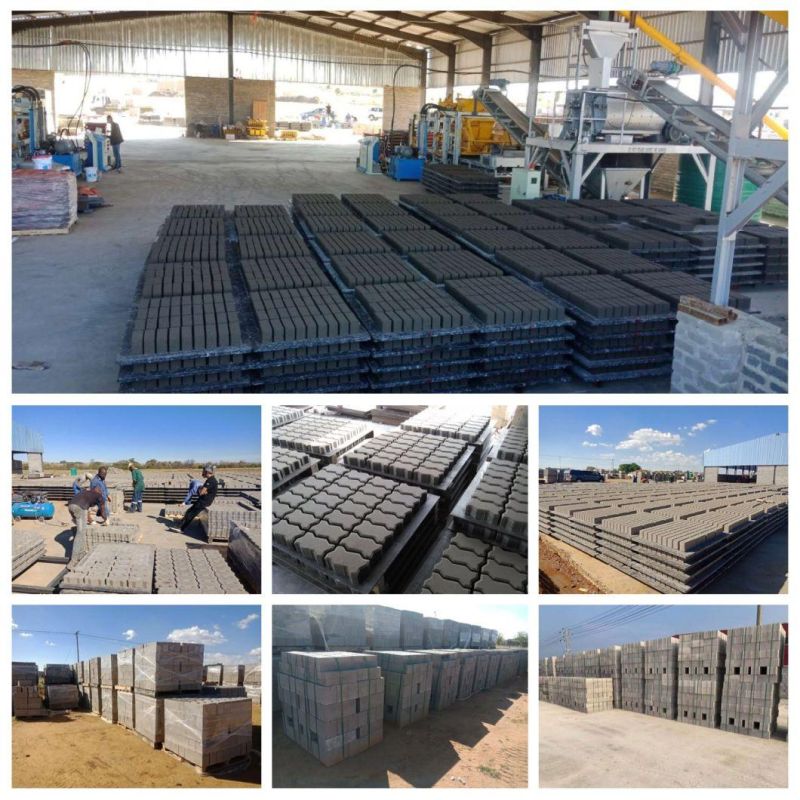

   Concrete block Making Plant at site







Our Service
 Pre-sale service support
According to every customer's demand and budget, we offer the professional  factory set up solution, factory layout design, process flow design. More importantly, we welcome every customer to visit our factory and visit our customer site before placing the order


On-sale service support

Assist clients to finish the factory planning,like foundation construction, power preparation,water pool preparation,etc. Before delivery equipment to customers, complete debugging and checking,our machine will do hot testing in workshop with material. Provide a full instruction manual for the block making machine. Provide technical guidance for the installation , including installation advice and electrical connection.

After-sale service support

Send technicians to installation site for the guidance, equipment commissioning and training. Provide high-quality spare parts thoughout the year, and the maintenance technicians are always ready to provide technical help.
