Window Welding Machine Factory Direct Supply Double Mitre Saw

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Semi-Automatic
  • CNC or Not：not CNC
  • Voltage：380V
  • Model：Ljz2-420*3600

Base Info

  • Model NO.：Ljz2-420*3600
  • Input Voltage：380V 50Hz
  • Input Power：3.0kw
  • Air Pressure：0.4~0.6MPa
  • Air Consumption：120L,Min
  • Spindle Speed：2800r,Min
  • Cutting Length：360~3600mm
  • Cutting Width：100mm
  • Cucutting Height：150mm
  • Overall Dimension：4300*1200*1300mm
  • Transport Package：Wooden Box
  • Specification：4300*1200*1300mm
  • Trademark：YueFeng
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：40 Window Per Day

Description

Basic Info.

Model NO. Ljz2-420*3600 Input Voltage 380V 50Hz Input Power 3.0kw Air Pressure 0.4~0.6MPa Air Consumption 120L/Min Spindle Speed 2800r/Min Cutting Length 360~3600mm Cutting Width 100mm Cucutting Height 150mm Overall Dimension 4300*1200*1300mm Transport Package Wooden Box Specification 4300*1200*1300mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

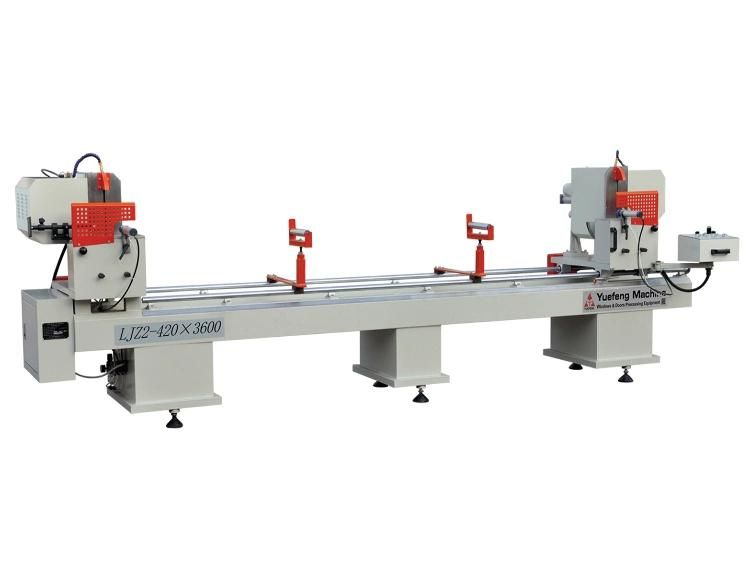

Window Welding Machine Factory Direct Supply Double Mitre SawLJZ2-420×3600 Double Mitre Saw
Window Welding Machine Factory Direct Supply Double Mitre Saw



1. Used for cutting aluminum and PVC at 45°, 90 ° degrees.
2. It adopts pneumatic drive and linear guide feeding.
3. The right head adopts imported linear guide pair, with high accuracy and smooth working.4. It has features of high accuracy, efficiency, and safety.
Technical Parameter:
ModelLJZ2-420×3600
Input voltage380V 50Hz
Input power3.0kw
Air pressure 0.4~0.6MPa
Air consumption 120L/min
Spindle speed2800r/min
Cutting length360~3600mm
Cutting width≤100mm
Cutting height ≤150mm
Overall dimension4300×1200×1300mm

Window Welding Machine Factory Direct Supply Double Mitre Saw
Window Welding Machine Factory Direct Supply Double Mitre Saw
Window Welding Machine Factory Direct Supply Double Mitre Saw
Window Welding Machine Factory Direct Supply Double Mitre SawWindow Welding Machine Factory Direct Supply Double Mitre SawFAQ

1.Are your company a trading one or a factory?

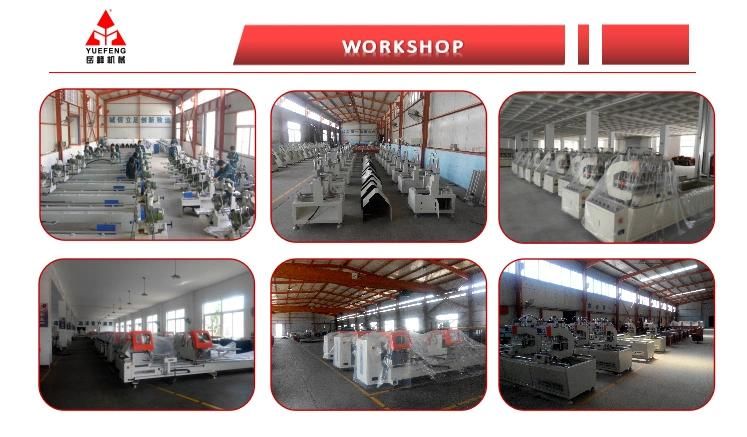

Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
