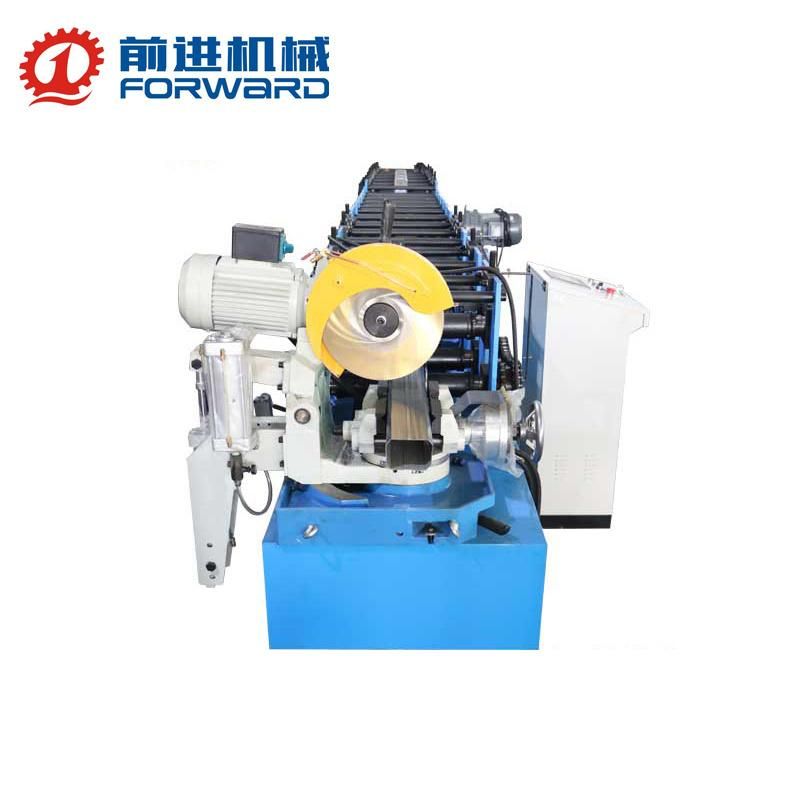

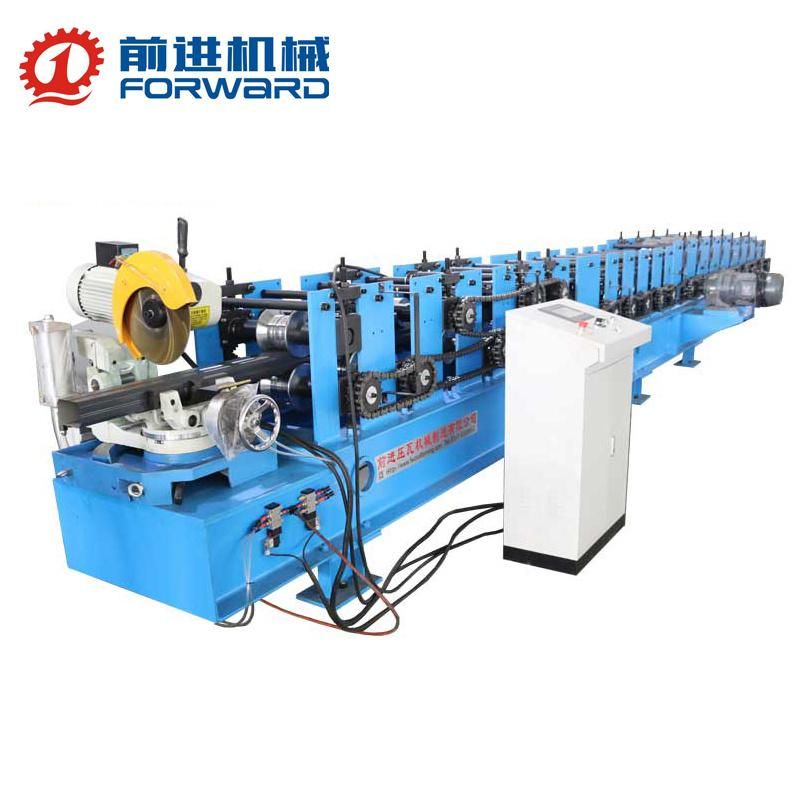

Full Automatic Downspout and Gutter Roll Forming Machine
Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd.- Warranty：12 Months
- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof
Base Info
- Model NO.：Customized
- Transmission Method：Electric
- Suitable Material：PPGI,PPGL,Gi,Gl
- Suitable Thickness：0.3-0.8mm
- Profile Drawing：Customized
- Voltage：as Customer′s Request
- Speed：12-15m,Min
- Delivery Time：40-60 Days
- Loading Method：FCL
- PLC：Delta
- Touch Screen：Touch Win
- Encoder：Omron
- Inveter：Saj
- Electric Components：Delixi or Chnt
- Driving Motor：Lichao
- Hydraulic Motor：Lichao
- Transport Package：Export Package
- Specification：20GP
- Trademark：FWD
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets,Month
Description
Overview
Product DescriptionGeneral Information Coil Material PPGI/PPGL/GI/GL Coil Thickness 0.3~0.8MM Coil Width --- Speed 12~15M/MIN Voltage As Customer's Request Roll Forming Unit Roller Station 16 Driving Motor 5.5KW Shaft Diameter 70mm Solid Shaft Material 45# Hard Steel Roller Material 45# Hard Steel Under Frame 350H-Beam Sidewall Thickness 16MM Transmission 1 Inch Chain Feeding Device 1 Set Cutting Unit Cutting Type Fly-saw Cutting Hydraulic Pump Power 3KW Control Unit Control Method PLC Length Control Encoder Operation Touch Screen Language Chinese & English Auxilliary Device --- 3T Manual Decoiler --- Exit Rack
*All parts can be customized as customer's request.
not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q3. What's your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
*All parts can be customized as customer's request.
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that pricenot the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q3. What's your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
