• Model NO.：As customer request
• Erosion Resistant：Resistance of Most Acid, Alkali, and Salt
• No Water Immersion：Water Immersion Rate <0.5%
• Light Weight：Density=1200kg,M3
• Life Span：Can Reach 6 Years Theoretically
• High Load Bearing：Max Load 2.0 Kn, Bending Strength 51.0 MPa
• Transport Package：Standard Ocean Packing
• Specification：Customized
• Trademark：HAWEN
• Origin：China
• HS Code：4412101999
• Production Capacity：4, 800, 000PCS Per Year

Basic Info.

Model NO. As customer request Erosion Resistant Resistance of Most Acid, Alkali, and Salt No Water Immersion Water Immersion Rate <0.5% Light Weight Density=1200kg/M3 Life Span Can Reach 6 Years Theoretically High Load Bearing Max Load 2.0 Kn, Bending Strength 51.0 MPa Transport Package Standard Ocean Packing Specification Customized Trademark HAWEN Origin China HS Code 4412101999 Production Capacity 4, 800, 000PCS Per Year

Product Description

Introduction:

GMT Pallet,the full name is Glass Mat Reinforced Thermoplastics,
it is a kind of plastic brick pallets, which is made of fiber glass as reinforcing material and thermoplastic resin composite material, through heating and pressurizing.The glass fiber is three-dimensionally staggered like steel, and the resin is coated with glass fiber like cement-coated steel.

The GMT raw material is a new type of engineering plastic, which was developed in the past few years. It can be recycled, so it is considered one of the most promising new green materials in the 21th century. Now, the materials are widely applied in automobile industry (such as bumper, motor base), construction industry (like formwork) and concrete block machine pallets etc.
Our  GMT brick pallet made from this material can  be as solid as reinforced concrete,
because the fiber in the pallet is structured like reinforced concrete.
 In hence, the rigidity and toughness of the GMT pallet used for concrete block machines are particularly strong.





Technical Specifciation


Items	Characteristics	Technical Specification	Outstanding Performance
1	Rigidity	Elasticity Modulas  3.7 GPa	No Deformation
2	High Load Bearing	Max load 2.0 kn,Bending Strength 51.0 MPa	Stand big pressure, high load, and brings no rupture
3	Anti-abrasion	Shore Hardness 72	Long Life Span
4	Anti-impact	Withstand Impact of 20KJ/m2	Vibration Resistant, Anti-fall, and no Cracking
5	Weather Resistant	Operating Temperature between -40 degree--90 degree	Insolation Resistant, Anti-aging, and Suit for Steam Curing
6	Erosion Resistant	Resistance of most Acid, Alkali, and Salt	Protect inner steel and bamboo against rust and mildew
7	No Water Immersion	Water Immersion Rate  <0.5%	Protect inner bamboo(wood) board
8	Light Weight	Density=1200kg/m3	Effort Saving and Friction Reducing
9	Life Span	Life Span can reach 6 years theoretically	Low Cost
10	High Performance	High Performance and Low Cost	Extremely Low Cost during long time using

Advantage :


• GMT Pallet more light weight, save the Sea freight cost

This glass fiber pallets for block is the most economical pallets currently now for block making machine.

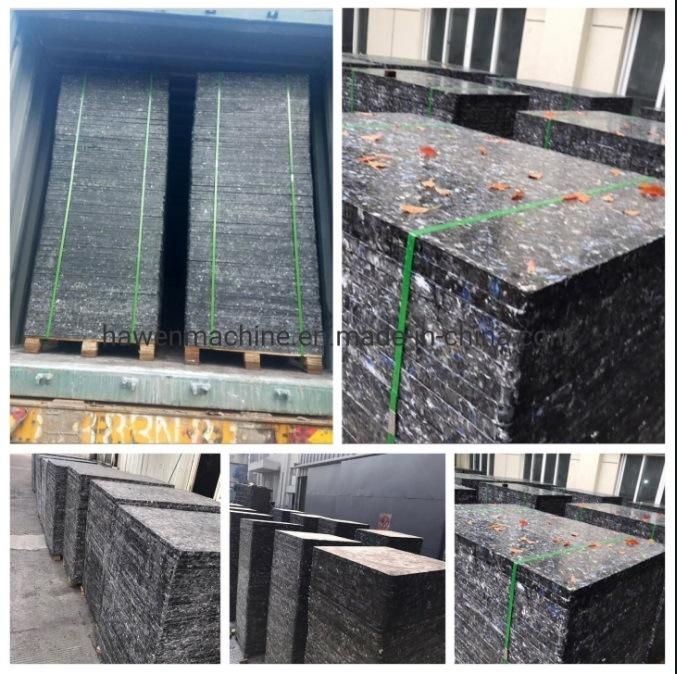

 Container loading for GMT Pallet

• Endurable

GMT pallet can use min. 6 years,which is much longer than Bamboo Pallet at 2 years and Wooden Pallet at 2-3 years.


• Impact Resistance
  GMT brick pallet impact strength is equal to 30KJ/m2, while PVC block plate impact strength is less than or equal to 15KJ/m2, when comparing the impact strength under the same conditions. Drop hammer experiment test in the same height shows that: when GMT block pallet is slightly cracked, the PVC plate has been breakdown by drop hammer.

• Good Regidity

Rigidity means the property of anti-bending. GMT block pallet is similar to PVC brick pallet about this aspect;
 but it is stronger the common plastic brick pallet (rubbish pallet) and bamboo plywood pallet. GMT plate
elastic modulus 2.0-4.0GPa, and the PVC sheets elastic modulus 2.0-2.9GPa.


-  Waterproof
  The GMT block pallet water absorption rate is less than 1%. It performs better than the bamboo plywood after water soaking.

- Corrosion Resistance
  The GMT brick pallets are resistant to the most acid-base salt, so it is without damage under strong acid.

- Anti-high And Low Temperature
 When it is less than 20 degrees, the GMT brick pallets will not deform or crack. GMT pallets for concrete block machine
are able to withstand high temperature of 60-90 ºC.
It will not easily deform, and suitable for steam curing, but PVC plate is easy to deform at high temperature of 70 degree.

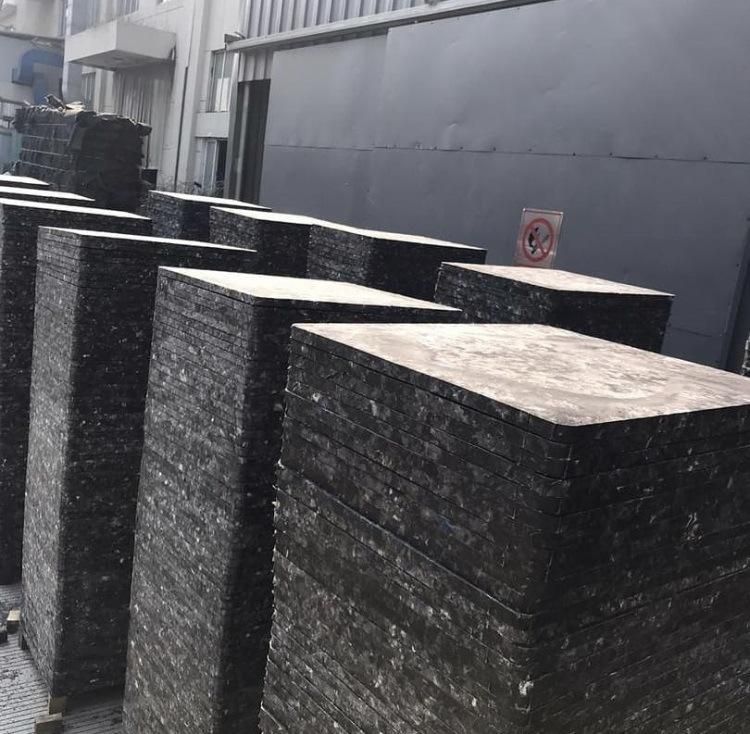

 GMT Pallet ready for shipment



GMT Pallet Application,used for Brick/Block/Paver production in block making plant

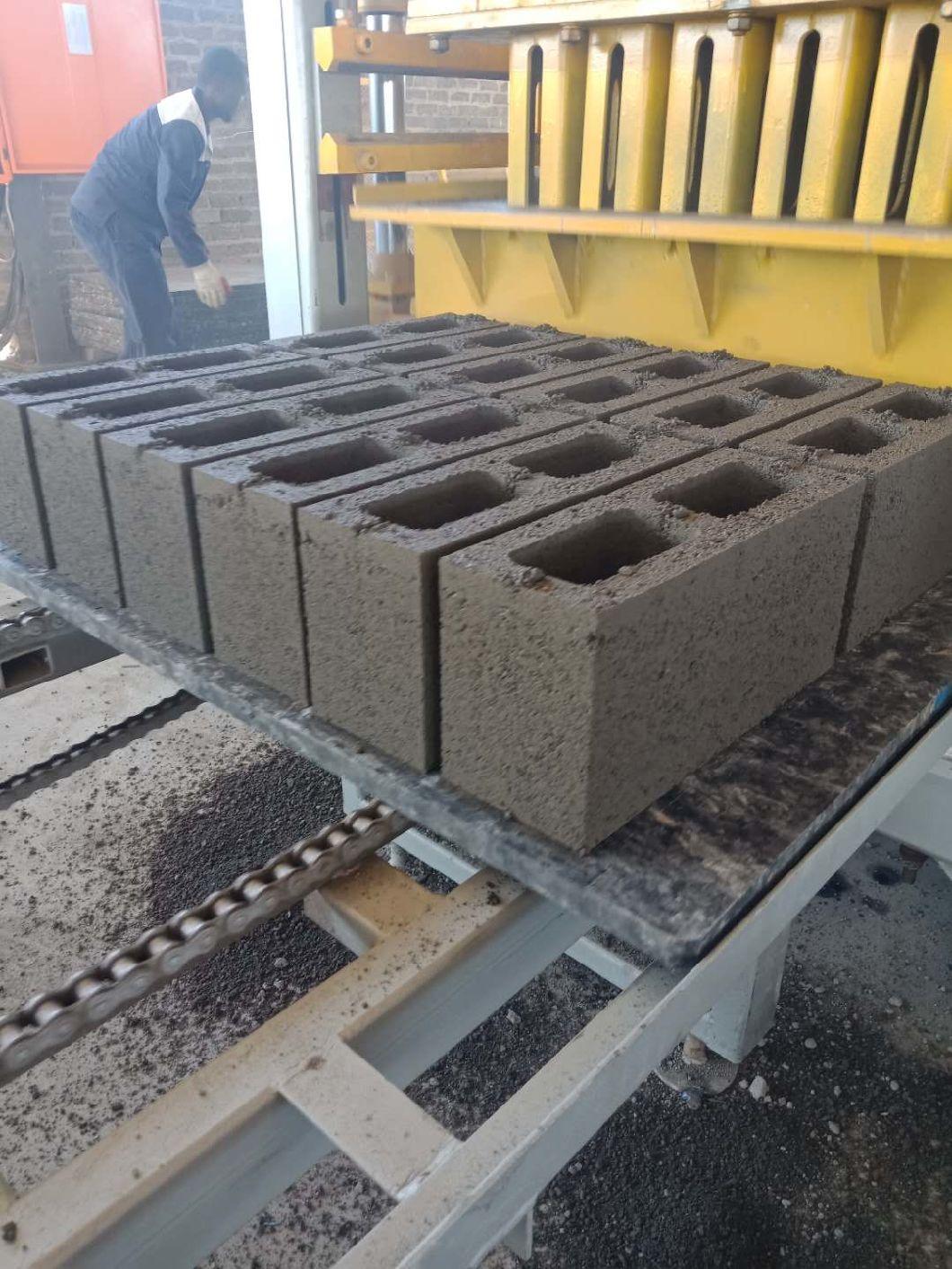

GMT Pallet for Hollow block Production

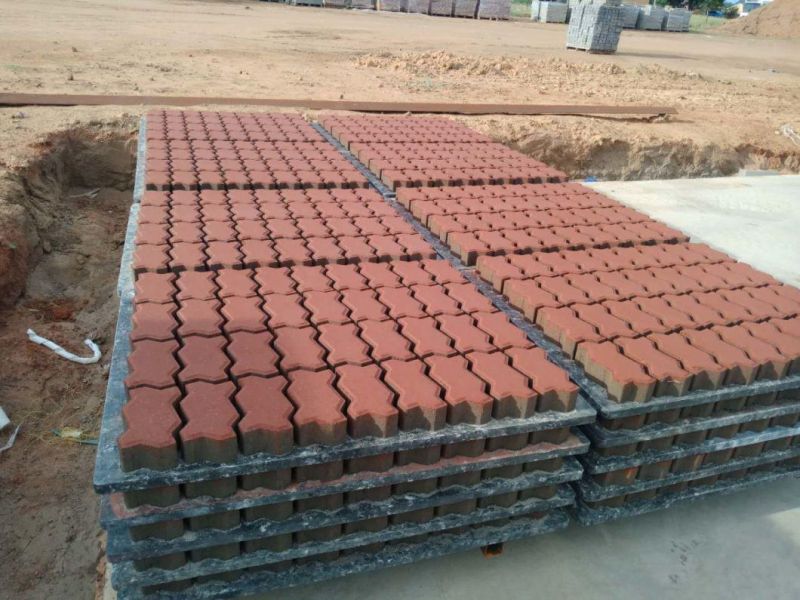

   GMT Pallet for Rectangle Paver Production

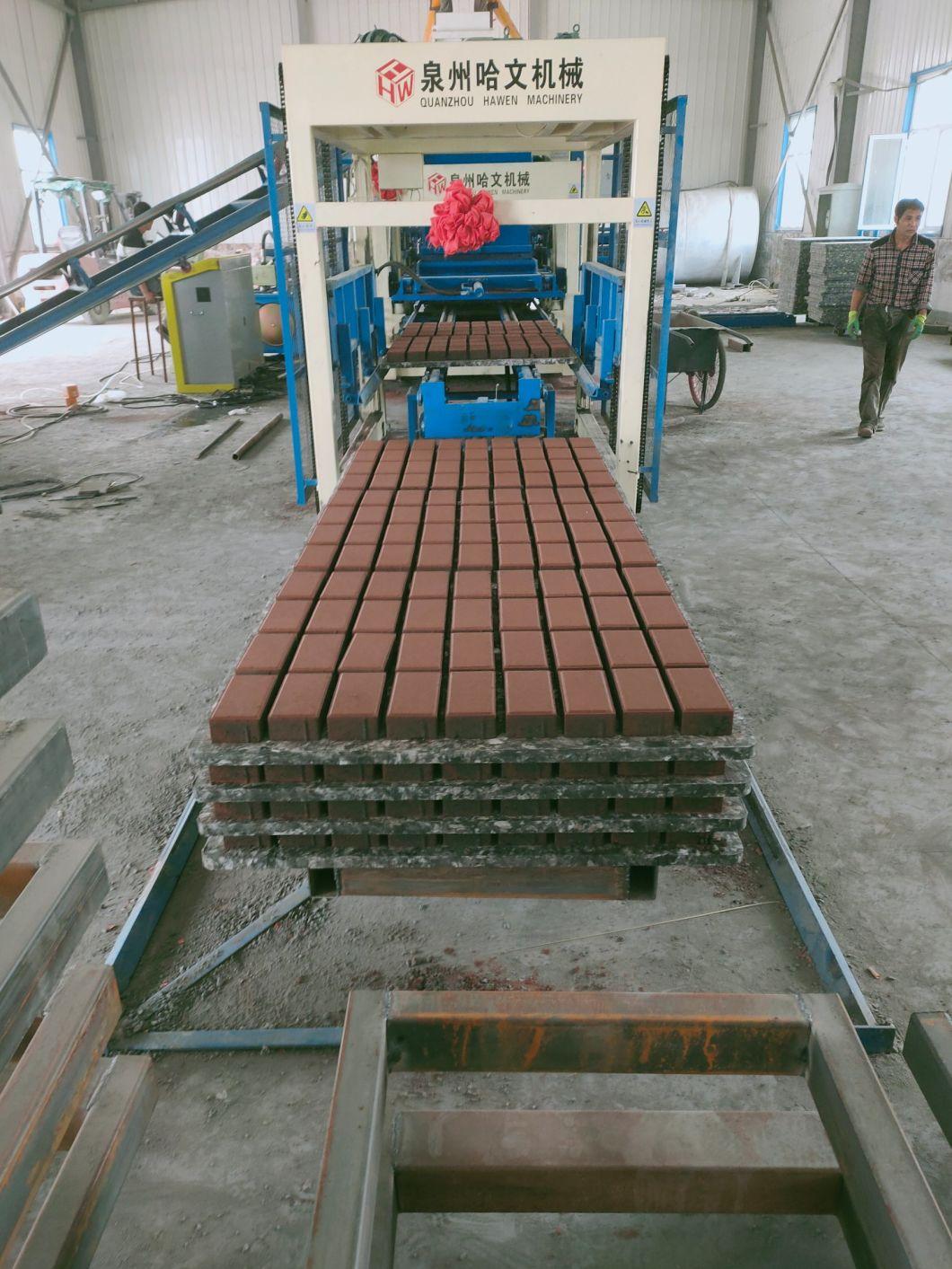

 GMT Pallet for Solid Brick Production



 GMT Pallet for Revetment Block in production





Our  GMT pallets have been widely approved by Many of our domestic customers and customers overseas.
No matter you are new to set up block factory or you have experence in block factory running, you are very welcomed to contact us,our GMT pallet will benefit to your block factory running.
