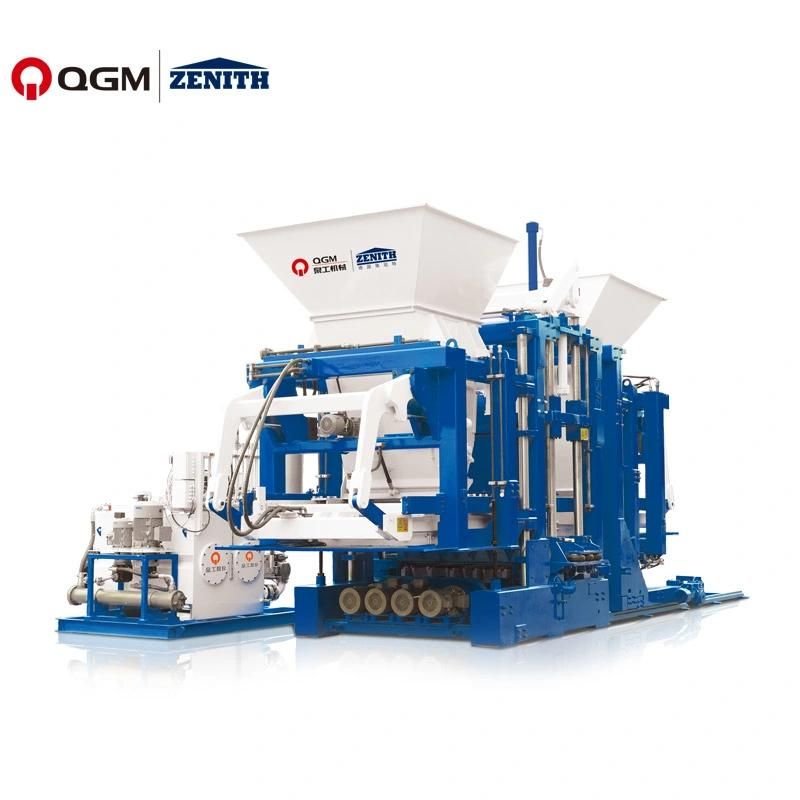

• Model NO.：ZN1500C
• Applied Products：Hollow, Paver, Interlocking, Grass Pavers etc
• Applied Fields：Widely Used in Buildings, Road Pavings, Square etc
• Transport Package：Standard Package
• Specification：4600x2400x4400mm
• Trademark：QGM
• Origin：China
• Production Capacity：Hollow Block 400*200*200mm: 14400 PCS

Basic Info.

Model NO. ZN1500C Applied Products Hollow, Paver, Interlocking, Grass Pavers etc Applied Fields Widely Used in Buildings, Road Pavings, Square etc Transport Package Standard Package Specification 4600x2400x4400mm Trademark QGM Origin China Production Capacity Hollow Block 400*200*200mm: 14400 PCS

Product Description

Company Information
QGM Quangong Machinery, which was founded in 1979, is the leading manufacturer of concrete machinery and plant. With quality and service,  QGM Machinery are not only distributed and found in use all around China, but also in more than 120 countries and areas.

Five advantages

Vibration System
Vibration table consists with dynamic table and static table. When vibration begin,dynamic table vibrate,static table remain static.The structure is designed to ensure the amplitude of the vibration table, so as to ensure the high quality of concrete products. Vibration table using HARDOX steel. Vibration mode: using the vibration table vibration + top mould vibration; vibration motor installation vibration damping device and air cooling device.

Feeding System
Motor use SEW motors, which control two mixing shafts. Feeding frame, bottom plate and mixing blade are made of high-duty HARDOX steel, the location of bottom plate can be adjusted.Feeding system have sealing device to prevent leakage. The door of the discharging gate is controlled by the SEW motor.

Hydraulic Station
Hydraulic pumps and hydraulic valves adopt international brands. Tube uses "Flange Connection", convenient installation and maintenance. Multi-point pressure detection point, convenient detection. Digital temperature and blockage alarm function. Motor and pump connection, flange connection, good coaxial. Dynamic proportional valve and constant power pump, speed regulation, voltage regulation, energy saving.

Germany Siemens PLC control system, Siemens touchscreen, Germany
Easy operation,low failure ratio, machine running stability and high reliability.Use the most-advanced industrial internet technology, realize remote trouble-shooting & maintenance. PLC and touchscreen use the PROFINET internet together, convenient for system diagnosis and WEB expansion. Achieve problem diagnosis and alarm system constantly, convenient for machine maintenance and troubleshooting. PLC running data for permanent preservation.

Frequency conversional technology & control
Reduce the motor starting current and soft start function control, prolong the life of the motor. Main vibration adopt low frequency standby, high frequency operation, improve the speed of operation and product quality. Reduce mechanical accessory and motor damage, prolong the life of the motor and mechanical.The frequency conveter saving about 20%-40% power than the traditional conveter.

Verified Information:

 Since 1979, QGM specializes in concrete block machinery manufacturing and supply and is the only supplier that can supply integrated solutions for block making with our service and quality.
 Quality Management System 6S, ISO9001, Environment Management system ISO 14001, CE certified High Technology Corporate, 88 patents.
 QGM has 10 overseas offices and 25 overseas warehouses, so our machines are well distributed and can be found in use in more than 120 countries and areas.

FAQ

1. Q: For the QT6 concrete brick machine, What is the best price you could offer?

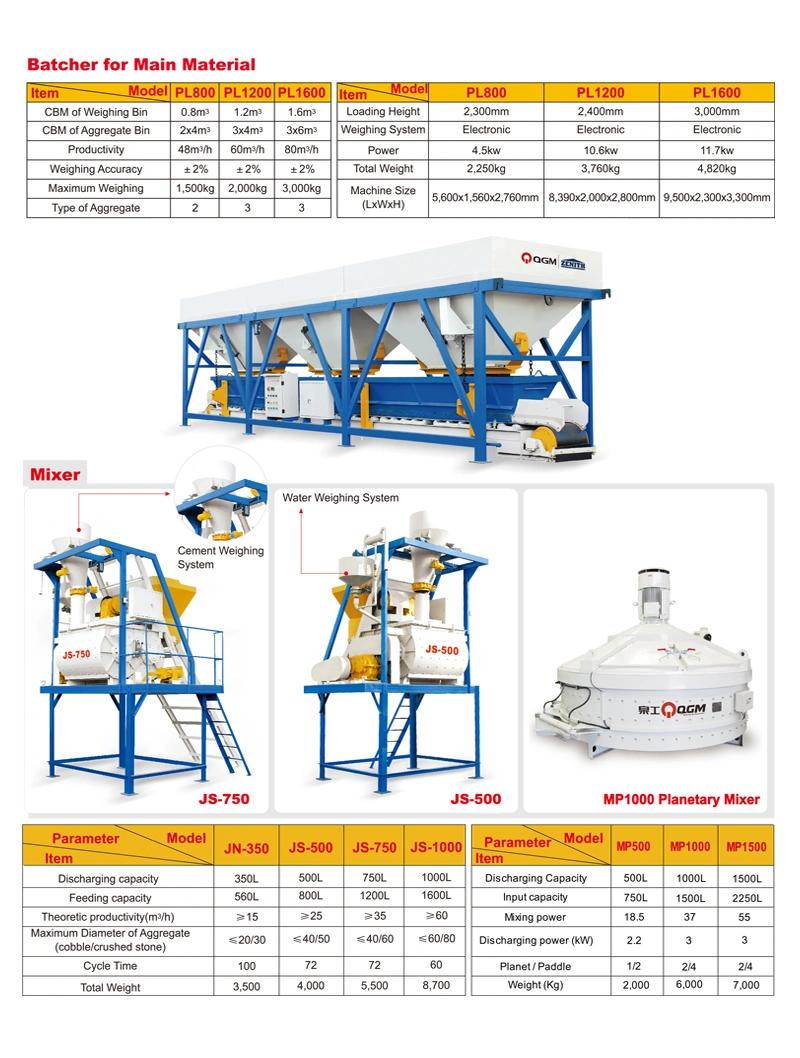

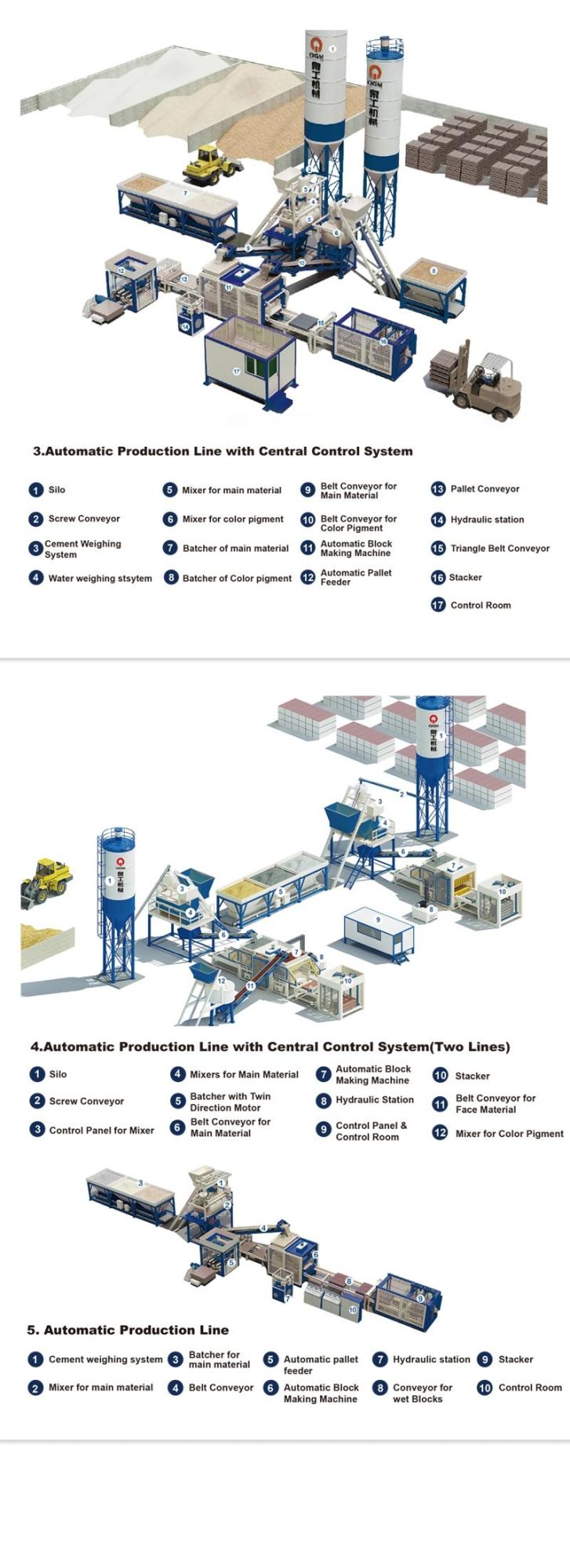

A: The price of a concrete block production line includes batcher, mixer, brick machine, stacker etc, so the price varies a lot based on the client's selection of the auxiliary equipment and configuration. QGM ZENITH is glad to provide quotations for customers who could kindly provide detailed technical requirements such as block type, block size, capacity requirement, budget range etc. Please kindly contact us for further discussion.

2.Q: What does the number 6, 10, 900, 1000 mean in the QGM block machine?

A: Take block machine QT6 as an example, 6 means the brick machine could make 6 pieces of hollow blocks at the size of 390*190*190mm. The same goes with QT10. For the ZN900C, ZN1000C, these two concrete block machines are updated with Germany Zenith design after 2014. ZN900C and ZN1000C respectively makes 9 and 10 pieces of the same cement blocks mentioned above.

3.Q: For the concrete block machines from QGM ZENITH, how do you do the installation, commission and after sales service?

A: After the arrival of the block machine on site, QGM will appoint technical engineers to support with the installation, commissioning of cement block production as well as the operator training and test. For after-sales service, QGM has set up overseas offices in different areas for future support, including Algeria, Dubai, India, Indonesia, Nigeria, Oman, Saudi Arabia, South Africa, Vietnam etc.

4.Q: What is the relationship between Quangong Machinery Co., Ltd and Germany Zenith?

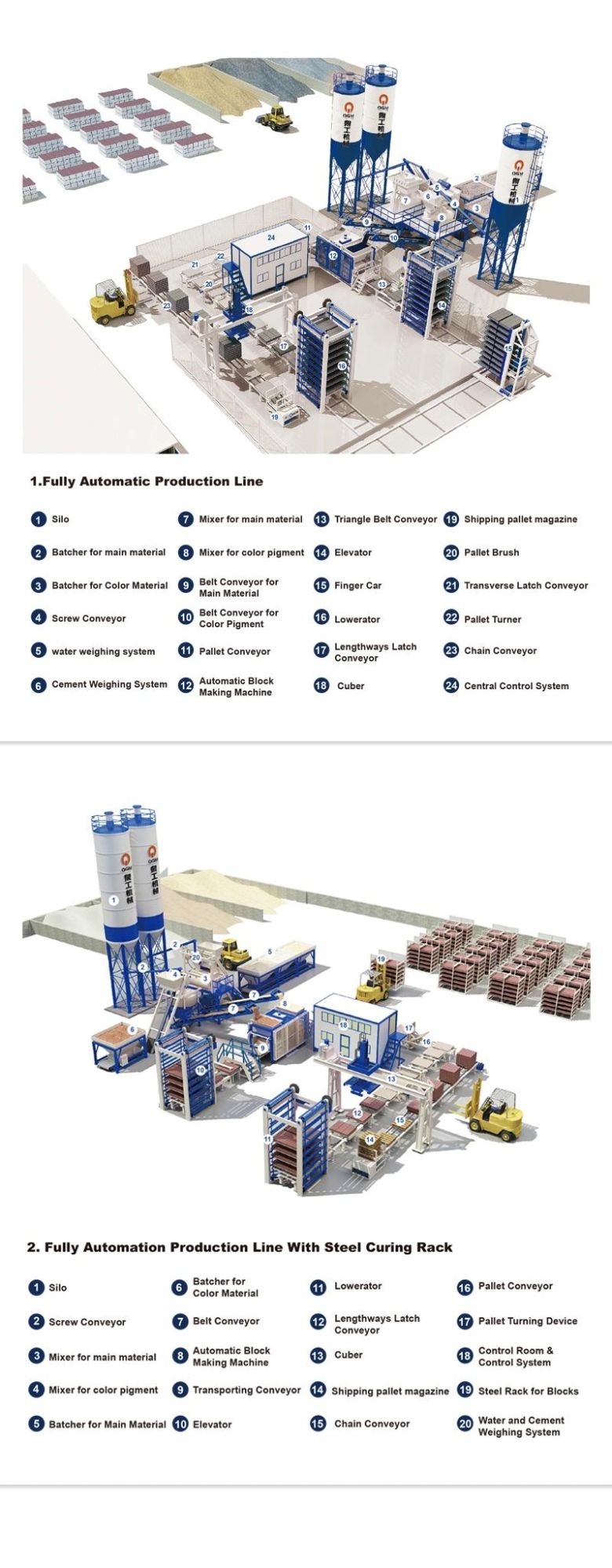

A: In 2014, QGM fully acquired Zenith Maschinenfabrik GmbH. Benefiting from the close collaboration between Germany Zenith technology and QGM China Manufacturing center, QGM Group is able to provide a wide range of concrete block machines to global users, from simple automatic production line to fully automatic production line, from stationary automatic block making machine to mobile automatic block machine.

5.Q:What is the strength of the cement bricks that QGM machines could make?

A: The strength of concrete blocks is related to the properties and ratio of the raw material, the strength of cement, the vibration force, the operation of the concrete block making machine, the regular maintenance of the complete production line etc. The QGM technical engineer would test the machine with the raw materials customer provides on site to make the premium concrete blocks then train the customer's operator. With the proper raw materials and recipe, accurate operation, stored formula in Siemens control system, regular maintenance of the block machine, the QGM block machine should be able to make satisfactory concrete blocks.

6.Q:What payment is acceptable?

A:30% of contract value by T/T as advance payment; 70% of contract value by T/T or L/C before delivery.

 If you're interested in our products,just send the inquires to us or pick up the phone and call us at  +86-595-8679-9299.thanks for your attention .
