• Model NO.：NM893
• Customized：Customized
• Usage：Roof, Wall
• Transmission Method：Electric
• Product Name：Tr4&Tr5 Roof Sheets Roll Forming Machine
• Raw Material：PPGI Sheet
• Thickness Range：0.3-0.6mm
• Machine Power：5.5kw+3kw
• Diameter of Shaft：76mm
• Speed：10-15m,Min
• Control System：PLC Computer
• Shearing System：Hydraulic
• Machine Weight：About 5 Tons
• Warranty：12 Months
• Afer-Sales Service：Engineer Is Availble to Overseas
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：7500mm*1500mm*1700mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets , Months
• Package size per unit product：850.00cm * 160.00cm * 160.00cm
• Gross weight per unit product：6000.000kg

Article No.Item NameSpecification       1Width of feeding material1250 mm coil sheet       2 Thickness of feeding material0.3-0.8 mm coil sheet       3Roller station16/11 stations       4Shaft Diameter 76 mm       5Productivity10-15 m/min       6Rollers' material45# steel with 0.05 mm chrome       7 Shaft material 45# steel with 0.05 mm chrome       8Weight5 tons       9length7.5 m      10Voltage380V 50Hz 3phases      11Control PLC      12Decoiler5 tons      13Motor5.5 kw      14Driving wayChain transmission      15Chain size1 inch      16Cutting systemHydraulic cutter
4. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

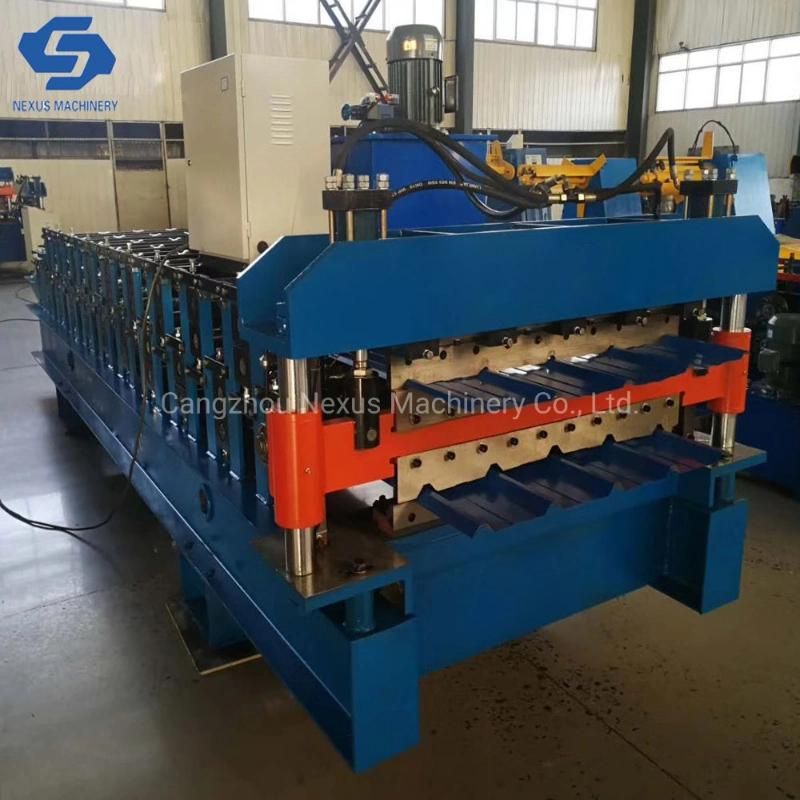

5. Photos of Double Deck Roof Sheets Roll Forming Machine/ Sandwich Roofing Panel Forming Mill for Reference:

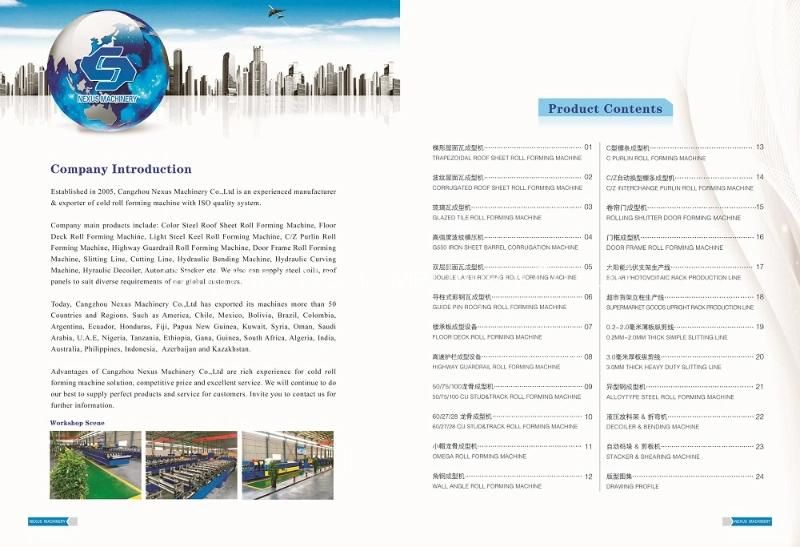

ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
