• Model NO.：SKZ-CNC-6000
• Certification：ISO, CE
• Automatic Grade：Automatic
• CNC or Not：CNC
• Voltage：Customized
• Control System：Taiwan Syntec
• Solenoid Valve：Airtec
• Air Pressure：0.5~0.6MPa
• X/Y/Z Axis Stroke：6000mm*500mm*350mm
• Input Voltage：380V 50Hz or as Customer Need
• Input Power：12kw
• X Axis Speed：6000mm
• Y,Z Axis Speed：15000mm,Min
• Overall Size：7100X1600X2200mm
• Weight：2300kg
• Application：Aluminum Profile, PVC Profile
• Transport Package：Film and Plywood Case
• Specification：4000mmx1500mmx1950mm
• Trademark：Hiwoc
• Origin：China
• HS Code：94659200
• Production Capacity：1000,Year

Basic Info.

Model NO. SKZ-CNC-6000 Certification ISO, CE Automatic Grade Automatic CNC or Not CNC Voltage Customized Control System Taiwan Syntec Solenoid Valve Airtec Air Pressure 0.5~0.6MPa X/Y/Z Axis Stroke 6000mm*500mm*350mm Input Voltage 380V 50Hz or as Customer Need Input Power 12kw X Axis Speed 6000mm Y,Z Axis Speed 15000mm/Min Overall Size 7100X1600X2200mm Weight 2300kg Application Aluminum Profile, PVC Profile Transport Package Film and Plywood Case Specification 4000mmx1500mmx1950mm Trademark Hiwoc Origin China HS Code 94659200 Production Capacity 1000/Year

Product Description

3 Axis CNC Processing Center for Aluminum Profile Aluminum Window Door Machine Aluminum Profile Milling and Drilling Machine Aluminum Curtain Wall Machine

Feature
1. The machine is used for drilling holes, milling grooves, processing round holes and special-shaped holes, plane engraving of aluminum alloy profiles.
2. Adopted Taiwan Syntec CNC Control system.
3. Adopted the electric spindle, high precision, high safety and reliability.
4. X axle adopts high precision helical gear and rack, Y and Z axis adopt high-precision ball screw transmission, steady transmission and high precision.
5. By using programming software to transform and process G code automatically, easy operation, high efficiency and low labor intensity.
6. workbench can turn 180°,-90°0°+90°, it can realize material three-sides section processing by clamping one time, it can process deep and special-shaped holes through workbench turning, high efficiency and precision,

Parameter
Air Pressure	0.5~0.6MPa
X/Y/Z Axis stroke	3000mm*300mm*280mm
Input Voltage	380V 50Hz or As Customer need
Input Power	3KW
Handle type	ER25
Processing range	100*140
Overall size	4000×1500×1950mm
Weight	1300kg



Main accessory
Control system	Taiwan Syntec
Solenoid valve	Airtec
Cylinder	Airtec
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	Airtec
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider

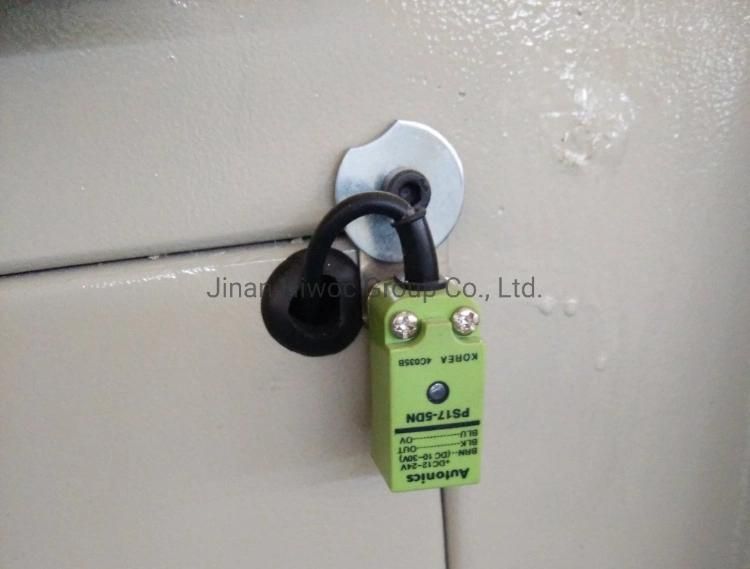

Approach Switch	Taiwan Delta
Guide rail	Taiwan Hiwin



Standard accessory
Cutters	4pcs
Air Gun	1pc
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc

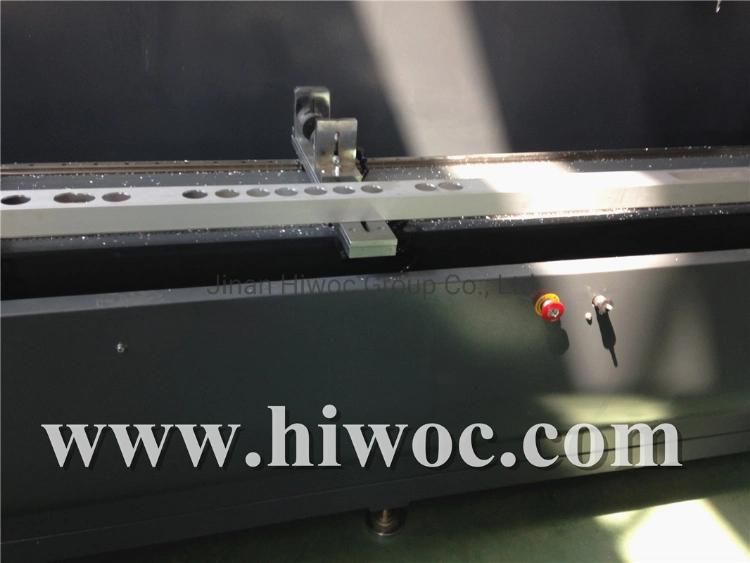

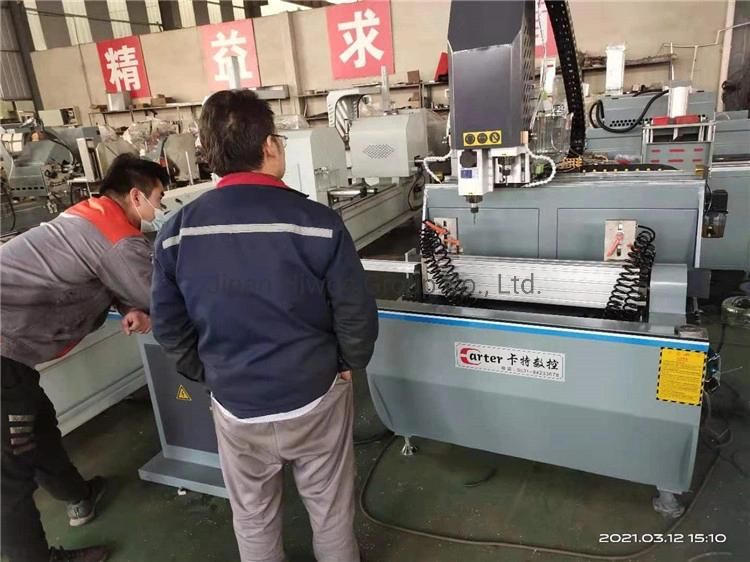

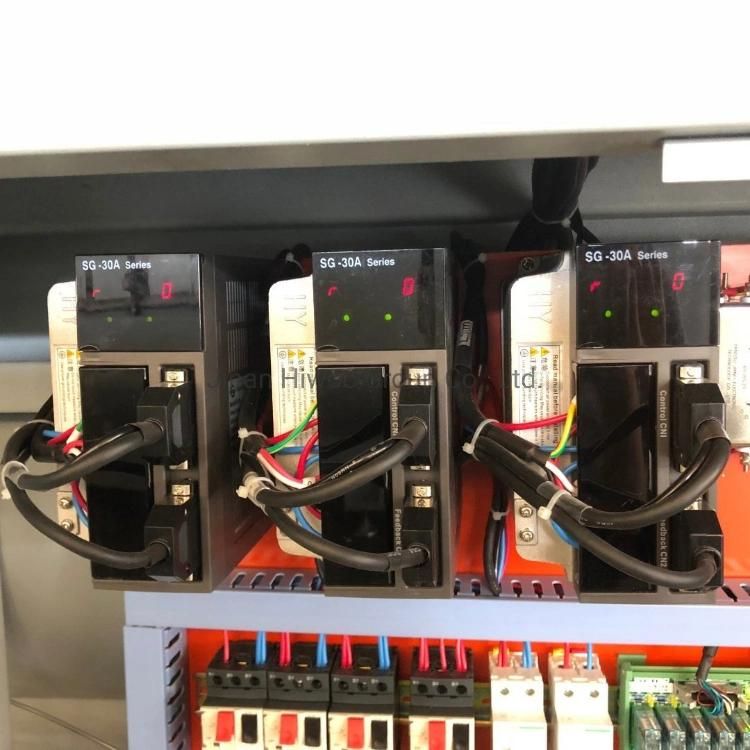

Machine details

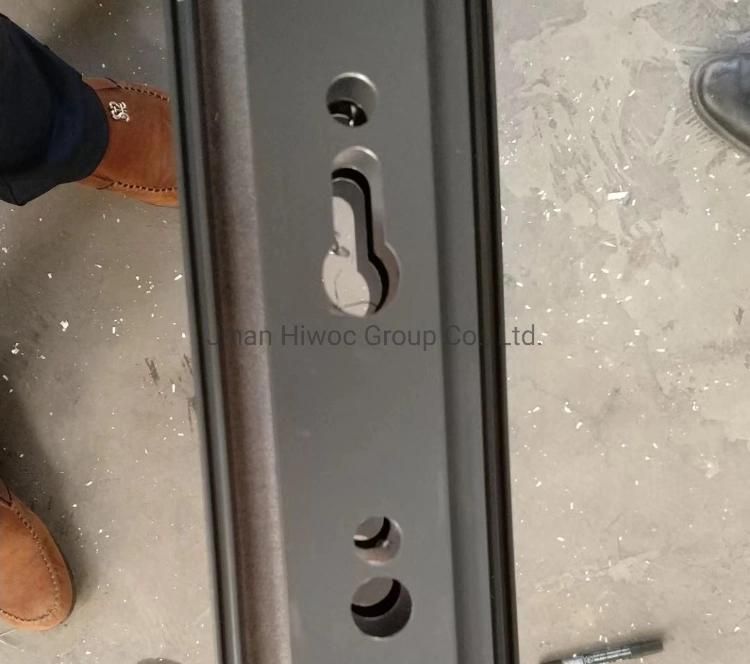

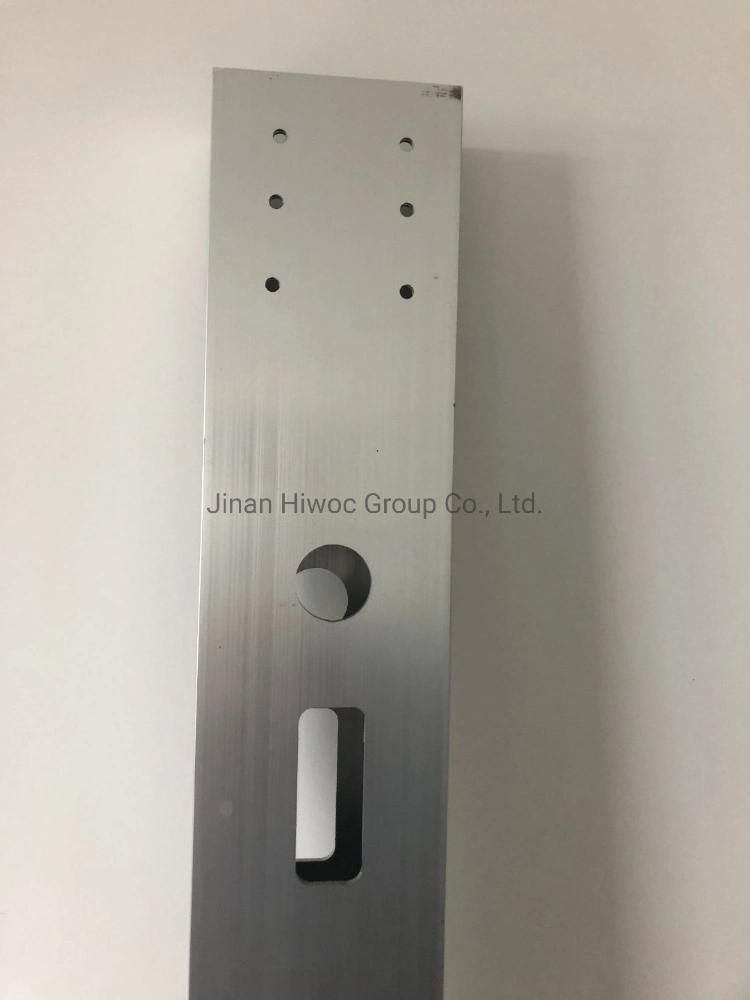

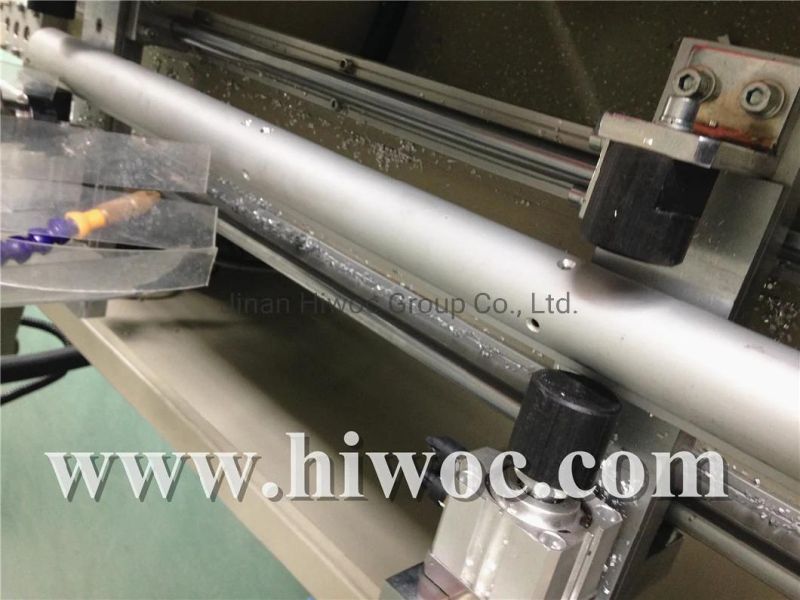

Processing samples
