• Model NO.：SCX-01
• CNC or Not：not CNC
• Voltage：Customized
• Input Power：0.38*2 Kw
• Motor Rotary Speed：2800r ,Min
• Operation Air Pressure：0.6-0.8MPa
• Milling Cutter Diameter：4mm and 5mm
• Slot Depth：30mm
• Slot Length：30-60mm
• Overall Dimension：1955X750X1600mm
• Weight：300kg
• Color：Customized
• OEM：Yes
• Transport Package：Film and Plywood Case
• Specification：1000*1130*1600mm
• Trademark：Hiwoc
• Origin：China
• HS Code：84659200
• Production Capacity：1000,Year

Basic Info.

Model NO. SCX-01 CNC or Not not CNC Voltage Customized Input Power 0.38*2 Kw Motor Rotary Speed 2800r /Min Operation Air Pressure 0.6-0.8MPa Milling Cutter Diameter 4mm and 5mm Slot Depth 30mm Slot Length 30-60mm Overall Dimension 1955X750X1600mm Weight 300kg Color Customized OEM Yes Transport Package Film and Plywood Case Specification 1000*1130*1600mm Trademark Hiwoc Origin China HS Code 84659200 Production Capacity 1000/Year

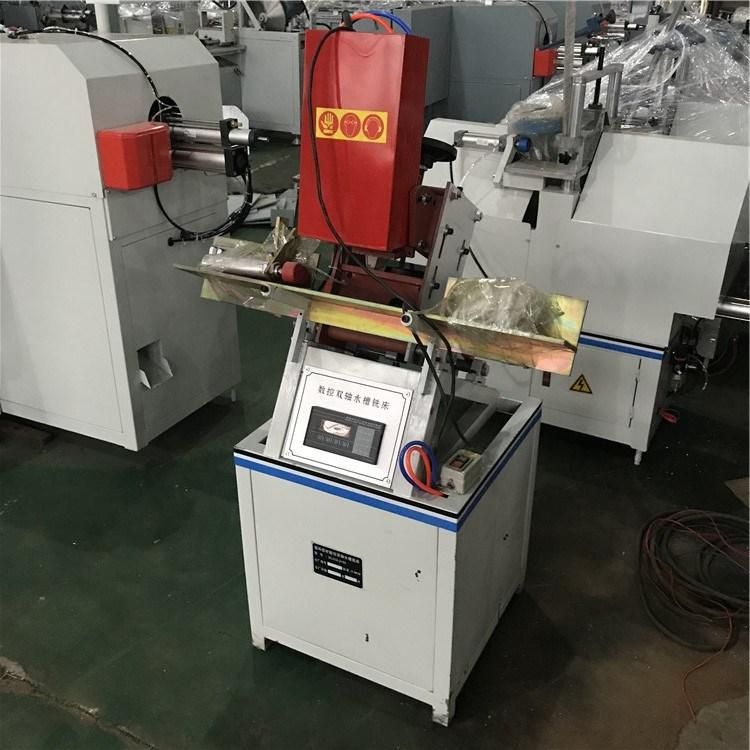

Product Description

Feature

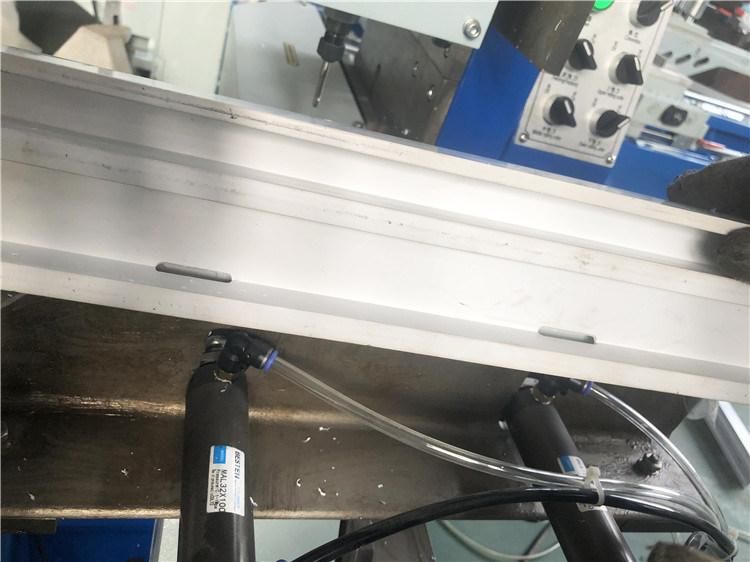

1. Used for milling all kinds of water slots and qir pressure balance grooves,
2. Clamping one time to finish two axis water slot processing
3. With 2 milling heads to meet the different requirements of the processing profile.
4. The length of milling water slot within 60mm is adjustable and its usage range is wide.
5. Independent feeding system and perfect milling quality.
Specification

Power supply	220V   50HZ or customer specification.
Input power	0.38*2 KW
Motor rotary speed	25000r /min
Operation air pressure	0.5-0.8MPa
Milling cutter diameter	Φ5, Φ4
Slot Depth	30mm
Slot Length	30-60mm
Overall dimension	1955x750x1600mm
Weight	300kg

Standard accessory

Solenoid Valve	Airtec
Cylinder	Airtec
Motor	Anhui Sanyang
Air Filter Device	Airtec
Electrical	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Japan Omron



Air Gun	1pc
Operation Manual	1pc
Spanner	1set
Certificate	1pc
Mliing Cutter	2pc

Feature
1. Used for milling all kinds of water slots and qir pressure balance grooves,
2. Clamping one time to finish two axis water slot processing
3. With 2 milling heads to meet the different requirements of the processing profile.
4. The length of milling water slot within 60mm is adjustable and its usage range is wide.
5. Independent feeding system and perfect milling quality.
Specification

Power supply	220V   50HZ or customer specification.
Input power	0.38*2 KW
Motor rotary speed	25000r /min
Operation air pressure	0.5-0.8MPa
Milling cutter diameter	Φ5, Φ4
Slot Depth	30mm
Slot Length	30-60mm
Overall dimension	1955x750x1600mm
Weight	300kg

Standard accessory

Solenoid Valve	Airtec
Cylinder	Airtec
Motor	Anhui Sanyang
Air Filter Device	Airtec
Electrical	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Japan Omron



Air Gun	1pc
Operation Manual	1pc
Spanner	1set
Certificate	1pc
Mliing Cutter	2pc

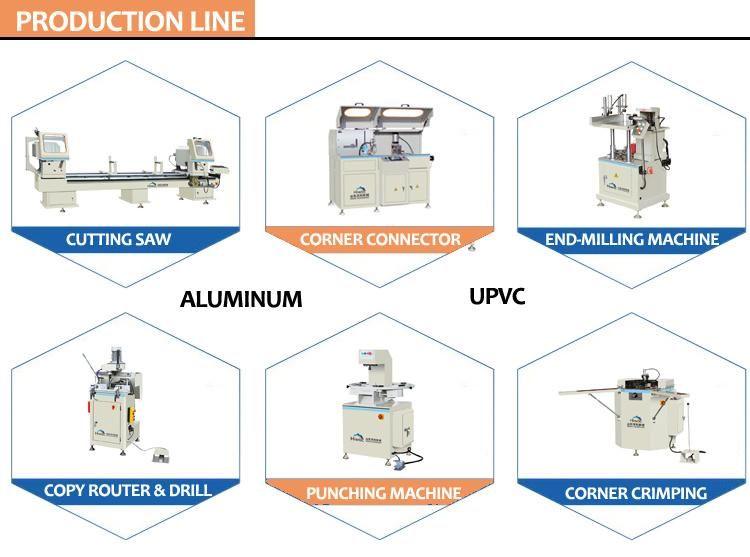

Other machines for pvc window door making
