Building Material Making Machinery

Studs and Tracking Cold Roll Forming Machine

Cangzhou Zhongheng Machine Manufacture Co., Ltd.
  • After-sales Service:Whole Life After Sale Service
  • Warranty:1 Year
  • Product Type:Roll Forming Machine
  • Automatic Grade:Automatic
  • Power Source:Electric
  • Screw Design:Double-Screw

Base Info

  • Model NO.:zh
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized
  • Application:Ceilings
  • Capacity:25-45m,Min
  • Voltage:380V 50Hz 3phases
  • Thickness of Material:0.3mm-0.9mm
  • Weight:3200kg
  • Key Selling Points:High-Accuracy
  • Dimension:4700*1600*2480mm
  • Servo Motor:2.3kw
  • Main Motor:5.5kw
  • Roller Material:Cr12
  • Forming Stations:12
  • PLC Brand:Xinjie
  • Transmission:Gear
  • Thickness of Structure:30mm
  • Shaft Diameter:50mm
  • Transport Package:with Water Proof Plastic Film Cover
  • Specification:60*28
  • Trademark:ZHONGHENG
  • Origin:China
  • HS Code:8455221000
  • Production Capacity:50 Sets,Months

Description

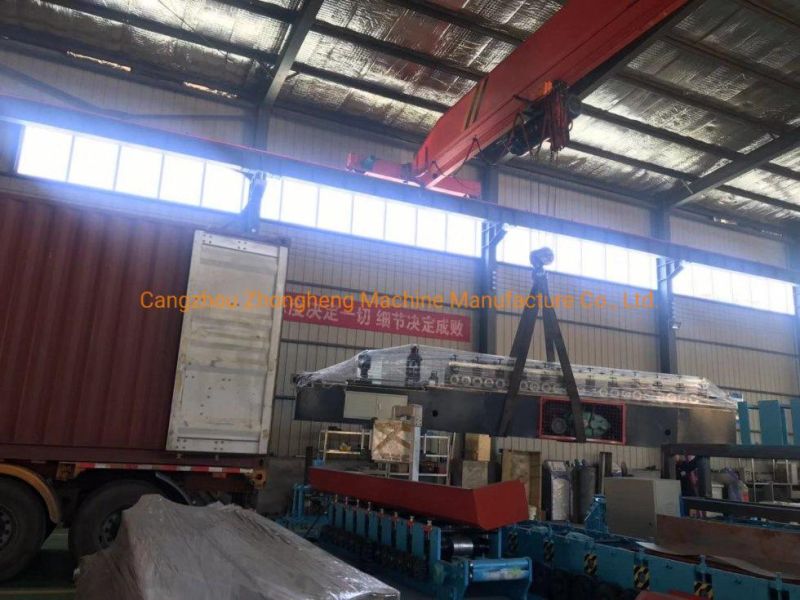

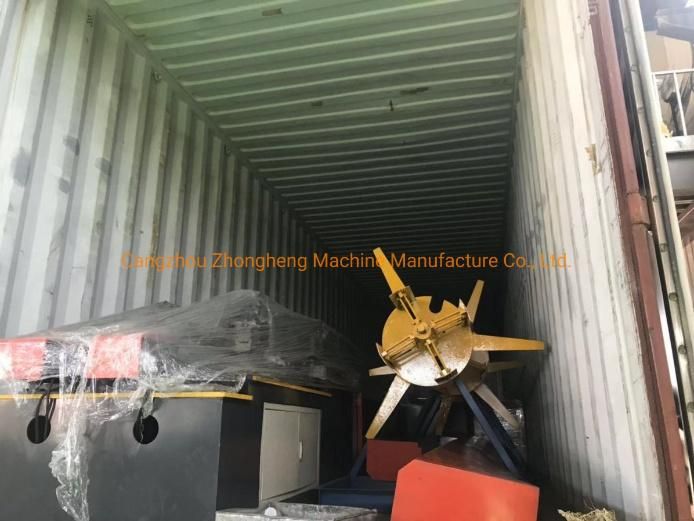

Suitable materialPPGI  GI  ALCoil Width as customThickness0.3-0.5mm as customPower380V 50Hz 3Phase  as customMain motor5.5KW SiemensHydraulic motor4KW SiemensSpeed45m/minForming stations12 rows Roller materialCr12 steel with vacuum heat treatment HRC57°-60°Shaft material45# steel quenched and temperedShaft diameter50mmDriveGearScreem HMI Delta , Touch ScreenPLC Delta , SiemensProcessing precisionWithin 1mmSize 4.6m×1.5m×1.2mWeight2.5TPackage and shipment
Studs and Tracking Cold Roll Forming Machine
Studs and Tracking Cold Roll Forming Machine
Company information
Studs and Tracking Cold Roll Forming Machine
Studs and Tracking Cold Roll Forming Machine
Studs and Tracking Cold Roll Forming Machine
Studs and Tracking Cold Roll Forming Machine
Studs and Tracking Cold Roll Forming Machine
Studs and Tracking Cold Roll Forming Machine
Studs and Tracking Cold Roll Forming Machine
