• Model NO.：ZY-HF125
• Pipe Diameter：50-130mm
• Pipe Thickness：1.5-6.0mm
• Pipe Shape：Round
• Uncoiler：Double-Head or Single-Head
• Solid State High Frequency：400kw

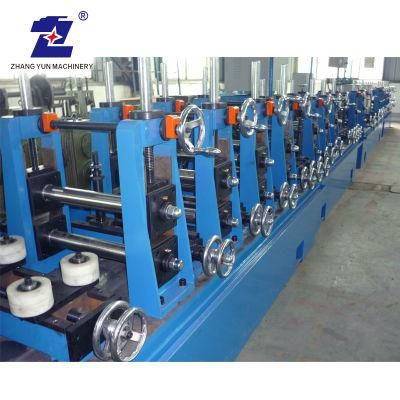

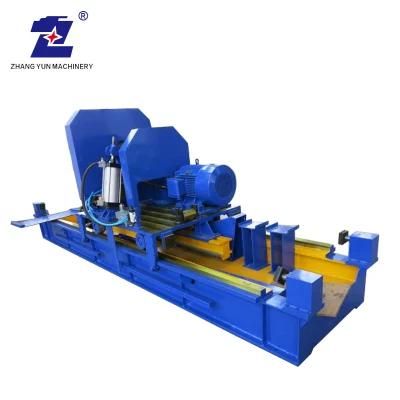

• Cutting：Flying Saw
• Main Motor：200kw
• Color：as Your Requirement
• Max. Speed：50m,Min
• Transport Package：Rain-Proof Package, Shipping
• Trademark：Zhangyun Machinery
• Origin：Zhangjiagang City
• HS Code：8515219000
• Production Capacity：10sets,Month

Basic Info.

Model NO. ZY-HF125 Pipe Diameter 50-130mm Pipe Thickness 1.5-6.0mm Pipe Shape Round Uncoiler Double-Head or Single-Head Solid State High Frequency 400kw Cutting Flying Saw Main Motor 200kw Color as Your Requirement Max. Speed 50m/Min Transport Package Rain-Proof Package, Shipping Trademark Zhangyun Machinery Origin Zhangjiagang City HS Code 8515219000 Production Capacity 10sets/Month

Product Description

Pipe Making LineTechnical Paramters
INCOMING RAW MATERIAL

Raw material	HR,CR carbon steel coil
Tensile Strength	σb≤600Mpa
Yield Strength	σs≤315Mpa
O.D of steel coil	Max. Φ1600mm
I.D of steel coil	Φ508mm
Weight of steel coil	Max. 5 ton/coil
Round Pipe Wall thickness	1.5~6.0mm
Width of steel coil	150~410mm
Strip condition	Slitting edge
Strip thickness tolerance	Max. ± 5%
Strip width tolerance	± 0.1mm
Strip camber	Max. 5mm/10m
Burr height	≤ (0.05 x T) mm (T-strip thickness)

    MACHINE CAPACITY

Round pipe	Φ50~ Φ130mm 1.5 ~ 6.0mm
Cutting length	4 ~ 12m
Length tolerance	Cold saw ± 2.0mm, Hot Saw ± 3.0mm
welding speed	0~50m/min
Strip storage	Horizontal accumulate loop
Material,Diameter of Shaft (Vertical )	40Cr, Φ110mm
Material,Diameter of Shaft (Horizontal)	40Cr, Φ65mm
Main mill driver motor	DC200kw
Solid state high frequency	GGP-400kw


Working Process

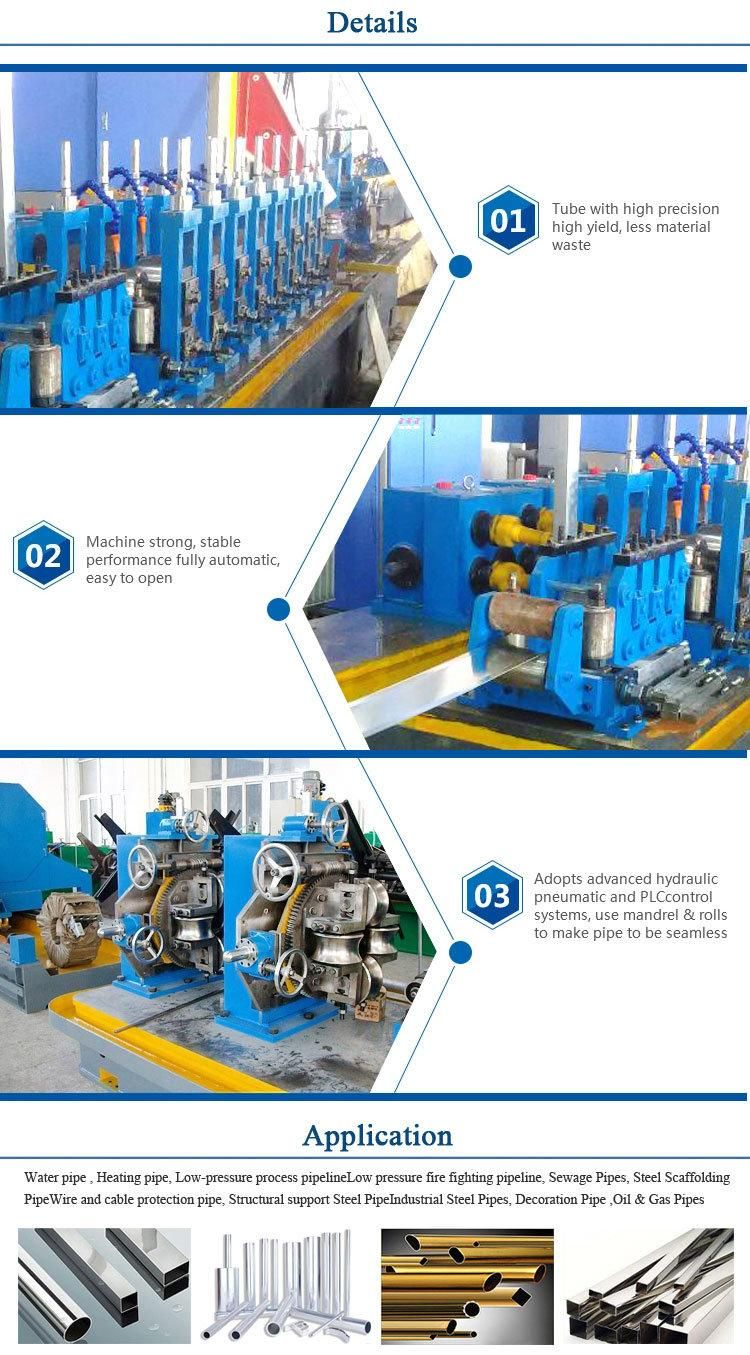

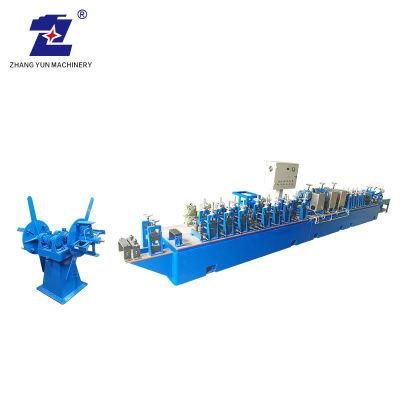

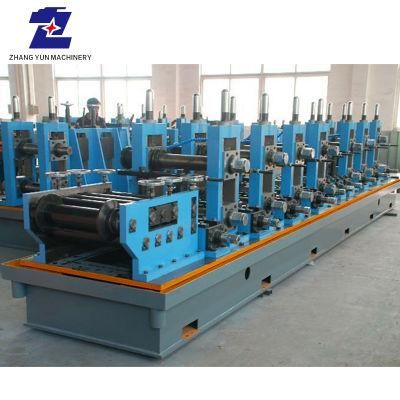

Double-head un-coiler →→Strip-head Shearer & TIG butt welder station →→Horizontal spiral accumulator group →→Forming M/C (Main driving unit + Flattening Entry unit + Breakdown section + Fin pass section + Seam guide unit + High frequency induction welding system + Squeeze welding roller unit + Outside scarfing unit + Horizontal ironing stand) →→ Emulsion water Cooling section →→ Sizing M/C (Main driving unit + Sizing section + Speed testing unit + Turk straightener + Vertical pull-out stand) →→ NC flying saw under computer control →→ Run-out table



FAQ:Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.

Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.

Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.

Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
     2) We welcome you visit us and test machine by yourself in our factory.
 Q: what is the MOQ?
A: One set

Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.

Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
