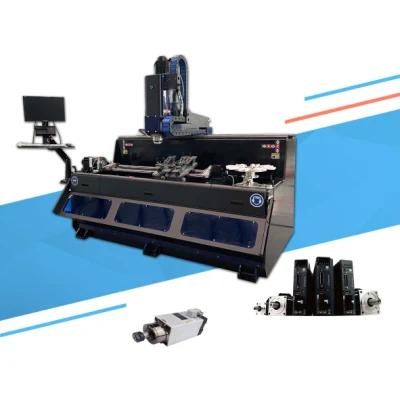

Aluminum CNC End Milling Machine for Window Door Fabrication

Jinan Tianchen Smart Machine Co., Ltd.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Automatic
  • CNC or Not：CNC
  • Voltage：380V
  • Product Name：Aluminium CNC End Milling Machine

Base Info

  • Model NO.：LXD2S-CNC-300
  • Application：Window Door Fabrication Industry
  • Working Material：Aluminum Profiles
  • Worktable Numbers：2
  • Main Feature：Fully Automatic and High Efficiency
  • CNC System：Schneider
  • Usage：Window Customized Production
  • Function：Milling Mullion End Surface
  • Milling Tools Number：3
  • Tool Movement Type：Automatic
  • Milling Tool Diameter：300mm
  • Sawing Blade Diameter：350mm
  • Transport Package：by Container 20gp
  • Specification：5000x2100x2300mm (LxWxH)
  • Trademark：Tianchen
  • Origin：Jinan, China
  • HS Code：84614090
  • Production Capacity：120 Sets Per Year

Description

Power Supply380V 50HZ or as per customized valueAir Source Pressure0.5~0.8MpaMilling Motor Power4.0 KW + 2.2 KWMotor Rotating Speed2800rpmSpindle Diameter30mmHorizontal Infeeding Travel0~1500mmSawing Blade Diameterφ350mmMilling Tool Diameterφ300 mmWork Table Size510×340mmMilling Slot's Max. Size (Horizontal)200 Height ×100 Depth ×500mm Width
(φ300 Sawing Blade or Milling Tool)Milling Slot's Max. Size(Vertical)80 Height×50 Depth×500mm Width
(φ300 Sawing Blade or Milling Tool)Overall Dimension5000×2100×2300mm
3. Key Outsourced Components:
  • Servo System:Schneider
  • Slitting Motor:Italy SEIMEC
  • Low Voltage Electric Components:Siemens
  • Ball Screw:Taiwan HIWIN/PMI/ABBA
