• Model NO.：LZZ4-13
• Voltage：380V
• Power Supply：380V, 50 Hz
• Cutting Motor Power：4X1.1kw
• Max Drilling Hole Dia：13mm
• Worktable Size：300X220mm
• Drilling Head Feeding Travel：125mm
• Feeding Pressure：0.5-0.8MPa
• Max Processing Profile Section Size：250X250mm
• Transport Package：Container
• Specification：Machine size:
• Trademark：MAG
• Origin：Jinan
• HS Code：84752990
• Production Capacity：500,Year

Basic Info.

Model NO. LZZ4-13 Voltage 380V Power Supply 380V, 50 Hz Cutting Motor Power 4X1.1kw Max Drilling Hole Dia 13mm Worktable Size 300X220mm Drilling Head Feeding Travel 125mm Feeding Pressure 0.5-0.8MPa Max Processing Profile Section Size 250X250mm Transport Package Container Specification Machine size: Trademark MAG Origin Jinan HS Code 84752990 Production Capacity 500/Year

Product Description

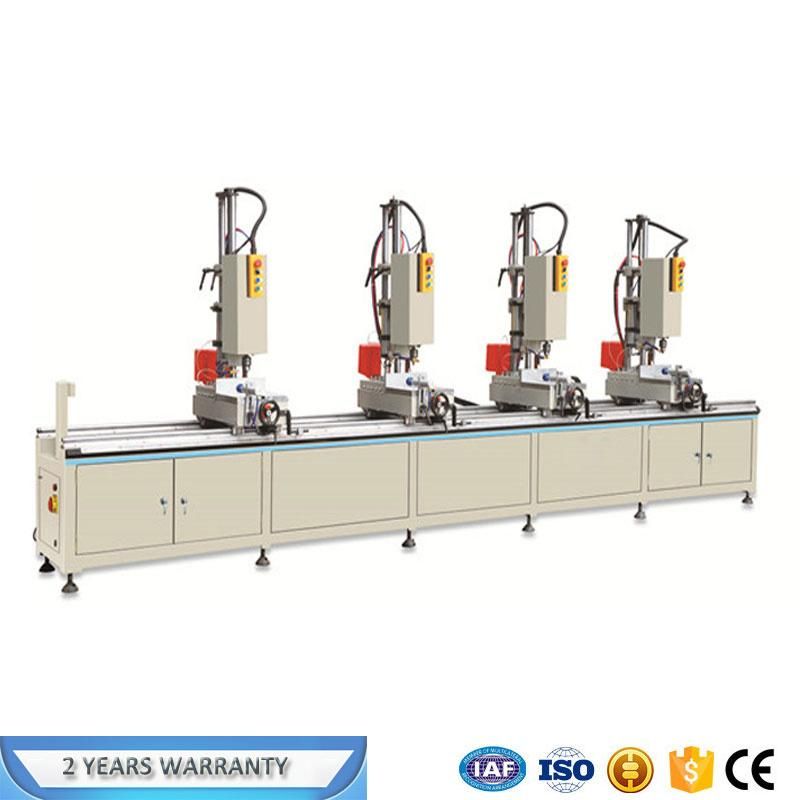

                  Multi-heads Combination Drilling Machine For Aluminum and Curtain Wall


1. Equipment Features
1. Used for drilling holes on aluminum profiles and curtain wall profiles. Apply to volume-produce.
2. Max processing profile section size is 250*250mm; max processing length is 5000mm.
3. Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
4. Feeding system adopts airdraulic-clamping cylinder, which ensured smooth feeding.
5. Imported PLC control system with steady capability.

2. Technical Parameters

Brand Name	Mingmei
Model	LZZ4-13
Main motor Power	4x0.75KW
Working voltage	380V 50Hz
Operating air pressure	0.5-0.8Mpa
Max/Min distance between each group holes	5000-300mm
Max processing profile section size	250*250
Max drilling hole diameter	ø13
Drilling head feeding travel	125mm
Work table size (LXW)	300*220mm
Tolerance of drilling hole	±0.3mm
Tolerance of drilling position	≤0.3mm
Size	5500*1100*1800mm
Weight	1175KG

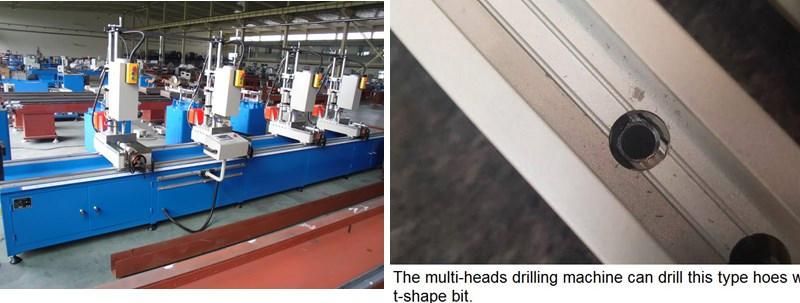

Machine photos


CE Certificate

About us

Clients come to visit us
