Standing Seam Roof Panel Roll Forming Machine for Iran

Cangzhou Nexus Machinery Co., Ltd.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Electric

Base Info

  • Model NO.：YX860
  • Product Name：Standing Seam Roof Panel Roll Forming Machine
  • Raw Material：PPGI Sheet
  • Thickness Range：0.3-0.8mm
  • Machine Power：4kw+3kw
  • Machine Weight：About 5 Tons
  • Warranty：12 Months
  • Afer-Sales Service：Engineer Is Availble to Overseas
  • Working Pressure：16MPa
  • Roll Station：16 Groups
  • Size of Machine：About 7500*1800*1500mm L x W x H
  • Main Shaft Dia：70mm
  • Material：45# Forge Steel and Quenched
  • Roller Material：45# High Grade Forge Steel ,Chrome Coated 0.05mm
  • Control：PLC Panasonic, Made in Japan.
  • Computer Operating Panel：Touching Screen
  • Transport Package：Plastic Film & Steel Wire Fixed
  • Specification：6500mm*1500mm*1500mm(L*W*H)
  • Trademark：NEXUS MACHINERY
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：30 Sets , Months

Description

Manual decoilerCapacity5tonFeeding widthMAX 1300mmExpanding range460-520mm Standing Seam Roof Panel Roll Forming Machine for IranMain motor power4kwDrive1'' single chainType:Wall boardMain shaft dia¢70mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station16 groupsRaw material0.3-0.8mmCoil width 1000mmWorking speed10m--15m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 5 tonSize of machineAbout 7500×1800×1500mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenOther electrical elementSchneiderCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power3KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm
4. Equipment list :

No.Product Name       QTY
15T Manual decoiler          1
2Standing Seam Roof Panel Roll Forming Machine for Iran
 (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)		          1
3Passive Output table          2
Sum           4

5. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

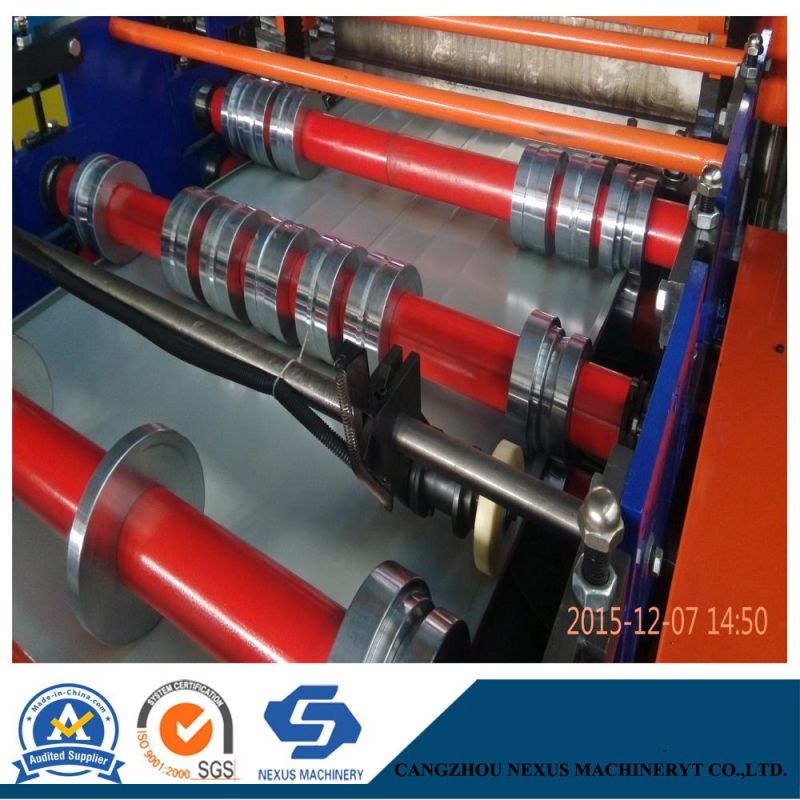

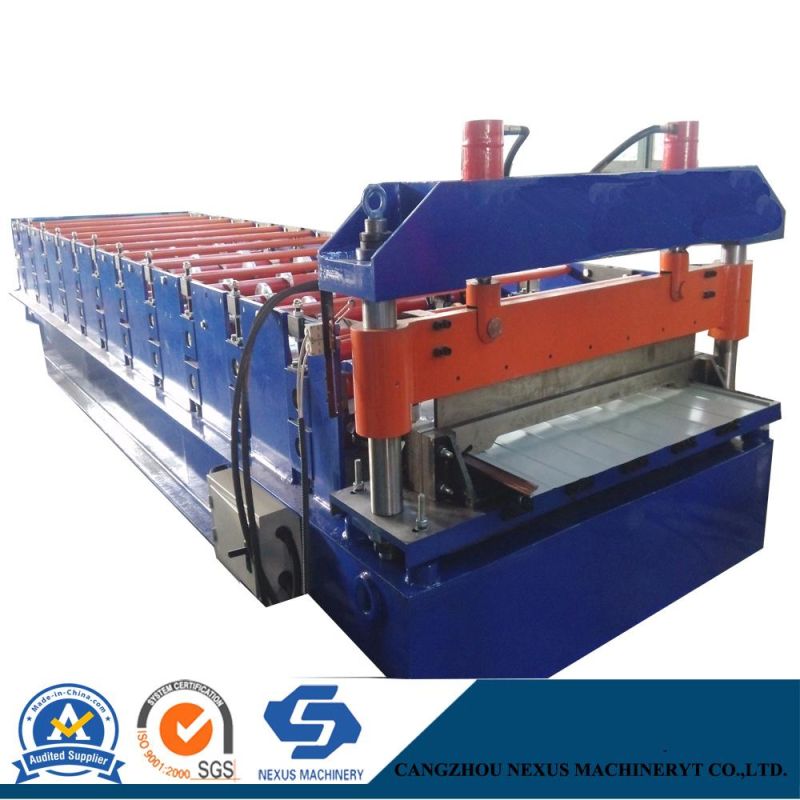

6. Photos of Standing Seam Roof Panel Roll Forming Machine for Iran for Reference:
Standing Seam Roof Panel Roll Forming Machine for Iran
Standing Seam Roof Panel Roll Forming Machine for Iran

Standing Seam Roof Panel Roll Forming Machine for Iran
Standing Seam Roof Panel Roll Forming Machine for Iran


7. Why choose us?

1. More than 10 years experiences in manufacturing&exporting roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control            system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time superior service.
