• Model NO.：LGSGZA-CNC-6600
• Product Name：Aluminium 4 Axis CNC Gantry Machine Center
• Function：Milling Drilling Holes Slots
• Application：Curtain Wall Window Wall Fabrication
• Material Type：Aluminium Profile
• CNC Axis Numbers：4
• Maximum Workable Length：6600
• Material Section Size Work Range：500X350mm (Width X Height)
• Spindle Power：9 Kw
• Machine Structure：Gantry Movable
• Main Advanatage：Stable Performance and High Accuracy
• Package：by One 40′ Gp Container
• Transport Package：Container
• Specification：40GPx1
• Trademark：Tianchen
• Origin：Jinan, Shandong, China
• HS Code：84614090
• Production Capacity：120 Sets Per Year

X Axis Travel6800mmX Axis Movement Speed0~60m/minY Axis Travel1200mmY Axis Movement Speed0~30m/minZ Axis Travel660mm Z Axis Movement Speed0~20m/minSpindle's Maximum output power9kWSpindle rotating angle range-90º~0º~+90º Tool Magazine 12 tools, tool can be automatically changed under program Maximum processing height 350mmAir source0.5~0.8Mpa Power supply customized value Total power 20kWClamping device's station Numbers 8Lubricating and Coolingautomatic oil lubricating, spray coolingProcessing capacity range(W×H×L) 500×350×6600mmOverall size(L×W×H) 12000×2400×2600mm  Machine's net weight about 5500kg

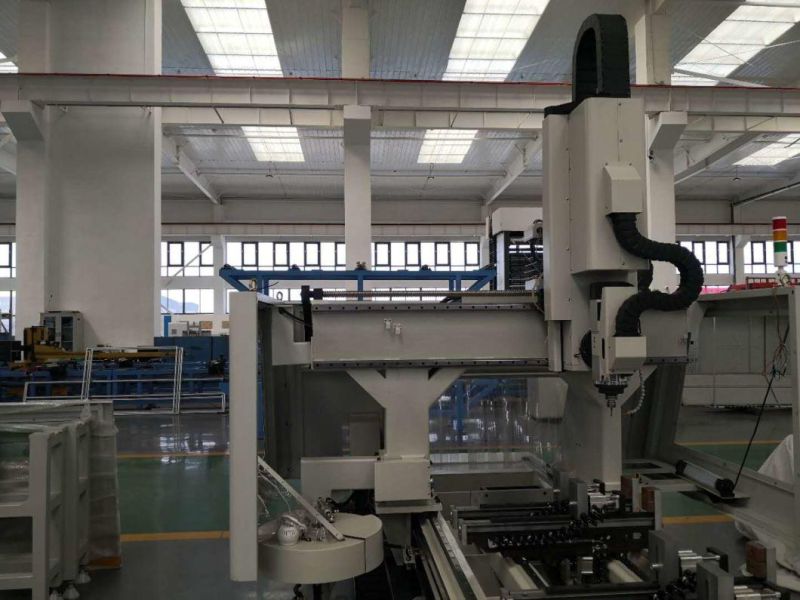

Machine Features

The high-speed electric spindle imported from Italy HSD is used to ensure the quality stability of key components, and it has a high metal cutting amount per unit time.



Equipped with 12-position rotary tool magazine, which can complete automatic tool change

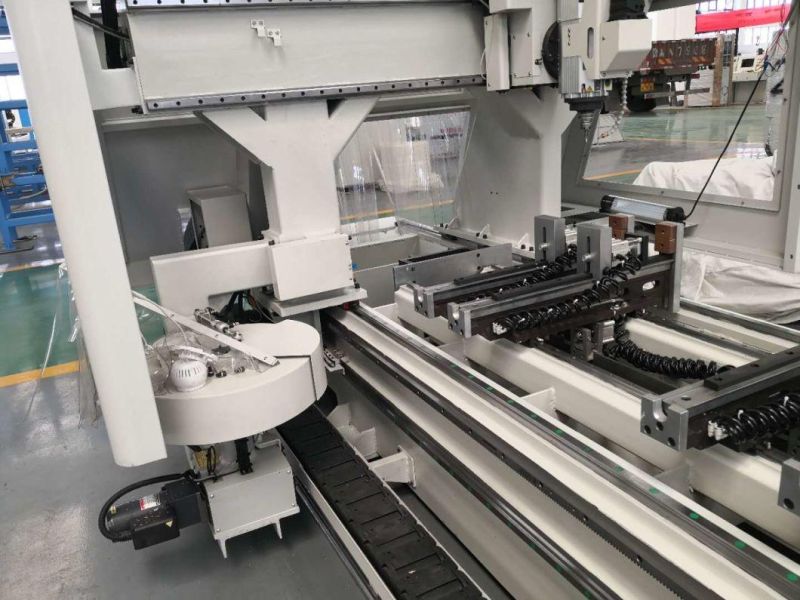

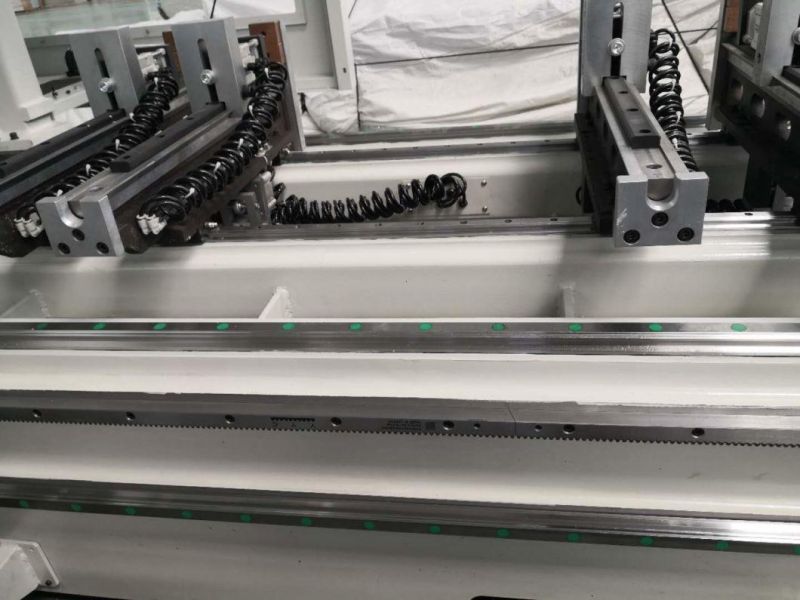

Imported high-rigidity linear rolling guides are used in the three directions of X, Y and Z, the rack and pinion transmission mode is adopted for the X axis

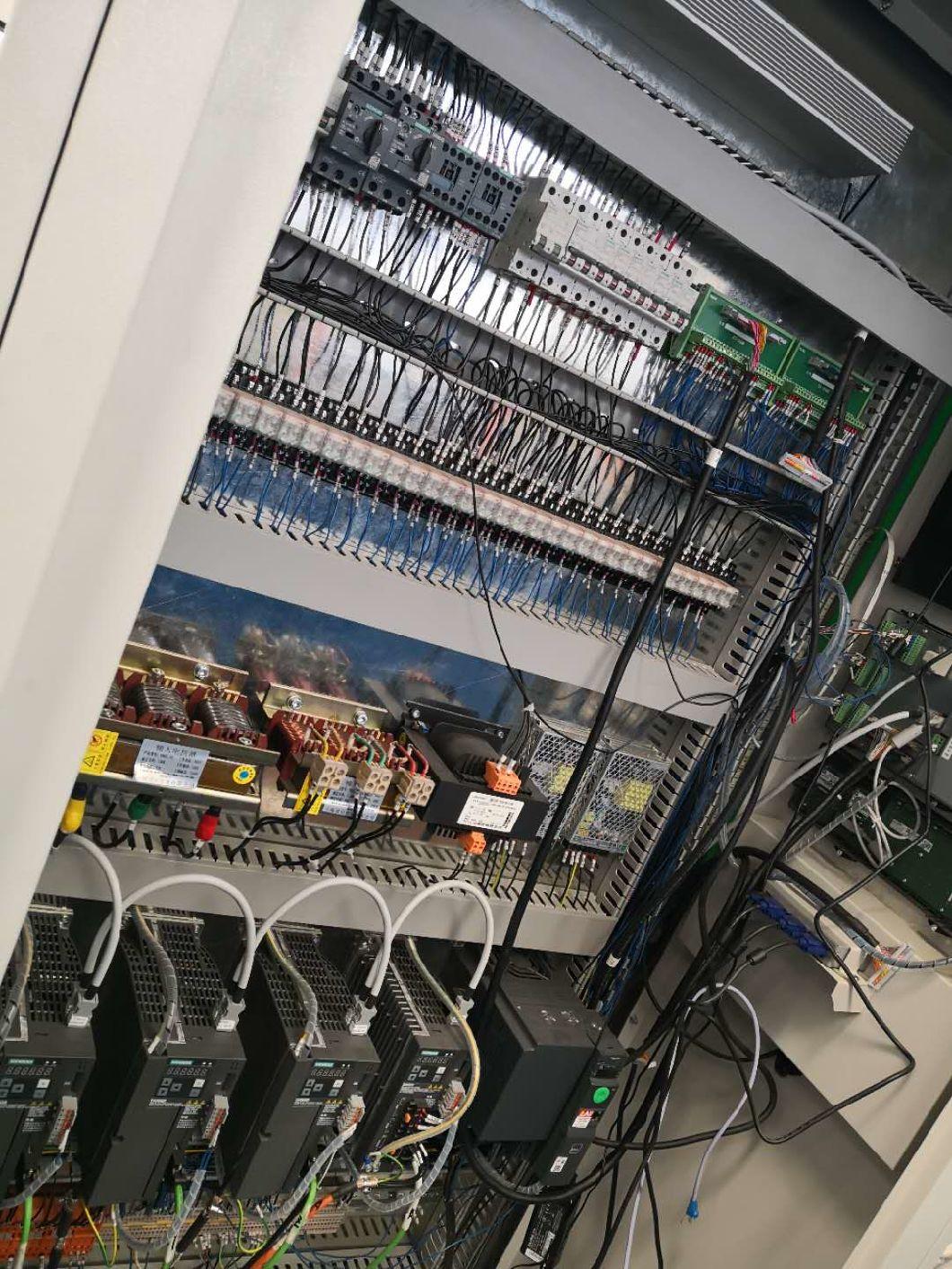

 Equipped with German Siemens CNC system, stable and reliable for long-term use; and equipped with special CAM software, which can convert common graphics into recognizable processing programs according to the set conditions, and the programs can be directly run after being transferred to the CNC system
