Big Capacity Concrete Cement Hollow Paver Colorful Block Machine

Linyi ShengMing Machinery Co., Ltd.
  • After-sales Service：Supply Instruction, Installation Video
  • Warranty：2 Years
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydraulic Shock

Base Info

  • Model NO.：QT4-18
  • Weight：3300kgs
  • Pallet Size：850X550mm
  • Pressure：16MPa
  • Capaciity：5000PCS
  • Shaping Type：Vibration+Hydraulic
  • Shaping Time：25-30s
  • Power：22.25kw
  • Power Voltage：380V,220V,AC
  • Labor People：3-5 People
  • Water Consumption：3-5t,Day
  • Block Yard Area：60m2
  • Pallet Quantity：800-1000pieces
  • Model：Qt4-18
  • Motor：Siemens
  • Control：PLC
  • Transport Package：Naked in Container
  • Specification：3700x1800x2500mm
  • Trademark：shengming
  • Origin：Linyi
  • HS Code：8474802000
  • Production Capacity：5000piece,Day

Description

Total rated power22.25KWWorkshop aree60M2Daily capacity4600-5000piecesPower voltage380V/220V/ACPallet quantity800-1000 piecesLabor quantity4-6 peopleWater consumption6-8T/dayForming period18-20s
Big Capacity Concrete Cement Hollow Paver Colorful Block Machine

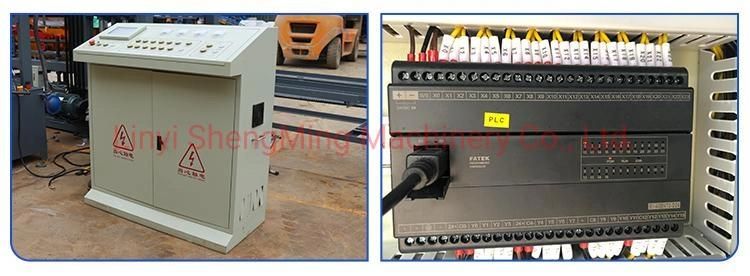

1. Closed control cabinet design, easy to understand the operation interface. Dust proof button design more
durable, button elements are imported parts, touch and feedback effect is excellent.

Big Capacity Concrete Cement Hollow Paver Colorful Block Machine

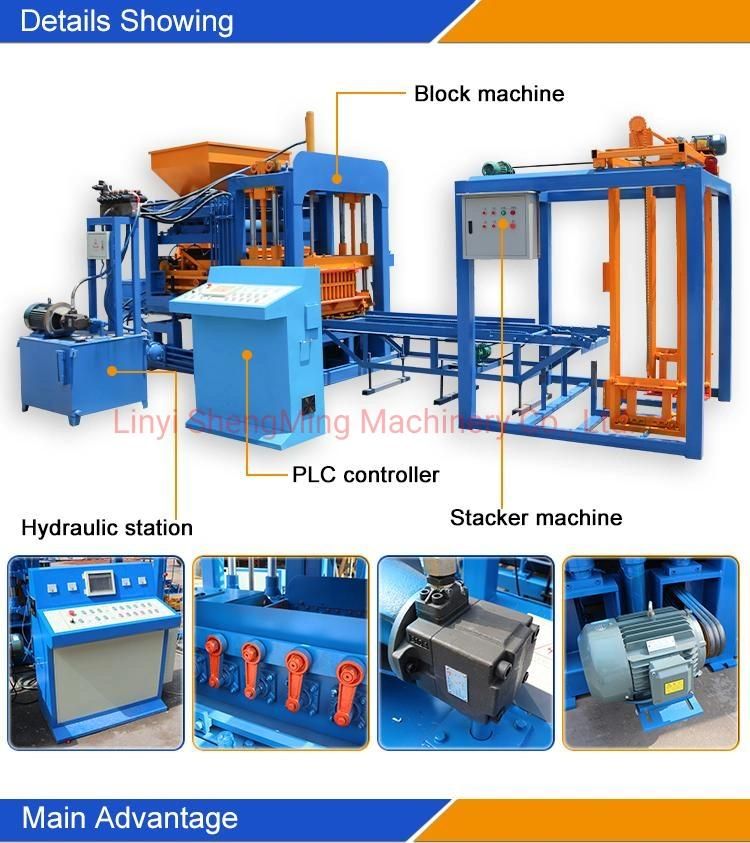

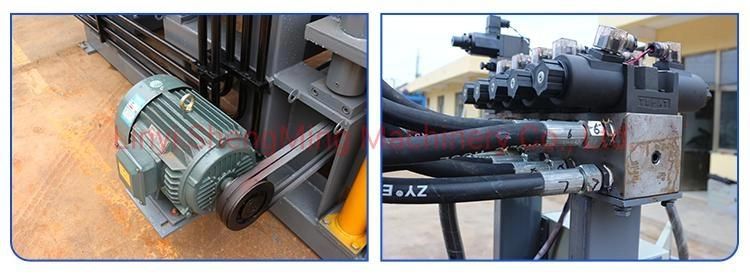

2. High quality electrical and hydraulic parts make the machine stable in performance and less in fault.

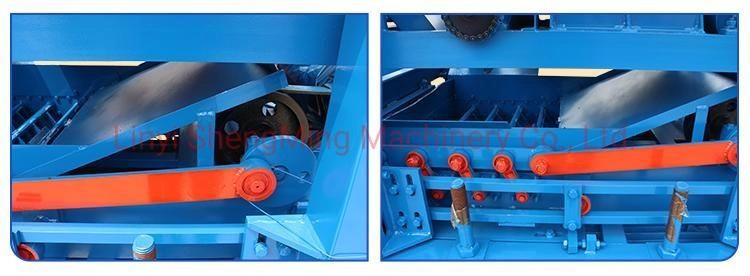

Big Capacity Concrete Cement Hollow Paver Colorful Block Machine3. The well-designed material storage and distribution system greatly improves the speed of the distribution
  system.

Big Capacity Concrete Cement Hollow Paver Colorful Block Machine

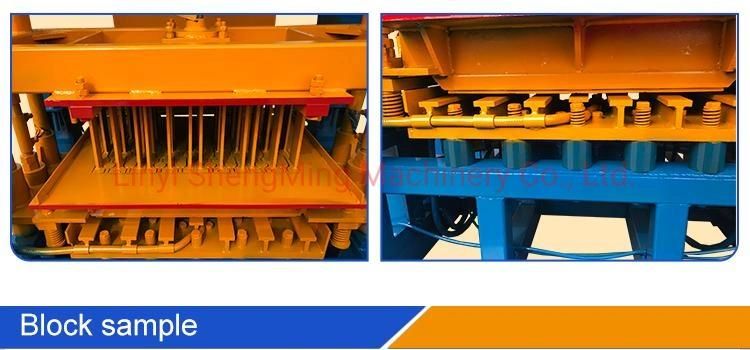

4. The replaceable mould greatly improves the practicability and realizes the multi-purpose of one machine.
 Unique mold synchronization system, making the product quality more accurate
Big Capacity Concrete Cement Hollow Paver Colorful Block Machine
Big Capacity Concrete Cement Hollow Paver Colorful Block MachineBig Capacity Concrete Cement Hollow Paver Colorful Block MachineBig Capacity Concrete Cement Hollow Paver Colorful Block Machine

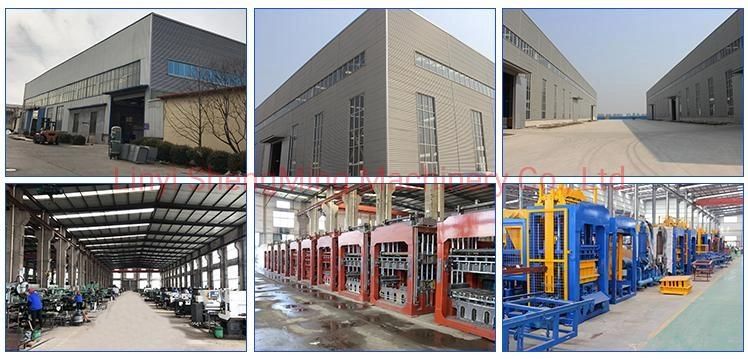

Established in the year 1990,we are a prominent organization engaged in manufacturing and supplying
Block machine,batching plant and concrete pole machine, extensively used in field of infrastructure and
real estate development.
Big Capacity Concrete Cement Hollow Paver Colorful Block Machine
Big Capacity Concrete Cement Hollow Paver Colorful Block Machine
Big Capacity Concrete Cement Hollow Paver Colorful Block Machine
FAQ:
Q: What is the material for this machine ?
A: You can use lateriate or other clay material or concrete material, plus a little cement

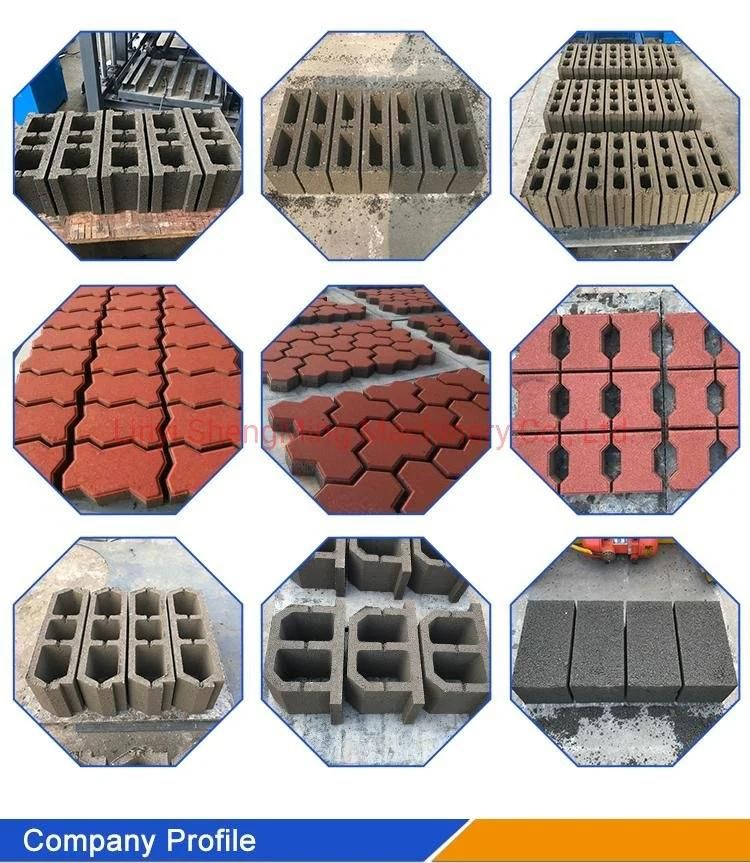

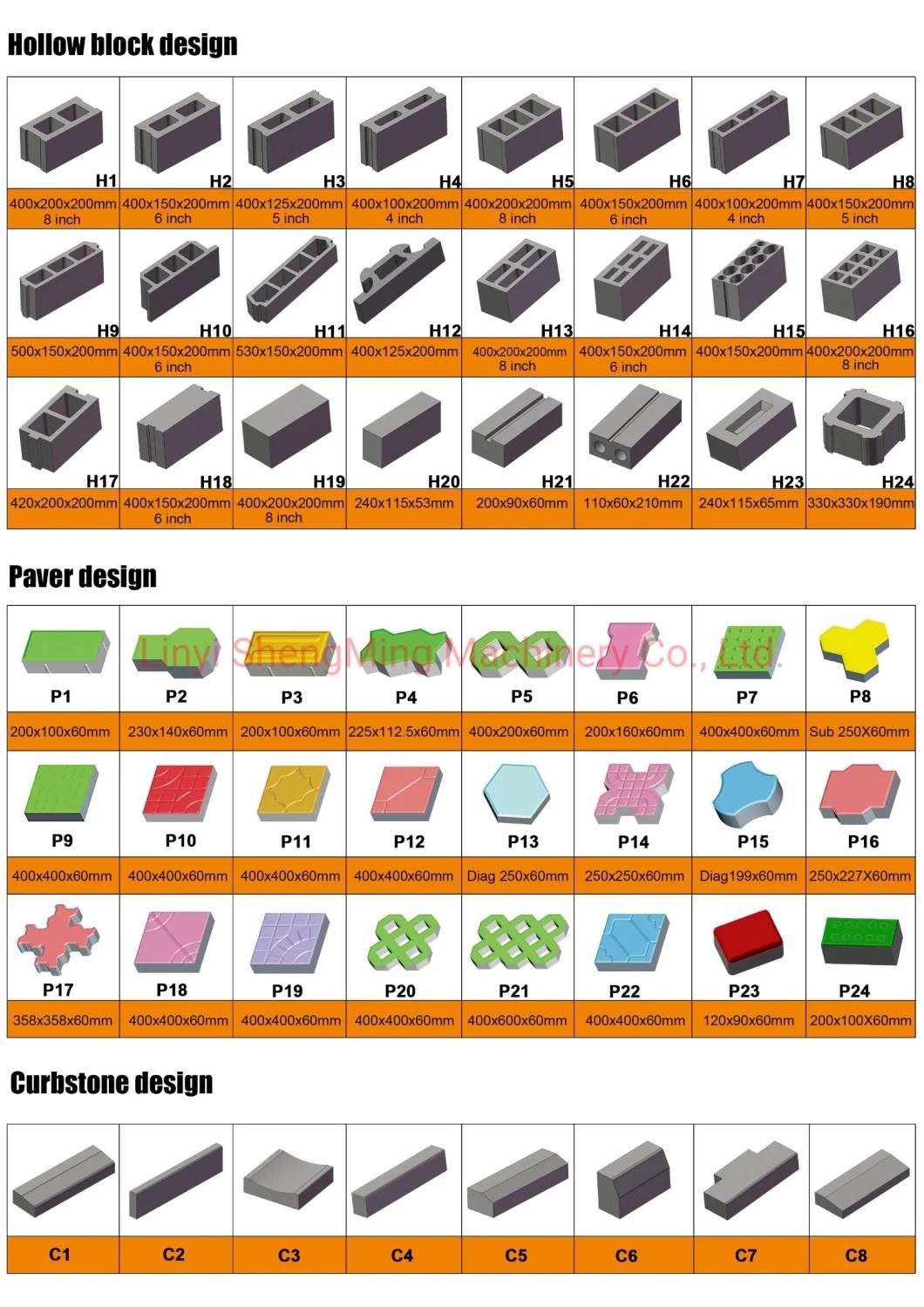

Q: How many kinds of block can be made by this machine ?
A: By changing mold, this machine can make all type design brick ,block or even paver.

Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally

Q: Will you provide spare parts for this machine ?
A: We will provide you one year free spare parts.can support machine working for many years

Q:Will you provide installation support?
A: We will provide installation video and manual book.online video avaiable also.

Q:How many days to make the machine if place order?
A:Normally need 15-20 days but all depend on molds quantity.
