• Model NO.：AAC
• Model No.：AAC
• Voltage：220-440V
• Transport Package：Standard Export Packing for 20,40 FT Container
• Specification：600x100x200mm
• Trademark：weda
• Origin：China
• HS Code：8474802000
• Production Capacity：10 Sets ,Month

Basic Info.

Model NO. AAC Model No. AAC Voltage 220-440V Transport Package Standard Export Packing for 20/40 FT Container Specification 600x100x200mm Trademark weda Origin China HS Code 8474802000 Production Capacity 10 Sets /Month

Product Description

 lightweight foam cellular block making machine aac automatic aerated concrete block plant aac brick equipments



PRODUCT DESCRIPTION:

1. AAC(Aerated Autoclaved Concrete Block Machine line)introduce

(1).  introduction
  Areated concrete brick (light brick ) is the light and porous buidling material. It has  light keeping temperature cant burn and other advantages . it can be made into many kinds of bricks (for example : 600×200×100,600×150×100 , 600×300×200, 600×200×150 ) ,they could be used industry building and common building . they are more and more popular in the world .in the future ,they will replace the Clay brick completely .

(2).Areated concrete common  conception
    Common concrete density is usually 1600-2400kg/m³,but Areated concrete are 500kg/m³,600kg/m³,700kg/m³.It has not the big grain ,main use silicon material (for example: coal ash , sand , stone dust and others )   ,through making the material small for example sand,they can be used directly if has enough degree of small (for example coal ash.Mixing  calcium material lime cement water to a special slop , then add the aluminum dust and the additive. Make the aluminum dust and the special slop have a Chemical reflect . then produce Hydrogen to make the concrete slop to expanding or swell,foam . Next , put them into the curing room to concreting cutting steaming curing . last , there will bacome the light brick . the porous rate is 70-80%.

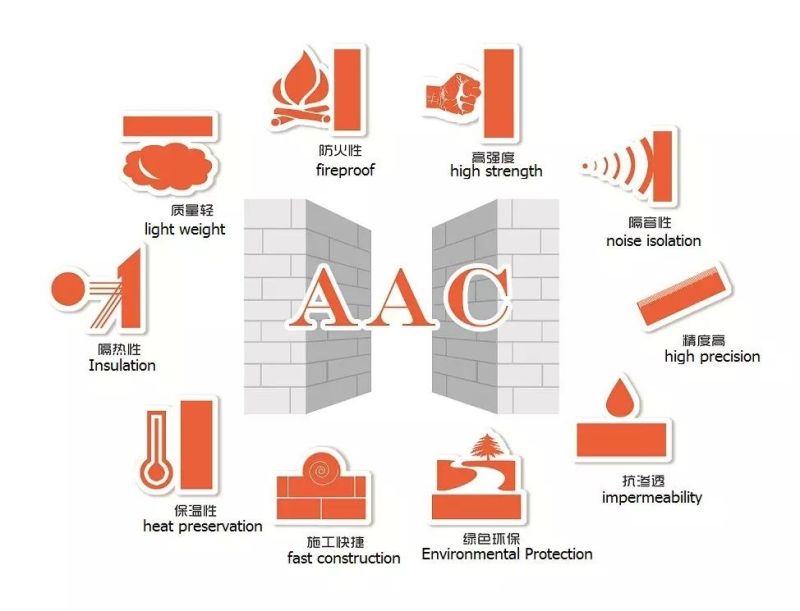

(3). Advantages
     light weight
     Areated concrete density is usually 400-700kg/m³,(according the market ti produce ),same as 1/3 of clay brick and  1/5 common concrete.So use the Light brick can reduce the weight of the build more ,and also reduce the  beam of roof and pillar press best . then you can see ,it can save the material and cost ,it also fighting shaking .
     keeping temperature
     It has many are porous ,the delivery hearting coefficient is 0.9-0.22W/(mk),the same as  1/4 or 1/5 of clay brick ,so it is best  materials now in the world .
      have many kinds material ,have lowest waste
Main Material :A:sand/ Flyash 65-70%  B:cement  12-15%   C:Lime powder 12-15%   D: Gypsum 3-5%   E: Aluminum  0.5kg/m3 aac block

2.AAC Line Capacity description :

• Main raw material : Silica Sand
• Cutting machine size :
• (1) 2m cutting machine,30000-45000m3/year (100-150m3/day ) ,land need 5000-8000m2                   (2)4.2m cutting machine ,50000-150000m3/year(160-500m2/day, land need 8000-15000m2               (3) 4.8meter cutting machine,150000-240000m3/year(500-800m2/day, land need 15000-20000m2     (4)6 meter cutting machine,200000-300000m3/year(700-1000m2/day, land need 25000-30000m2
• Mould net size(after cutting):2x1.2x0.6/4.2x1.2x0.6m /4.8x1.2x0.6m /  6x1.2x0.6m
• Autoclave: Φ2x31.5m , Φ2.5x32m , Φ2.68x2m , depend on different capacity .



PRODUCT WORKING PROCESS

AAC BLOCK MATERIALS

AAC block model:

• --B04 grade , average density 400-425kg/m3 ,pressure 2.0-2.5Mpa
• --B05 grade, average density 500-525kg/m3,pressure 2.5-3.5Mpa
• --B06 grade, average density 600-625kg/m3,pressure 3.5-5Mpa

For Example 550kg/m3 aac block ,we need the raw material list as following,just for reference ,finial formula will be designed by engineers according client materials

No.	Name	ratio	unit	Kg/m3	Remark
1	Sand	65-70%	Kg	400-450
2	Lime	12-15%	Kg	80-90
3	Cement	10-14%	Kg	75-85
4	Gypsum	2-3%	Kg	15
5	Lubrication oil		Kg	1.5
6	aluminum paste	0.7‰	Kg	0.42
7	water		kg	500-600
8	Gas  (9500Kcal)		M3	10-12
9	Power		KWH	12-15

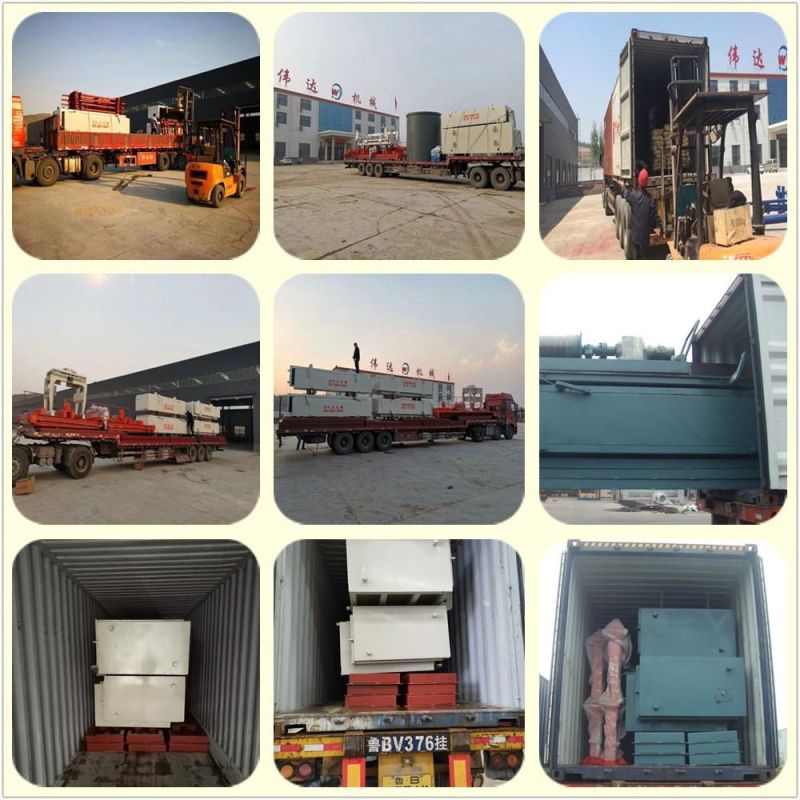

PACKING & SHIPMENT
1.Low cost of aac aerated concrete block making manufacturing machine with high technology,transport with 40HQ container.
2.The ball mill transport with 40OT or transposrt with 40FR according the size.
3.The autoclave main body transport by car on port,and hoist on deck of ship.
4.Cutting machine usually transport with 40FR.
5.Our package with wooden box,suitable for sea transport.


OUR COMPANY1.Weda Machinery Co. ,Ltd was renamed as Shandong Weda Environmental Protection Machinery Co., Ltd in 2019
(founded in 1984) It is located in Linyi of Shandong Province, which is the logistics capital of China. With an investment
of 20 million USD and an area of 53,000 M2, it is a high-starting technology-oriented enterprise with advanced processing
equipment, superb professional skills and rich manufacturing experience, the company has 18 professional and senior
technical personnel and more than 350 professional and technical workers of various kinds, the company has 117 sets
of precision processing machine tools and advanced inspection and testing equipment and a large number of precision
processing and advanced inspection, testing and debugging equipment, Our main product are:Concrete block machine,
AAC block machine,concrete pipe making machine and concrete pole making machine.



We are professional AAC block making machine and concrete block machine company, company exported more than 90 countries and areas , products passed Europe CE standard .
We have many smallest AAC plant with 2 meter cutting system ,also have big 4.2,4.8,6 meter cutting system ,if you have interesting about our machine ,welcome to contact me.
