• Model NO.：HLT
• Application：Industry
• Type：High Speed Cable Steel Wire Braiding Machine
• Use for：Braiding Pipe
• Power：5.5kw-20.55kw
• Braiding Angle：54°44"
• Braiding Speed：Max. 120m,H
• Braiding Pitch：500-1300mm
• Braiding Diameter：180-500mm

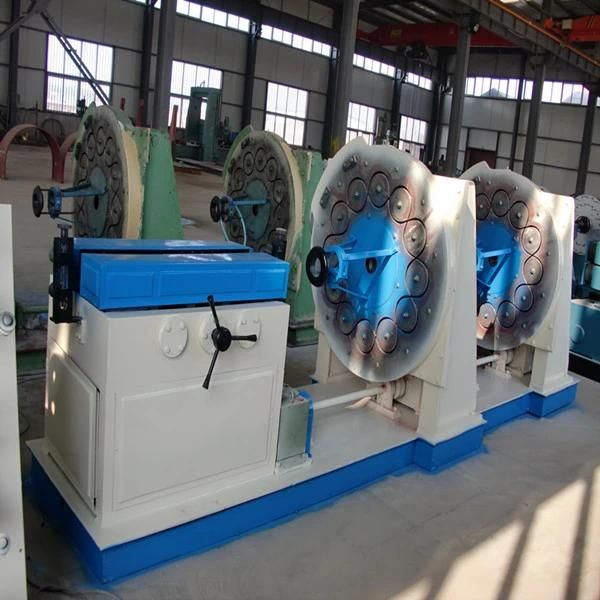

• Product Name：High Speed Cable Steel Wire Braiding Machine
• Warranty Year：1 Year
• Control Method：PLC
• Transport Package：Standard Seaworthy & Strong Package
• Specification：ISO9001
• Trademark：Comflex
• Origin：China Mainland
• HS Code：830710000
• Production Capacity：as Requested, 72-300m,H

Product NameHigh speed cable steel wire braiding machineWire Diameter0.3-0.8mmID of the braids4-600mmNo. of spindles16-112 spindle braiding machineMaterialStainless steel, Carbon steel, Copper wireVoltage380VWarranty1 year DescriptionDimension
L*w*h(mm)Braiding Diameter
(mm)Carrier Rotation Speed
(r/min)Braiding angleBraiding Pitch
(mm)Pulling Speed
M/HCarrier NO.Motor Power
KWGBG16-carrier wire braiding machine2900*1200*15004-1024.854°44"9-2213-3316Y100L1-4 2.2KW
Y100L2-4 3.0KWGBG20-carrier wire braiding machine2900*1200*15506-1619.854°44"13-2915-34.520Y100L1-4 2.2KW
Y100L2-4 3.0KWGBG24-carrier wire braiding machine4150*1830*190010--3114.2554°44"22-6921-6624Y100L1-4 2.2KW
Y100L2-4 3.0KWGBG36-carrier wire braiding machine3200x1650x180015--451054°44"33-10022-6636Y100L2-4 3.0KW
Y100L2-4 3.0KWGBG48-carrier wire braiding machine4150*1830*190030--757.2554°44"66-16629-7248Y132M2-6 5.5KW
Y112M-4 4.0KWGBG64-carrier wire braiding machine4800*2870*285051-1104.5654°44"67-24018.6-10264Y160M-6 7.5KW
Y112M-4 4.0KWGBG72-carrier wire braiding machine -80-1504.2554°44"170-33044-8372Y160M-6 7.5KW
Y112M-4 4.0KWGBG96-carrier wire braiding machine5770*3360*3600150-3002.7554°44"240-75050-12096Y180L-6 15KW
Y160M-6 7.5KWGBG112carrier wire braiding machine -115-4002.77854°44"310-80042-130112Y132M1-6 4.0KW
Y180L-6 15KWGBG128carrier wire braiding machine8200*4450*4500200-4002.08854°44"500-130072-300128Y132S-4 5.5KW
Y180L-6 15KW DescriptionBraiding Diameter
(mm)Carrier
Rotation Speed
(r/min)Braiding angleBraiding Pitch
(mm)Pulling Speed
M/HCarrier NO.Motor Power
KWGBG-2S164-1024.854°44"9-2213-3332Y100L1-4 2.2KW
Y100L2-4 3.0KWGBG-2S206-1619.854°44"13-2915-34.540Y100L1-4 2.2KW
Y100L2-4 3.0KWGBG-2S2410--3114.2554°44"22-6921-6648Y100L1-4 2.2KW
Y100L2-4 3.0KWGBG-2S3615--451054°44"33-10022-6672Y100L2-4 3.0KW
Y100L2-4 3.0KWGBG-2S4830--757.2554°44"66-16629-7296Y132M2-6 5.5KW
Y112M-4 4.0KW

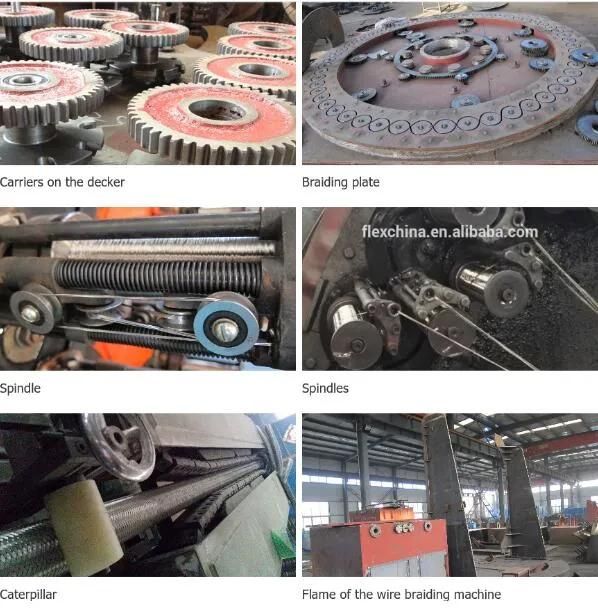

Detail image

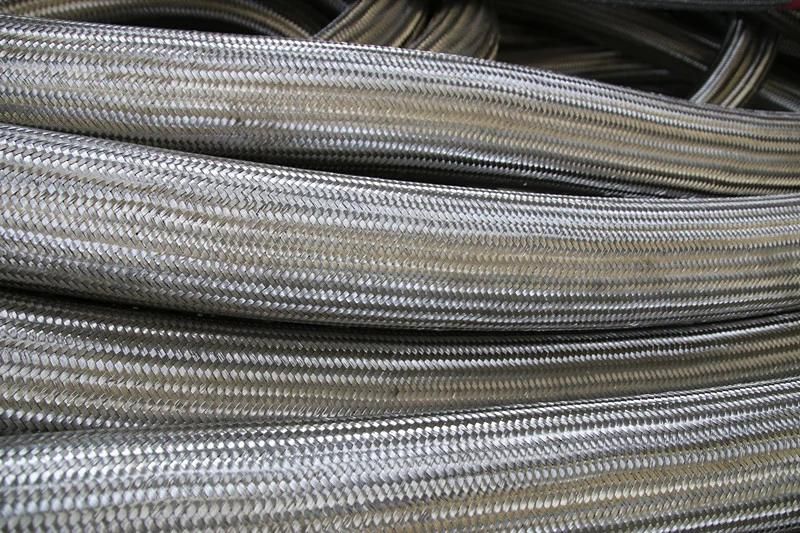

Finished products

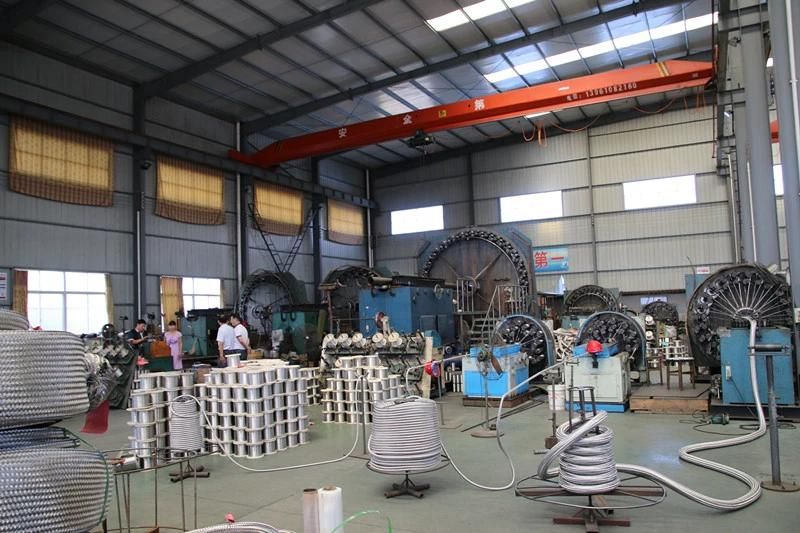

 Comflex Industrial Co.,Ltd

We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines,such as elastomer hose forming machine,hydraulic forming machine,wire braiding machine,rewinding machine,bellow forming machine, etc..We are lead manufacturer of flex-related products in China.
We supply metal hose and braid with the widest selection of products ranging from braided hose for value oriented customers to super flexible hoses to ultra-high pressure and high temperature hoses that satisfy industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.
FAQ
1.  Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30 years of experience

2.  What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire

3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:

1.What outer diameter of the hose you want to braid?
2.Structure of the braid?
3.How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
