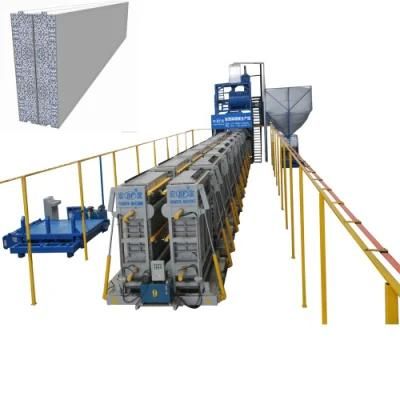

Wall Panel Making Machine Sandwich Panel Gypsum Board Production Line
Guangxi Hongfa Heavy Machinery Co., Ltd.- Product Type：Particle Board Making Machine
- Automatic Grade：Automatic
- Power Source：Electric
- Screw Design：Double-Screw
- Certification：CE, ISO
- Condition：New
Base Info
- Model NO.：HFP530A
- Customized：Customized
- Application：Room Partition Wall
- Thickness：60-250mm
- Usage：Internal and External Wall Panel
- Voltage：220V,380V,440V,Customized
- Power：4kw
- Product Features：Waterproof, Fireproof, Insulation, Environment Pr
- Control System：Germany Simens
- Mixer Capacity：3.6cbm
- Raw Material：EPS, Cement, Sand, HPMC
- Capacity：30PCS 100mm,Set
- Weight：3000-5000kg
- Aluminium Mold：Customized
- Oversize：3380*3200*2680mm
- Wall Panel Length：2000-3000mm
- PLC：Siemens International Version
- Efficiency：7 Women,15sets Molding Cars Per 8 Hrs
- Transport Package：Sea Worthy Package
- Specification：3030*2250*3100mm
- Trademark：HONGFA
- Origin：Guangxi, China (Mainland)
- HS Code：8474802000
- Production Capacity：50 Sets,Year
Description
Output / Pieces per mould60mm 75mm 90mm 100mm 120mm 150mm 40pcs 36pcs 32pcs 30pcs 26pcs 22pcs

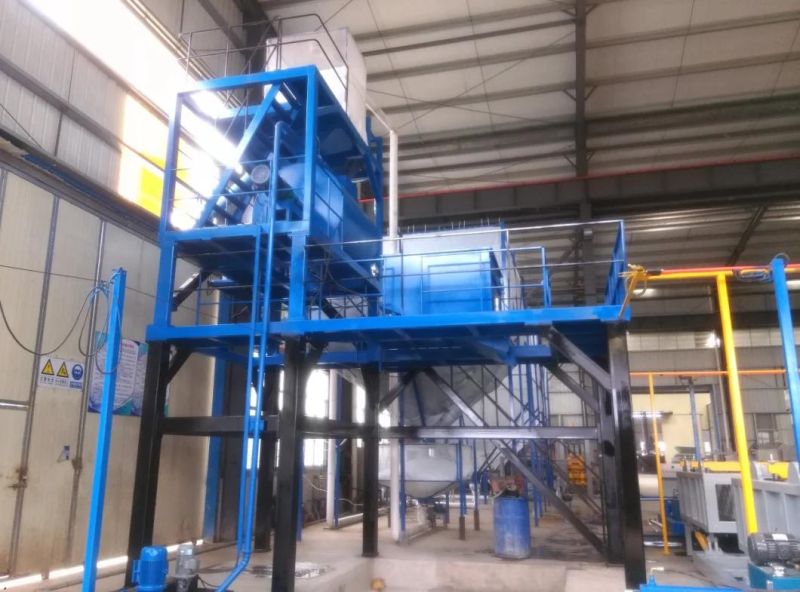

HONGFA mixing plant consists of mixer, movable infusion unit and aggregating system. It can mix all raw material automatically and record every data for production. 3.6CBM capacity mixer guarantees infusion efficiency. It only needs about 15seconds to finish a panel with size 2440*610*100mm.
2. EPS expander
EPS expander is used for expanding raw polysterene, one-time expander can make EPS around 15-18kg/CBM, interval expander can get proportion on 9-11kg/CBM.
3. De-molding machine

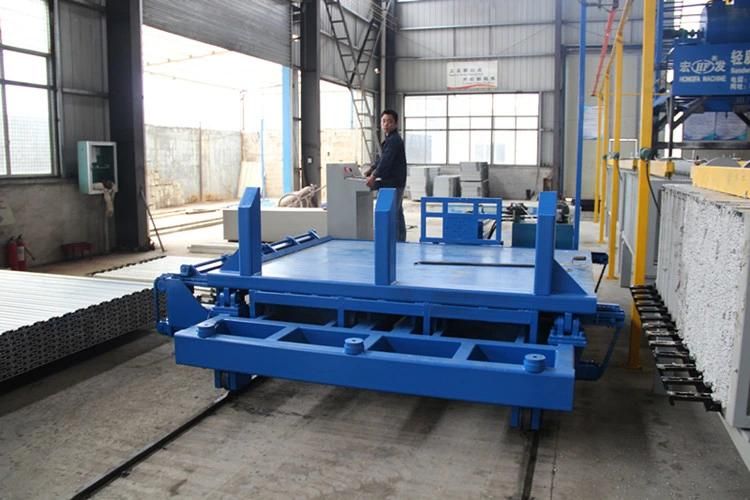

De-molding machine can pull the cured panels out deirectly, Hongfa design it based on 6 years panel manufacturing experience, make it possible that demolding machine is movable, after demolding, the molds can be installed immediately without any delay. Multiwork is possible so efficiency is triple compared to traditional vertical manual and semi horizontal production line.
4. Recycling unit

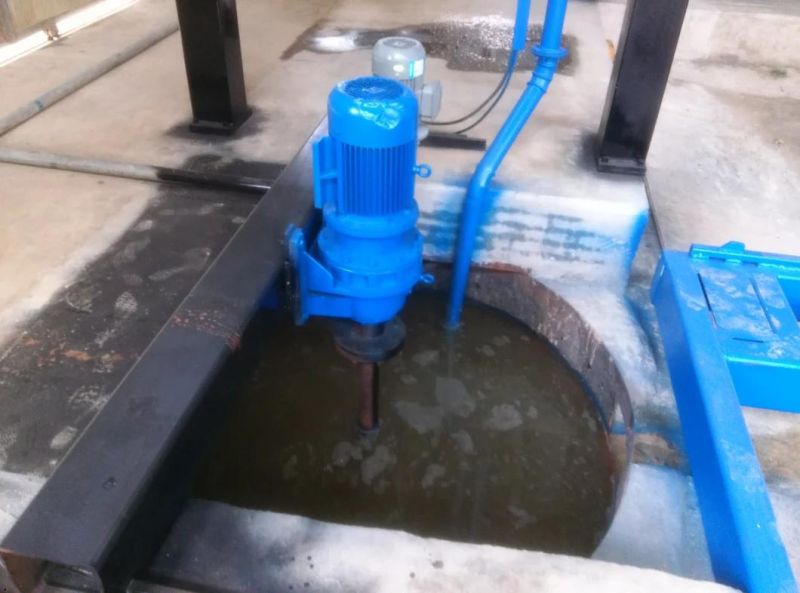

Recycling unit can save eveything in production, waste slurry settling in underground mixer, the cement and sand will be pumped into mixer again for next mixing cycle. Keep production clean and make waste recycling, cost saving.

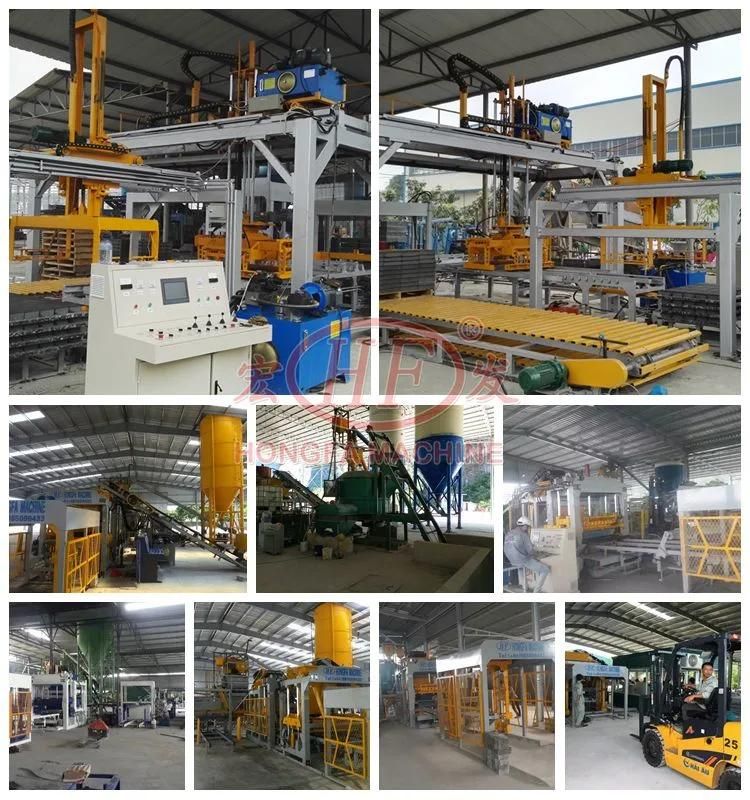

About HONGFAWe are a construction and building materials equipments manufacturer mainly produce all kinds of AAC block making machine,concrete mixing plant,mixer,Concrete Block Shaping Machine,concrete tile making machine and concrete pipe making machine etc. with more than 29 years experience since 1990 and being the biggest manufacturer in China at present.All the products are conformity with the standard
of the state, and gets the ISO9001-2000 Quality System certificate, also honored as "One of the Top Ten Famous Brands of Brick &Tile field in China" and other honors.
Hongfa Machinery's Honor
1.One of Top Ten Influential Brands in China Brick &Tile Industry
2.China National Enterprise Abiding By Contract & Keeping Good Faith
3.Quality and Credibility of the Dual-protection Demonstration Unit
4.High and New Technology Enterprise
5.Famous Trademark of China
6.Star Enterprise with China Patent
7.AAA Grade Credit Enterprise
8.Consumer Satisfaction Unit
9.One of Top 100 building Material Industry Brands of China
10.One of Top Ten Good Faith Units
11.Advanced Exporter in Guangxi Province
12.Advance Quality Management Unit
FAQ:Q: What is the MOQ?
A: 2 sets.
Q: Can I mix different designs?
A: Sure!
Q: Can I get a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger size orders.
Q: Can I add or delete items from my order if I change my mind?
A: Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change
Q: When you ship my order?
A: Normally 30-45days after receiving your payment, but it can be negotiated based on order qty and production schedule.
Q: How about the quality guarantee period?
A: One year!
Q: How can you guarantee the production quality?
A: Our production quality follow China construction machinery standard JGJ33-2012. We have 27 years experience on producing the machines and will be inspected by QC team for ach shipment. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
