• Model NO.：QTJ4-35
• Model：Qtj4-35
• Shaping：Vibration
• Capacity：1500-2000PCS,Day
• Power：9.3kw
• Pressure：16MPa
• Pallet Size：850X450mm
• Weight：1100kgs
• Dimension：1550X1650X1800mm
• Pallet Quantity：500-600pieces
• Water Consumption：2-4t,Day
• Workshop Area：40m2
• Power Voltage：3800V,220V,AC
• Labor Quantity：2-4 People
• Forming Period：35-40s
• Mixer：Jq350
• Transport Package：Naked in Container or LCL
• Specification：1550× 1650× 1800mm
• Trademark：shengming
• Origin：Linyi
• HS Code：8474802000
• Production Capacity：1500-2000pieces,Day

Total rated power15.9KWWorkshop area40M2Daily capacity1500-2500 piecesPower voltage380V/220V/ACPallet quantity500-600 piecesLabor quanity2-4 peopleWater consumption2-4T/dayForming period35-40S

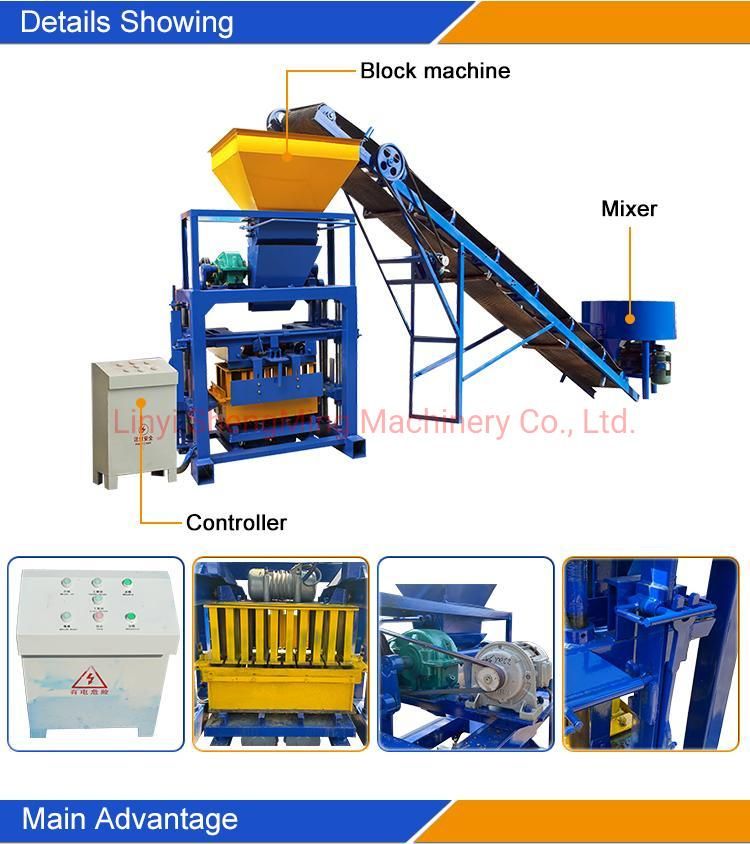

1. The storage hopper is designed to replace manual feeding and greatly reduce the working intensity.
2. The motor pushes and pulls the mold, which is convenient and convenient.
Production Capacity
 Size(LxWxH)mmPiece/moldPiece/HourPiece/8 hours400x200x200mm42001600400x150x200mm52502000400x100x200mm73002400200x100x60mm147005600225x112.5x60126004800

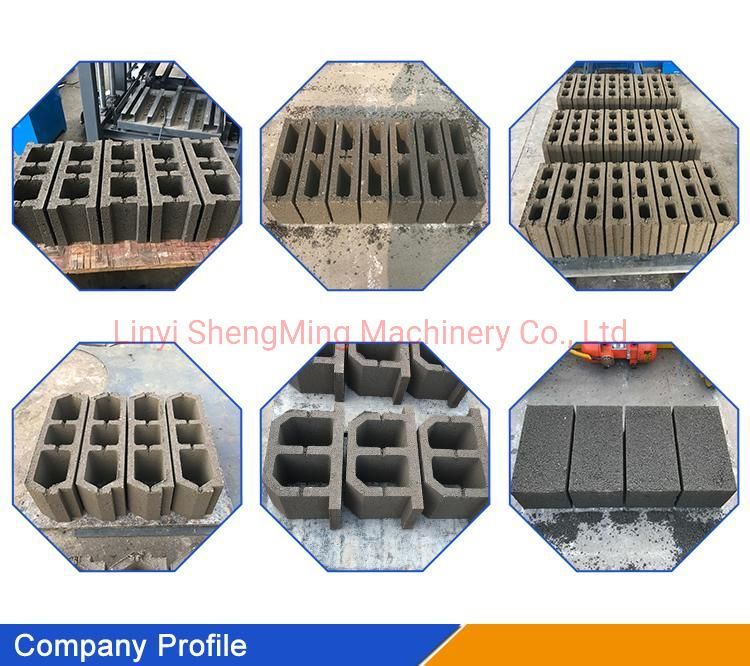

Finshed Block Showing

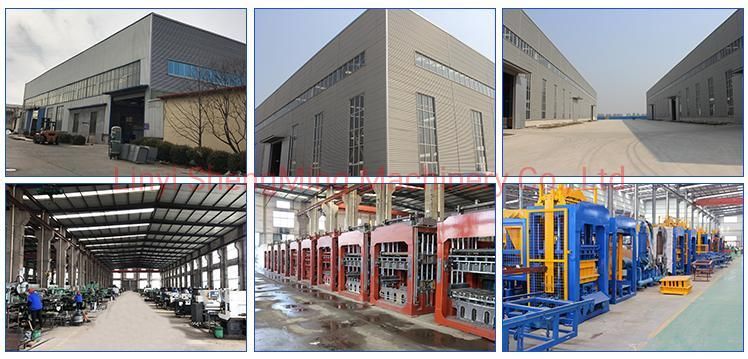

Established in the year 1990,we are a prominent organization engaged in manufacturing and supplying
Block machine,batching plant and concrete pole machine, extensively used in field of infrastructure and
real estate development.


FAQ:
Q: What is the material for this machine ?
A: You can use lateriate or other clay material or concrete material, plus a little cement

Q: How many kinds of block can be made by this machine ?

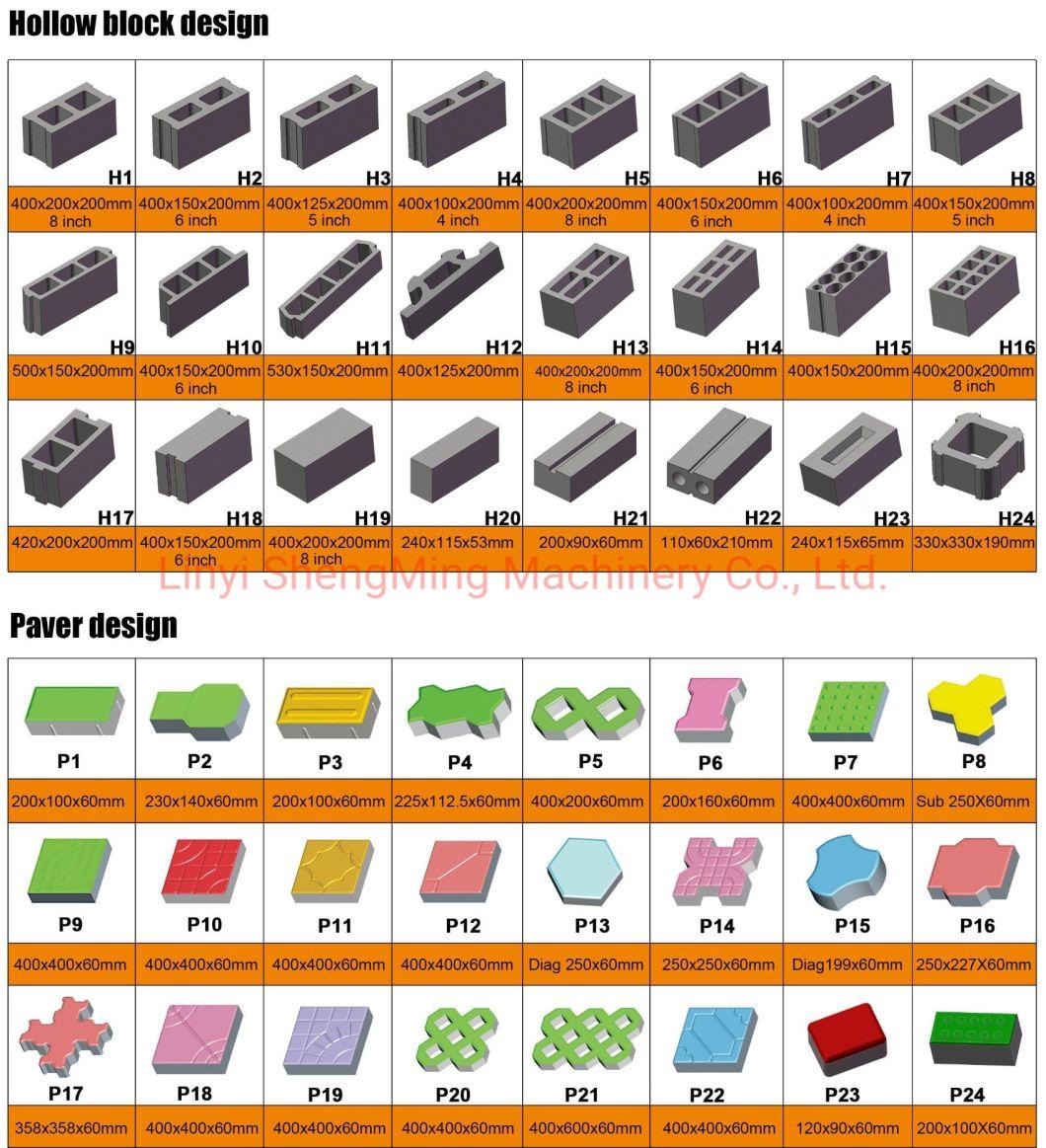

A: By changing mold, this machine can make all type design brick ,block or even paver.

Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally

Q: Will you provide spare parts for this machine ?
A: We will provide you one year free spare parts.can support machine working for many years

Q:Will you provide installation support?
A: We will provide installation video and manual book.online video avaiable also.

Q:How many days to make the machine if place order?
A:Normally need 15-20 days but all depend on molds quantity.
