Aluminum Angle Corner Metal Profile Track Roll Forming Machine

Cangzhou Zhongheng Machine Manufacture Co., Ltd.
  • After-sales Service:Whole Life After Sale Service
  • Warranty:1 Year
  • Product Type:Roll Forming Machine
  • Automatic Grade:Automatic
  • Power Source:Electric
  • Screw Design:Double-Screw

Base Info

  • Model NO.:zh
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized
  • Application:Ceilings
  • Capacity:25-45m,Min
  • Voltage:380V 50Hz 3phases
  • Thickness of Material:0.3mm-0.9mm
  • Weight:3200kg
  • Key Selling Points:High-Accuracy
  • Dimension:4700*1600*2480mm
  • Servo Motor:2.3kw
  • Main Motor:5.5kw
  • Roller Material:Cr12
  • Forming Stations:12
  • PLC Brand:Xinjie
  • Transmission:Gear
  • Thickness of Structure:30mm
  • Shaft Diameter:50mm
  • Transport Package:with Water Proof Plastic Film Cover
  • Specification:24*24
  • Trademark:ZHONGHENG
  • Origin:China
  • HS Code:8455221000
  • Production Capacity:50 Sets,Months

Description

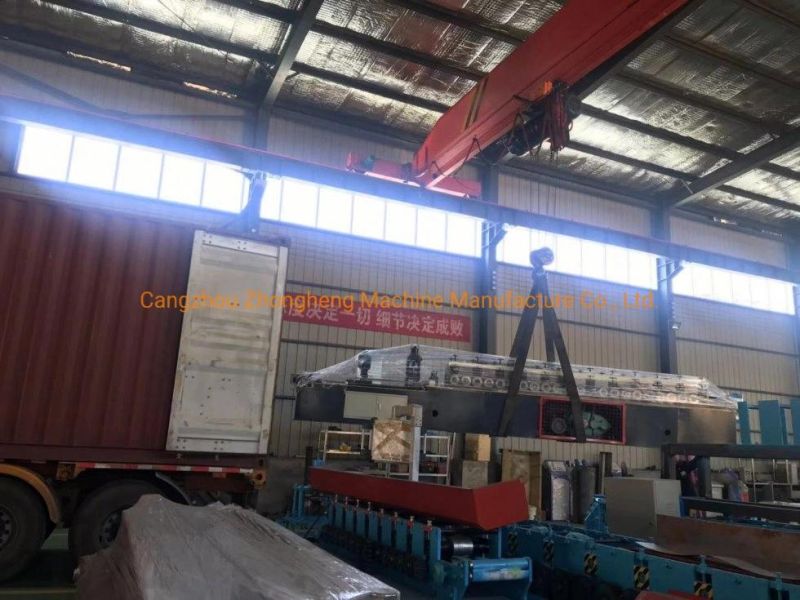

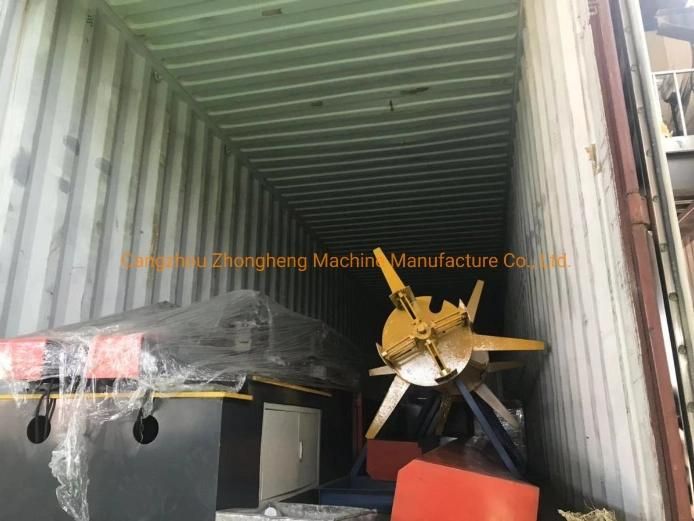

Suitable materialPPGI  GI  ALCoil Width as customThickness0.3-0.5mm as customPower380V 50Hz 3Phase  as customMain motor5.5KW SiemensHydraulic motor4KW SiemensSpeed45m/minForming stations12 rows Roller materialCr12 steel with vacuum heat treatment HRC57°-60°Shaft material45# steel quenched and temperedShaft diameter50mmDriveGearScreem HMI Delta , Touch ScreenPLC Delta , SiemensProcessing precisionWithin 1mmSize 4.6m×1.5m×1.2mWeight2.5TPackage and shipment
Aluminum Angle Corner Metal Profile Track Roll Forming Machine
Aluminum Angle Corner Metal Profile Track Roll Forming Machine
Company information
