• Automatic Grade：Automatic
• Power Source：PLC Control System
• Screw Design：Double-Screw
• Certification：CE, ISO
• Condition：New
• Customized：Customized
• Feeding Width：1219 mm
• Effective Width：1000 mm
• Thickness：0.8-1.2 mm
• Yield Strength：350 MPa
• Transport Package：40gp*1
• Specification：12T
• Trademark：Xiamen Liming
• Origin：Fujian, China(Mainland)
• Production Capacity：100 Set,Month
• Package size per unit product：12600.00cm * 1950.00cm * 1750.00cm
• Gross weight per unit product：7300.000kg

Basic Info.

Automatic Grade Automatic Power Source PLC Control System Screw Design Double-Screw Certification CE, ISO Condition New Customized Customized Feeding Width 1219 mm Effective Width 1000 mm Thickness 0.8-1.2 mm Yield Strength 350 MPa Transport Package 40gp*1 Specification 12T Trademark Xiamen Liming Origin Fujian, China(Mainland) Production Capacity 100 Set/Month

Packaging & Delivery

Package size per unit product 12600.00cm * 1950.00cm * 1750.00cm Gross weight per unit product 7300.000kg

Product Description

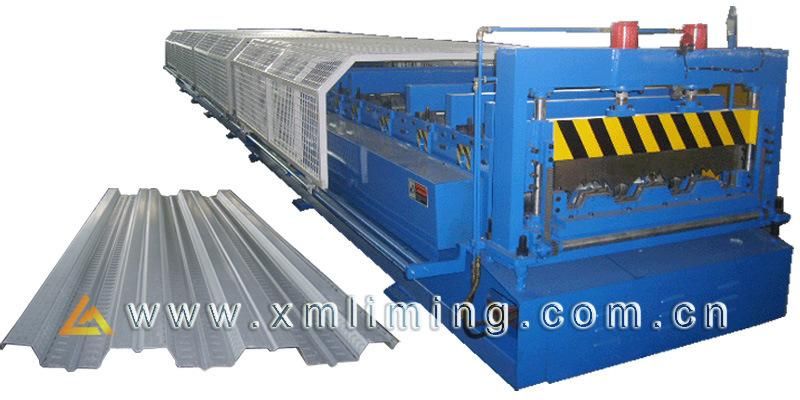

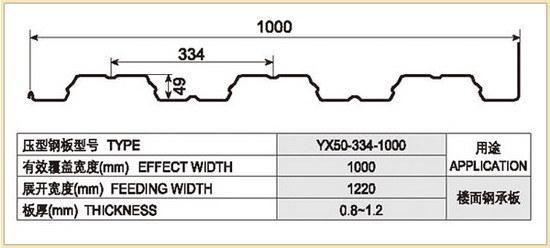

YX50-334-1000 Cold Roll Forming Machine for Floor Decking

 General Parameter

1	Item	Parameters
2	Model NO.	YX50-334-1000
3	Material	Pre-painted galvanized sheet
4	Thickness	0.8-1.2 mm
5	Yield Strength	350 MPa
6	Feed Width	1219 mm
7	Effective width	1000 mm
8	Roll Stages	26 Stages
9	Shafts Diameter	ф95 mm
10	Main Motor Power	18.5 KW
11	Hydraulic Group Power	7.5 KW
12	Max. Line Speed Of Roll Former	Approx.15 m/min
13	Electric Standard	According to local voltage

  Machine Components

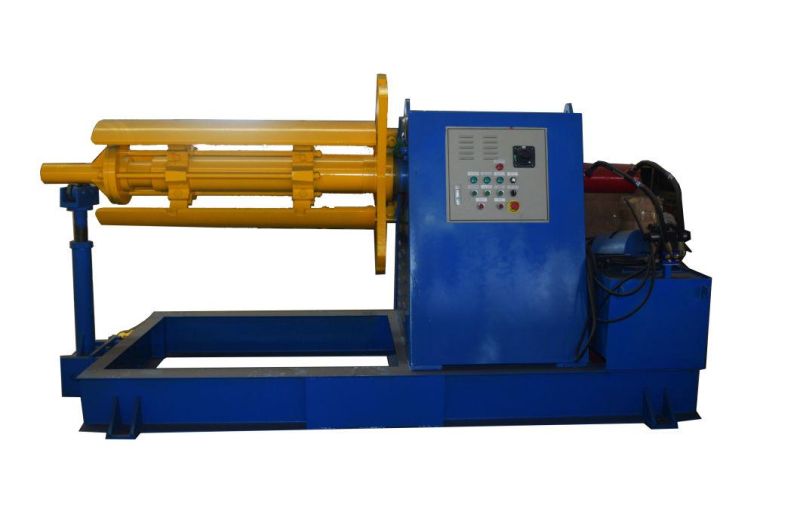

 A.6 Ton*1250mm Hydraulic un-coiler
Hydraulic system expand coil inner hole, Pump motor: 3KW
Frequency Inverter to regulate turning speed, Motor: 3KW
Link-connect expanding system
Load capacity = Max.6Tons
Coil Inner-diameter= 510±30mm, Coil width = Max.1250mm
Automatic stopping device with limited switch as assistance to control stop/star rotation

  B.Entry Hydraulic Pre-shearing Device
    Working thickness:up to 1.5mm
    Smart cut control

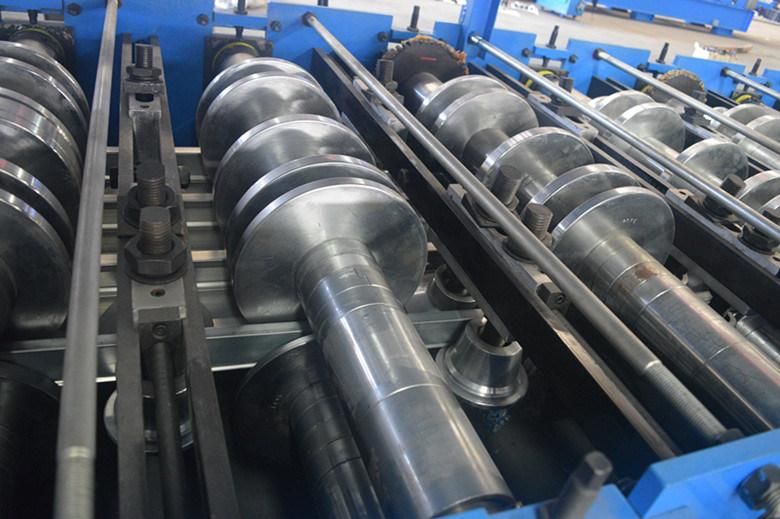

 C.Cold Rolling Mills
   Feeding section with guide;
   Gear/Sprocket driving;26 stages to form
   Wall-plate-frame Design
   Rollers manufactured from 45#, hard chrome coating
   Shafts Diameter=ф75mm, Precision Machined
   Main motor =18.5*2KW,Frequency speed control
   Max line speed of roll former: Approx.15m/min
   Protection mesh cover above the roll form to avoid the hands going it

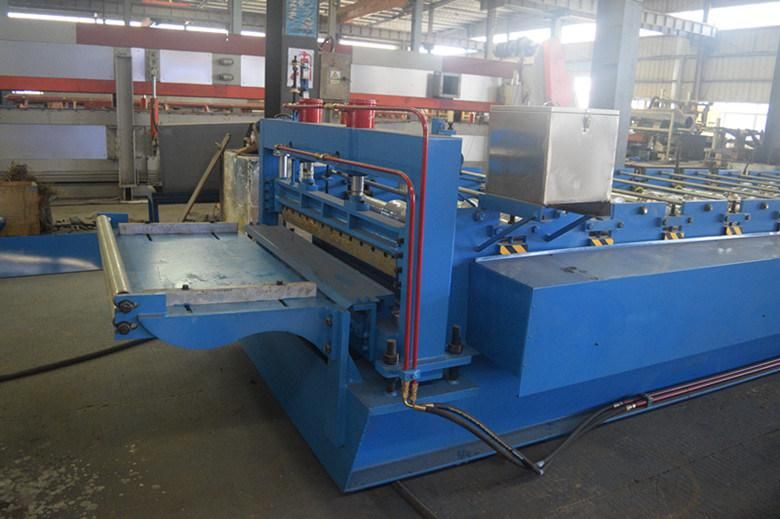

C.   Hydraulic Cutting Device
        Stop to cut, Post cut, No Blanking cut
        Cutting tool material : Cr12Mov, Heat treatment;
        Pump motor =7.5KW

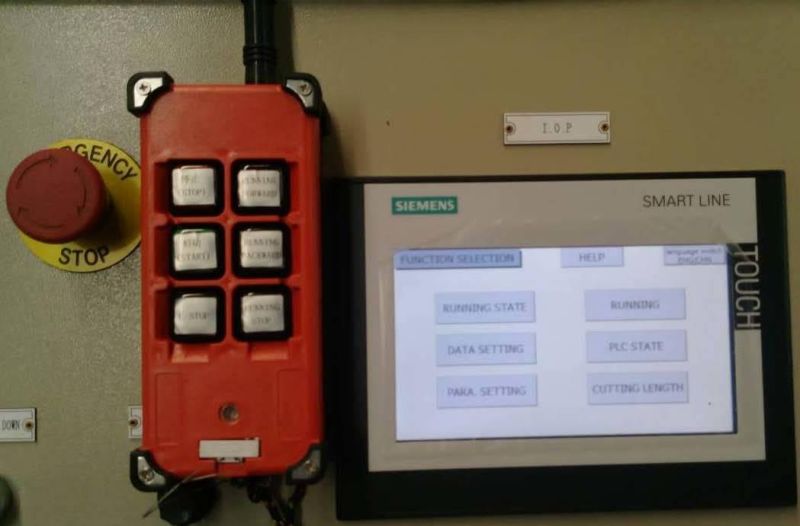

D.   PLC Control System
       Control the quantity & cutting length automatically;
       Combined with: PLC, Touch Screen, Inverter (SIEMENS), Encoder (Omron), REMOTE CONTROL etc
       Cut-to-length tolerance≤±2 mm
       Control Voltage 24V

E. Product Rack   Un-powered, 3 units  After-Sale Service
 Installation:In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.
 Terms Of Trade
 1.Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.
2.Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.
