• Model NO.：25-205-820
• Usage：Roof, Wall
• Transmission Method：Electric
• Effective：Easy Operation
• Motor Power：5.5kw
• Forming Station：13 Stations
• Medium Plate Thickness：14mm
• Main Frame：300h
• Diameter of Roller：75mm
• PLC：Delta Brand
• Type：Roll Forming Machine
• Method：Roll Forming Machine
• Transport Package：Standard Export Package, Water-Proof Package
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：20sets,Per Month

Article No.Item NameSpecification1Processing materialColor steel coil, Galvanized coil, Aluminized zinc coil or as your customized2Processing thickness (mm)0.3-1.0mm or as your customized3Material of rollersHigh grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm4Material of shafts45# steel5Diameter of shafts70mm or as your customized6Forming speed8-12 m/min or as your customized7Under frame350 H-beam8Sidewall16mm9Connect bar25mm, zinc plated10Forming steps10-18 or as your customized11Control systemDelta PLC and Inverter12Suitable power380V, 50 Hz, 3 phase or according to your need13Drive modeChain and sprocket, chain size 1 inch14Main motor3-5.5kw15Hydraulic pump station3-5.5kw16Cutting modelHydraulic profile cutting17Dimension of the machine7.5m-11m×1.5mm×1.2m18Weight of the machine3.5 ton -6 ton
2. Work flow
Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking

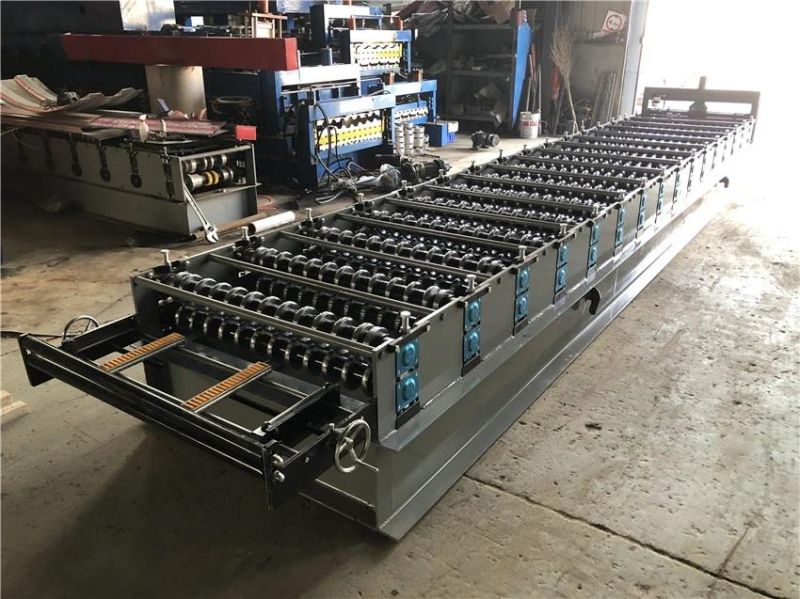

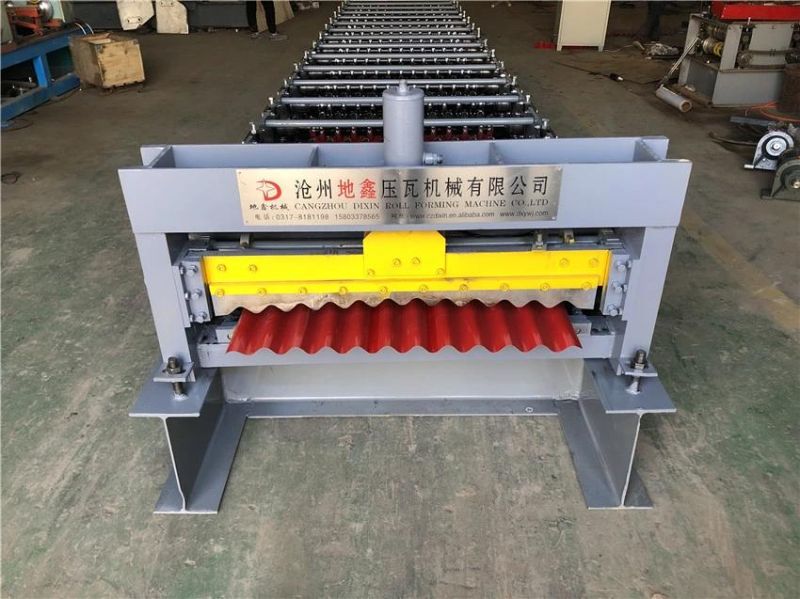

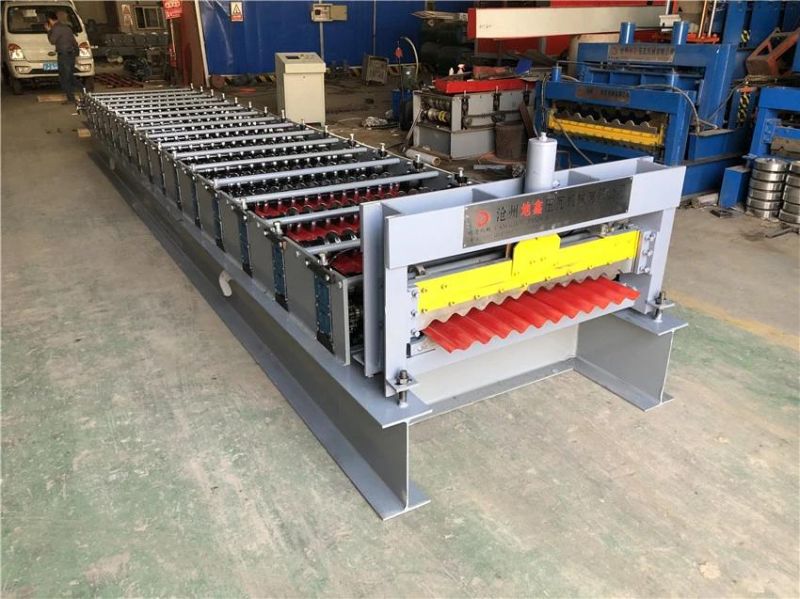

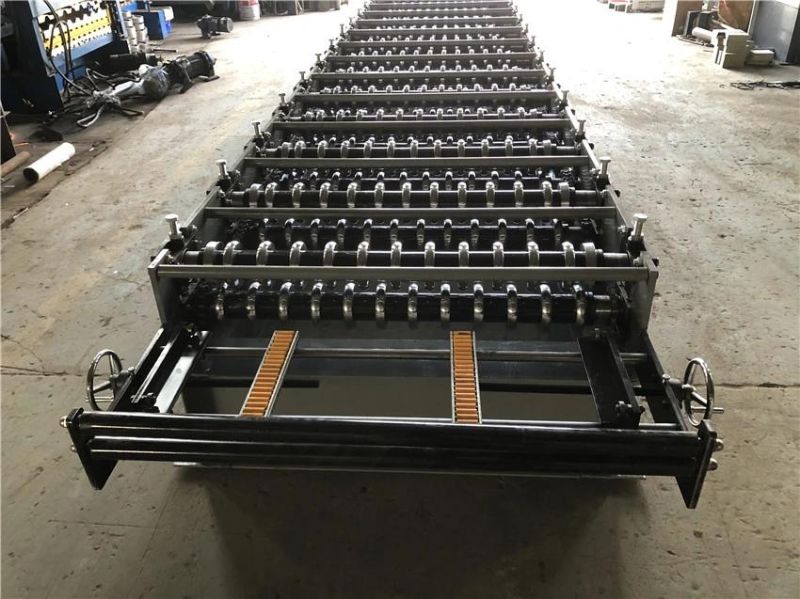

3. Machine pictures:

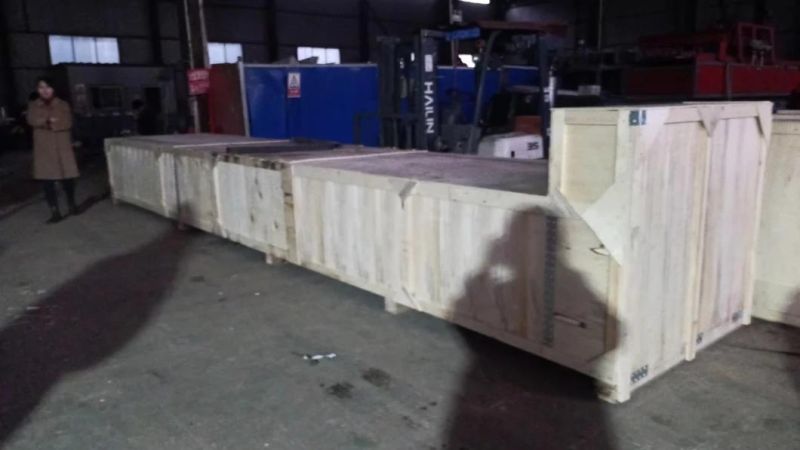

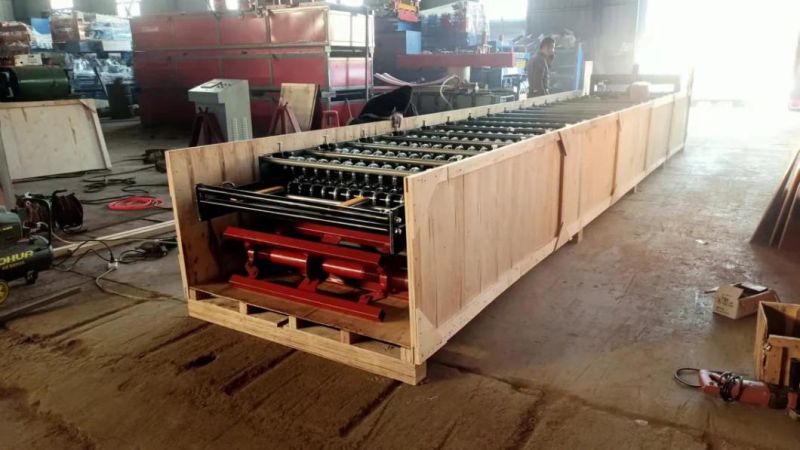

7. Package
Standard export package, water-proof package, covered with plastic film

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1

This is one of our main products, hotselling used in Nigeria, and has been certificated by SGS, CE.

Hope further contact with you.
