• Model NO.：SQJB-CNC-120
• Voltage：220V
• Input Power：1.5kw
• Working Pressure：0.4~0.7MPa
• Motor Rotary Speed：0-18000r,Min
• Gas Consumption：80L,Min
• Profile Width：20~100mm
• Profile Height：20~150mm
• Gutter Width：3mm
• Motor Rpm：2800
• Gutter Depth：Gutter Depth
• Dimensions：1600*880*1650
• Weight：600kg
• Transport Package：Wooden Box Packaging
• Specification：1600*880*1650
• Trademark：Taixi
• Origin：China
• HS Code：8409999100
• Production Capacity：1000,Year

Basic Info.

Model NO. SQJB-CNC-120 Voltage 220V Input Power 1.5kw Working Pressure 0.4~0.7MPa Motor Rotary Speed 0-18000r/Min Gas Consumption 80L/Min Profile Width 20~100mm Profile Height 20~150mm Gutter Width 3mm Motor Rpm 2800 Gutter Depth Gutter Depth Dimensions 1600*880*1650 Weight 600kg Transport Package Wooden Box Packaging Specification 1600*880*1650 Trademark Taixi Origin China HS Code 8409999100 Production Capacity 1000/Year

Product Description

Corner Cleaning Machine

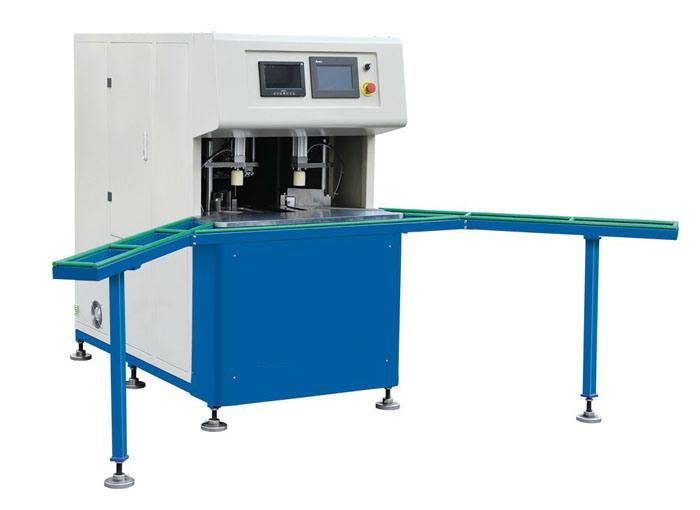

Corner Cleaning CNC Machine SQJB-CNC-120

Description
It is used to clean the weld seams of plastic doors and windows.
Dual-spindle digit control system
It is able to clean the fillet weld facade and upper/lower plane weld of various profiles.
It is of high precision and is capable of making the compensation for dimensional errors.
It may store the machining processes of various specs of profiles.

Parameters:
Input Power: 1.5kw
Power Supply: 380V/50Hz
Working Pressure: 0.4~0.7MPa
Motor RPM: 2800
Gas Consumption: 80L/min
Profile Width: 20~100mm
Profile Height: 20~150mm
Gutter Width: 3mm
Gutter Depth: 0.3mm
Dimensions: 1600*880*1650
Weight: 600kg

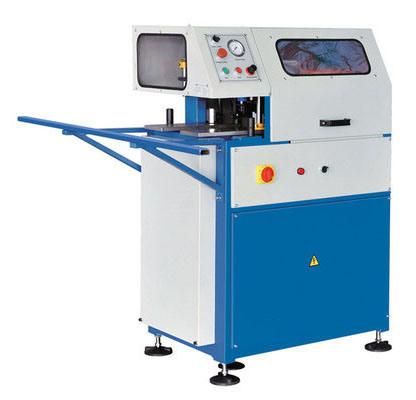

Corner Cleaning Machine SQJ01-120

Description
It is used to clean the upper and lower plane welds and the outer exterior angle weld after the plastic profile is welded to form a 90°angle.
The exterior angle is cleaned with a profile cutter featuring high productivity, etc.
The change of profiles calls for the replacement of profile cutter.

Parameters:
Input Power: 1.5kw
Power Supply: 380V/50Hz
Working Pressure: 0.5~0.7MPa
Motor RPM: 2800
Gas Consumption: 100L/min
Profile Width: 20~120mm
Profile Height: 20~120mm
Gutter Width: 3mm
Gutter Depth: 0.3mm
Dimensions: 1650*1300*1450
Weight: 270kg

Corner Cleaning Machine SQJ06-120

Description
It is used to clean the upper and lower plane welds of 90°welding angle on plastic door and window frame (leaf).
Ideal cleanup effect.
Easy operation and high efficiency.

Parameters:
Working Pressure: 0.5-0.8MPa
Gas Consumption: 80L/min
Profile Width: 20~120mm
Profile Height: 15~120mm
Gutter Width: 3mm
Gutter Depth: 0.3mm
Dimensions: 1050*670*1370
Weight: 210kg

Portable corner cleaning machine GNSTQ-120

Description
Equipment Features:
1.Cleaning the 90 degree corner of frame(only for up/bottom surface).
2.High processing quality.
3.Easy operation, high efficiency.

Technical Parameter:
Air Pressure: 0.5-0.8Mpa
Gas Consumption: 80L/min
Profile Height: 15-120mm
Profile Width: 25-120mm
Overall Dimension: 1050x670x1370mm

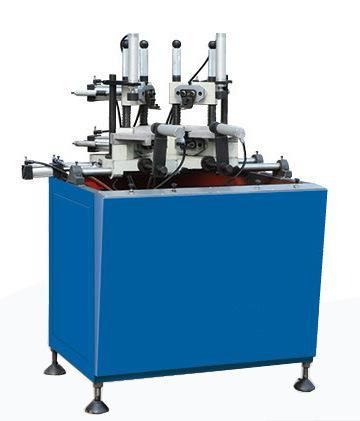

V-corner cleaning machine  SQJ05-120
Description
Equipment Features:
1.Special for mullion v-shaped welding and cross welding cleaning.
2.Special centering device for easy adjusting.
3.Reliable clamping and high processing quality.
4.Two hand safety operation.

Technical Parameter:
Milling Cutter Rotate Speed : 2800r/min
Air Pressure: 0.5-.0.8Mpa
Gas Consumption: 100L/min
Profile Height: 40-120mm
Profile Width: 40-120mm
Drawing Groove Width: 3mm
Drawing Groove Depth: 0.3mm
Overall Dimension: 930x690x1300mm
Weight: 100kg
