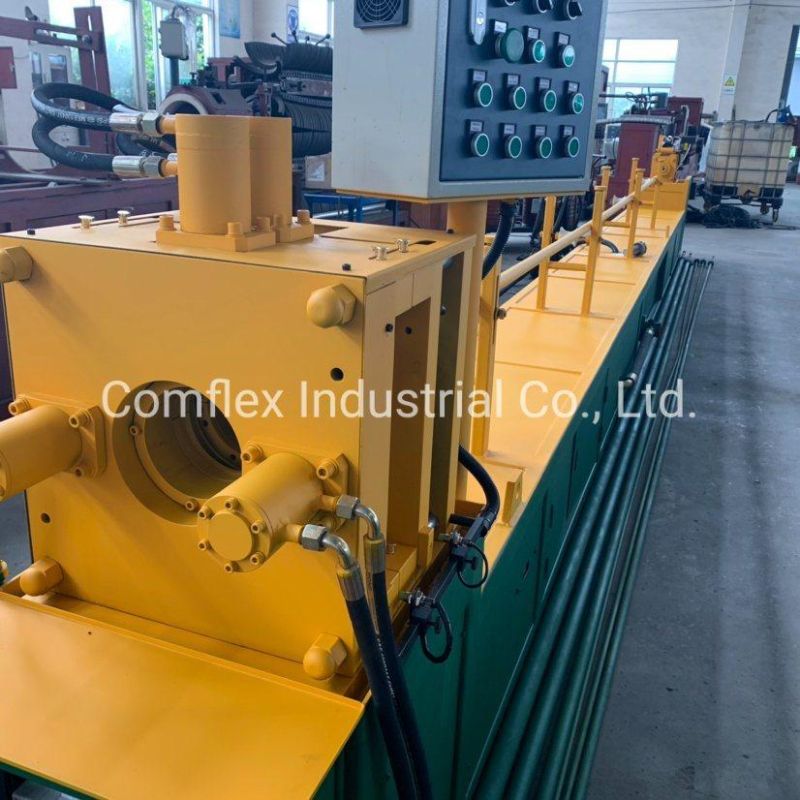

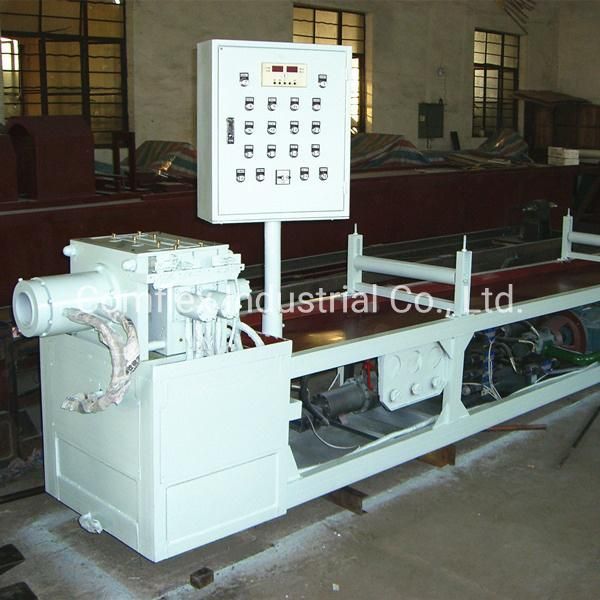

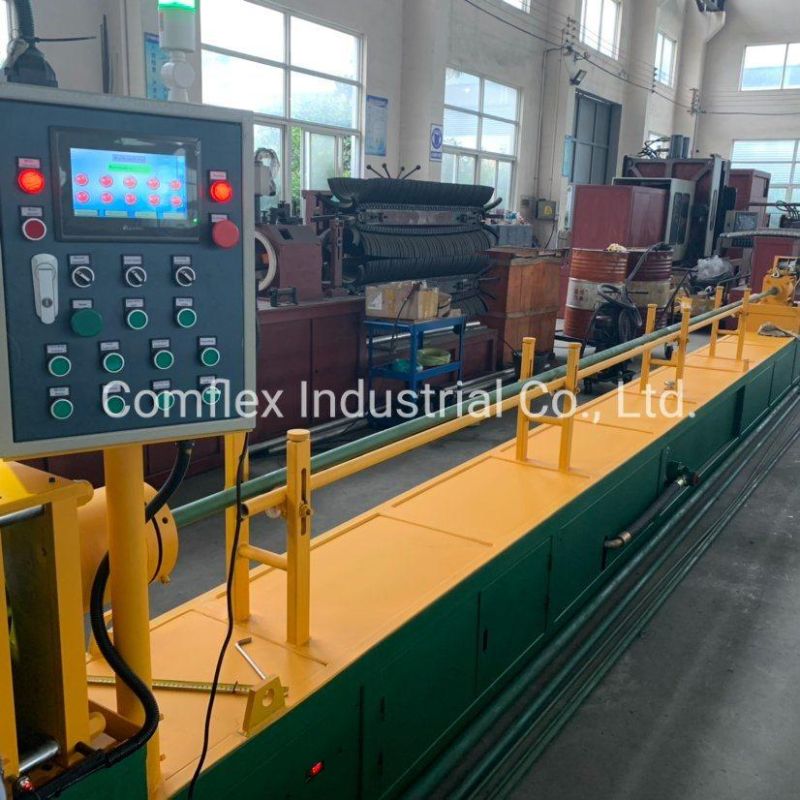

High Quality Elastomer Hose Forming Machine
Comflex Industrial Co., Ltd.- After-sales Service：Available
- Warranty：1 Year
- Pipe Material：Stainless Steel
- Condition：New
- Customized：Customized
- Theory：Inverter
Base Info
- Model NO.：Comflex
- Application：Industry
- Type：Pipe Production Line
- Width of Stripe：100-471mm
- DN：DN50-DN150
- Pitch Distance：5-15mm
- Material：SUS304, 321 and 316L
- Wall Thickness：0.3-1.0mm
- Control：PLC Control
- Strip Thickness：0.18-0.3mm
- Diameter：DN25-100mm
- Length：L=4000mm
- Model No.：Wlt
- Lead Time：50 Days After Receiving Deposit
- Product Name：Elastomer Hose Making Machine for Metal Hoses
- Transport Package：Standard Seaworthy Packing
- Trademark：Comflex
- Origin：Wuxi, Jiangsu, China(Mainland)
- HS Code：84819010
- Production Capacity：5000 Pieces Per Year
Description
Production DescriptionThis series of forming machines use polyurethane as the drum wave medium. Under the joint action of the hydraulic control system and the fixed-length mold, the seamless or welded seam single-layer stainless steel tube blank can be positioned, drum waved and formed. The setting process is automatically and continuously shaped into metal hoses with corresponding inner diameters.
Technical Data
Diameter: DN50-150mm
Wall thickness: D£ 0.3- 1.0mm
Type of the bellows: Annular bellows
Speed: 6-8seconds/convolution
Control: PLC control
Length: DN32 and DN40, L≤ 4000mm
The sizes bigger than DN50, L≤ 7000mm
Expanding medium: Emulsified liquid
The parts will go with the machines:
Rubber clamping parts(for caterpillars) and related guiding plates, 25, 32, 40, 50, 65, 80, 100, 125totally 8sets.
| DN | Actual ID | Wall thickness(mm) | Width of s.s. strips(mm) | Height of convolution | Pitch distance(mm) |
| DN32 | 31.5 | 0.3 | 100 | 7 | 5 |
| DN40 | 39.5 | 0.3 | 125 | 8 | 6 |
| DN50 | 49.7 | 0.3 | 157 | 8 | 7 |
| DN65 | 64.7 | 0.3 | 204 | 9 | 8 |
| DN80 | 79.5 | 0.4 | 251 | 10 | 9 |
| DN100 | 99.5 | 0.5 | 314 | 11 | 10 |
| DN125 | 124.6 | 0.5 | 393 | 13 | 12 |
| DN150 | 149.4 | 0.6 | 471 | 15 | 15 |

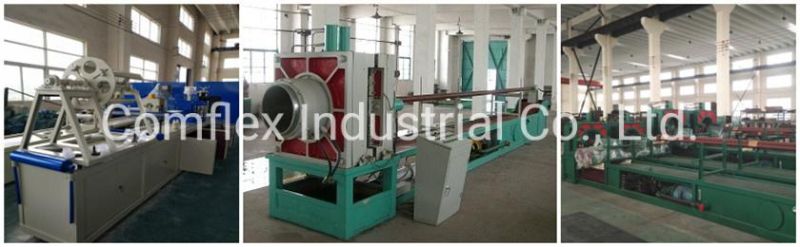

Tube Welding Machine

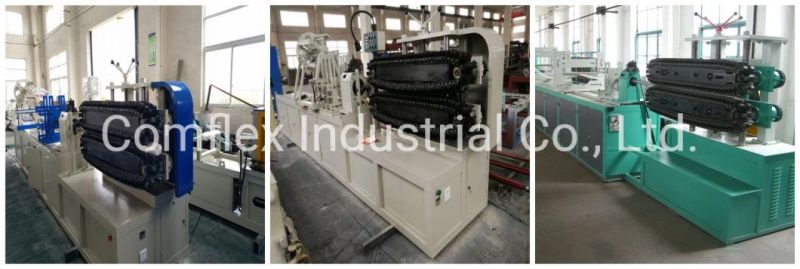

Hydraulic Hose Forming Machine
Customer Visiting
Machine Delivery&Package
Company IntroductionWe make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines, such as elastomer hose forming machine, hydraulic forming machine, wire braiding machine, rewinding machine, bellow forming machine, etc..We are lead manufacturer of flex-related products in China.
We supply metal hose and braid with the widest selection of products ranging from the braided hose for value-oriented customers to super flexible hoses to ultra-high pressure and high-temperature hoses that satisfy the industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety, and environmental standards and deliver dependable, repeatable performance and value.
FAQ
We need to know following information to quote you correct machineries:
1.Size range you want to make.
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Technical drawing of hose.
