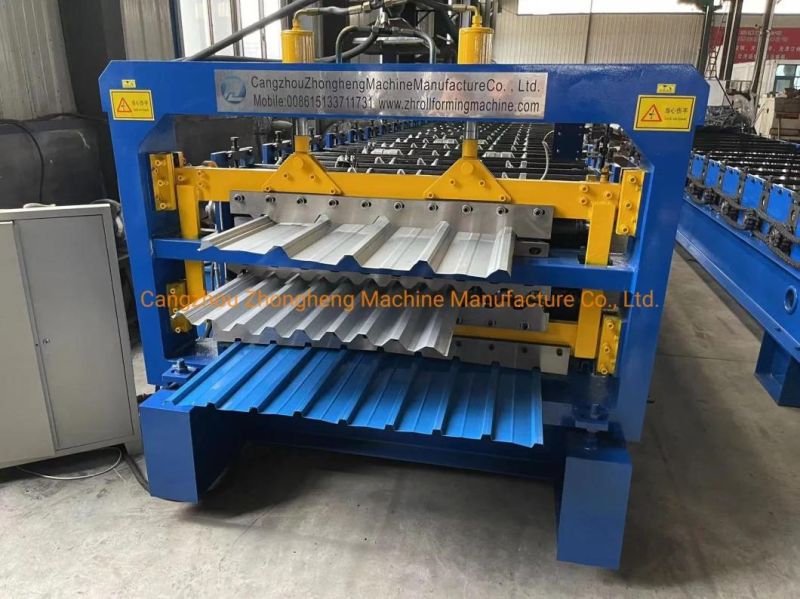

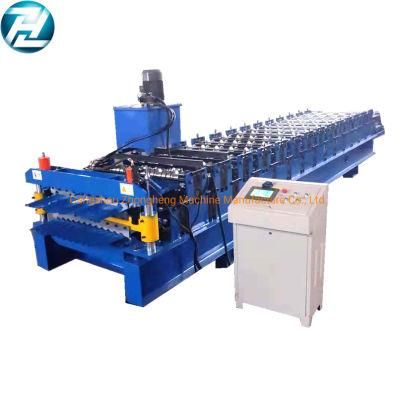

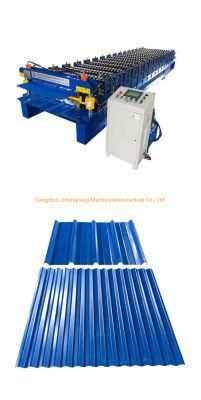

Three Layer Corrugated Roof Tile Roll Forming Machine/Aluminum Metal Roofing Sheet Making Machine
Cangzhou Zhongheng Machine Manufacture Co., Ltd.- After-sales Service：Whole Life After Sale Service
- Warranty：Whole Life After Sale Service
- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Model NO.：zh
- Usage：Roof, Wall
- Transmission Method：Electric
- Production Speed：10-15m,Min
- Rolling Thickness：0.3-0.6mm
- Roller Material：45# High Quality Steel
- Cutting Blade Material：Cr12
- Voltage：380V 50Hz 3phase
- Control System：PLC Control
- Shaft Diameter：70mm
- Shaft Material：45#Steel
- Structure：350 H Beam
- Wall Panel Thickness：16mm
- Transport Package：Naked with Plastic Film Cover
- Specification：7800mm*1.55mm*1.3mm
- Trademark：ZHONGHENG
- Origin：China
- HS Code：8455221000
- Production Capacity：50 Sets ,Months
Description
Overview
Product Description
Product ParametersNo. 1 Suitable material color steel sheet, galvanized steel sheet, G550 MATERIAL 2 Material width 1219mm or as your required 3 Material thickness 0.3-0.8 or as your required 4 Working speed 8-12m/min, can be 20-25m/min 5 Main motor power 5.5kw with cycloidal with reducer 6 Hydraulic pump power 4kw 7 Electrical control system PLC control system with inverter 8 Shaft diameter 75mm 9 Roller station 18 rows/ 19rows /20rows depend on your panel profile drawing 10 Roller high grade 45# steel, hard chrome plating 11 Working time 24 hours 12 workers 1-2 only 13 Cutting head material Cr 12 mould steel with quenched treatment 14 Voltage 380V 3Phase 50Hz or as your required 15 Weight 10.5T 16 The machine size 11000mm*1500mm*1500mm
Detailed Photos
Product Parameters

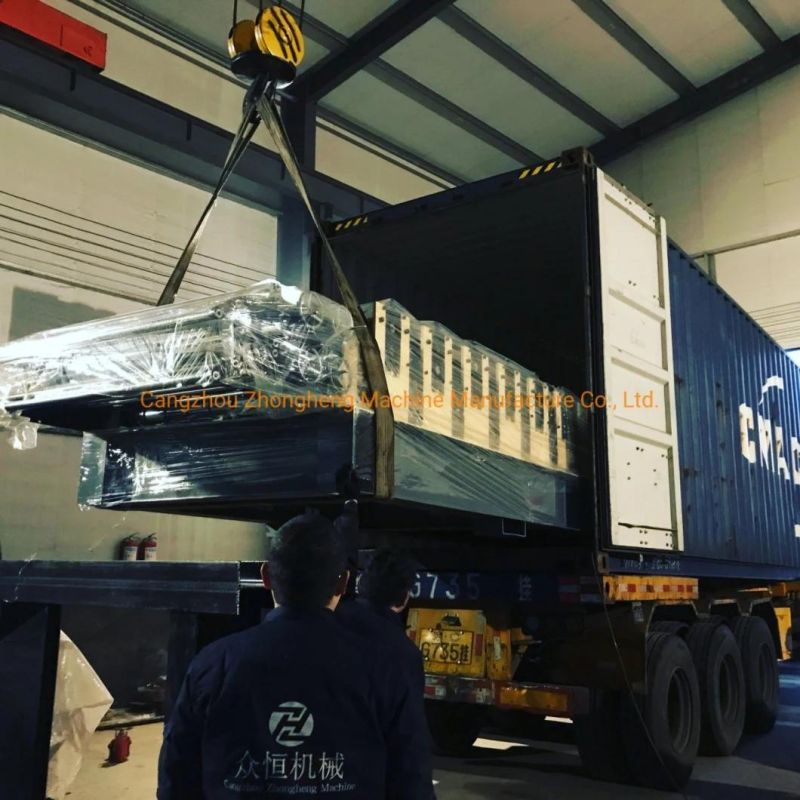

One 40' container can loading three sets of signel layer machines .This machine be loaded in one 40' container.
