• Model NO.：zh
• Automatic Grade：Automatic
• Suitable Material：Gi
• Material Thickness：2-3mm
• Yield Strength：235MPa to 350MPa
• Roller Station：18 Rows
• Diameter of Shaft：80-90mm
• Material of Rollers：Bearing Steel
• Material of Shaft：45# Steel with Chrome 0.05mm
• Transmission：Chain
• Cutter Operate：Automatic Hydraulic
• Blade Material：Cr12MOV
• Main Motor：11kw
• Power Pump Motor for Cutter：7.5kw
• Voltage：380V50Hz 3phases
• Speed：10-15m,Min
• Control System：PLC System
• Transport Package：Water Proof Plastic Film Cover
• Specification：ZHcu200
• Trademark：ZHONGHENG
• Origin：China
• HS Code：8455221000
• Production Capacity：50 Sets,Months

1

Raw MaterialTypeGI&PPGIThickness0.3-3mmYield Strength235Mpa to 350Mpa

2

DecoilerOperationManual/ Hydraulic for optionWeight Capacity5Tons



3



Main BodyRoller Station18 rowsDiameter of Shaft80-90mmMaterial of RollersBearing steelMaterial of shaft45# steel with chrome 0.05mmTransmissionChain

4

CutterOperateAutomatic Hydraulic Blade materialCr12MOV


5


PowerPump motor for cutter7.5KWMain Motor11KWVoltage380V 50Hz 3 Phase

6

Control systemElectric BoxPLC control system , InverterLanguageEnglish / Chinese7Speed10-15M/min

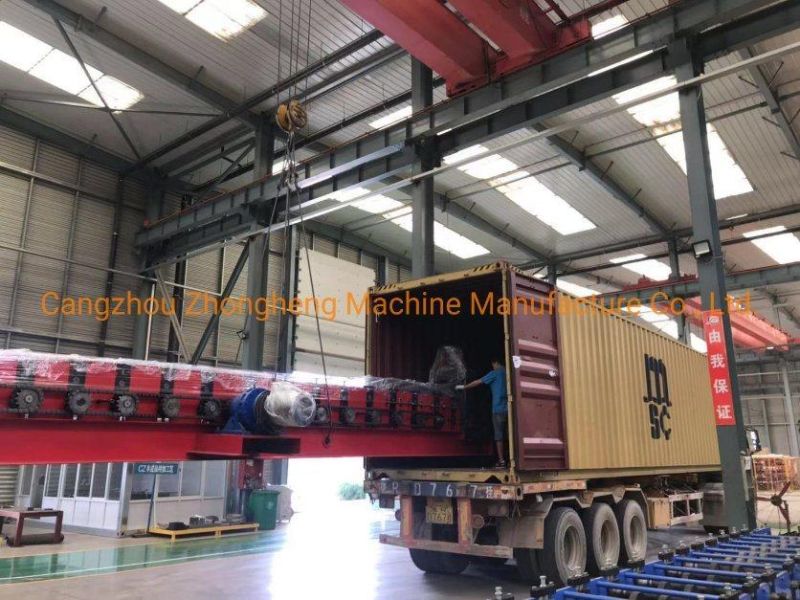

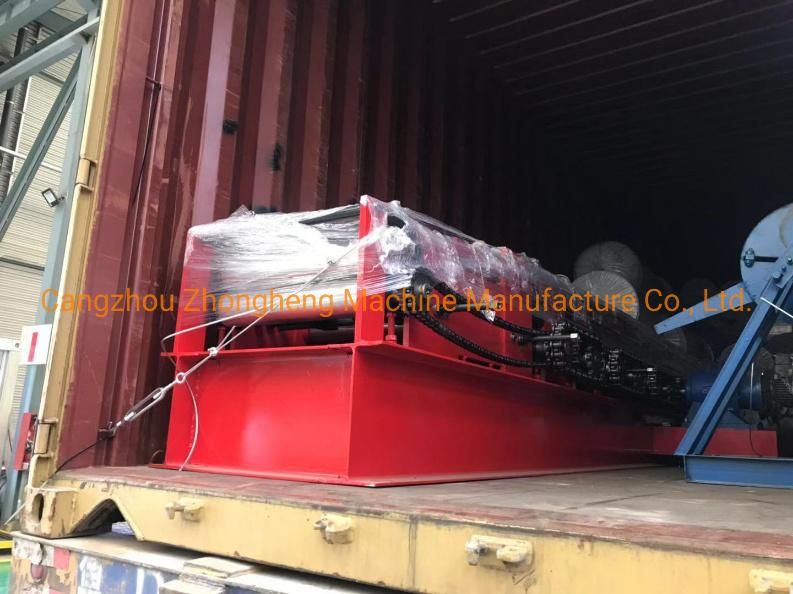

Package and shipment



Company information
