• Model NO.：QT40-2
• Mixer Model：Jq500
• Moulding Period：18
• Block Material：Sand,Cement,Gravel,Crushed Stone
• Machine Usage：Solid Brick,Hollow Block
• Voltage：as Per Local Requests
• Condition：New
• Machine Color：as Client Requirement
• Power：17.4kw
• Vibration Force：30kn
• Weight：4t
• Transport Package：Suitable for Sea Transrtation
• Specification：1350*1460*1800
• Trademark：RAYTONE MACHINERY
• Origin：Shandong Province, China
• HS Code：84748090
• Production Capacity：100 Sets,Month

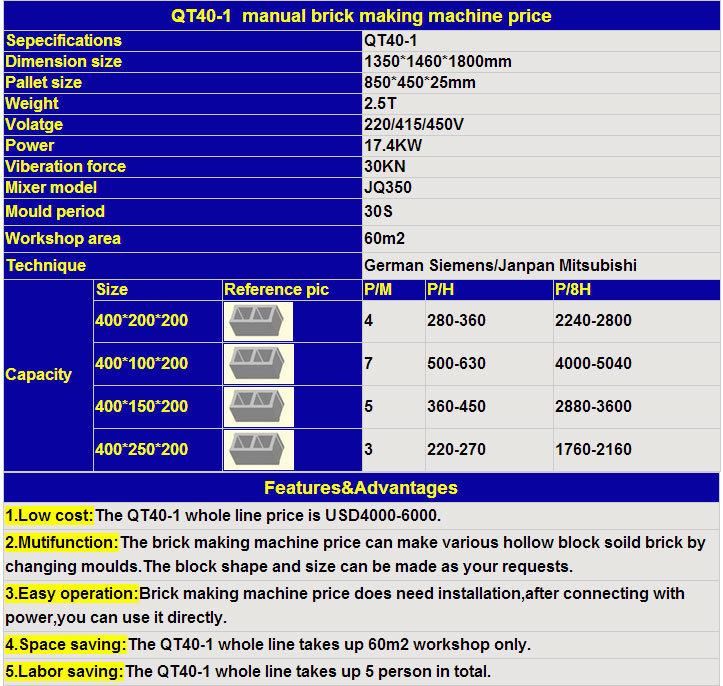

1. main technical parameters(1)Dimension of host machine 1350*1460*1800mm(6)Host machine power17.4kw(2)Moulding period40s(7)Vibration force30KN(3)bamboo pallet size850*450*25mm(8)Mixer modelJQ350(4)Weight of the host machine2.5T(9)Voltage380V/415V(5)workshop area60 m2(10)labour3to 52. production capacity Size(LxWxH)Pcs/Mould Pcs/ HrPcs/ 8 Hrpcs/month(1)400*250*2003220-2701760-216052800-64800(2) 400*200*2004280-3602240-288067200-86400(3)400*150*2005360-4502880-360086400-108000(4)400*100*2007500-6304000-5040120000-151200

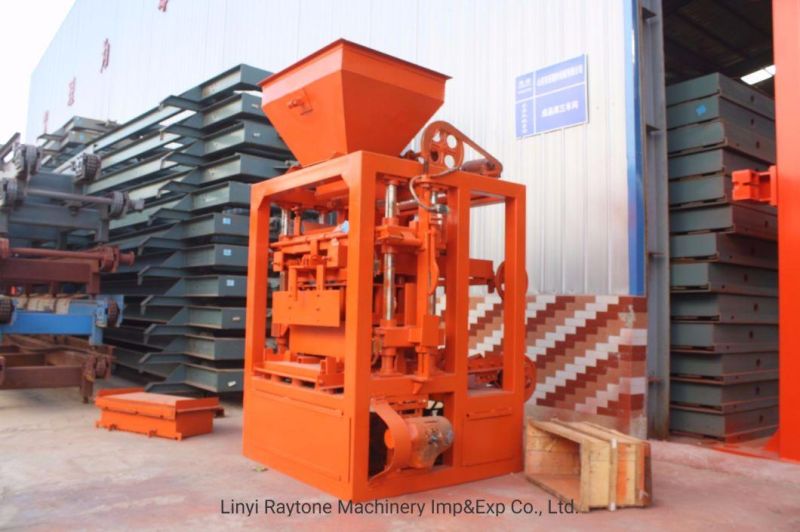

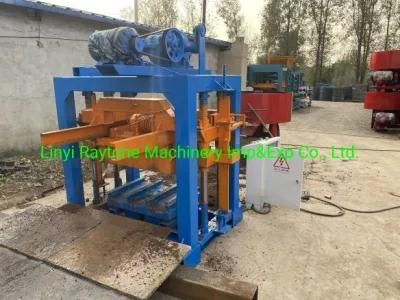

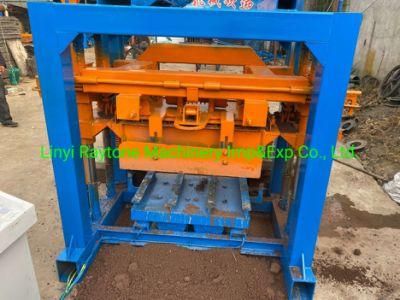

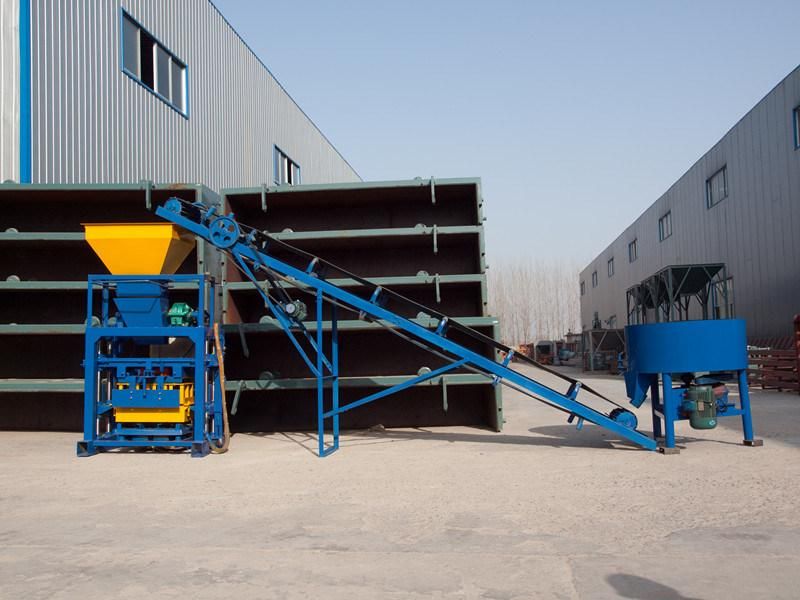

Machine detailes





Main information

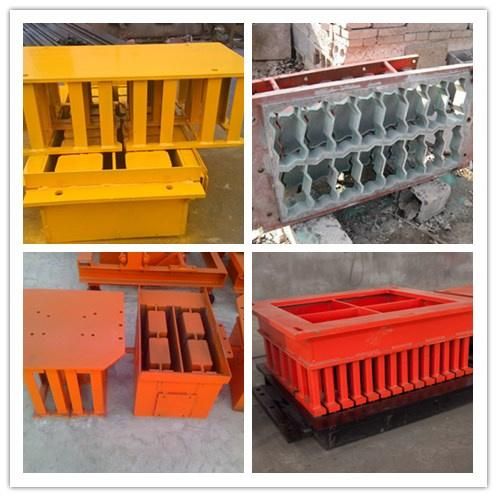

Moulds

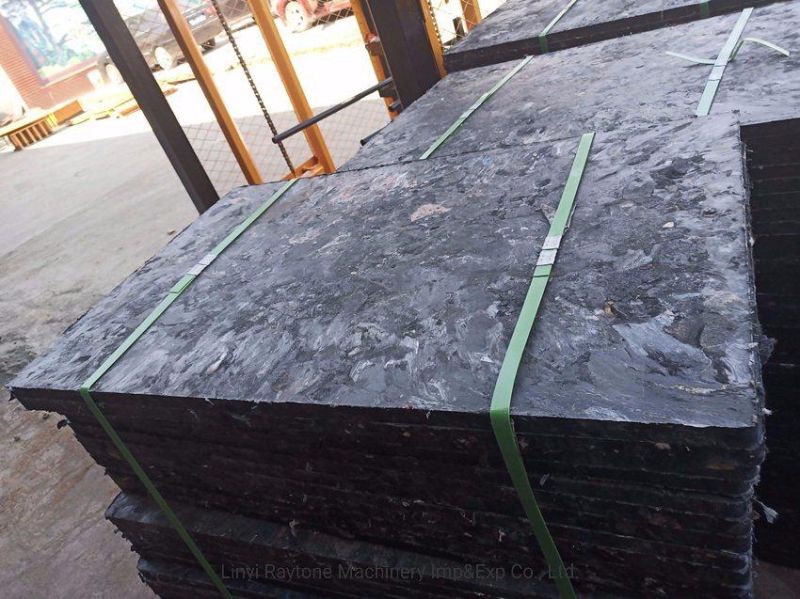

GMT Brick Pallet

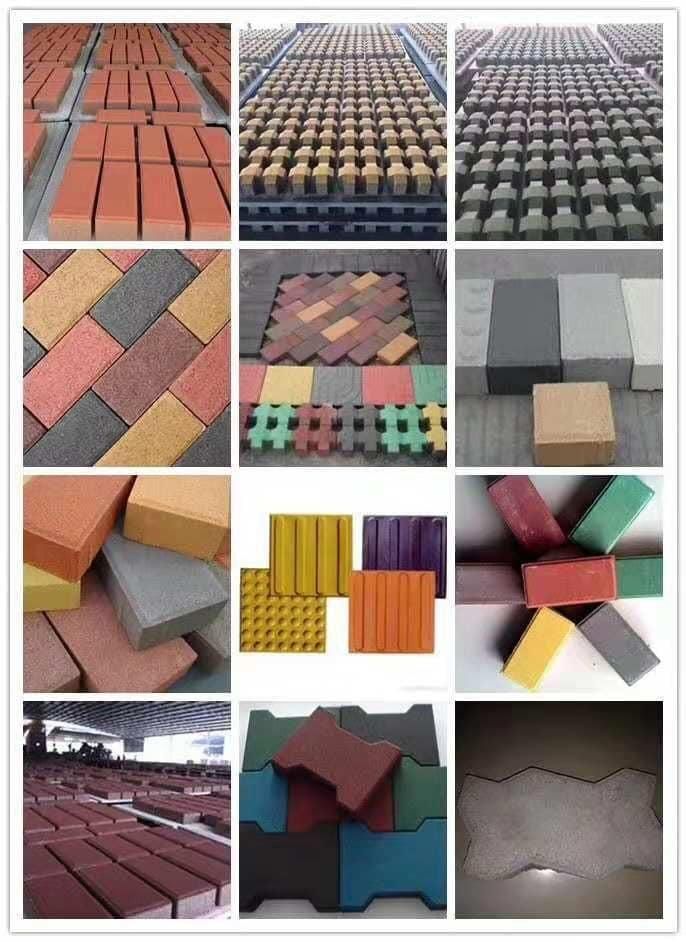

Block Sample



Welcome contact me for more details talking about our brick machine .
