• Model NO.：LB2500
• Certification：ISO, CE
• Automatic Grade：Automatic
• CNC or Not：CNC
• Voltage：Cutomized
• 3 Axis CNC Processing Center for Aluminu：Max 50 mm
• Glass Transmit Speed：40-45m , Min
• Cleaning Speed：2-7 M , Min
• Compress Air：Runoff 0,8 M3 , Min
• Water：Water and Electricity <=50 Us ,Cm
• Ambient Temperature：Max 40degree
• Brushes：3 Pairs
• Electronic Control System：Schneider PLC
• Voltage Fluctuations：+ 10 % to - 10 %
• Roller Height：450 mm
• Inclination of Vertical Support Wall：6 Degrees
• Line Size：22000*2660*3530mm
• Line Direction：Left Right or Right Left
• Transport Package：Film Plywood Case
• Specification：15000*1800*2630
• Trademark：Hiwoc
• Origin：China
• HS Code：84752990
• Production Capacity：500,Year

Basic Info.

Model NO. LB2500 Certification ISO, CE Automatic Grade Automatic CNC or Not CNC Voltage Cutomized 3 Axis CNC Processing Center for Aluminu Max 50 mm Glass Transmit Speed 40-45m / Min Cleaning Speed 2-7 M / Min Compress Air Runoff 0/8 M3 / Min Water Water and Electricity <=50 Us /Cm Ambient Temperature Max 40degree Brushes 3 Pairs Electronic Control System Schneider PLC Voltage Fluctuations + 10 % to - 10 % Roller Height 450 mm Inclination of Vertical Support Wall 6 Degrees Line Size 22000*2660*3530mm Line Direction Left Right or Right Left Transport Package Film Plywood Case Specification 15000*1800*2630 Trademark Hiwoc Origin China HS Code 84752990 Production Capacity 500/Year

Product Description

Insulating Glass Making Machine Double Glass Making Machine Hollow Glass Production Line Double Glazing Machine

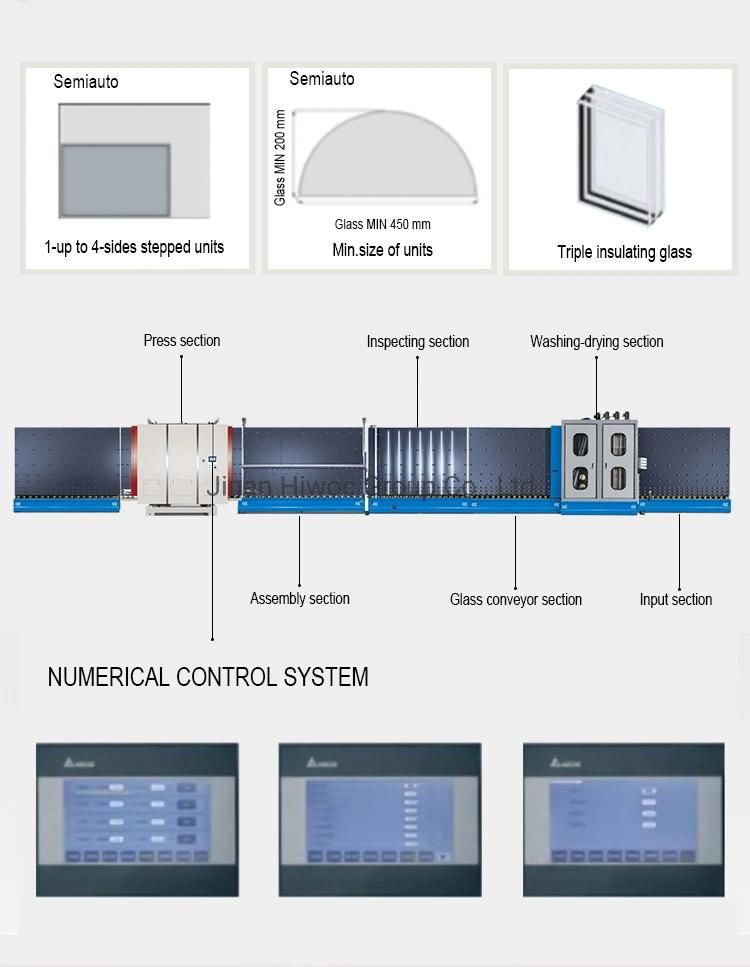

Feature:1. Automaticlly distinguish the coating side of coatd glass and Low-E glass2. PLC control system with touch screen operation.3. Dynamic display for machine work and fualt conditon.4. LB1800P inside assembly lines can produce standard double layers insultating glass and three layers insulating glasses(optional).5. Designed for curtain wall glass(LB1800P), double layer insulating glass and three layers insulating glasses.6. Insulating glass pressing design adopts gear and rack synchronous device driven by hydraulic station.7. Frequency control designed for glass transmission.8. 800-1000 units insulating glasses every single shift 8 hours(double layer insulating glass size 1M)9. Panel pressing can be openable, maximum openning size: 500mm

Technical Parameters


Model	LB2500
Input Voltage	380V 50Hz /3P or As Customer need
Input Power	21.95KW
Work  speed	2-22m/min
Max. glass size	2500*3000mm
Min. glass size	450mm*450mm
Single Glass thickness	3-12mm
I.G. unit glass thickness	12-40mm
Glass wasing speed	0-8mm
Air pressure	0.8m3/min(1 mpa)
Oversize	15000*1800*2630
Gross Weight	4000kg

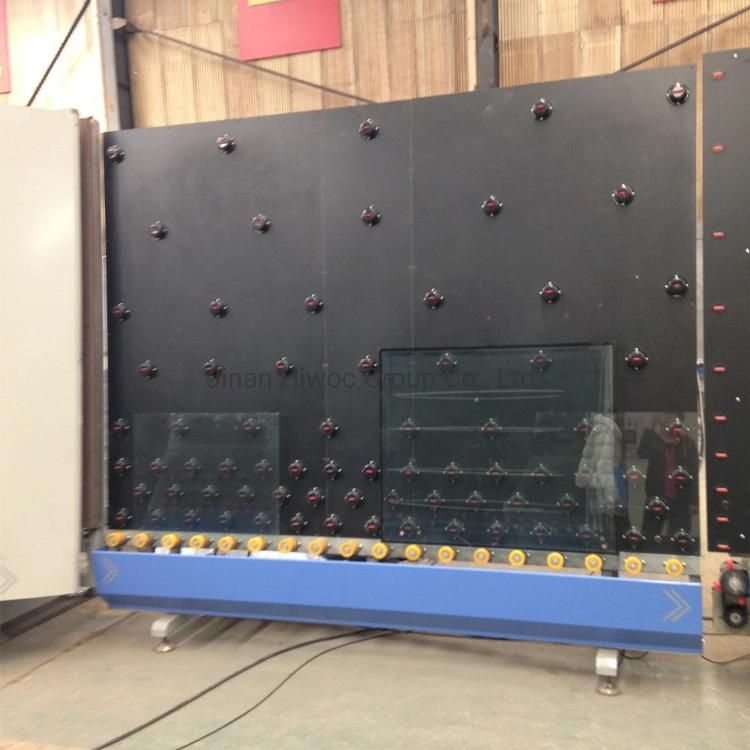

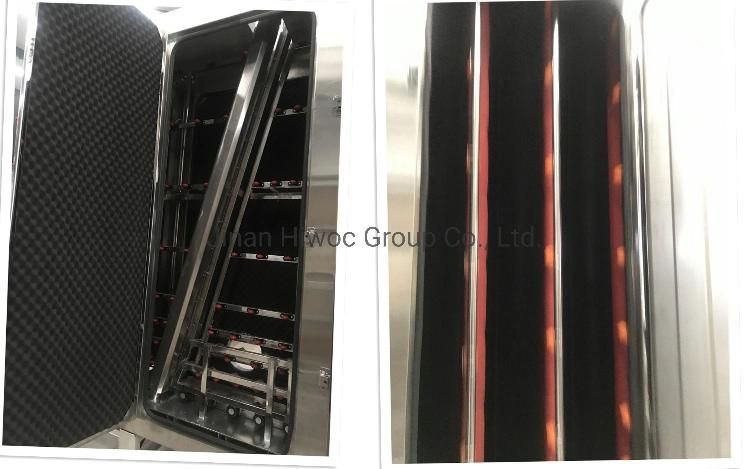

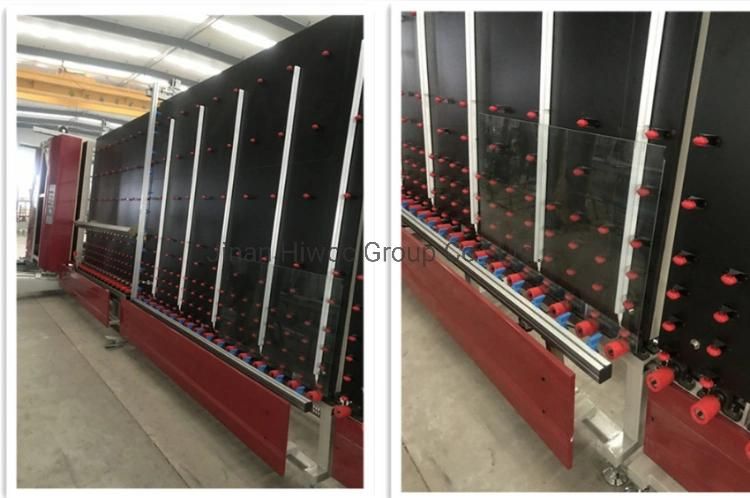

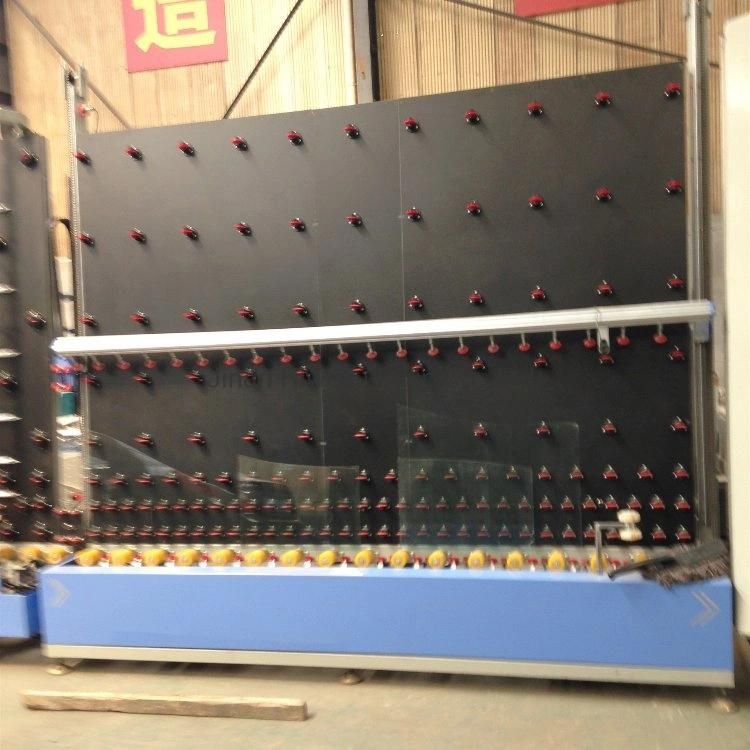

Products Shows :
