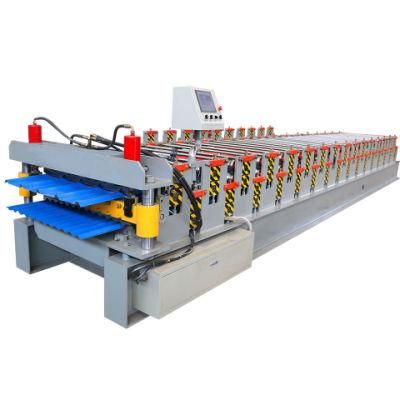

• Model NO.：glazed tile roll forming machine
• Name：Tile Making Machinery
• Raw Material Standard：1000mm
• Working Speed：1-3m,Min (Not Including Cutting Time)
• Material of Roller：45# Steel Quenching Process and Chrome Coated
• Material of Main Shaft：45 Steel Forged
• Material of Shaft：70 mm Forged 45#Steel, Quenching Process
• Main Motor Power：4kw
• Hydraulic Station Power：4kw
• Electrical Control System：PLC Panasonic Japan
• Dimension (L*W*H)：6500mm*1250mm*1300mm
• Material of Cutter：Cr12 MOV HRC 58-62
• Driving Mode：Single Chain 1 Inch
• Material Thickness：0.25-0.8mm
• Power Supply：380V, 60Hz, 3 Phases
• Cutting Accuracy：2mm
• Transport Package：Nude
• Specification：6800*1500*1600mm
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：100 Set,Year

No.ItemDescription1Raw material Standard1000mm2Working Speed1-3m/min  (not including cutting time)3Roller Stations13 stations4Material of Roller45# steel quenching process and chrome coated5Material of Main Shaft45 steel forged,6Material of Shaft70 mm forged 45#steel, quenching process7Main Motor Power4KW8Electrical Hydraulic Station Power4KW9Hydraulic Station Pressure12.0 Mpa10Electrical Control SystemPLC Panasonic Japan11Dimension (L*W*H)6500mm*1250mm*1300mm12Material of CutterCr12 Mov HRC 58-6213Driving Modesingle chain 1 inch14Material Thickness0.25-0.8mm15Cutting accuracy±2mm16Power Supply380V, 60HZ, 3 PHASES

2.Supply range:

NoItemQtyRemark15 ton manual decoiler1 2roll forming machine1 3Hydraulic station1 4Electric cabinet1 53m receiving table2 6Document2Operation manual7Spare parts1 set

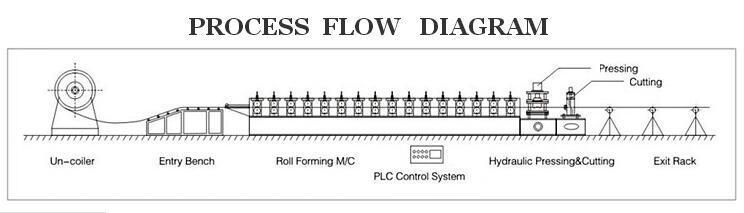

3.Equipment arrangement drawing(sample)

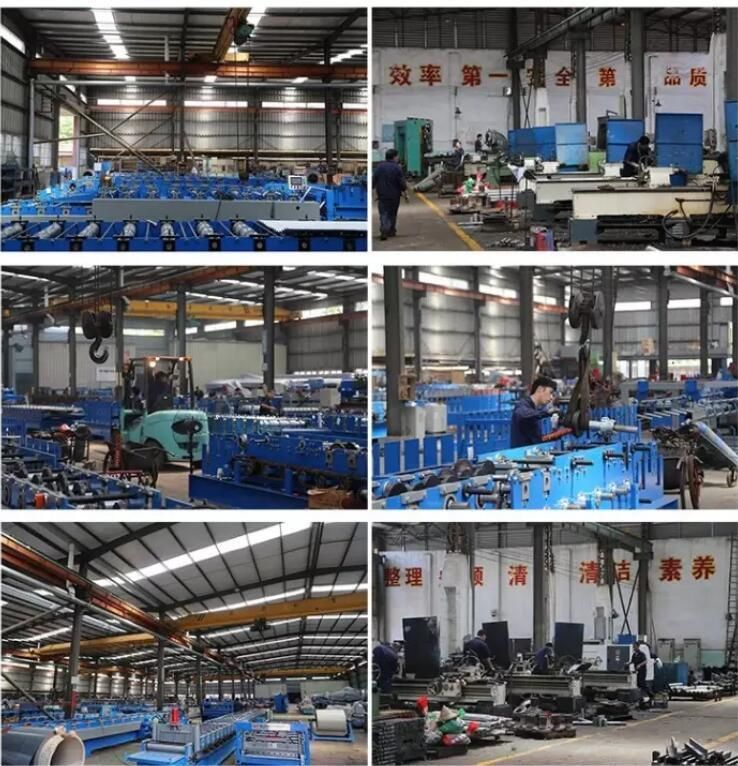

Company Introduce:

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.

Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China

Our Service

1. we can produce the special machine,send your drawing to us,we can design for you.

2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.

The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.

4. engineers available to service machinery overseas.

5. if you come to visit our factory,we can book the room for you, car pick up to send.
