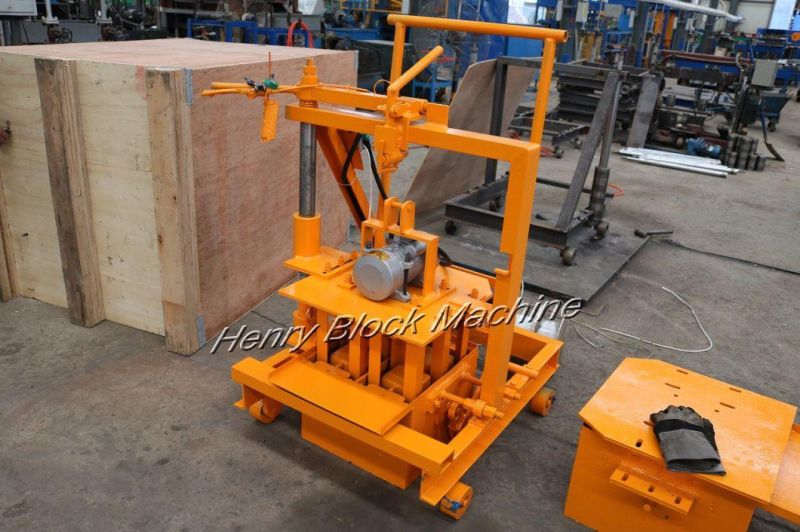

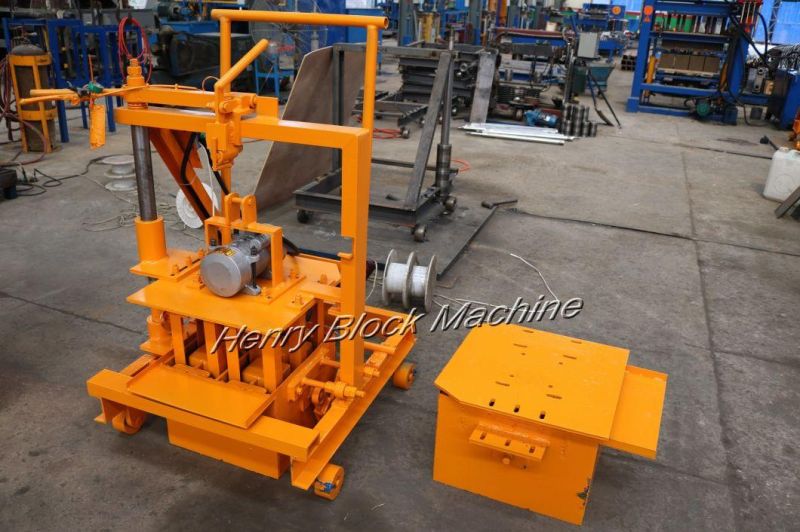

Qmr2-45 Egg Layer Block Making Machine with Single Phase
SHANDONG HENRY INTELLIGENT MACHINERY MANUFACTURING CO., LTD.- After-sales Service：24-Hours
- Warranty：3 Years
- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Semiautomatic
- Type：Vibration Molding
Base Info
- Model NO.：QMR2-45
- Colour：According to Your Demand
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Brick Raw Material：Concrete
- Voltage：220 V, 60Hz(Adjustable)
- Total Weight：300kg
- Vibration Frequency：2800 R.Pm
- Overall Size：900(L)×800(W)×1200(H)mm
- Transport Package：Nude Package, Iron Box Package or Container
- Specification：CE SGS ISO
- Trademark：HENRY
- Origin：Shandong Linyi
- HS Code：8474802000
- Production Capacity：1000 PCS of 40X20X20cm Blocks in 8 Hours
Description
Pallet sizeNO NEED NO NEED Vibration frequency 2800 r.pm Upper vibrator 0.75KW Nether vibrator 0.75 kw Electricity 220V/60HZ/ (adjustable) Total weight 300 KGS
Advantages of QMR2-45 block machine (for sell)
1.Movable block machine, no need bamboo pallet investment

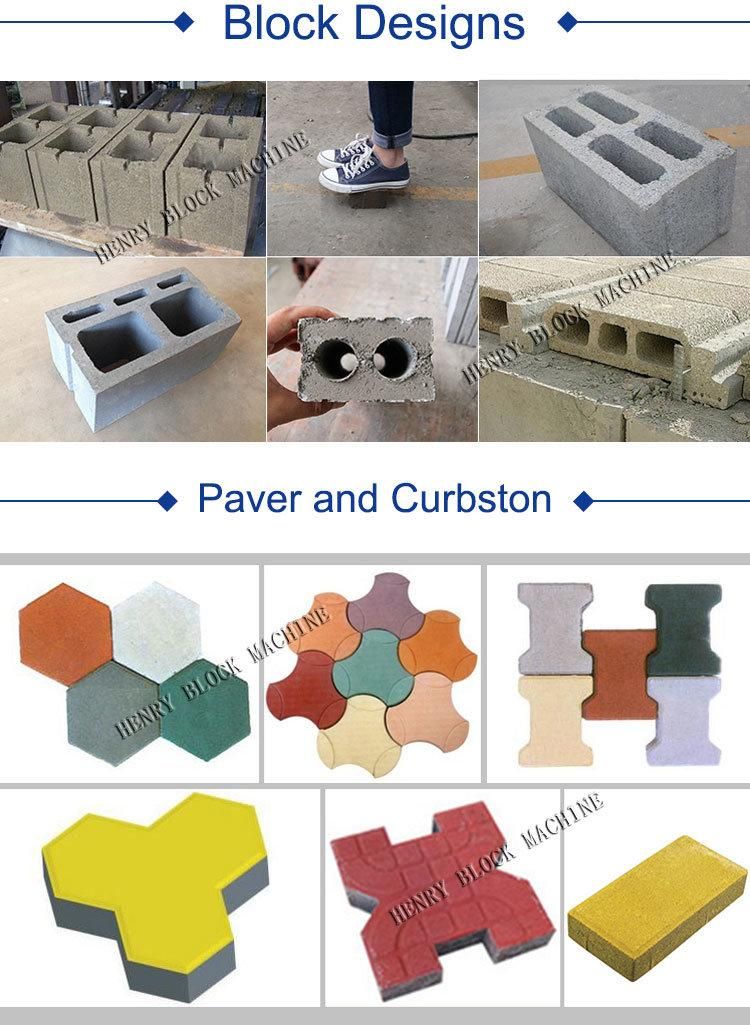

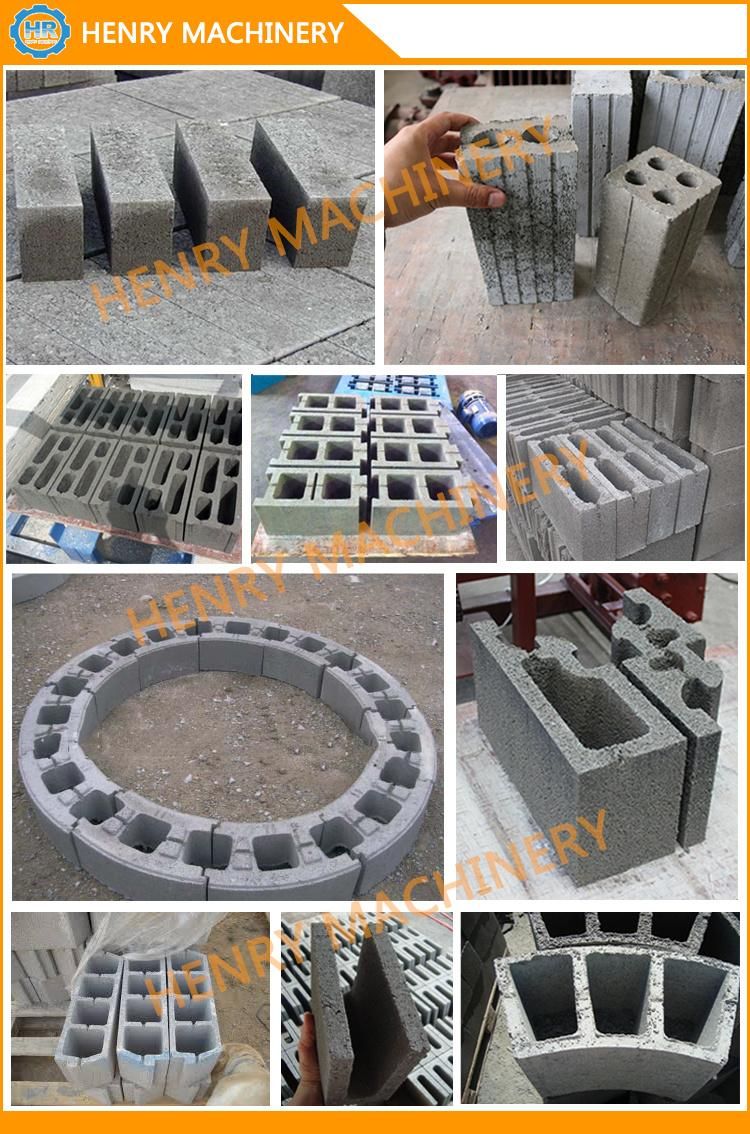

2.can produce different hollow block styles with different molds
3.with single phase, Easily operation
Material Ratio (take 400*200*200mm block as an example)
Characteristics of the Cement Block
Nine characteristics compared with clay brick:
1. Not using the clay as raw material to destroy any field
2. Making use of three industrial wastes to chang wastes into valuables
3. Not using fire to bake blocks and not building kiln to save resoures and fields
4. No chimney to protect the inviroment and avoid polution
5. Production process is simple, they can be made everywhere
6. Low investment and achieving much faster results, customers can profit in half a year after investing.
7. The block can be produced all around the year
8. Good looking, construct convenintly
9. Technical criteria is better than those of red brick and green brick
Company profile
Henry Industrial Co., Ltd has been committed to designer, manufacturer, saler of construction
machinery ,has the domestic advanced equipments, super professional skills. With over 23 years of
experience, we produce a wide range of products like hollow block machine, soil brick machine,
interlocking brick machine,paving machine, crusher, mixer, block mould and paving mould.
Among the same trade, the company took the lead in wining the ISO9001 and ISO14001environment
management system certificate, CE certificate, the"China Well-Known Trademark ", and "High and New
Tech enterprise certificate" Our products have been well sold to hundreds of countries and regions
such as Europe, America, Africa, the Middle east, Southeast Asia, etc, winning the high reputation of
customers from domestic and overseas.now has 3 offices in foreign countries.
Currently, we have perfected design of the machines, enhanced the performance of the machine,
improve the production process of the machine.and in price we made a substantial adjustment. Our
R&D team develops new designs every two months. I believe that your customers will be always
satisfied with our products and designs.
Our service
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan the condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3) 24 hours on-line service
(4)Welcome to visit our factory and production line any time, if you need, we can Make invitation letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other
FAQ:
1.Q: Can this machine make my block?
A: We will design suitable molds according to customers' drawing/picture of blocks.
2.Q: What is your payment term?
A: T/T,L/C, Escrow or others.
3.Q: what is your delivery time?
A: Normally with delivery time within 15 days after deposit.
4.Q: What is your minimum order quantity?
A: one set
5.Q: How about your packing and shipping?
A: Suitable for shipping, usually 20/40 feet container
Contact information
Advantages of QMR2-45 block machine (for sell)
1.Movable block machine, no need bamboo pallet investment
2.can produce different hollow block styles with different molds
3.with single phase, Easily operation
Material Ratio (take 400*200*200mm block as an example)
Block Strength(Mpa) | Cement (kg) | Sand and Stone (kg) | Quantity( 400*200*200) |
| 7.5Mpa | 100kg | 1700kg | 120pcs |
| 10.5Mpa | 100kg | 1250kg | 90pcs |
| 15Mpa | 100kg | 1025kg | 75pcs |
| 22.5Mpa | 100kg | 800kg | 60pcs |
| 30Mpa | 100kg | 605kg | 47pcs |
Characteristics of the Cement Block
Nine characteristics compared with clay brick:
1. Not using the clay as raw material to destroy any field
2. Making use of three industrial wastes to chang wastes into valuables
3. Not using fire to bake blocks and not building kiln to save resoures and fields
4. No chimney to protect the inviroment and avoid polution
5. Production process is simple, they can be made everywhere
6. Low investment and achieving much faster results, customers can profit in half a year after investing.
7. The block can be produced all around the year
8. Good looking, construct convenintly
9. Technical criteria is better than those of red brick and green brick
Company profile
Henry Industrial Co., Ltd has been committed to designer, manufacturer, saler of construction
machinery ,has the domestic advanced equipments, super professional skills. With over 23 years of
experience, we produce a wide range of products like hollow block machine, soil brick machine,
interlocking brick machine,paving machine, crusher, mixer, block mould and paving mould.
Among the same trade, the company took the lead in wining the ISO9001 and ISO14001environment
management system certificate, CE certificate, the"China Well-Known Trademark ", and "High and New
Tech enterprise certificate" Our products have been well sold to hundreds of countries and regions
such as Europe, America, Africa, the Middle east, Southeast Asia, etc, winning the high reputation of
customers from domestic and overseas.now has 3 offices in foreign countries.
Currently, we have perfected design of the machines, enhanced the performance of the machine,
improve the production process of the machine.and in price we made a substantial adjustment. Our
R&D team develops new designs every two months. I believe that your customers will be always
satisfied with our products and designs.
Our service
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan the condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3) 24 hours on-line service
(4)Welcome to visit our factory and production line any time, if you need, we can Make invitation letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other
FAQ:
1.Q: Can this machine make my block?
A: We will design suitable molds according to customers' drawing/picture of blocks.
2.Q: What is your payment term?
A: T/T,L/C, Escrow or others.
3.Q: what is your delivery time?
A: Normally with delivery time within 15 days after deposit.
4.Q: What is your minimum order quantity?
A: one set
5.Q: How about your packing and shipping?
A: Suitable for shipping, usually 20/40 feet container
Contact information
