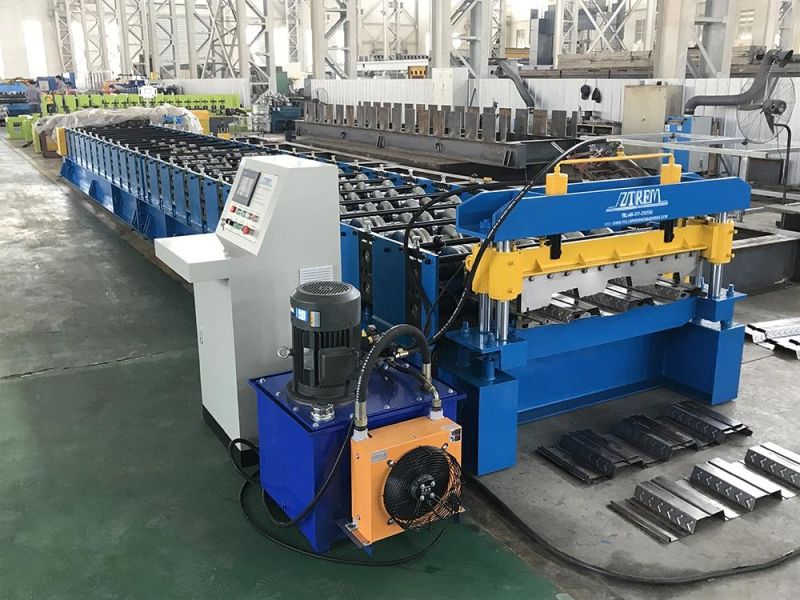

Metal Galvanized Panel Floor Deck Roll Forming Machine Floor Decking Machine
General Industry Tech Hebei Developing Co., Ltd.- Tile Type：Galvanized
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof, Floor
- Transmission Method：Hydraulic Pressure
Base Info
- Model NO.：FLD-ZTRFM
- Speed：12m,Min
- Coil Thickness：0.3-1.5mm
- D.Shaft：80mm
- Main Frame：350h
- Power：15kw
- Weight：8t
- Dimension：7500X1500X1910mm
- Voltage：380V 3phase 50Hz
- Material of Roller：High Grade 45# Forged Steel Plated with Hard Chrom
- Material of Cutting：Cr12 Mould Steel with Quenched Treatment
- Workers：1-2 Only
- Transport Package：Container
- Specification：40ft
- Trademark：GEIT-ZTRFM
- Origin：China
- HS Code：8455221000
- Production Capacity：200sets,Year
Description
Overview
Product Parameters
Product Description

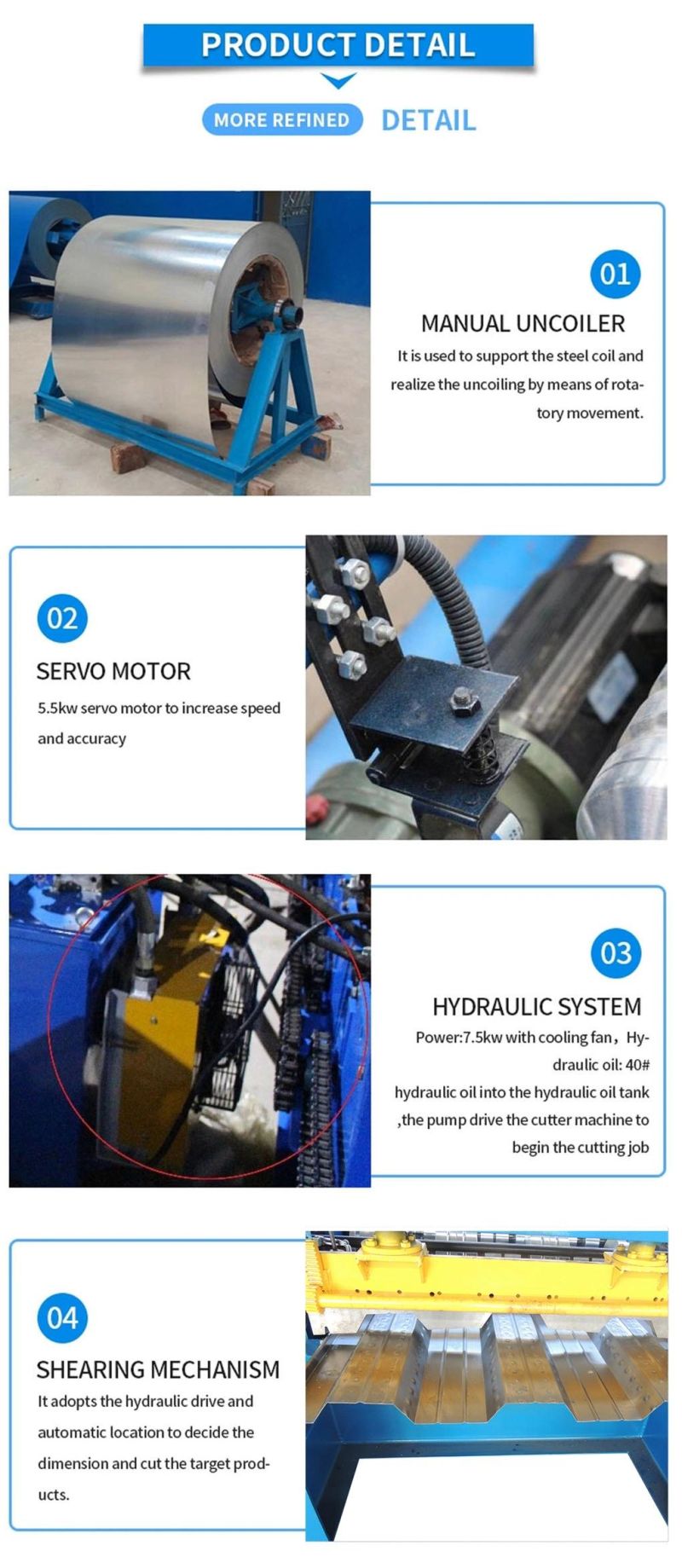

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
GEIT GROUP is a professional manufacturer and exporter which is concerned with the design, development and production of cold roll forming machines.
The factory located in Botou-Hebei, which focus on designing and manufacturing of different types cold roll forming machines.
