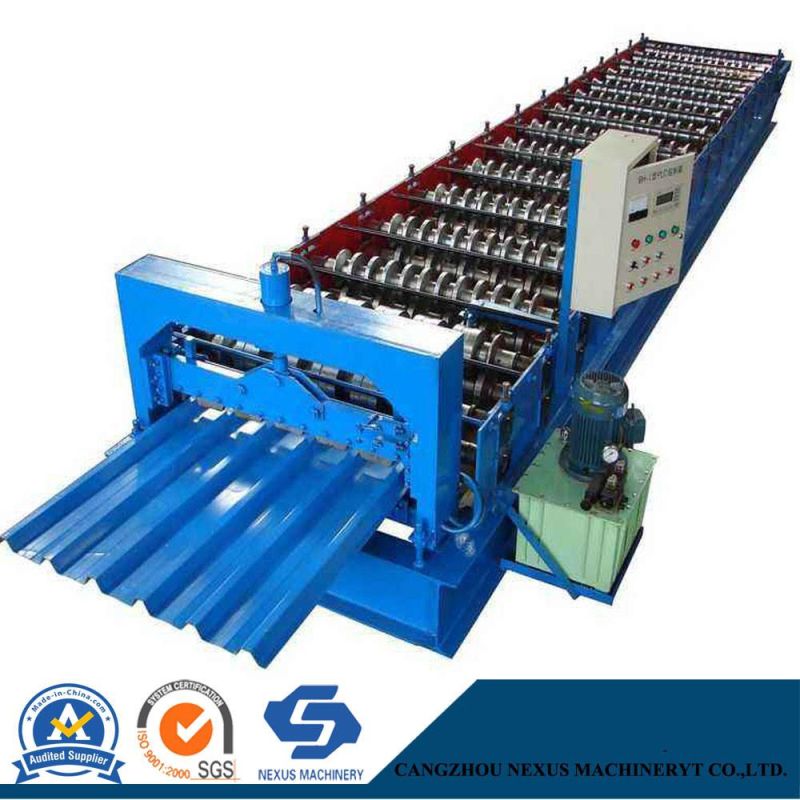

Color Steel Roof Sheet Roll Forming Machine with Lowest Price
Cangzhou Nexus Machinery Co., Ltd.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof, Wall
- Transmission Method：Electric
Base Info
- Model NO.：NM322
- Product Name：Color Steel Roof Sheet Roll Forming Machine
- Raw Material：PPGI Sheet
- Thickness Range：0.3-0.6mm
- Machine Power：3kw+3kw
- Forming Speed：10-12m,Min
- Operation Type：Touch Screen
- Operation Language：English and Chinese
- Machine Weight：About 3 Tons
- PLC Brand：Sanjing
- Warranty：1 Year
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：5500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：Cangzhou, China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
Description
Manual decoilerCapacity 5ton Feeding width MAX 1300mm Expanding range 460-520mm Main motor power 3kw Drive 1'' single chain Type: Wall board Main shaft dia ¢70mm material 45# forge steel and quenched Roller material 45# high grade forge steel ,chrome coated 0.05mm Roll station 12groups Raw material 0.3-0.7mm Coil width 1000mm Working speed 10m--15m/min(Exclude cutting time) Length Tolerance ±1.5mm Weight of machine About 5 ton Size of machine About 7500×1800×1500mm L x W x H Color of machine Yellow and Blue Coder Omron, made in Japan Control PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) Computer operating panel touching screen Other electrical element Schneider Cutting Hydraulic cutting. Auto cutting when reach the set length Hydraulic power 3KW Blade material Cr12mov,quenched 58°-62° Working pressure 16mpa Cutting tolerance +/- 1.0mm
4. Equipment list :
5. Character of main structure:
7. More Products for Choose:
Exhibitions Photos:
FAQ:
4. Equipment list :
| No. | Product Name | QTY |

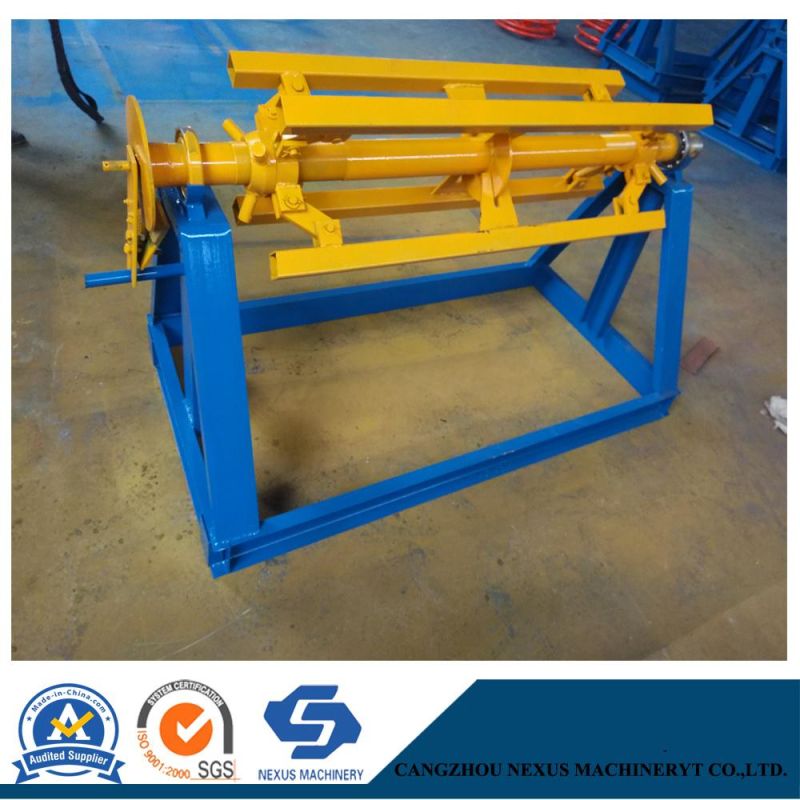

| 1 | 5T Manual decoiler | 1 |

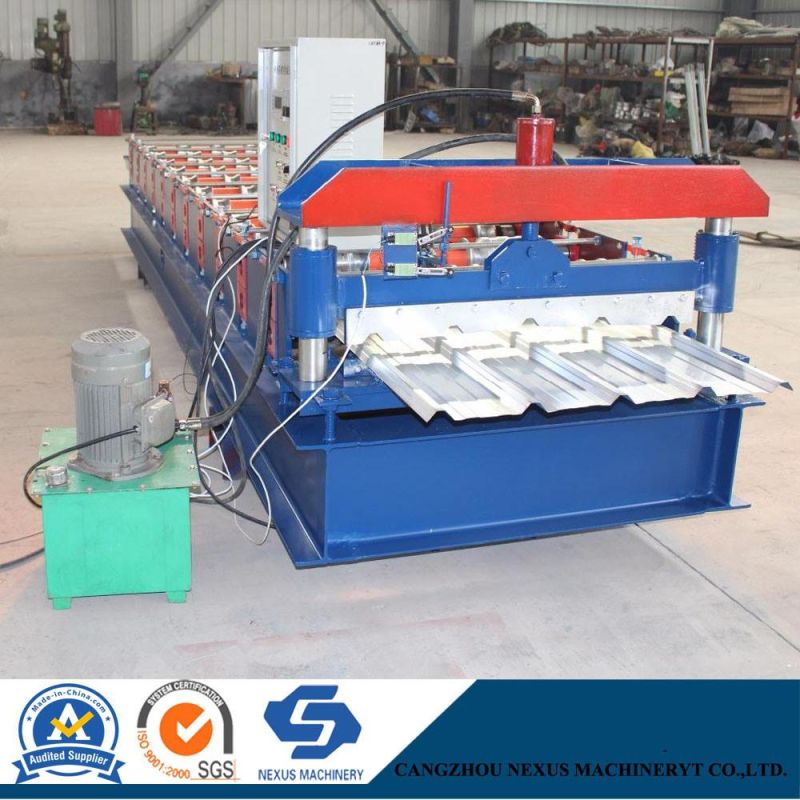

| 2 | Color Steel Roof Sheet Roll Forming Machine with Lowest Price (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 4 |
5. Character of main structure:
- The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
- All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
- We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
- It is very easy to install the equipment and suitable for producing in the factory.
- Low noise with high efficiency.

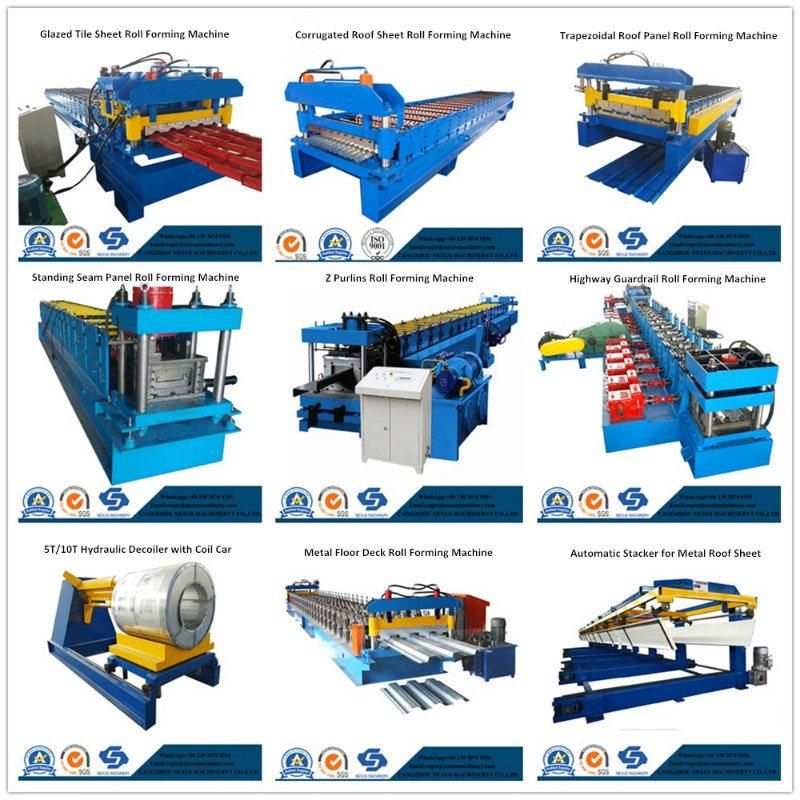

7. More Products for Choose:
Exhibitions Photos:
FAQ:
- Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. - What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. - Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport. - Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer in China.
