• Model NO.：LZF3-300*100G
• Input Voltage：380V 50Hz
• Input Power：2.2 Kw
• Air Pressure：0.4~0.6MPa
• Air Consumption：30L,Min
• Rotation Speed：11000r,Min
• Cutter Diameter：5mm , 8mm
• Copy Routing Range：300*100mm
• Overall Dimension：1130*1100*1460mm
• Transport Package：Plastic Film or Depends on Customers
• Specification：1130*1100*1460mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：40 Sets,Month

Basic Info.

Model NO. LZF3-300*100G Input Voltage 380V 50Hz Input Power 2.2 Kw Air Pressure 0.4~0.6MPa Air Consumption 30L/Min Rotation Speed 11000r/Min Cutter Diameter 5mm / 8mm Copy Routing Range 300*100mm Overall Dimension 1130*1100*1460mm Transport Package Plastic Film or Depends on Customers Specification 1130*1100*1460mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 40 Sets/Month

Product Description

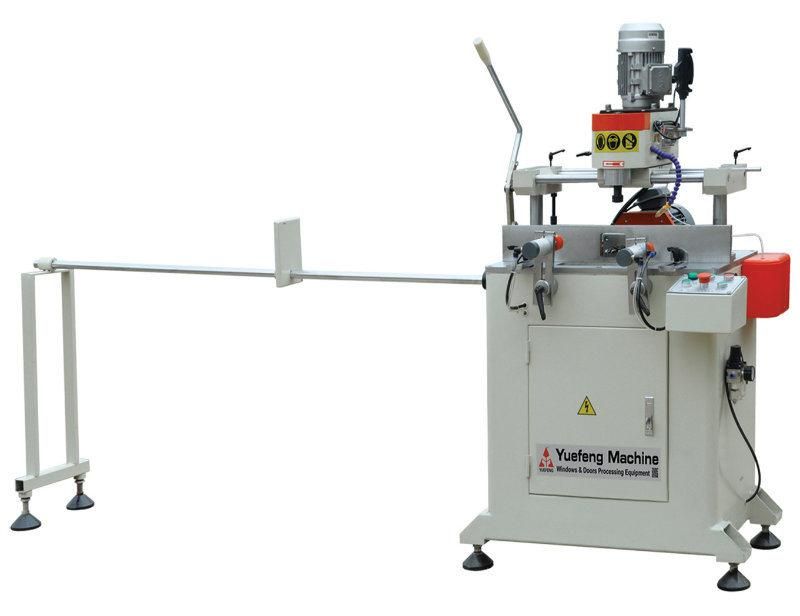

LZF-300×100G   Single-axis Copy Router

Product Description

> It is composed of three-hole drill and copy-routing mill.

> It process various kinds of holes, grooves and water-slots.

> It adopts high-speed precision spindle, results good rigidity, stable and reliable.

> It has the auto-locking function when feeding, more portable operation.

> The machine head for three-hole drill be installed on the back of the machine, more convenient.

> Changeable templates with different holes and grooves.

> It has the features of wide application range, high efficiency, safe and easy operation.

Technical Parameter:


Model	LZF3-300×100G
Input voltage	380V 50Hz
Input power	2.2 Kw
Air pressure	0.4~0.6MPa
Air consumption	30L/min
Rotation speed	11000r/min
Cutter diameter	φ5mm / φ8mm
Copy routing range	300×100mm
Overall dimension	1130×1100×1460mm
