Product Description

SPIRAL WELDED PIPE MILL
Introduction
Spiral welded pipe mill is used to roll the low carbon steel/ low alloy steel strip into tube by a certain forming angle, further weld it into steel pipe by sub-merged arc welder. Large diameter pipes can be produced with narrow steel strip.
Spiral welded pipe mill is most competitive in world market, most mature technical characteristics product. Product specifications range from Φ25 mm to Φ3620 mm.
Production Flow
Model

No	Model	Specification	Coil Width(mm)	Thickness(mm)	Capacity(kw)	Area(M2)
1	HNHLX 820	Φ219~Φ820	350~1300	3~14	500	30×400
2	HNHLX  1020	Φ273~Φ1020	350~1300	3~16	800	30×400
3	HNHLX  1420	Φ325~Φ1420	500~1600	3~18	1000	30×400
4	HNHLX  1620	Φ426~Φ1620	500~1600	4~25.4	1500	30×400
5	HNHLX  1820	Φ508~Φ1820	500~2000	4~25.4	1500	30×400
6	HNHLX  2020	Φ508~Φ2020	500~2000	4~25.4	1500	30×400
7	HNHLX  2400	Φ508~Φ2400	500~2000	4~25.4	1800	30×400
8	HNHLX  3000	Φ610~Φ3000	500~2000	4~25.4	1800	30×400
9	HNHLX  3500	Φ720~Φ3500	600~2000	4~25.4	2000	30×400

Successful project designed and produced by SXHNGK

Φ219-Φ530x16 Straight Seam Welded Pipe Production Line, Russia


Φ219-Φ530x16 Straight Seam Welded Pipe Line, Kazakhstan

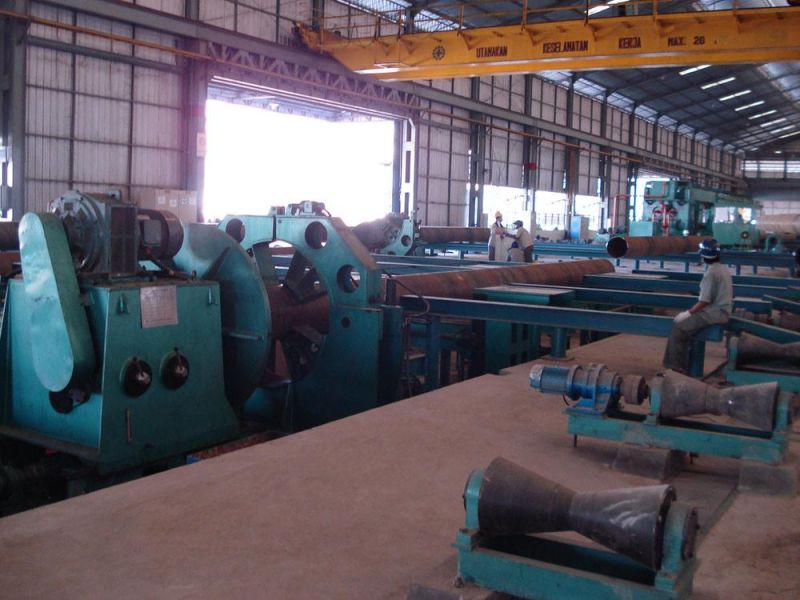

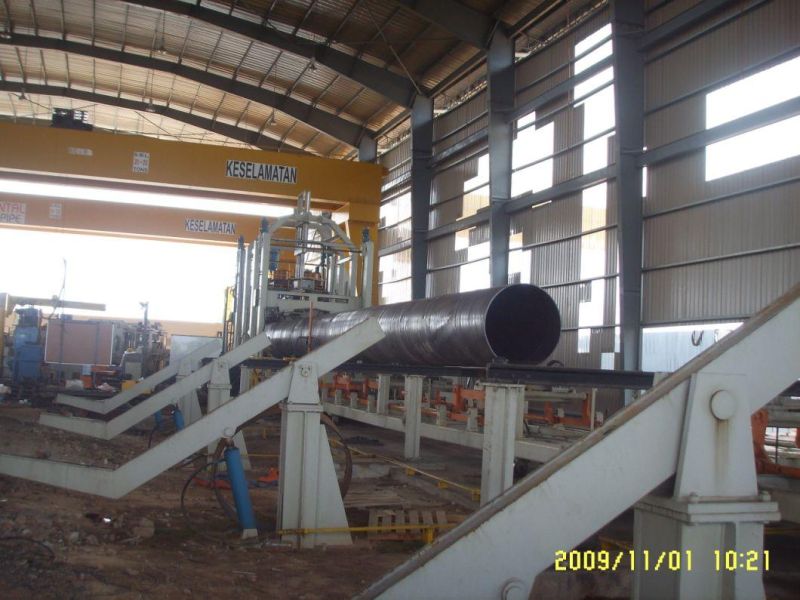

Φ610~Φ3000 Spiral Welded Pipe Line, Malaysia

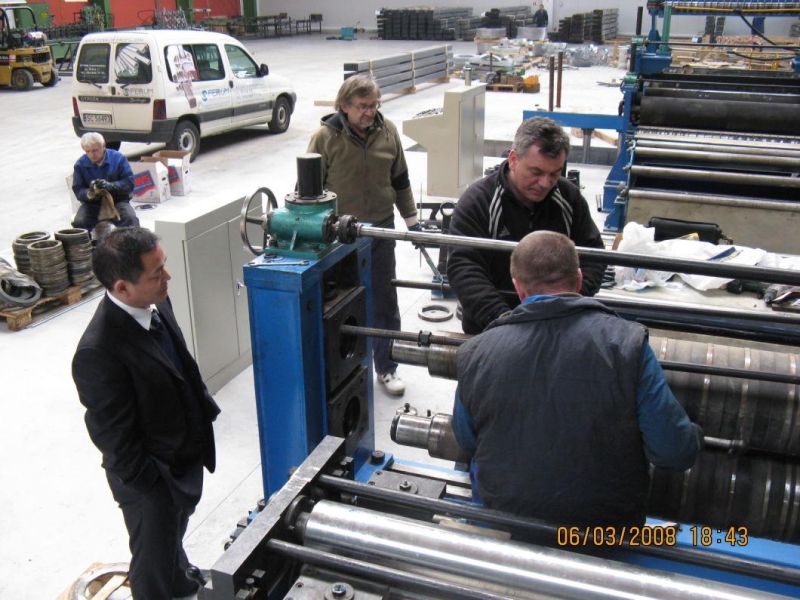

Slitting Line, Poland



Φ1820 Spiral Welded Pipe Line,Indonesia




Spiral Welded Pipe Line, Thailand

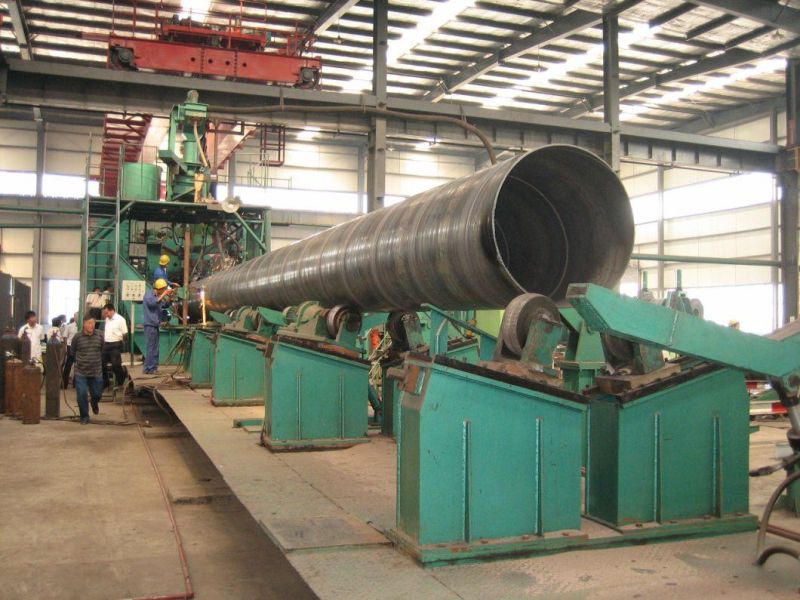

Φ3620 Spiral Welded Pipe Line, Shandong, China




325*2.3mm SS Ultra-thin Straight Seam Welded Pipe Production Line, Shanxi,China
Φ219-Φ820x14 Spiral Welded Pipe Production Line ,Liaoning, China

Φ219-Φ711x22mm Straight Seam Submerged Arc Welded Pipe Line ,Hebei, China
2150x16 Cut to lenght and slitting combined line,Liaoning, China
Φ508~Φ1820 Spiral Welded Pipe Line, Hengshui, Hebei, China


Φ273~Φ630 Stainless Steel Welded Pipe Line, Yingkou, Liaoning, China

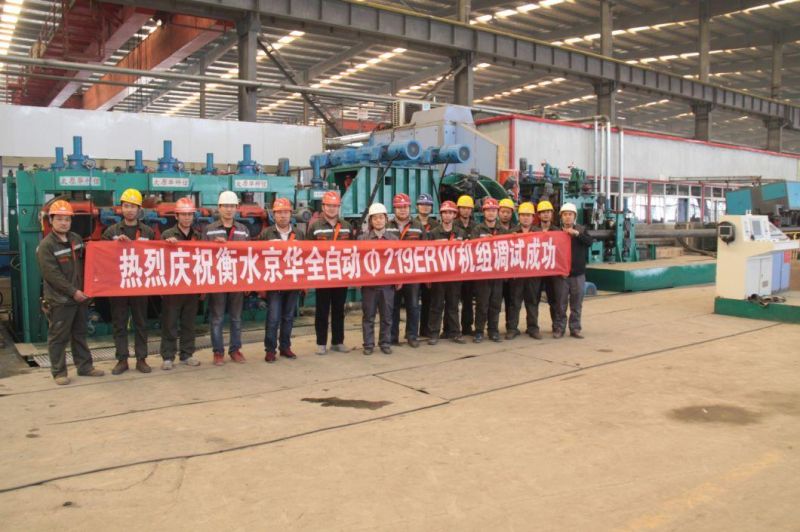

Φ219~Φ508 Fully Automatic ERW Welded Pipe Line Without Change Roller ,Hengshui, Hebei, China




If you want to know more information, please feel free to send e-mail to me in any time.

Hope we will have a happy cooperation.

Shanxi Haina H-Tech Precision Machinery Co.,Ltd
