Customized Profile Color Steel Corrugated Roof Tile Roll Forming Machine
Cangzhou Nexus Machinery Co., Ltd.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof, Wall
- Transmission Method：Electric
Base Info
- Model NO.：NX1000
- Product Name：Color Steel Corrugated Roof Tile Machine
- Raw Material：PPGI Sheet
- Feeding Width：1000mm,1219mm
- Thickness Range：0.3-0.8mm
- Machine Power：5.5kw+3kw
- Forming Speed：10-15m,Min
- Roller Station：16-22 Groups
- Operation Type：Touching Screen PLC
- Machine Weight：About 5 Tons
- Warranty：12 Months
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：6500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：Hebei, China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
Description
No.
Item
Specification
1
Can Formed Material
PPGI,GI,AI
2
Equipment operation
Automatic
3
Voltage
380V 50Hz 3Phase or as your requirement
4
Thickness of sheet (mm)
0.3-0.7mm
5
Material width(mm)
As your requirement
6
Cover Width of the sheet after formed
as your drawing
7
The size of the roll forming machine
7500mmx1600mmx1300mm
8
Speed
8-15m/min
9
Diameter of shaft
70mm
10
Weight of the Machine
4000-4500KGS
11
Material of rollers
#45 steel quenched and chromed
12
Motor brand
Siemens or Guomao
13
PLC
Siemens or Delta or Mitsubushi
14
Total power (kw)
7kw
15
Power of hydraulic system
3kw
16
Power of main molding core
4kw
4. Equipment list :
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 1 |
| 2 | Customized Profile Color Steel Corrugated Roof Tile Roll Forming Machine (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 4 |

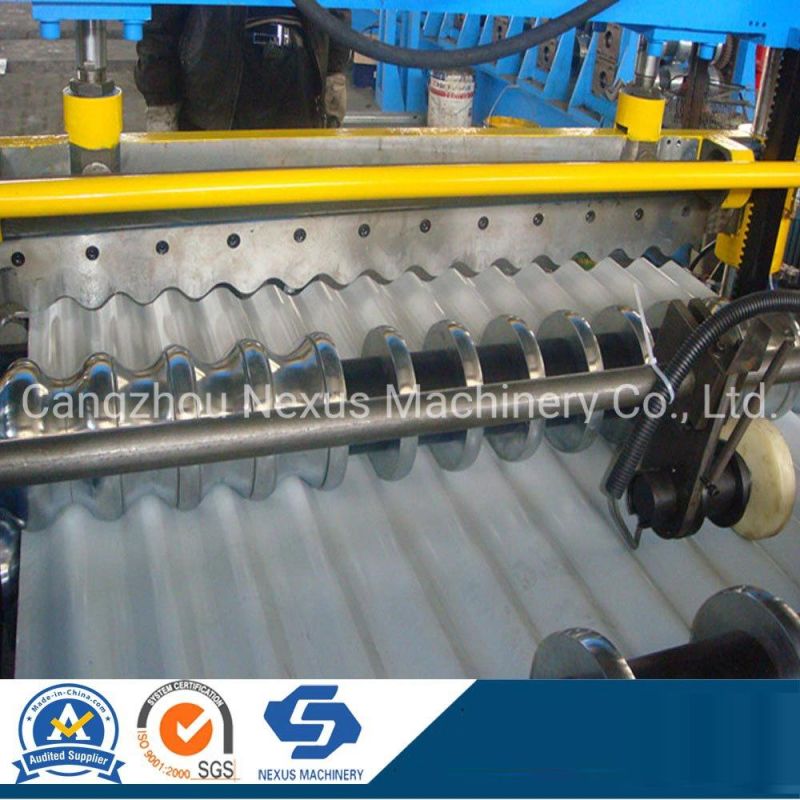

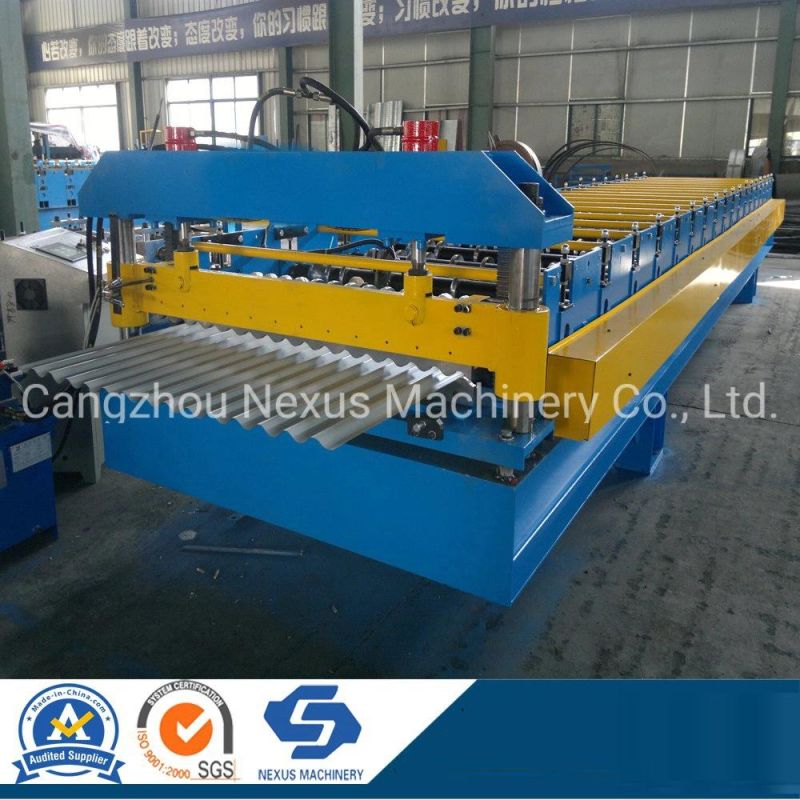

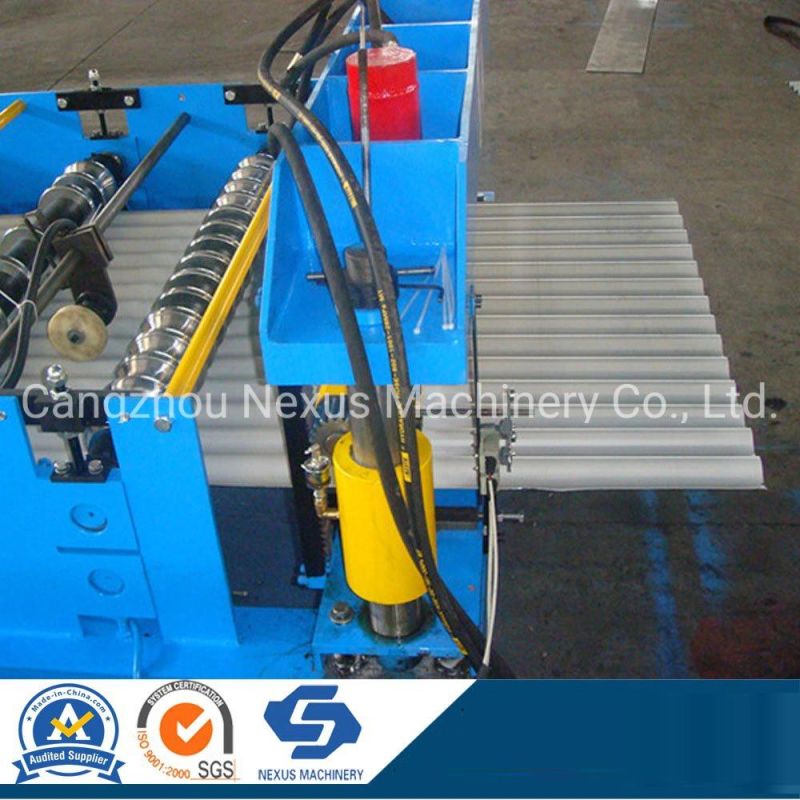

Photos of Customized Profile Color Steel Corrugated Roof Tile Roll Forming Machine for Reference:
More Photos for your choose:
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
