Dumurangi Ibr Roof Sheet Roll Forming Machine Double Layer Corrugated Roofing Machine
Cangzhou Nexus Machinery Co., Ltd.- Warranty：12 Months
- Tile Type：Colored Steel
Base Info
- Model NO.：NM1021
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof, Wall
- Transmission Method：Electric
- Product Name：Dumurangi Ibr Corrugated Double Layer Machine
- Raw Material：PPGI Sheet
- Thickness Range：0.3-0.8mm
- Machine Power：5.5kw+3kw
- Machine Weight：About 6 Tons
- Afer-Sales Service：Engineer Is Availble to Overseas
- Main Shaft Dia：70mm
- Working Speed：10m--15m,Min(Exclude Cutting Time)
- Roll Station：13 Groups and 15 Groups

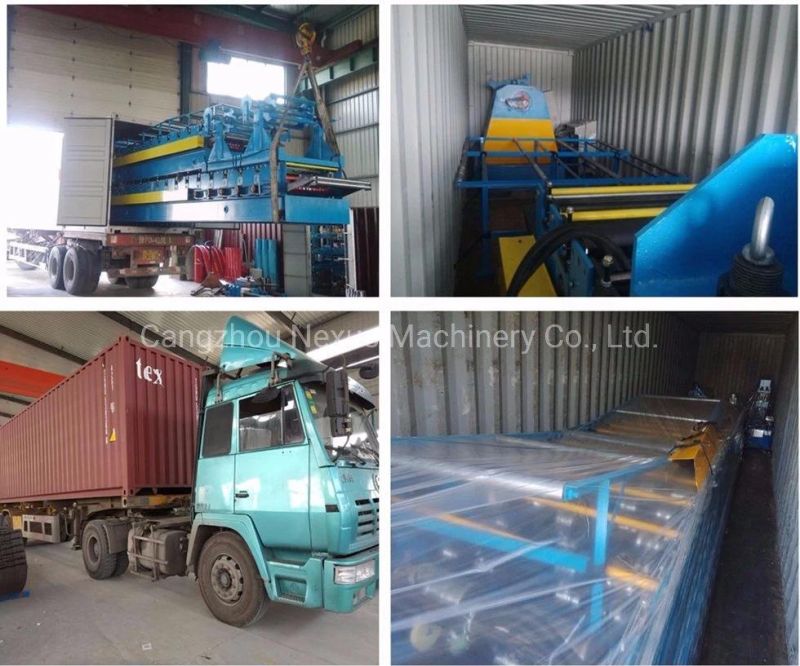

- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：8500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：Cangzhou, China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
- Package size per unit product：750.00cm * 150.00cm * 180.00cm
- Gross weight per unit product：6000.000kg
Description

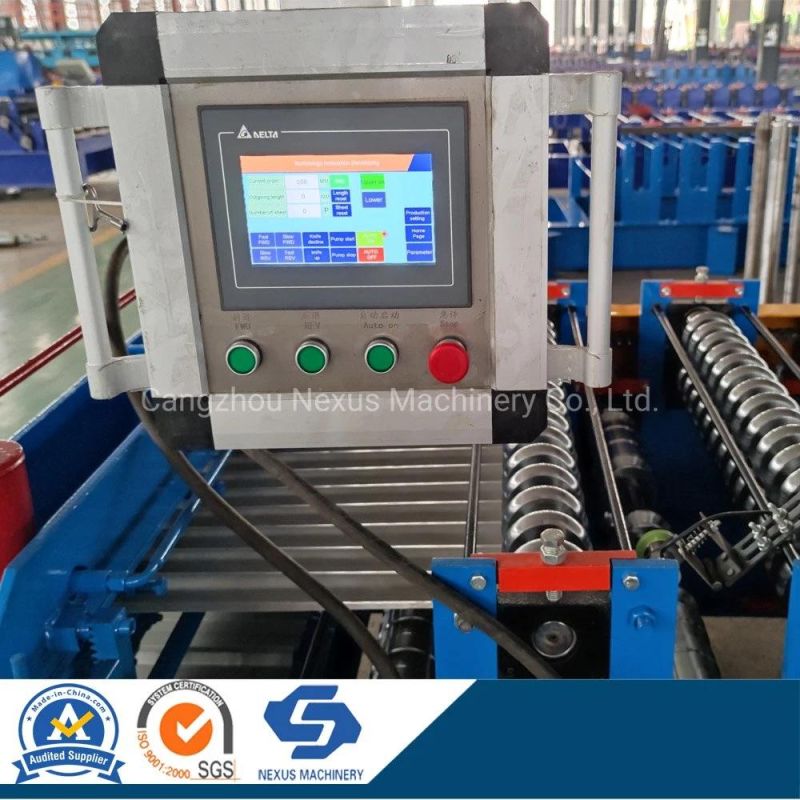

Manual decoilerCapacity 5ton Feeding width MAX 1000mm Expanding range 460-520mm Main motor power 5.5 kw Drive 1'' single chain Type: Wall board Main shaft dia ¢70mm material 45# forge steel and quenched Roller material 45# high grade forge steel ,chrome coated 0.05mm Roll station 13 groups for corrugated sheet and 15 groups for IBR sheet Raw material 0.3-0.8mm Coil width 914mm Working speed 10m--15m/min(Exclude cutting time) Length Tolerance ±1.5mm Weight of machine About 6 ton Size of machine About 6500×1800×1500mm L x W x H Color of machine Yellow and Blue Coder Omron, made in Japan Control PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) Computer operating panel touching screen Other electrical element Schneider Cutting Hydraulic cutting. Auto cutting when reach the set length Hydraulic power 3KW Blade material Cr12mov,quenched 58°-62° Working pressure 16mpa Cutting tolerance +/- 1.0mm
4. Equipment list :
5. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

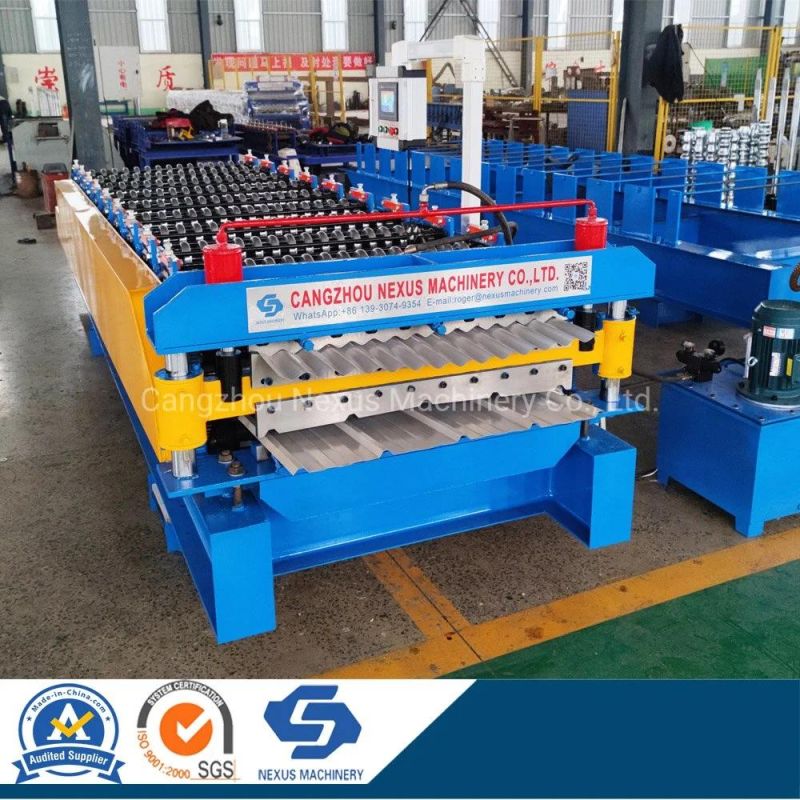

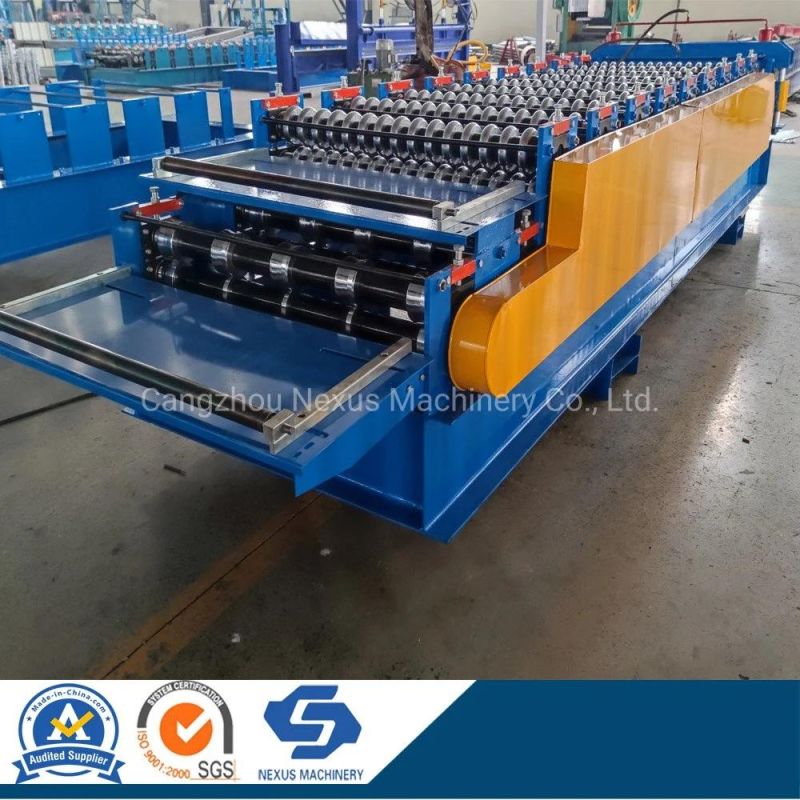

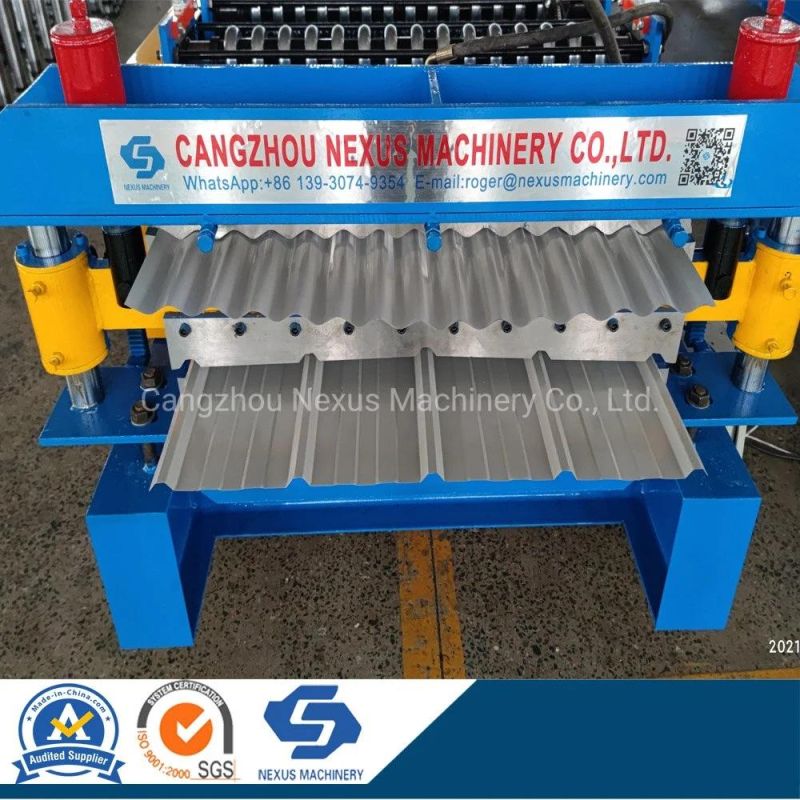

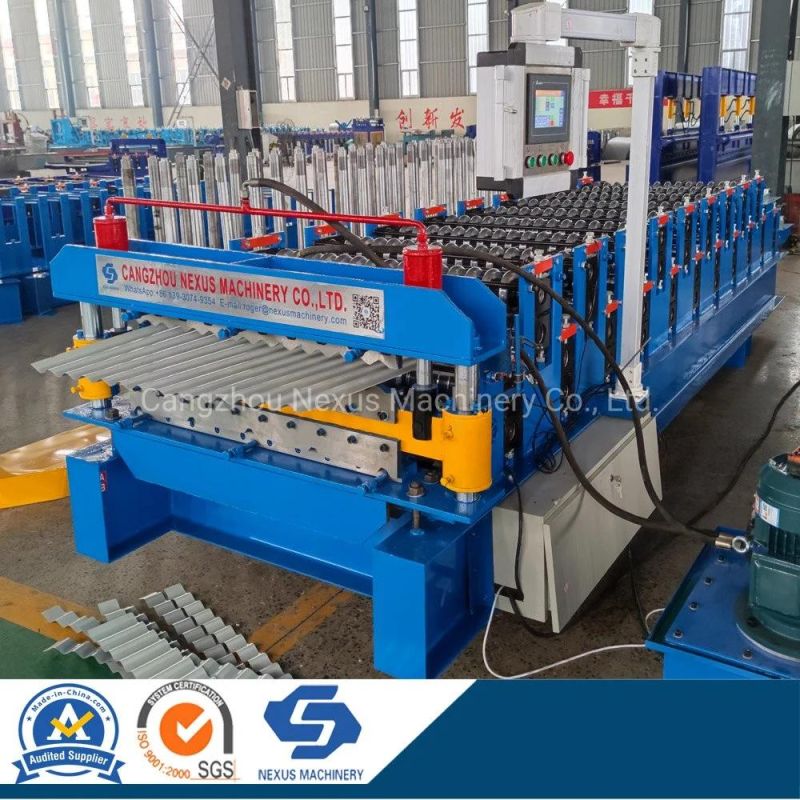

6. Photos of Dumurangi IBR Roof Sheet Roll Forming Machine Double Layer Corrugated Roofing Machine for Reference:
7. Why Choose US?
1. More than 10 years experiences in manufacturing&exporting roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
4. Equipment list :
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 2 |
| 2 | Dumurangi IBR Roof Sheet Roll Forming Machine Double Layer Corrugated Roofing Machine (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 5 |
5. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
6. Photos of Dumurangi IBR Roof Sheet Roll Forming Machine Double Layer Corrugated Roofing Machine for Reference:
7. Why Choose US?
1. More than 10 years experiences in manufacturing&exporting roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
