Qt5 Compressed Vibration Block Making Machine in Vietnam

Qingdao HF Machinery Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Vibration Molding

Base Info

  • Pallet Size：1100*550mm
  • Power：26.5kw
  • Weight：5500kg
  • Cycle Time：15s
  • Rated Pressure：16MPa
  • Factory Area：1500m2
  • Color：Optional
  • Productivity：7200-9600 Pieces,8hour
  • Automatic：Yes
  • Transport Package：Container
  • Specification：5120*1950*2810mm
  • Trademark：HF
  • Origin：Shandong, China
  • HS Code：8474802000
  • Production Capacity：400*200*200mm Block 7200-9600 Pieces,8hour

Description

MoldeQT5-15Global dimension5120*1950*2810mmCycle time15sPoder total26.5KWPallet size1100*550mmRaw MaterialsPiedra triturada, arena, cemento, polvo y cenizas volantes de carbón, ceniza, escoria, ganaue, grava, perlita y otros residuos industriales.Applied ProductsConcrete blocks, solid / hollow / cellular masonry products, pavers with or without face mix, garden and landscaping products, slabs, curbs, curbs, grass blocks, slope blocks, interlocking blocks, etc.Applied fieldsWidely used in buildings, road pavements, squares, gardens, landscaping, city constructions, etc.

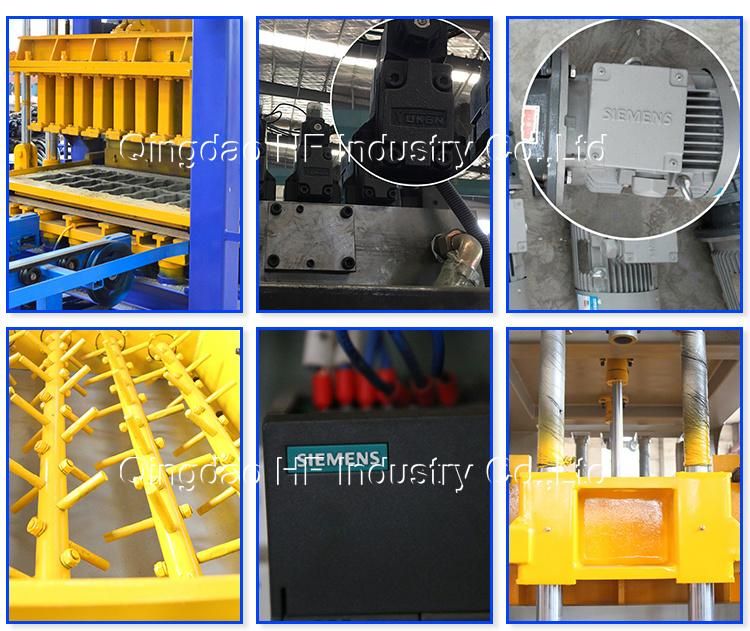

Qt5 Compressed Vibration Block Making Machine in VietnamVIBRATION SYSTEMThis is the core technology of block machine, because it is the main power to forming blocks. our machine adopts advanced vibration technology, use four sets vibration motor , can supply stronger vibration force and we increased vibration box ,  make vibration force more uniform, ensure the blocks with high quality.
Our vibration motor is Siemens brand , good quality ensure machine work more stable.
I attached a video, you can see from the video that our worker can stand on wet block directly and the material without any cement.HYDRAULIC SYSTEMThe hydraulic system makes the machine working fully automatically , it control material feeder, molds movement and also color material feeder, supply the pressure when forming blocks, make the blocks with smoothly surface and high strength.
Our hydraulic system adopt Japan Yuken Hydraulic Valve , it makes hydraulic system work flexibly and multi-directionally, making the machine run faster and more stable, providing sufficient pressure to make the bricks strongerMOTORThe machine we use good steel for you , you can see the the stell model is Q345, ensure the machine have high quality,
the block mold material is Manganese steel, it is more strong steel , we deal with heat treatment technology and line cutting technology , can ensure the mold more wear-resistant with long service lifeCONTROL SYSTEMwe adopt advanced control system, cooperate with Siemens, ABB and other famous brands, ensure the machine can working stable and fast, you can control machine all steps through adjust the PLC data
We equip the control box with an inverter, which can not only protect the motor from short circuit, but also control the speed of the motor through the inverter, which can better control the machine to make different bricks.  Block NameSizeQty/ mouldCycle timeQty/hourQty/8hourHollow block400x200x2005pcs15-20s900-1200pcs7200-9600pcsHollow block400x150x2006pcs15-20s1080-1440pcs8640-11520pcsHollow block400x100x2009pcs15-20s1620-2160pcs13000-17280pcsSolid block240x115x5332pcs15-20s6700-7700pcs53600-61600pcsColor paver225x112.5x6016pcs20-25s2300-2880pcs18400-23000pcsColor paver200x100x6020pcs20-25s2880-3600pcs23000-28800pcsOUR  SERVICE
