• Model NO.：CLXF-CNC-1200
• Input Power：3kw
• Rotary Speed：18000r,Min
• Air Pressure：0.5-0.8MPa
• Dia. Drilling Cutter：Dia.5, Dia 8
• Max. Processing Width：250mm
• Air Consumtion：20L,Min
• Machine Dimension：3300*1400*1700mm
• Weight：700kg
• Transport Package：Wooden
• Specification：1200mm
• Trademark：Truepro
• Origin：China
• HS Code：846510
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLXF-CNC-1200 Input Power 3kw Rotary Speed 18000r/Min Air Pressure 0.5-0.8MPa Dia. Drilling Cutter Dia.5, Dia 8 Max. Processing Width 250mm Air Consumtion 20L/Min Machine Dimension 3300*1400*1700mm Weight 700kg Transport Package Wooden Specification 1200mm Trademark Truepro Origin China HS Code 846510 Production Capacity 500sets/Year

Product Description

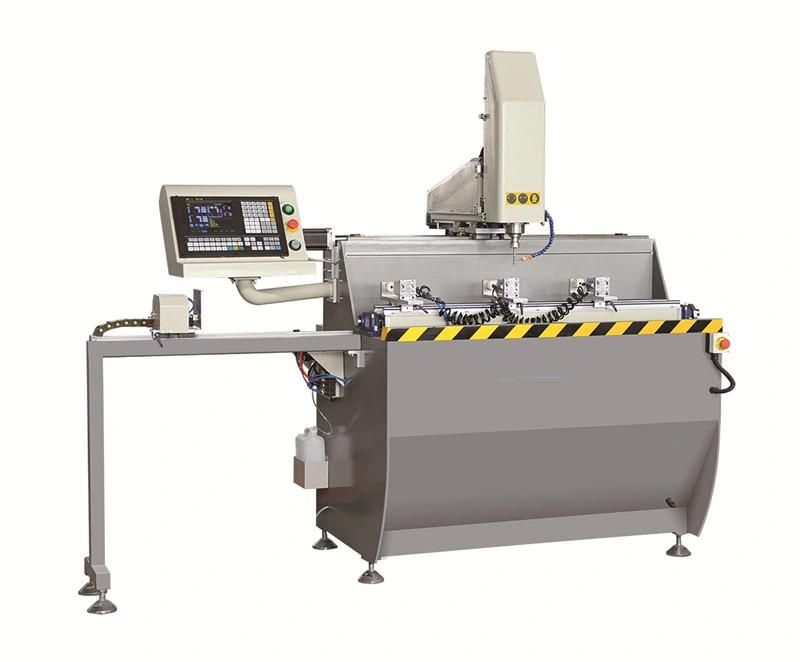

China high quality aluminum 3 axis CNC milling machines for window and door making
Machine feature:

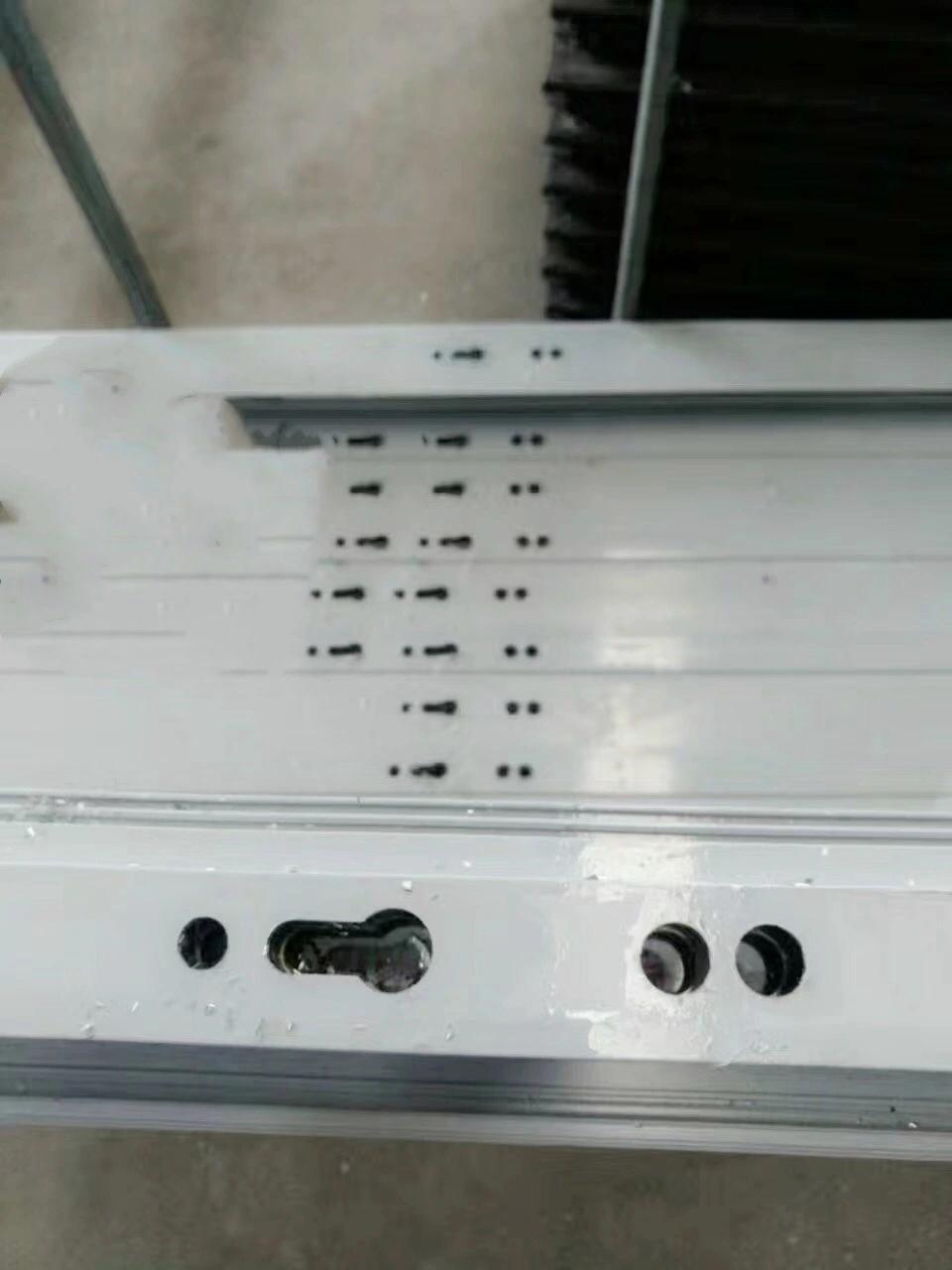

1.Used for aluminum profile and PVC profile shape holes, round holes etc drilling and milling.

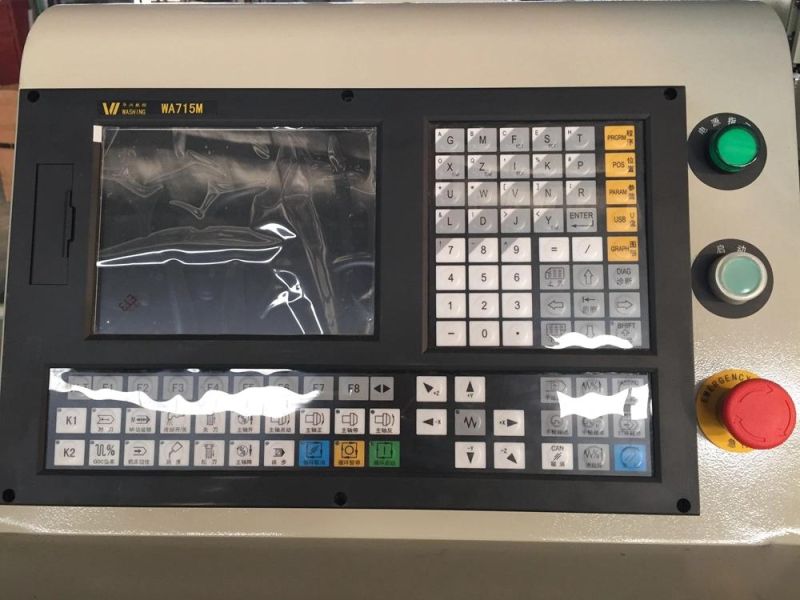

2.Adopts standard triaxial CNC system, easy operation.

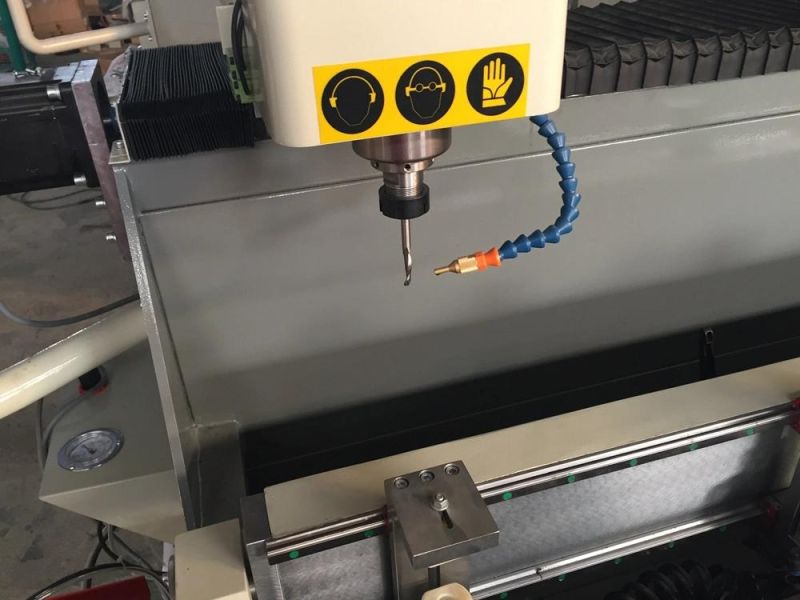

3.Adopts electric spindle with high precision, good security, high stability.
4.X,Y and Z axis adopts high precision ball bearing conveyor, runs stable.
5.ISO international standard G code programming, easy to operate.
6. The working table can automatic 0-90 degree tilting, one time profile loading, three sides processing, which ensure the
high precision and high efficiency.
Parameter:

Model	CLXF-CNC-1200
Input power	3KW
Main axis rev	18000rmp
Operation air pressure	0.5-0.6Mpa
Power supply	380V/ 50Hz
X axis speed	1200mm
Y axis speed	250mm
Z axis speed	250mm
Processing range	1000*100*200mm
Handle type	ER25*φ8
Overall dimension	2500*1500*1900mm
Weight	700kg

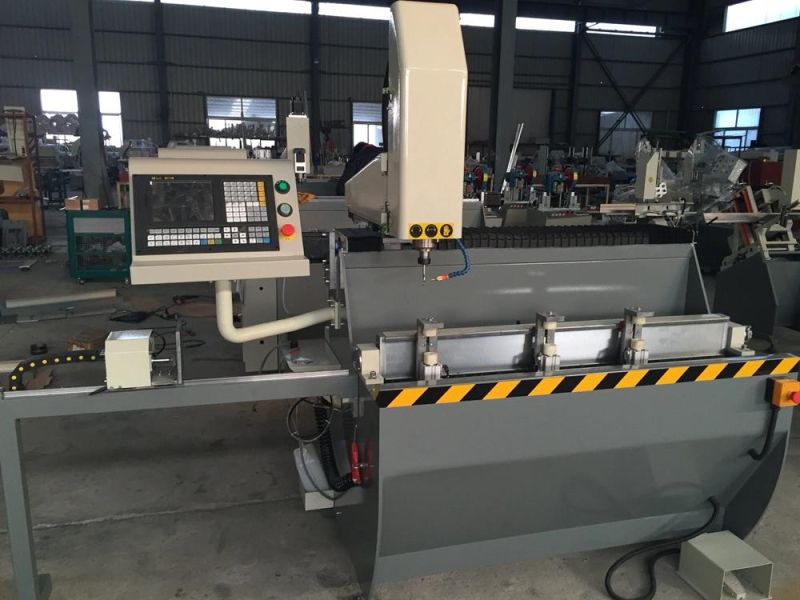

Machine details:



Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
